Description
Fits
Year |
Make |
Model |
2014-2018 |
GMC/ Chevrolet |
1500 |

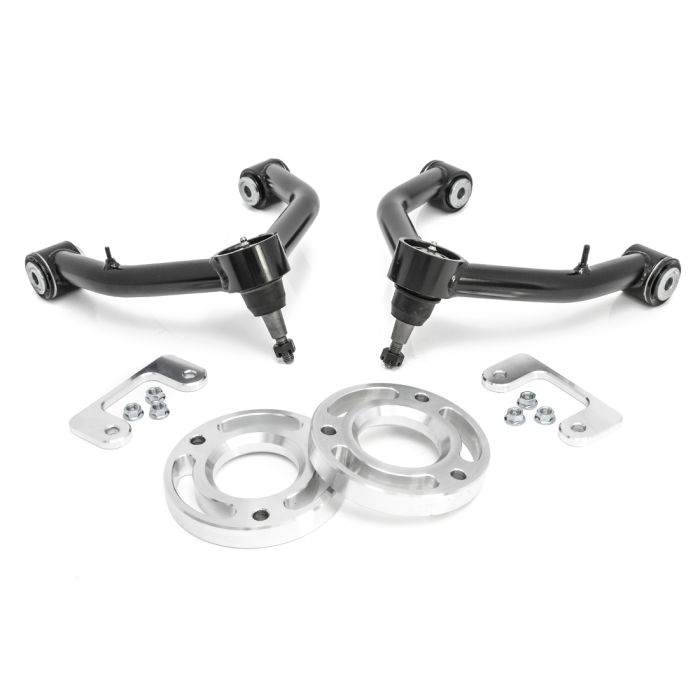

A direct replacement for the factory-stamped steel arms and includes proprietary HD ball joints, a maintenance-free anti-resistance bushing assembly that is self-lubricating and features a free-rotating inner sleeve. Your truck will sit level, maintain the factory ride and give you the peace of mind that you will never have the factory-stamped steel control arm failure.
Part Number: 66-3086
Features
- For 6-lug trucks/ SUVs
- CNC machined billet aluminum leveling kit
- DOM tube steel upper control arms with HD ball joints
- Maintenance free pivot bushings
- "side biter" splined washers for holding alignment
Tire Fitment:
- 33" Maximum tire diameter
- 33x11.50 for no rub on a 9" wide wheel with +12 offset
- 18" - 295/65R18
- 20" - 285/60R20
- 22" - 285/50R22
- Wheel spacers may be required with factory wheels
- The factory wheel options and difference in backspacing vary
Notes
- This kit is for use only with GM 1500 trucks with Stamped steel or aluminum control arm suspension. Not for use with cast steel suspension
- Not for use with vehicles equipped with factory Air-Ride
- Vehicles equipped with Magnetic Ride Control will require re-calibration. 1/2' wheel spacers may be required when using 285 or larger tire on the factory wheels.
- Check factory height prior to ordering or installing. Trucks with more than 22" of wheel hub to fender lip height may require less lift.
Installation
Click here to view installation instructions
