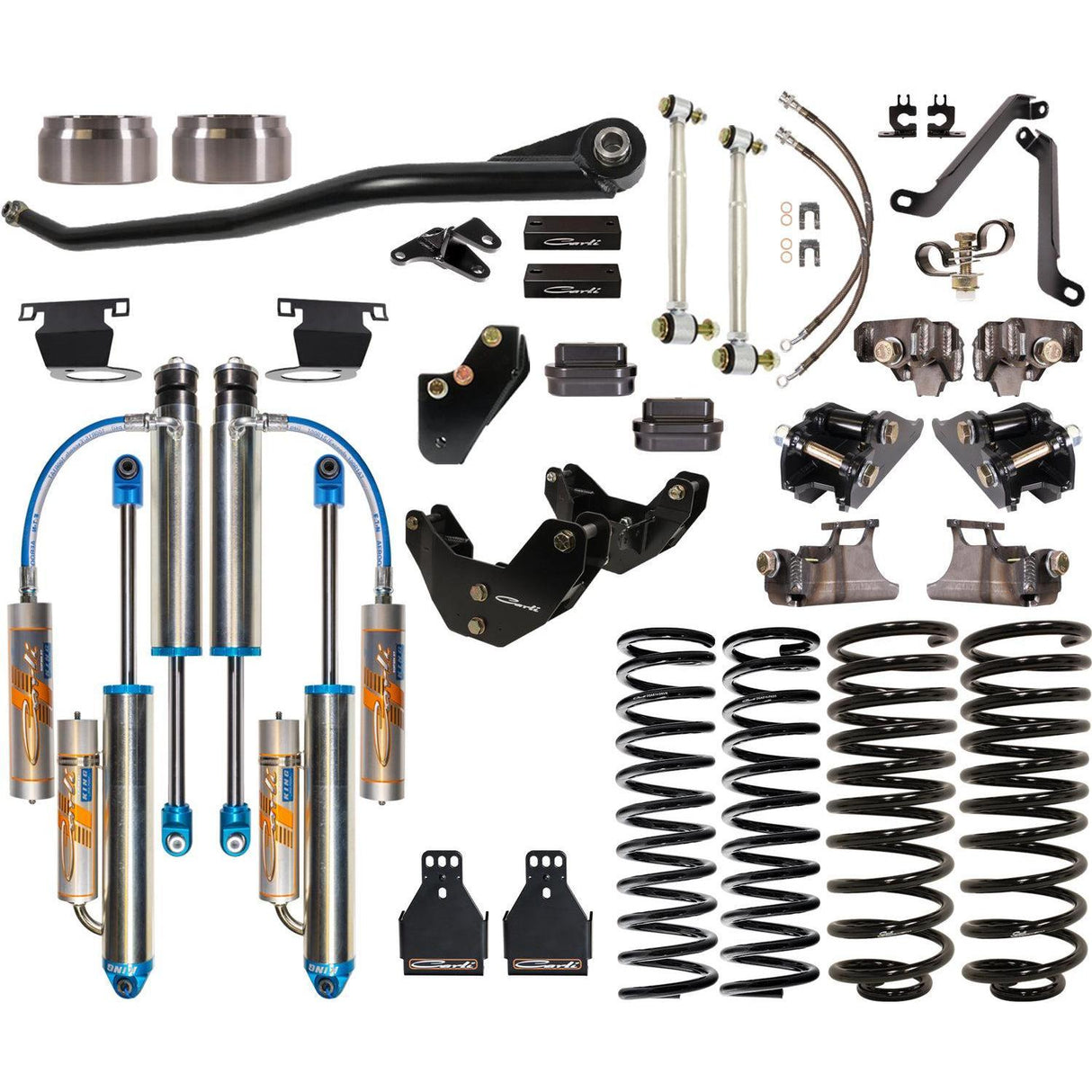

2014-2018 Ram 2500 Dominator 2" Lift Kit (CS-DD30-14-PW)

Carli Suspension
$13,764.96 CAD
2014-2024 Cummins Rear 1-2" Lift Multi-Rate Coil Springs (CS-DMRC-14-R1) (Coil Spring Type)
Notices

This item may have additional freight costs. Learn More

Build Your Kit

Configure your 2014-2018 Ram Powerwagon 2.0" Lift Dominator System (CS-DD30-14-PW) below.

Rear Track Bar

Optional

Needed to complete this build. Skip only if your truck already has one installed. The rear axle of the Ram 2500 shifts laterally as it cycles through suspension travel. This rear side-to-side movement, referred to as "yaw", is felt in-cab at the least-opportune times. We offer two options, a drop bracket to minimize the rear yaw as much as is possible with the short factory track bar, or our Carli Extended Rear Track Bar can be optioned offering a massive increase in length, and reduction in angle, to effectively eliminate this yaw, resulting in far more composed and predictable handling.

Torsion Sway Bar

Optional

Maintaining the factory sway bar is only recommended for customers requiring the stiff rate of the factory sway bar - i.e.: those with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck.

Fabricated Radius Arms

Optional

Icing on the cake, these arms add Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Construction, and Serviceable 3" - 17-4 Stainless Steel Spherical Bearings.

Low Mount Steering Stabilizer

Optional

Bolt in steering stabilizer replacing the OEM unit in the factory location. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.

Front Differential Guard

Optional

Better to have it and not need it than need it and not have it.

Lifetime Ball Joints

Optional

The last set of ball joints you'll install carrying the industry's best warranty you won't need to use!

Axle Support

Optional

Subtotal

Purchase to earn 13764  Dirty Dollars Learn More

Truck Fitment

Description

Fits

Year Make Model
2014-2018 Dodge Ram Power Wagon HEMI

Note: Not compatible with factory rear air ride trucks or diesel applications

There are differentiating factors between R1 & R2 Coil Springs. Be sure to select the appropriate coil springs best suited to your application - See 'Notes' tab

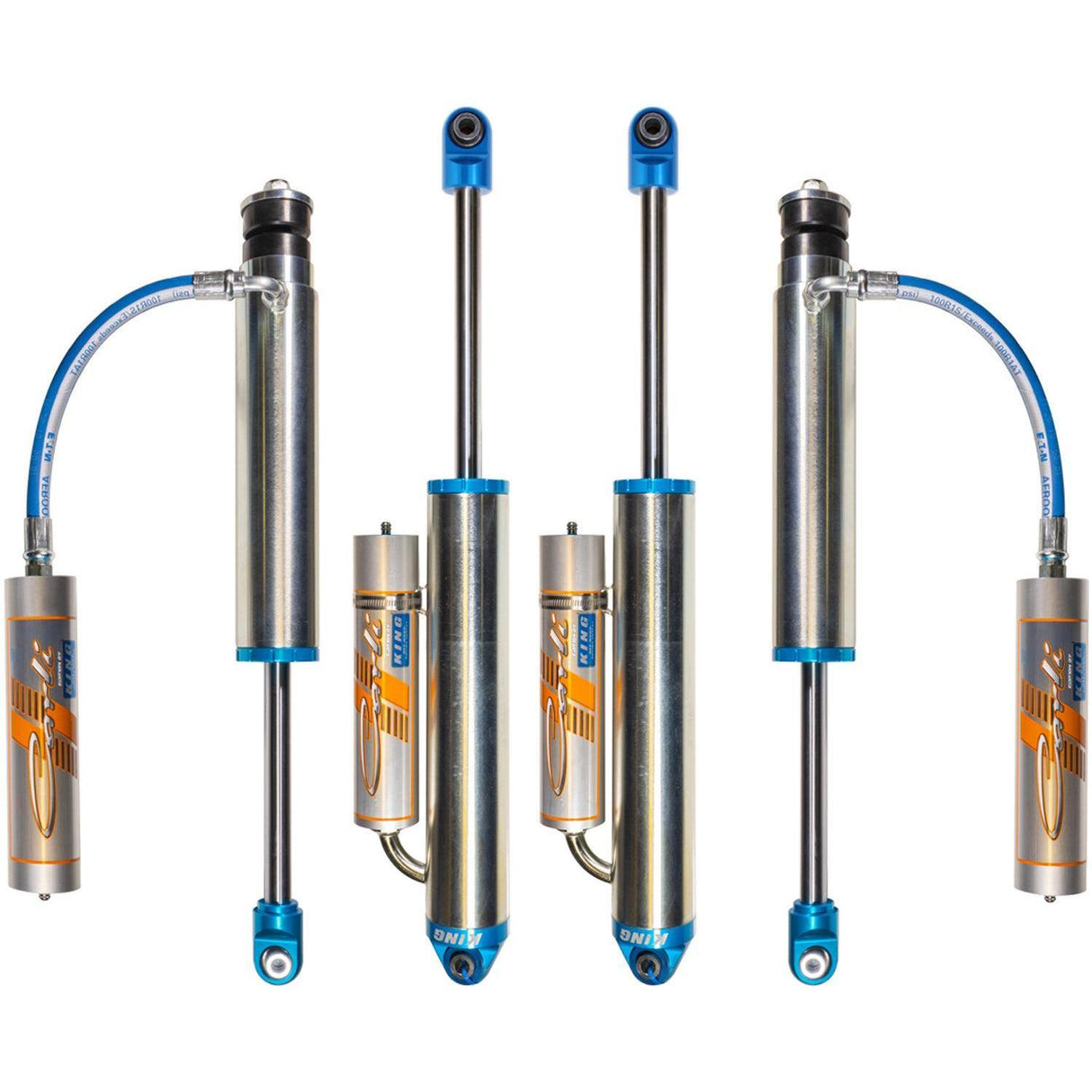

Looking for unrivaled off-road performance without compromising on-road ride quality? Let us introduce the Carli-Spec Custom Tuned King 3.0 Remote Reservoir Shocks. Loaded with features to maximize capability over any terrain, perfectly balanced, the front and rear bottoms with the same intensity, and the chassis remains controlled and level following the bottoming event, never throwing the vehicle out of control.

Part Number: CS-DD30-14-PW

Features
  • Carli Tuned King 3.0″ Remote Reservoir Shock Package with Stainless Shafts, Reservoir Mounts, Brake Line Kit, Coil Isolator Supports, Front Lower Shock Mounts, Rear Upper and Lower Shocks Mounts, Bed Supports, and E-Brake Relocation Bracket
  • 3.0″ King with a large Pintop Bushing to properly secure the shocks to the factory mounting locations
  • Eliminates weak factory shock mounts
  • Will never compromise geometry or factory ride quality
  • Provides optimal chassis strength

Notes
  • Not compatible with factory rear air ride trucks

IMPORTANT - R1 & R2 Coil Springs:

Be sure to select the lift kit package with the appropriate coil springs best suited to your application

  • R1: The perfect complement to an unloaded truck with custom-tuned Carli shocks. Ideal for customers desiring a level appearance and the BEST ride with capability up to 1,500lbs of bed-load.
  • R2: Suited to the customer wanting to maintain the payload capacity and factory rake (unloaded), willing to accept a slightly firmer ride vs. the R1 (it is still softer than OEM rear springs). OR – The customer looking for the best ride and level appearance when loaded with a constant 800lbs (i.e., Overlanders).
