2014-2016 GMC 1500 7" Big Lift Kit w/ Forged Steel Suspension (44-34710)-Lift Kit-ReadyLift-44-34710-Dirty Diesel Customs

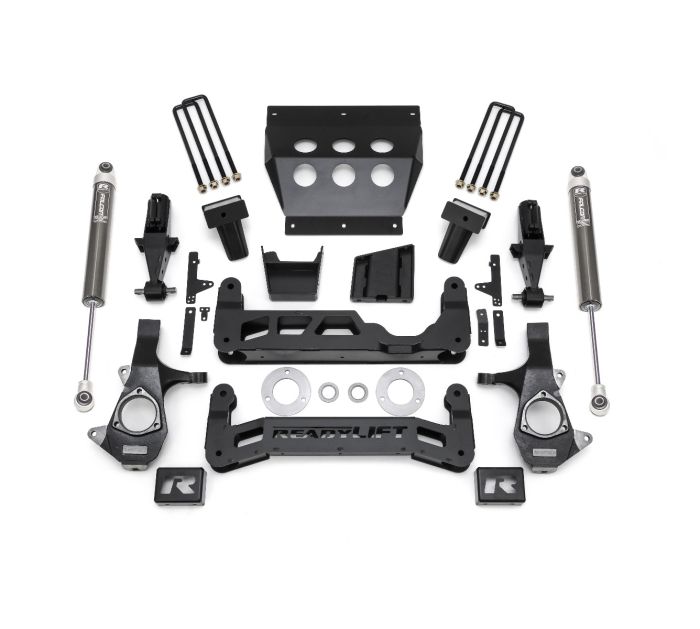

2014-2016 GMC 1500 7" Big Lift Kit w/ Forged Steel Suspension (44-34710)

ReadyLift

Part Number: 44-34710
Sale price$3,104.93 CAD

This product ships for free to most Canadian locations! Learn more.
(show all inventory)
Available at alternate warehouse - contact for price
This is a special order item, please allow for additional processing time. If you would like an ETA, please reach out prior to placing your order.
Quantity:
Description

Fits

Year Make Models
2014-2016 GMC/ Chevrolet 1500



The ultimate big lift kit for your 1500, designed for use on 1500 trucks equipped with factory Forged Steel front suspension. Retains the factory turning radius while minimizing track width increase to less than 0.5" per side. If you want to increase, ground clearance, tire size, and explore harsher terrains/ trails without compromising your factory ride; this kit is for you.

Part Number: 44-34710

Features
  • 2WD & 4WD ONLY
  • "clam-shell" style lower strut extension retains the use of the factory struts
  • TCT lower bushings to provide a precise pivot point that maintains the factory ride
  •  Boxed steel front/rear cross members and full width front skid plate are constructed of thick 3/16" plate steel while also allowing for the use of the OE front plastic gravel guard
  • 1/4" boxed plate steel differential drop brackets feature a double gusset & boxed center rib to take the abuse of front differential torsional twisting
  • 3/16" thick plate steel rear lift blocks
  • Built-in bump stop landings and an offset pin design to properly center the axle & specific angles to the blocks to retain the proper pinion angle
  • Extended length Falcon 1.1 Monotube rear shocks

Tire Fitment:

  • Allows for up to a 35" tall off road tire
  • Requires at least a 9" wide wheel with -12 offset
Notes
  • Works with trucks with or without MagneRide
  • Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT
  • Not for use on AWD applications
  • Not recommended for GMC Denali 1500 with REAR MagneRide or other models with Rear MagneRide. Only Front MagneRide compatible.
