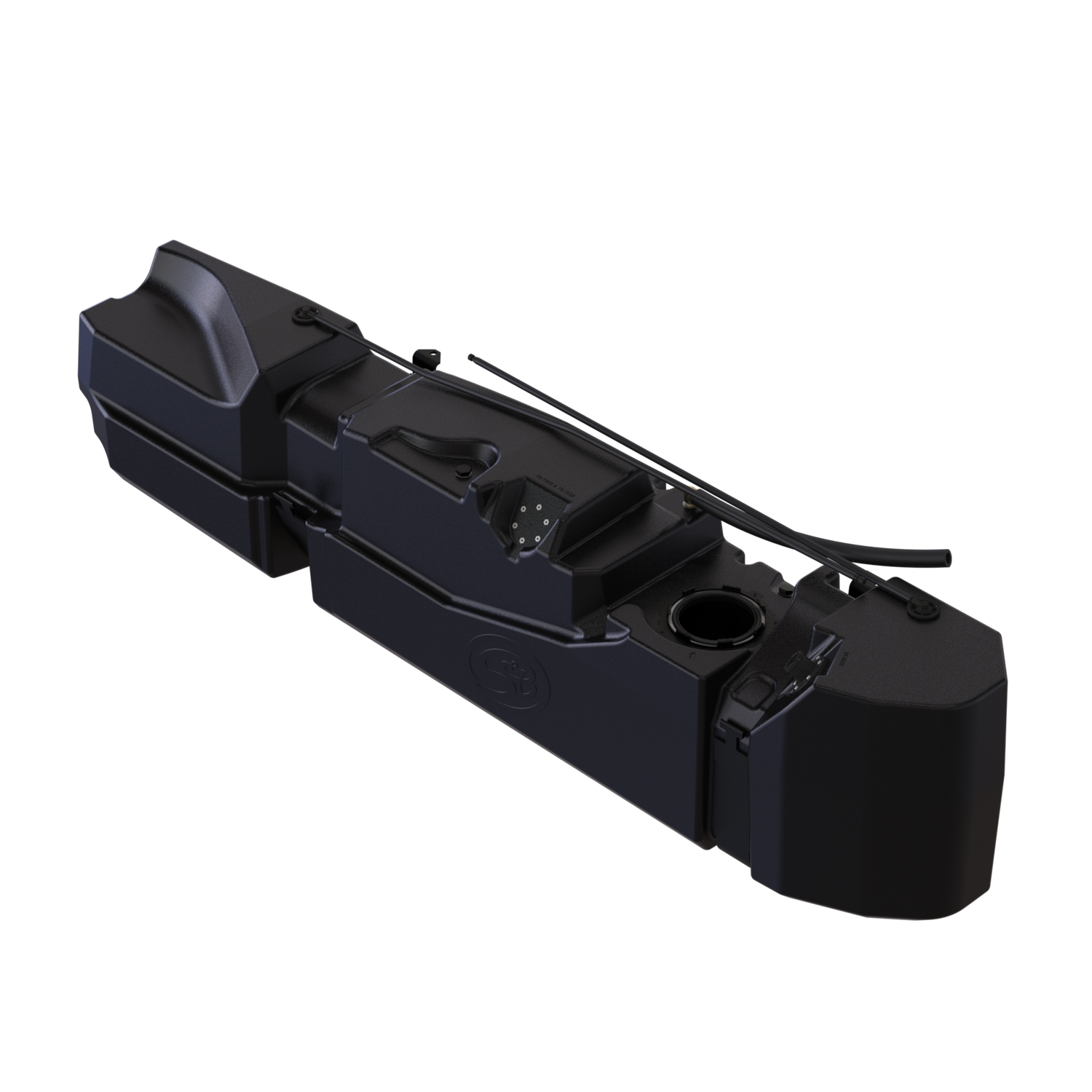

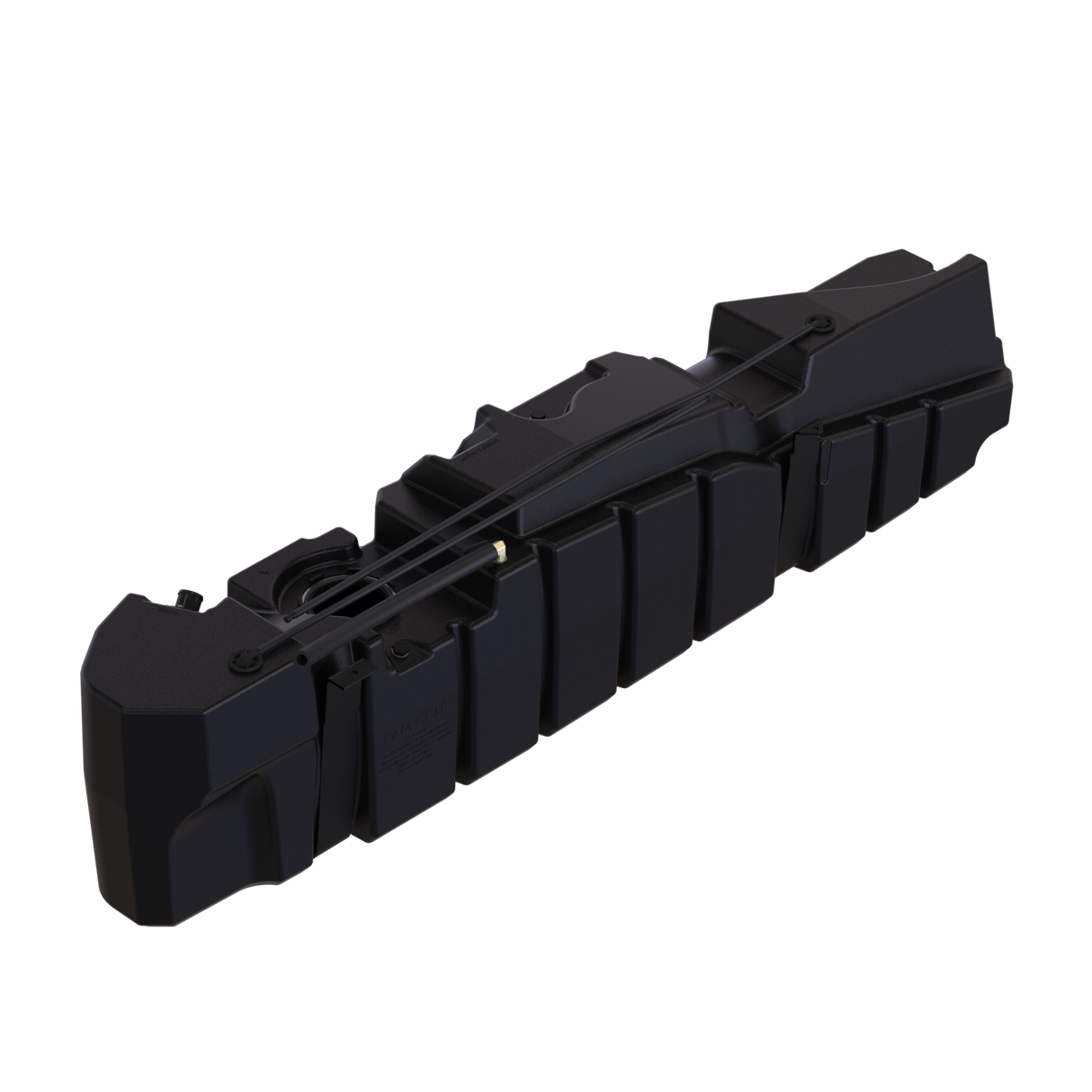

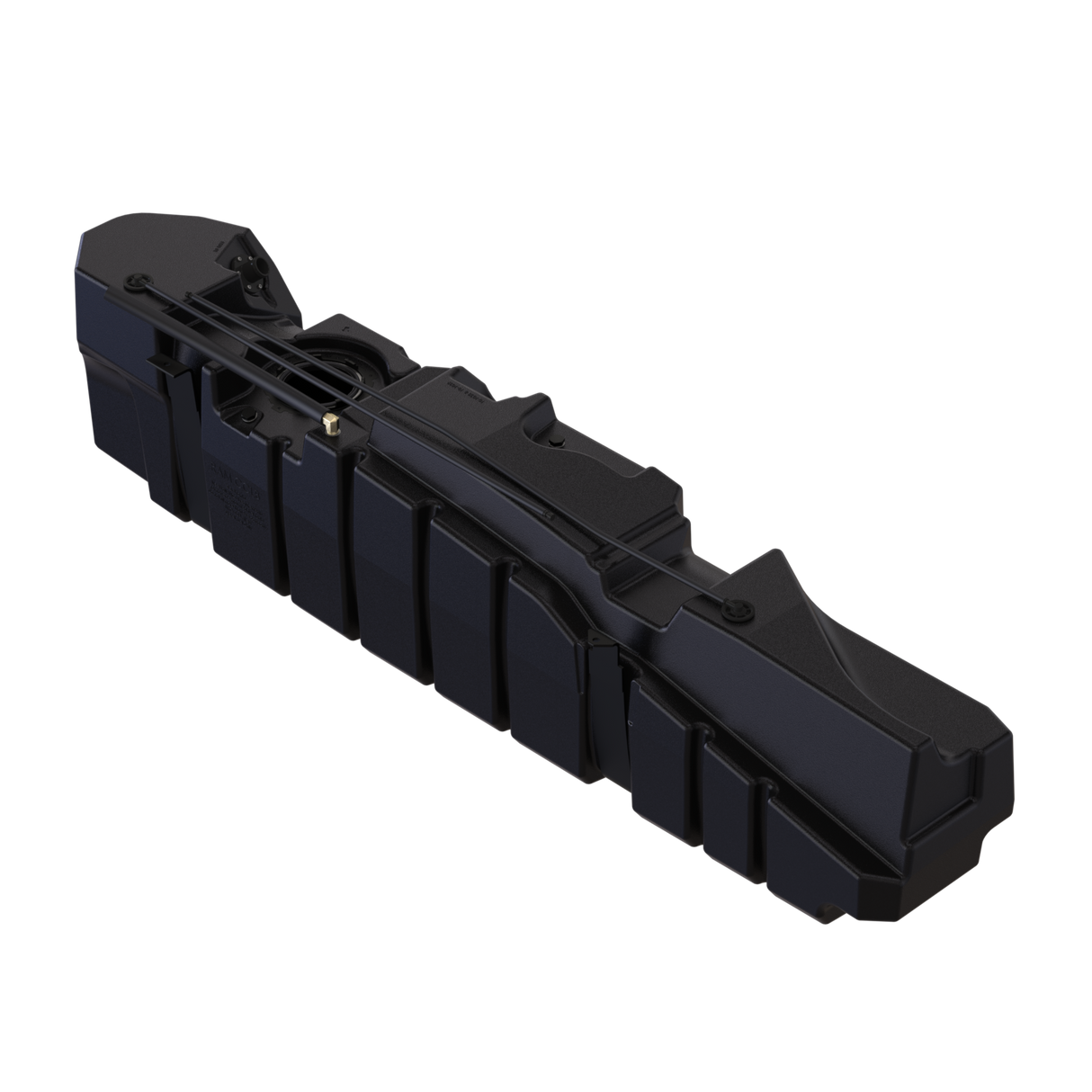

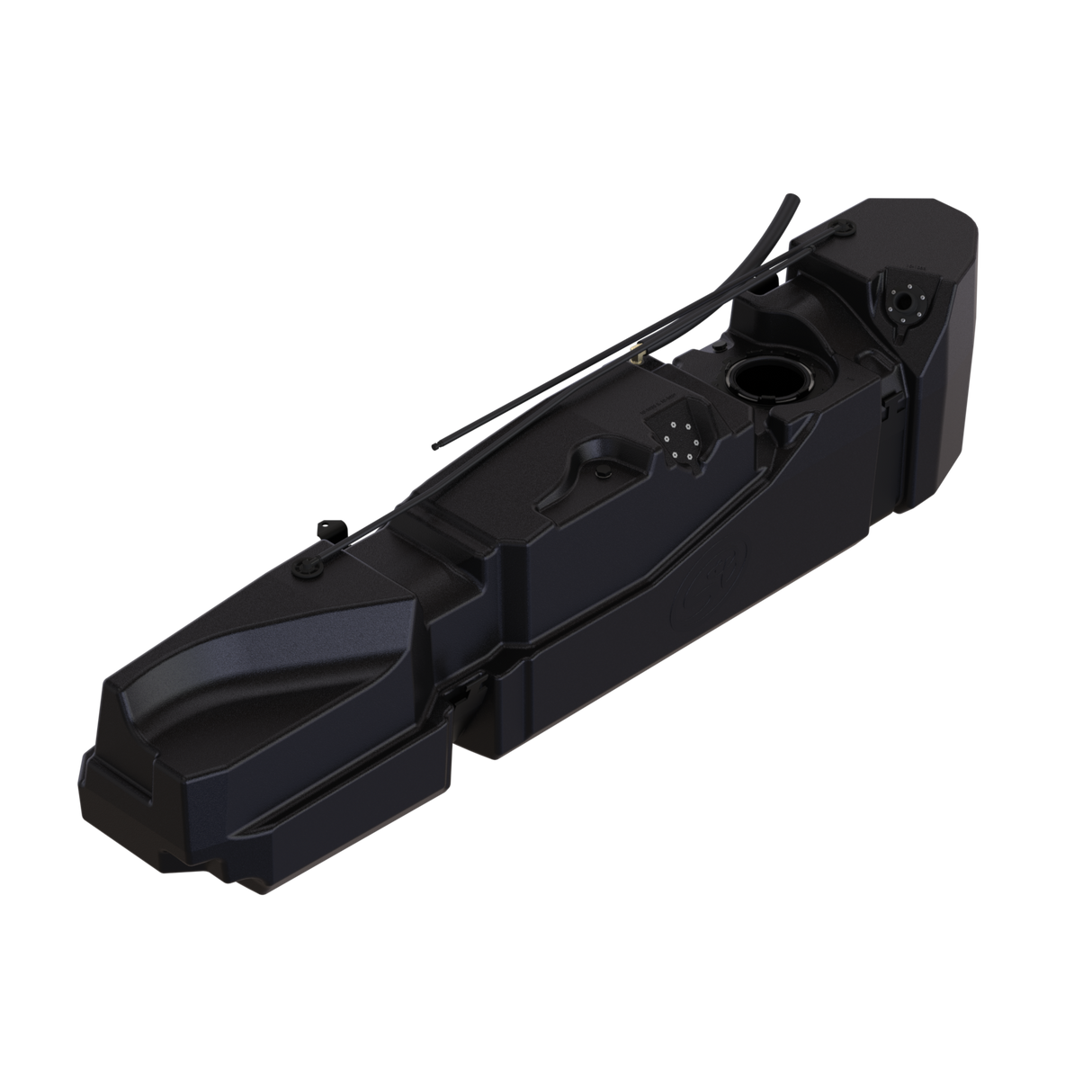

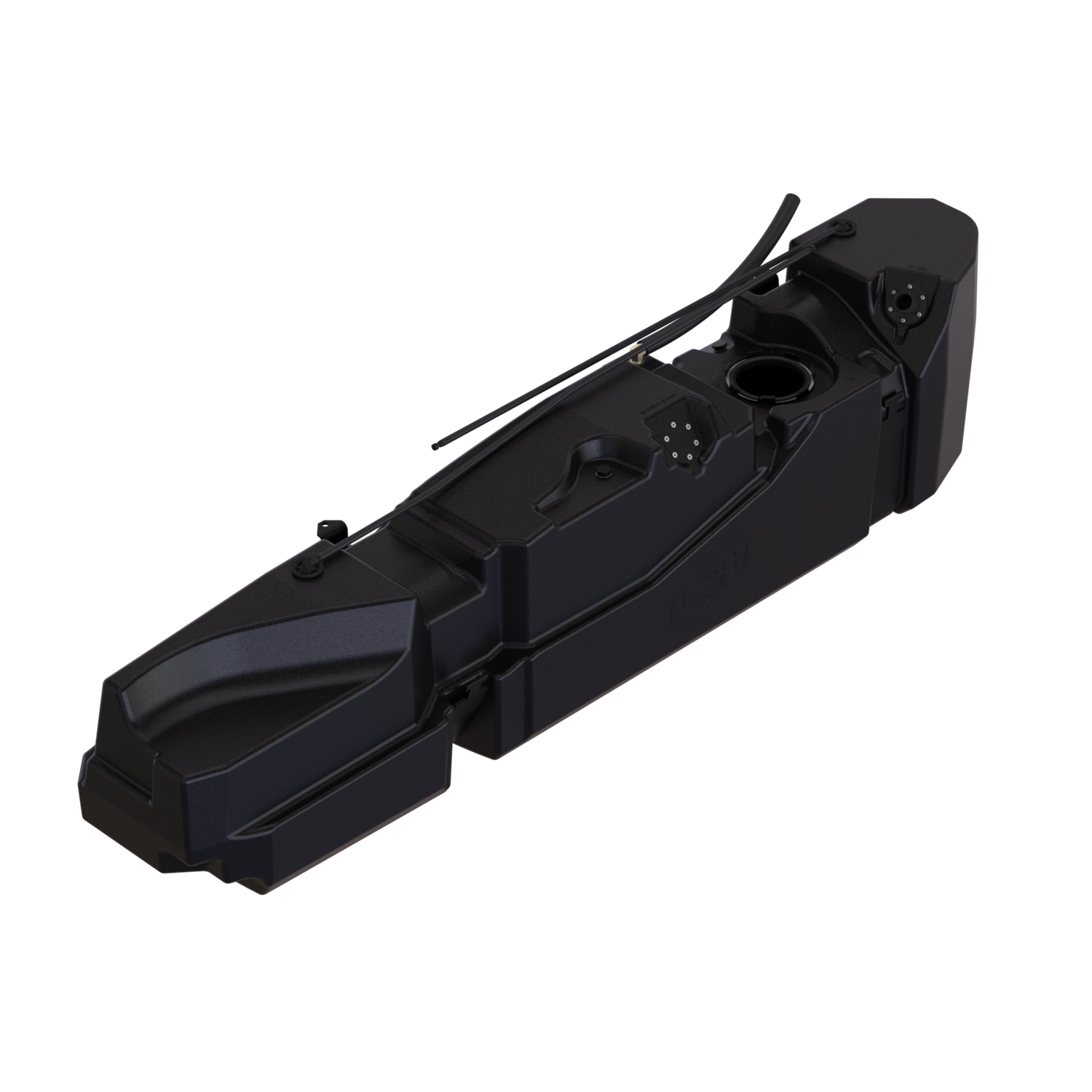

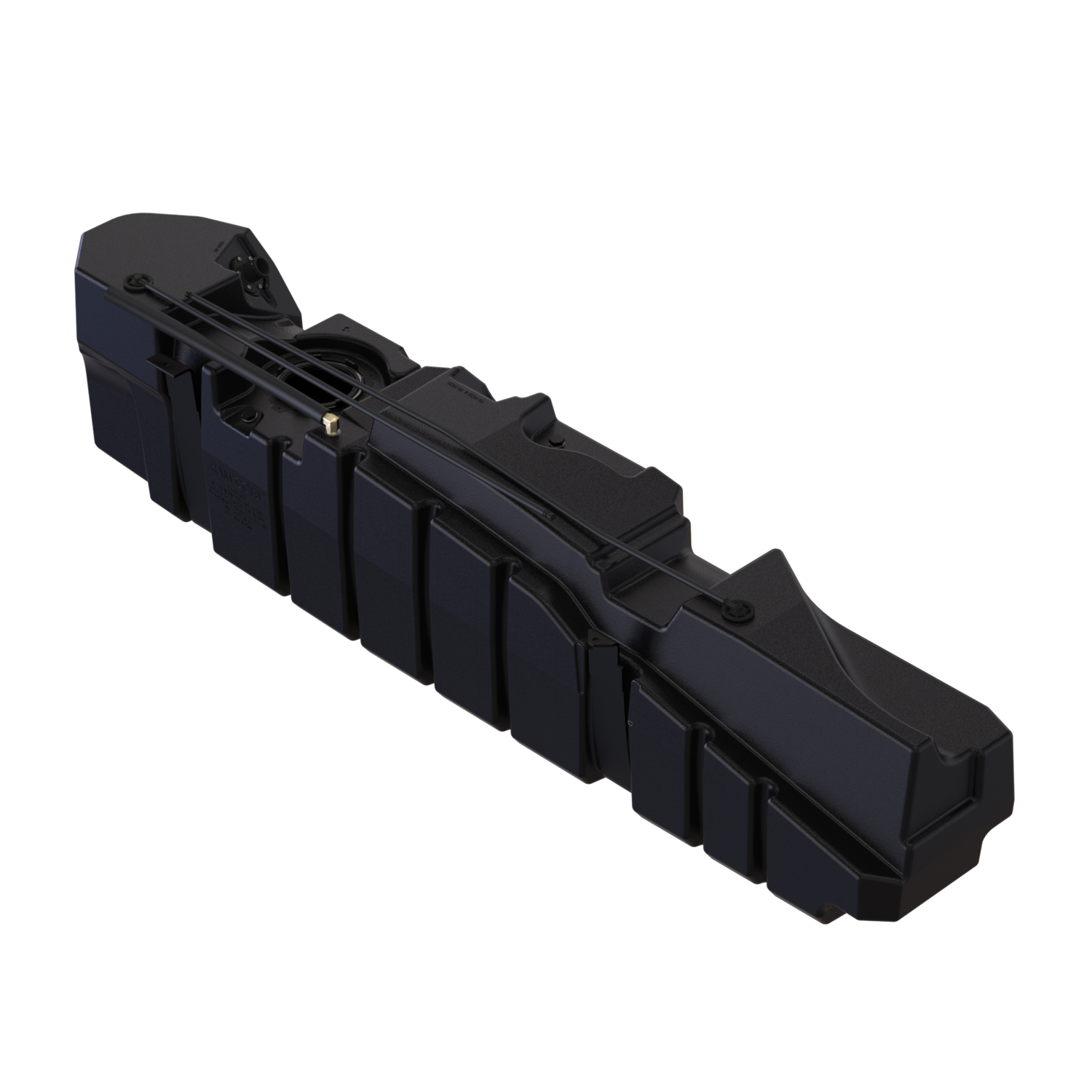

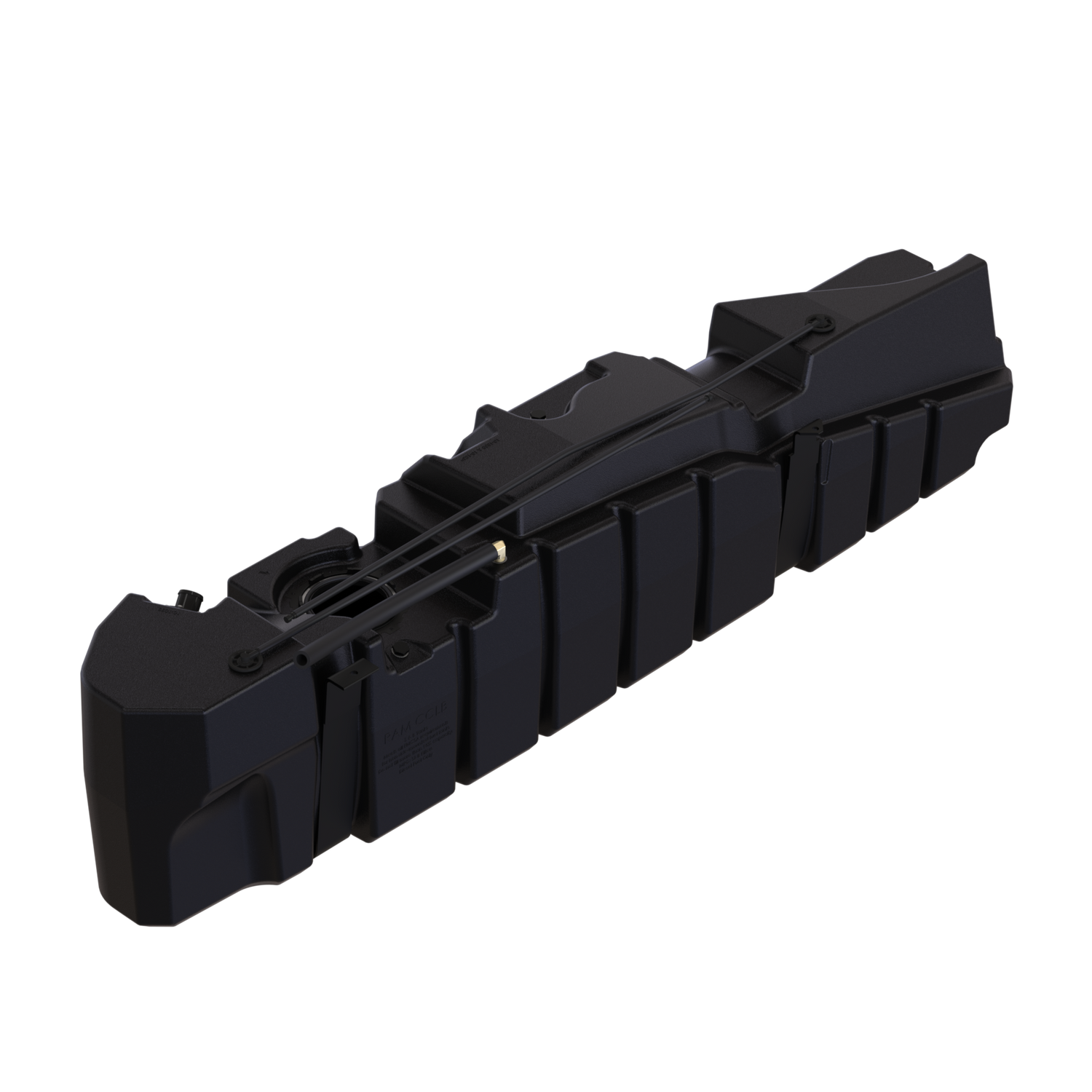

2013-2026 Cummins S&B 56 Gallon Fuel Tank (CC-LB) (10-1033)

Fits

Stop planning your trips around the next fuel stop. The S&B 56 Gallon High-Capacity Fuel Tank nearly doubles factory capacity on your 2013-2026 Ram Cummins, pushing range past 1,000 miles between fill-ups. It is a direct bolt-on replacement for the stock 31 gallon tank, molded from heavy-duty cross-linked polyethylene that shrugs off the corrosion, cracking, and impacts that plague steel tanks. Reuses your OEM sending unit and float for a clean, factory-style install.

Part Number: 10-1033

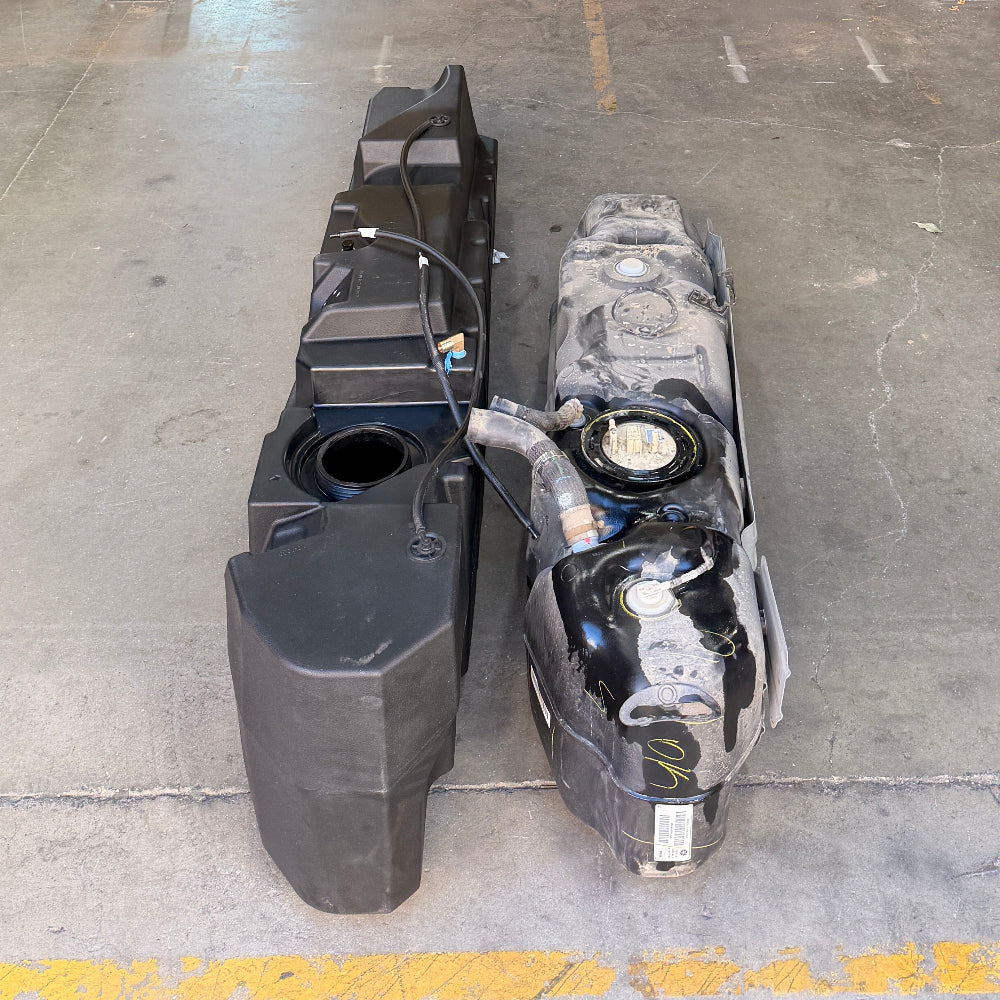

• 56 Gallon Capacity (replaces the ~31 Gallon Factory Tank)
• Over 1,000 Mile Range Between Fill-Ups
• Direct Bolt-On Replacement
• High-Density Cross-Linked Polyethylene Construction
• Corrosion, Crack & Impact Resistant
• Reuses Factory Sending Unit & Float

• 1 x S&B 56 Gallon Replacement Fuel Tank
• Mounting straps & required hardware

• The fuel gauge continues to work, but the distance-to-empty estimate will not be accurate (the tank size cannot be updated in the ECM). Because the S&B tank is taller, the gauge will read full for the first 8-10 gallons.
• Using an auxiliary or transfer tank in combination with this tank voids the S&B Lifetime Warranty.

Covered by S&B's Lifetime Warranty.

Click Here For Instructions

Significantly increase the range on 2013-2026 Ram Cummins 6.7L Crew Cab Long Bed trucks by upgrading to the S&B 56 Gallon High-Capacity Fuel Tank, a direct, bolt-on replacement for the stock 31 gallon tank.
