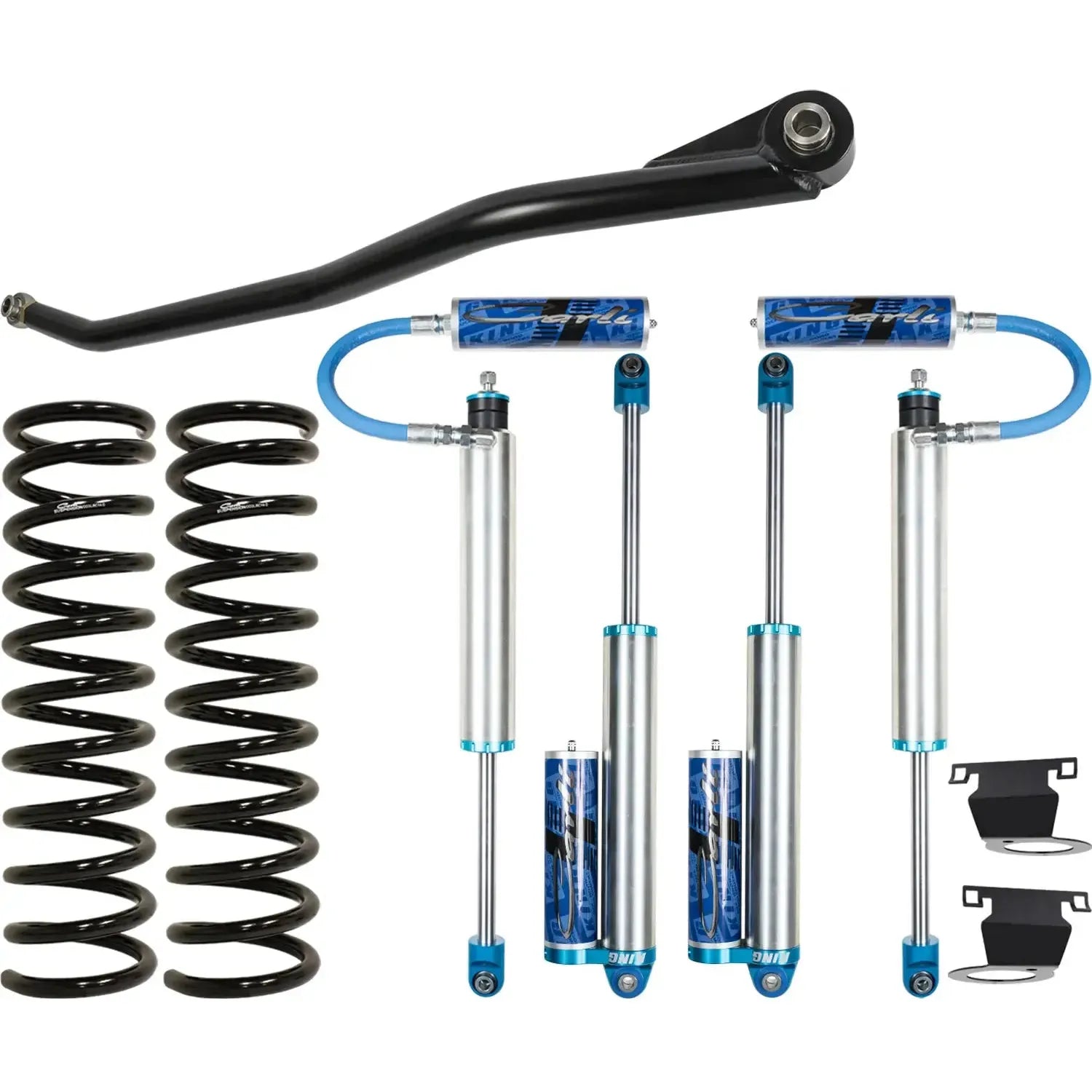

2013-2025 Cummins Pintop 2.5” Lift Kit (CS-DPT25-LVL-13-D)

Carli Suspension
$5,770.08 CAD
Notices

This item may have additional freight costs. Learn More

Build Your Kit

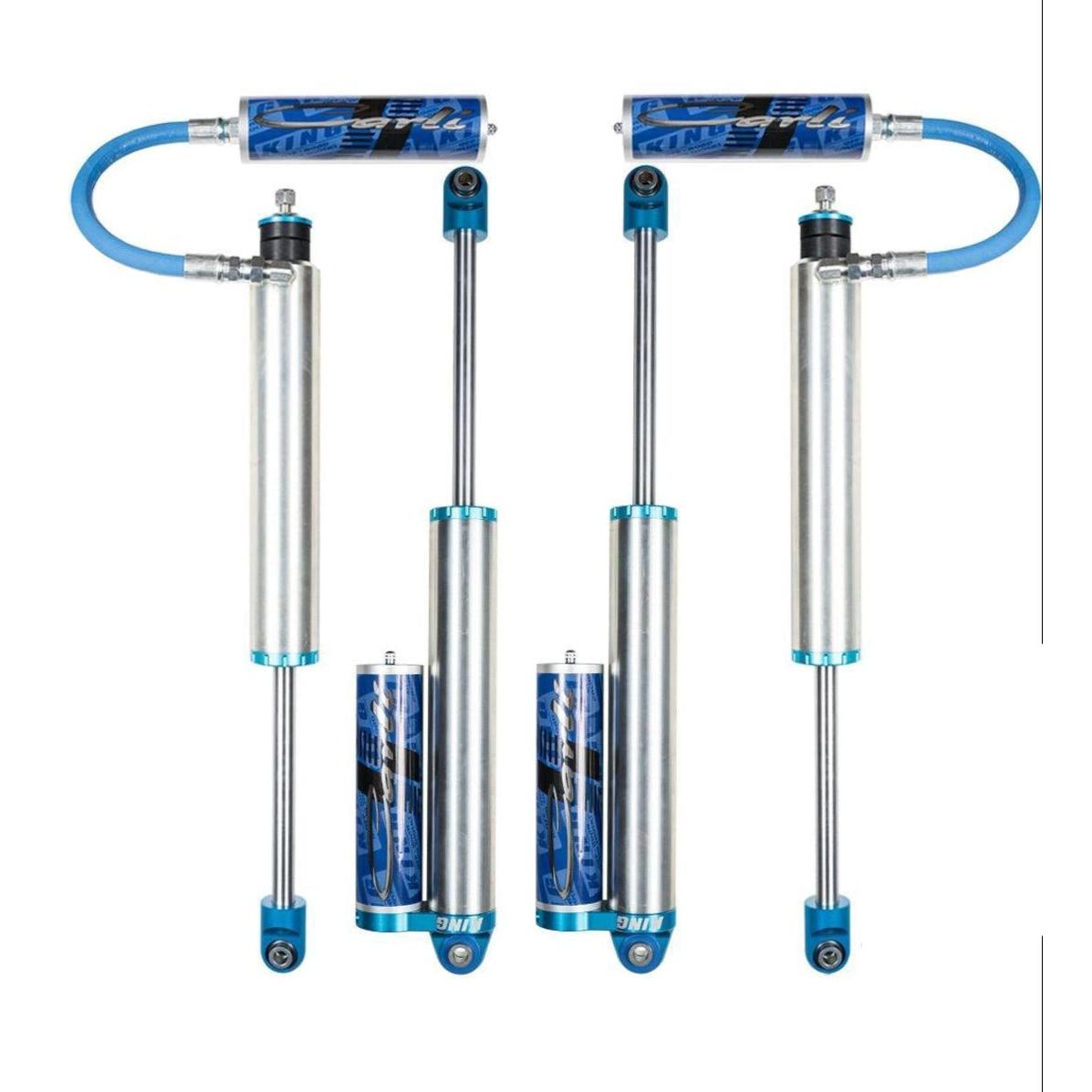

One of the best off-road suspension systems Carli offers, the Pintop 2.5" leveling kit provides you with an all-around terrific ride over any terrain. No compromises were made with the development of this kit. Featuring Carli-specific, blueprinted, King 2.5” shocks that provide 55% more piston surface area and are the pinnacle of performance and capability. These pintop 2.5 remote reservoir shocks provide more fluid volume and piston movement, which results in improved heat dissipation, consistent damping, and a smoother, more comfortable ride. Fully rebuildable, serviceable, and tuneable for whatever your preference is.

Torsion Sway Bar

Optional

Maintaining the factory sway bar is only recommended for customers requiring the stiff rate of the factory sway bar - i.e.: those with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck.

Radius Arm Drop Bracket Option

Optional

The Carli Leveling Systems do NOT include radius arm drop brackets as the 2.5" lift height can still achieve proper caster by maxing the factory caster adjustment. Adding these Radius Arm Drop Brackets will lower the arm pivot point to account for the lift height opening the full range of caster adjustment and correcting spring pressures to ensure NO bowing of the coil spring. Although these are not required, they are recommended.

Leaf spring Shackle

Optional

Much of the jarring ride of the leaf-spring rear can be attributed to the factory vulcanized bushings in the leaf spring pack and shackle. The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

Low Mount Steering Stabilizer

Optional

Bolt in steering stabilizer replacing the OEM unit in the factory location. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.

High-Mount Steering Stabilizer

Optional

Bolt in compliment to the Carli Low-Mount Steering Stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains.

Radius Arm

Optional

Icing on the cake, these arms add Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Construction, Serviceable 17-4 Stainless Spherical Bearings and maintain the factory caster adjustment.

Front Differential Guard

Optional

Better to have it and not need it than need it and not have it.

Lifetime Ball Joints

Optional

The last set of ball joints you'll install carrying the industry's best warranty you won't need to use!

Subtotal

Purchase to earn 5770  Dirty Dollars Learn More

Description

Fits

Year Make Model
2013 - 2025 Ram 3500

Note: Review 'Additional Info' for REQUIRED and optional Add-On Components.

One of the best off-road suspension systems Carli offers, the Pintop 2.5" leveling kit provides you with an all-around terrific ride over any terrain. No compromises were made with the development of this kit. Featuring Carli-specific, blueprinted, King 2.5” shocks that provide 55% more piston surface area and are the pinnacle of performance and capability. These pintop 2.5 remote reservoir shocks provide more fluid volume and piston movement, which results in improved heat dissipation, consistent damping, and a smoother, more comfortable ride. Fully rebuildable, serviceable, and tuneable for whatever your preference is.

Part Number: CS-DPT25-LVL-13-D

Features
  • Linear-rate front coil springs, front and rear shock package, and adjustable track bar
  • Experience smooth and controlled rides with Carli Tuned King 2.5 Remote Reservoir Shocks equipped with stainless steel shafts for maximum durability
  • Increases wheel travel to 9.5" front and 11" rear

Additional Info
  • Optional Parts to support this system:
    • Torsion Sway Bar (OPTIONAL): CS-DTSB3-1419
    • Radius Arm Drop Bracket (OPTIONAL): CS-DRAD-14
    • Leaf Spring Shackle (OPTIONAL): CS-DSHACKLE-0313
    • Low Mount Steering Stabilizer (OPTIONAL): CS-DLMSS-14
    • High Mount Steering Stabilizer (OPTIONAL): CS-DHMSS-14
    • Fabricated Radius Arms (OPTIONAL): CS-DFRA-LVL-14
    • Front Differential Guard (OPTIONAL): CS-DFDG-14
    • Lifetime Ball Joints (OPTIONAL): CS-DBJP-14

Notes
  • Does not work with rear auto-level air suspension.
  • This system is tuned for the 3500s equipped with rear leaf springs. It will install on the 3500 trucks equipped with the factory auto-leveling air assist but the tuning is NOT refined to the platform. We recommend you measure the truck as it often takes less than 2.5″ of front lift to level the Air-Assist Rams.
