2013-2025 Cummins Pintop 3.25" Lift Kit (CS-DPT25-1319-D)

Carli Suspension
$7,439.04 CAD
Notices

This item may have additional freight costs. Learn More

Ships from

  • Canada
    1 available
  • United States Import Fees covered by Dirty
    4 available

Build Your Kit

One of the best off-road suspension systems Carli offers, the Pintop 3" lift kit provides you with an all-around terrific ride over any terrain. No compromises were made with the development of this kit. Featuring Carli-specific, blueprinted, King 2.5” shocks that provide 55% more piston surface area and are the pinnacle of performance and capability. These pintop 2.5 remote reservoir shocks provide more fluid volume and piston movement, which results in improved heat dissipation, consistent damping, and a smoother, more comfortable ride. Fully rebuildable, serviceable, and tuneable for whatever your preference is.

Step 1 of 9 · Optional

Sway Bar Options

Needed to complete this build. Skip only if your truck already has one installed. This System has been optimized for use with the Torsion Sway Bar; this sway bar upgrade is a HUGE ride quality upgrade. Maintaining the factory sway bar through use of the Sway Bar Drops is only recommended for customers requiring the stiff rate of the factory sway bar - i.e.: those with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck.

Step 2 of 9 · Optional

Rear Leaf Spring Selection

This System has been optimized for use with the Full Progressive Leaf Springs. This system is also compatible with the Progressive Add-a-Packs but there will be a notable ride quality difference on and off-road. Selecting "Skip" will result in an unknown ride quality and height result as all Carli Systems are optimized to either the Add-a-Pack or Progressive Leaf Springs.

Step 3 of 9 · Optional

Leaf spring Shackle

Much of the jarring ride of the leaf-spring rear can be attributed to the factory vulcanized bushings in the leaf spring pack and shackle. The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

Step 4 of 9 · Optional

Long Travel Airbags

Restores Factory capacity to reduced rate Carli Leaf Springs. Provides the best of both ends of the spectrum - ride on Carli's soft-rate leaf springs when unloaded then air the bags up to level the chassis and support your load! Choose the 2013-2018 or 2019+ set to match your truck.

Step 5 of 9 · Optional

Low Mount Steering Stabilizer

Bolt in steering stabilizer replacing the OEM unit in the factory location. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.

Step 6 of 9 · Optional

High-Mount Steering Stabilizer

Bolt in compliment to the Carli Low-Mount Steering Stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains. This is NOT a primary stabilizer and MUST be run with either a Carli or OEM lower stabilizer in the factory location.

Step 7 of 9 · Optional

Fabricated Radius Arms

Icing on the cake, these arms add Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Construction, and Serviceable 3" - 17-4 Stainless Steel Spherical Bearings.

Step 8 of 9 · Optional

Front Differential Guard

Better to have it and not need it than need it and not have it.

Step 9 of 9 · Optional

Lifetime Ball Joints

The last set of ball joints you'll install carrying the industry's best warranty you won't need to use!
Your Build
2013-2025 Cummins Pintop 3.25" Lift Kit (CS-DPT25-1319-D)
$7,439.04

Purchase to earn 7439  Dirty Dollars Learn More

Truck Fitment

Description

One of the best off-road suspension systems Carli offers, the Pintop 3" lift kit provides you with an all-around terrific ride over any terrain. No compromises were made with the development of this kit. Featuring Carli-specific, blueprinted, King 2.5” shocks that provide 55% more piston surface area and are the pinnacle of performance and capability. These pintop 2.5 remote reservoir shocks provide more fluid volume and piston movement, which results in improved heat dissipation, consistent damping, and a smoother, more comfortable ride. Fully rebuildable, serviceable, and tuneable for whatever your preference is.

*This system is NOT compatible with trucks equipped with the factory auto-leveling air assist.

Part Number: CS-DPT25-1319-D

Features

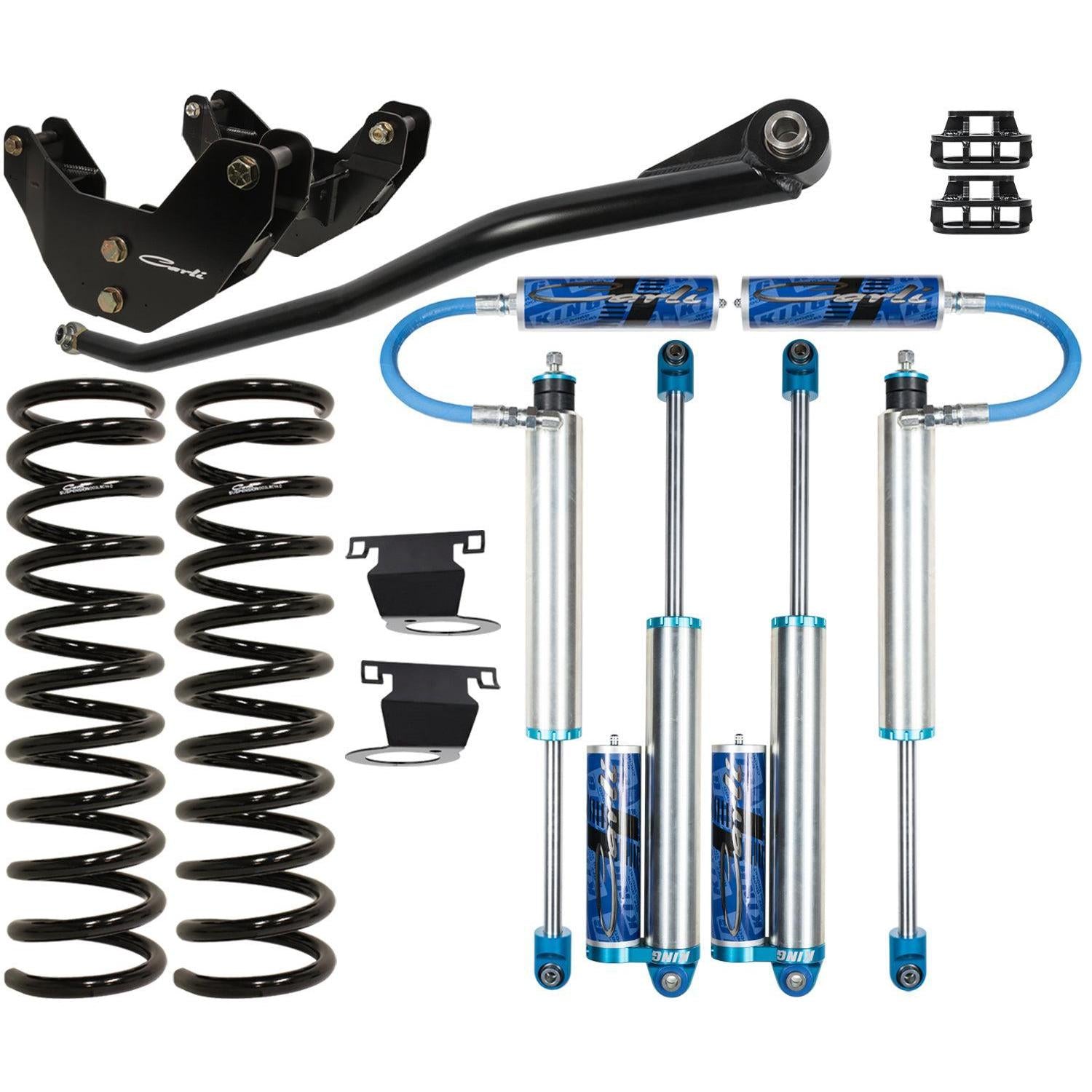

  • Linear-rate front coil springs, front and rear shock package, front bump drops, radius arm drops, and adjustable track bar
  • Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance
  • Increases wheel travel to 9.3" front and 13" rear
