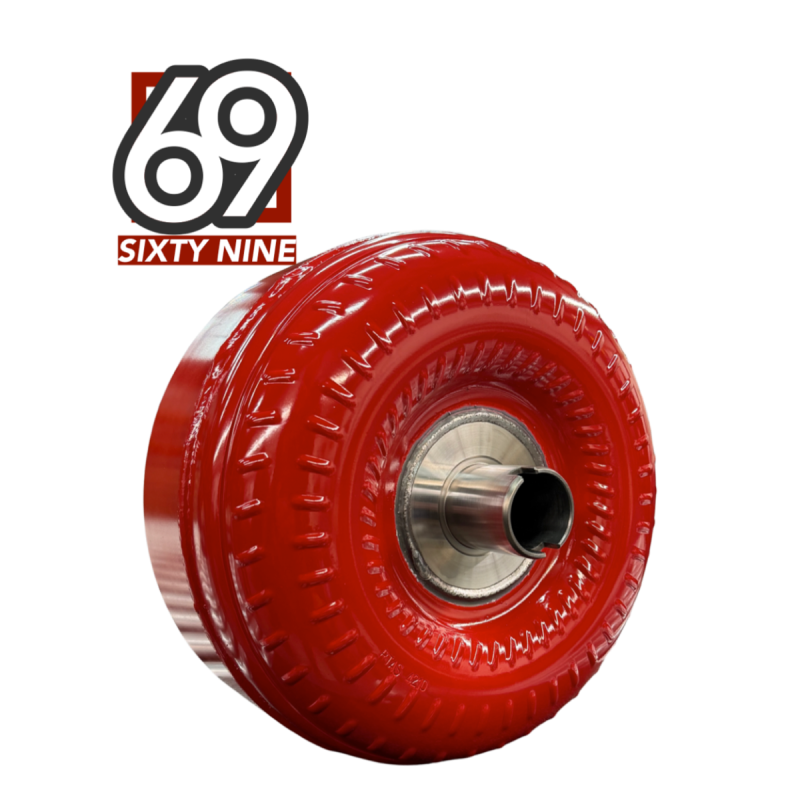

2013-2023 Cummins Aisin AS69RC Quad Disc Torque Converter (RT-AS69-TC)

Name: 2013-2023 Cummins Aisin AS69RC Quad Disc Torque Converter (RT-AS69-TC)
Brand: Randy's Transmissions
SKU: RT-AS69-TC
Price: 2618.00 CAD
Availability: InStock

Randy's Transmissions Part Number: RT-AS69-TC

$2,618.00 CAD

Notices

This item may have additional freight costs. Learn more

Purchase to earn 2618 Dirty Dollars Learn More

Description

Fits

Year	Make	Model
2013-2023	Dodge Ram HD	6.7L Cummins w/ Aisin Transmission

Note: For high output models ONLY

The Aisin is good choice for Cummins owners if you want maximum towing and hauling capabilities, it has a higher torque capacity and greater number of gear ratios compared to the 68RFE. With that being said, you need a torque converter to fully maximize this transmissions capability.

Part Number: RT-AS69-TC

Features

CNC Machined Billet One Piece Front Cover
Raybestos or Alto, High Performance SIX Disc Lockup clutch design
Billet apply piston
Revmax proprietary CNC machined stator designs
Billet Bearing Cap
Dual Torrington Bearing stator design
4140 Flanged Impeller Hub
4140 Hardened Turbine Hub
Furnace Brazed Impeller
Tig Welded Brazed Turbine
Computerized Robotic Welding
Precision internal clearances set to increase efficiency and improve performance
Fully pressurized and leak tested
TCRS Computerized High Speed Balancing To less than 5 gram
Runout Tolerances of less than .005
