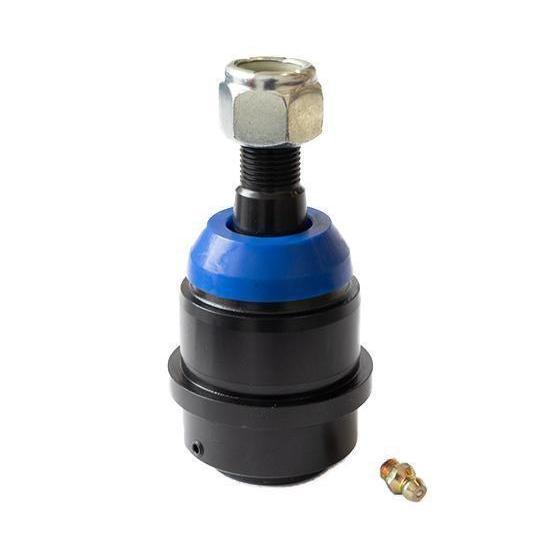

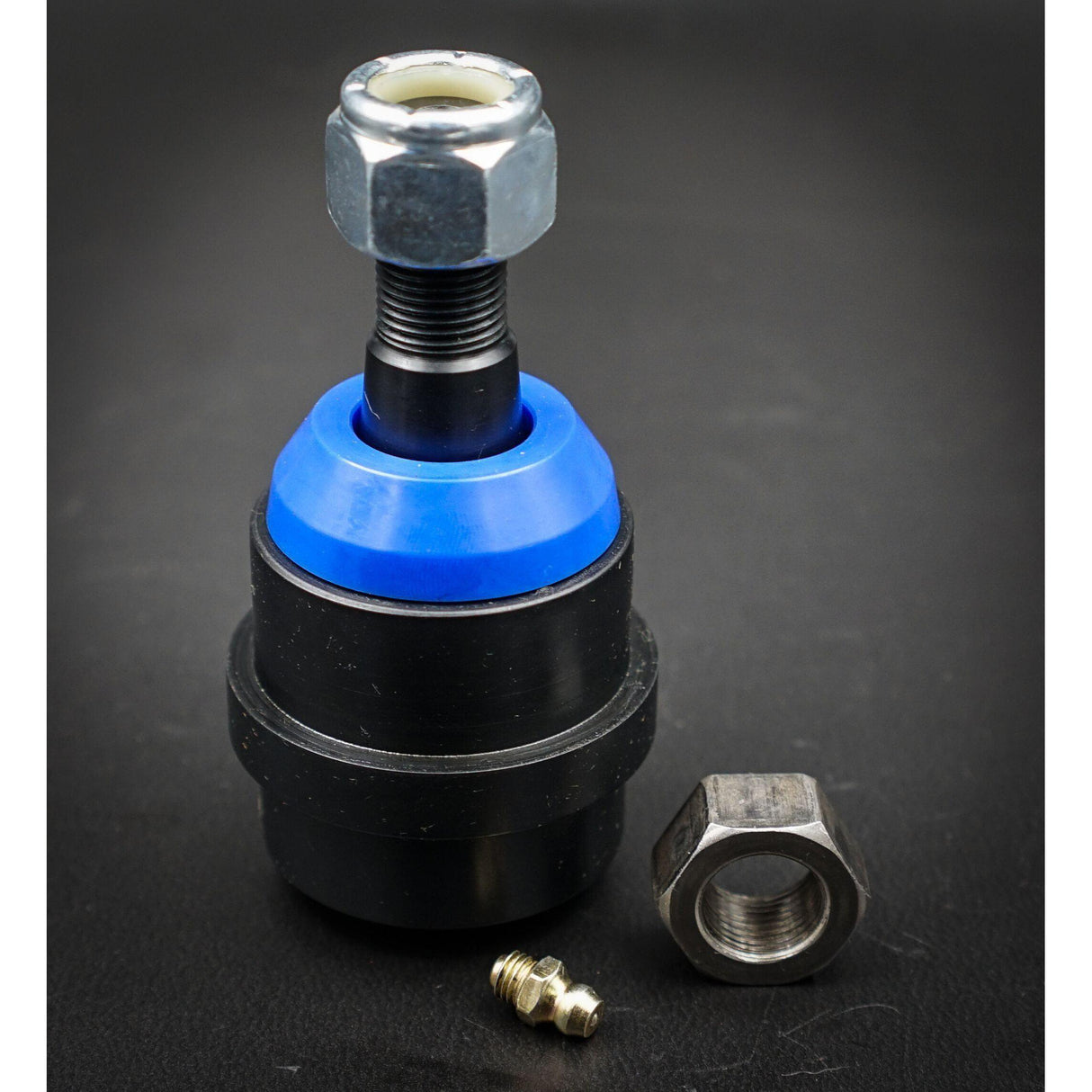

2003-2024 Cummins Oversized Upper Ball Joint (Single) (EMF-7460.1X)
Purchase to earn 185 Dirty Dollars Learn More
Couldn't load pickup availability
Price with add-ons:
Description
Description
Fits
Year | Make | Model |
2006-2008 | Dodge Ram | 1500 4WD Mega Cab Only |
2003-2013 |
Dodge Ram | 2500/3500 4WD |
2013.5-2024 | Dodge Ram | 2500/3500 4WD |
EMF Ball Joints are completely serviceable, rebuildable, and carry a lifetime warranty. This means this is the last ball joint you'll ever buy for your truck. Once you feel movement, you can adjust the ball joint without removing it from the knuckle.
Part Number: EMF-7460.1 / EMF-7460A.1
Superseded Part Number: EMF-7460S.1 (EMF-7460A.1)
Features
Features
- 1 Oversized Upper Ball Joint
- Serviceable, Greaseable, and Rebuildable
- Made in Canada
- Lifetime Warranty
- Patented Removable Race and Pin
- Stock Factory Upper Ball Joint Size – 1.8975”
- EMF Upper Ball Joint Regular Body Size - 1.9" (+.001)
- EMF Oversized Upper Ball Joint Size - 1.905" (+.001)
- Liquid Salt Bath Nitriding is a second heat-treating process on the material resulting in up to a 30% strength increase
- Black oxide corrosion resistant coating
Notes
Notes
- The Upper Ball Joint Installation Tool is required if your ball joint press kit is not equipped with a die with an ID minimum of 1.93” and a minimum depth of 0.86”.
- The Upper Ball Joint can be pressed into place by a die resting on the cap, however, it risks damaging the cap threads, leading to the possibility of not being able to rebuild or tighten the joint.
- This is your call if you want to purchase the tool or not - EMF is not responsible for damage to the cap that may occur during install without this tool.
- The Install Tool is for the Lower Ball Joint is to avoid damaging the Ring when pressing the ball joints into the knuckle using a suitable Ball Joint Press.
Installation
Installation
Warranty
Warranty
- Life-Time Warranty against Material and Manufacturers Defects. EMF will replace part of or the entire unit if it is determined to be an issue that falls under this category. The customer is encouraged to contact EMF directly to determine the cause of the fault and to receive warrantied products.
- Warranty does not cover breakage due to misuse of the product, improper installation or as a result of another component failure on the vehicle.
- EMF Ball Joints are meant to be rebuilt, which means the internal races and pin will wear over time under normal circumstances. The internal race and pin components are not covered by replacement Warranty unless it is determined there is a manufacturer defect that caused premature wear. In order to maximize your product life, regular maintenance which includes tightening of the cap and greasing are required.
