2013-2018 Cummins 4" Lift kit w/o Air Ride (BDS696H)-Lift Kit-BDS-BDS696H-Dirty Diesel Customs

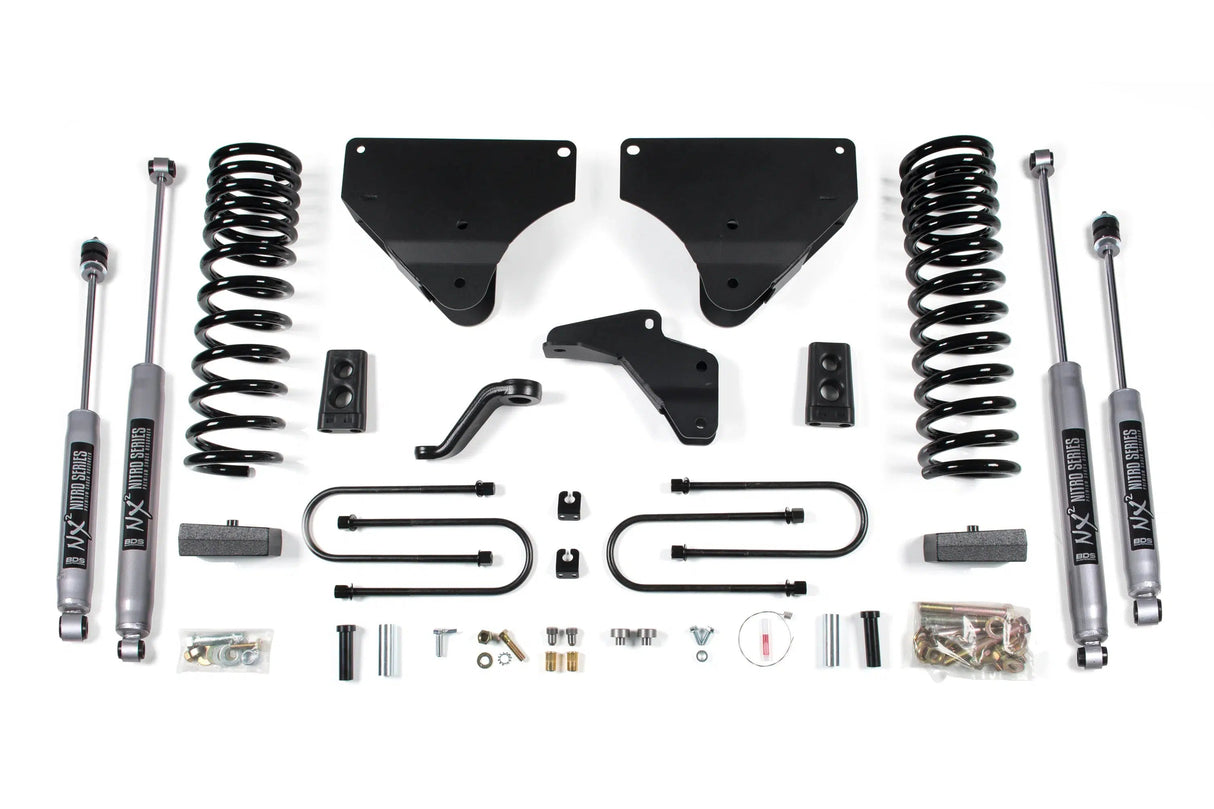

2013-2018 Cummins 4" Lift kit w/o Air Ride (BDS696H)

BDS

Part Number: BDS696H
Sale price$1,859.26 CAD

(show all inventory)
Available at alternate warehouse - contact for price
This is a special order item, please allow for additional processing time. If you would like an ETA, please reach out prior to placing your order.
Quantity:
This item may have additional freight costs. Learn more
Product images may differ from exact product.
Description

Click here to customize this Kit

Fits

Year Make Model Type Lift Location
2013-2018 Dodge / Ram 3500 Truck w/o Air-Ride 4" Front & Rear



Take your Cummins up a notch with this BDS 4" Suspension System. This system is for the all-new redesigned front suspension for the Ram HD trucks. Designed around the relocation of the factory radius arm in order to correct suspension and steering geometry to work with 4" of lift. The radius arms are relocated with a uniquely designed bracket that mixes the ease of installation you get with an adapter-type bracket with the strength and durability of a full replacement radius arm mount bracket.

Part Number: BDS696H

Features
  • Relocation bracket ties into both the factory radius arm frame mount and the side of the frame rail
  • Track Bar relocation
  • Dropped Pitman Arm
  • Brake Line Relocation
  • ProRide 4" coil springs
  • 3" Rear Block
  • Clears 37's

Tire & Wheel Combinations:

  • 37" x 12.50 w/ 17" x 9" and 5.625"
  • 35" x 12.50" w/ 18" x 9" and 4.5
  • 35" x 12.50" w/ 20" x 9" and 4.5
Notes
  • For rear leaf spring equipped models only.
  • The carrier bearing drop kit (122405) is necessary for models equipped with a two-piece rear driveshaft.
  • Minor amount of welding is required
  • Will not fit Cab and Chassis models
  • Not for use with factory rear airbag suspensions

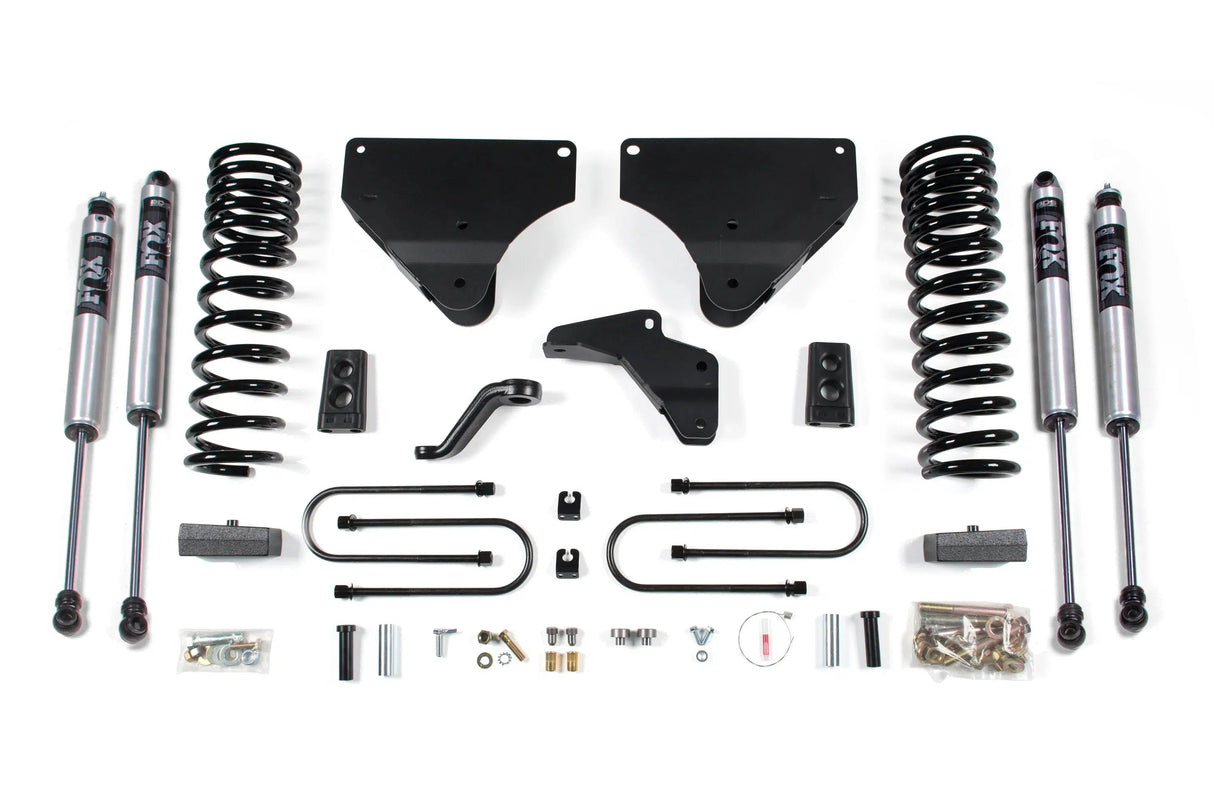

  • Although this is pictured with Fox Shocks, this kit will come equipped with BDS Shocks. If you would like fox shocks, please reach out.
Installation
