2013-2018 Ram 1500 w/Air Ride 4" System (BDS1623H)

Description

Click here to customize this Kit

Fits

BDS Suspension 4" System for Ram 1500 4WD w/Air Ride Suspension. This new lift is designed specifically to work with the factory adjustable air ride system available for the 1500 Ram; everything you need to properly lift your truck and no confusion on what you need because all relevant parts and hardware is included in this base kit.

Part Number: BDS1623H

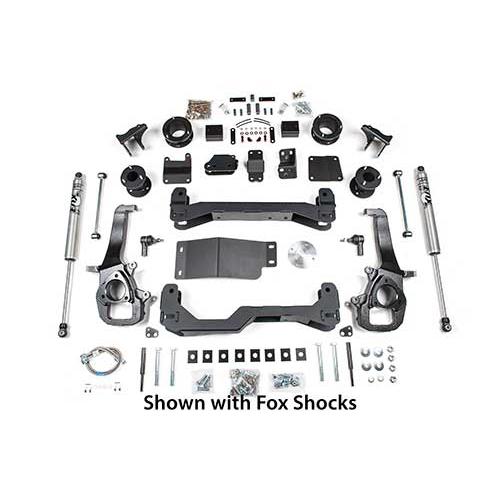

Features

• 1/4" thick steel laser cut front and rear crossmembers
• Differential Skid Plate & Drop Brackets
• Ductile Cast Iron Steering Knuckles
• Sway Bar Links & Extensions
• Replacement Brake Lines
• Upper & Lower Control Arm relocation brackets
• NX2 Series Shocks
• Trackbar relocation
• Front & Rear Airbag spacers
• All relevant fittings & hardware included in base kit

Tire & Wheel Combinations:

• 35" x 12.50" w/ 17 x 9 and 4-1/2"
• 35" x 12.50" w/ 18 or 20 x 9 and 5"

Notes

*IMPORTANT*: Due to the complexity of your Rams factory air ride system we highly recommend using an experienced suspension specialist for installation. For help locating a specialist in your area please use our dealer locator or contact us. For information regarding the installation of this system and modifying your Ram's factory air-ride suspension check out our step by step instructions and the helpful tips video below:
• The rack and pinion steering system are extremely sensitive to out-of-round or out-of-balance tire/wheel combinations.
• Fits factory air ride-equipped trucks only.
• The factory air ride is a closed-loop system. Opening the system more times than recommended in the lift instructions or factory service manual will require the system to be recharged. This can be done at any Ram dealer service department.
• Stock 20" wheel can be reinstalled with factory-sized tire only. Stock 17" and 18" wheels will not fit.
• This kit will bolt on Eco-Diesel models but it will require an aftermarket front driveshaft.

Installation

• Click Here For Installation Instructions
• Difficulty: 6 (where 1 = easiest and 5 = complicated)
