2013-2018 Ram 1500 4WD 6"-3" Lift Kit (BDS671H)-Lift Kit-BDS-BDS671H-Dirty Diesel Customs

2013-2018 Ram 1500 4WD 6"-3" Lift Kit (BDS671H)

BDS

Part Number: BDS671H

Sale price$3,715.58 CAD

Quantity:
This item may have additional freight costs. Learn more
Product images may differ from exact product.
Description

Click here to customize this Kit

Fits

Year Make Model Type
2013-2018 Dodge / Ram 1500 Truck w/o Air-Ride



BDS Suspension 6" Suspension Lift Kit for Dodge Ram 1500 4WD 1/2 Ton Pickup. This 6" lift kit is based around two one-pieces, 1/4" laser cut high-clearance crossmembers, and replacement steering knuckles to give you proper ground clearance, clean installation, off-road protection, and maintain proper steering angles.

Part Number: BDS671H

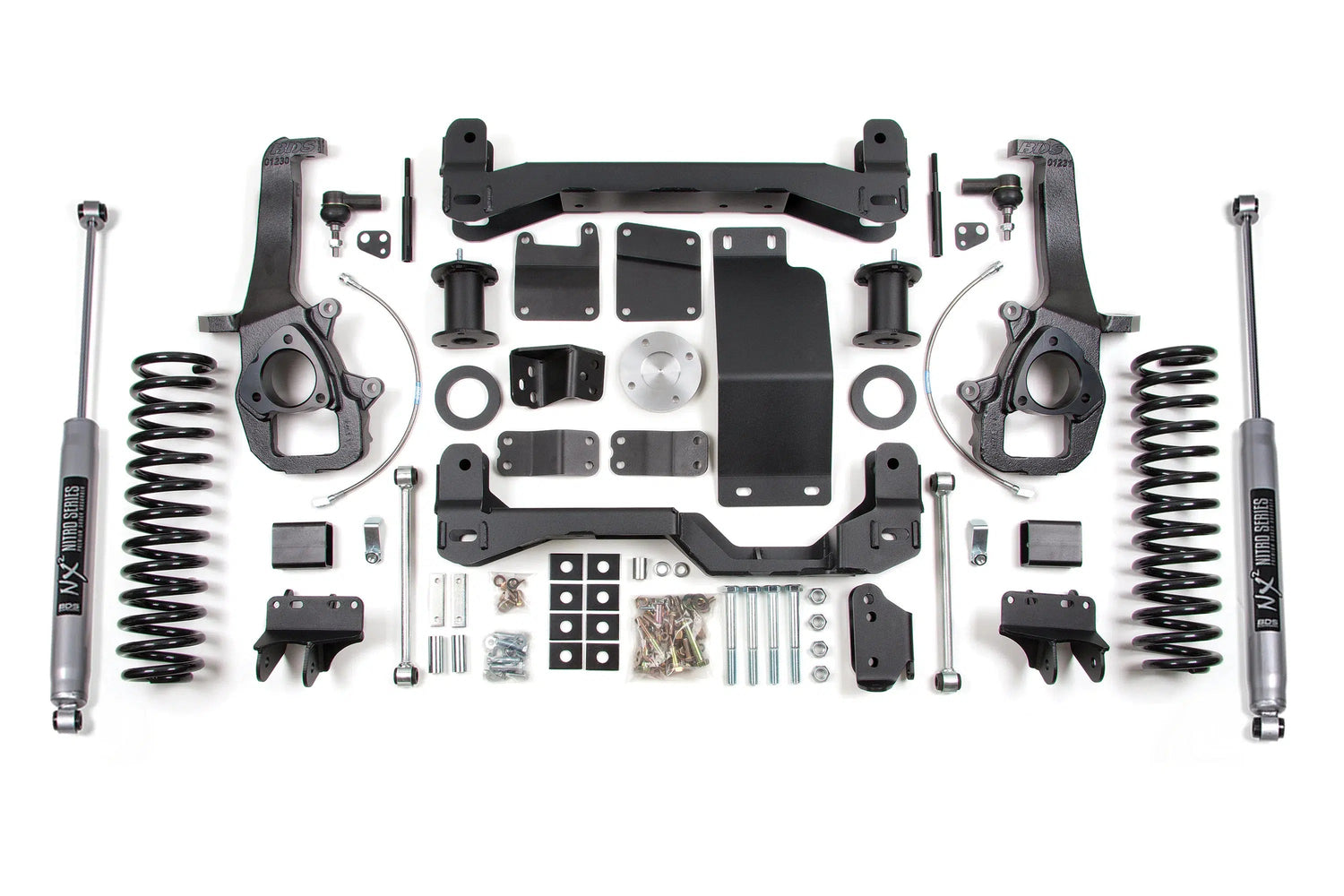

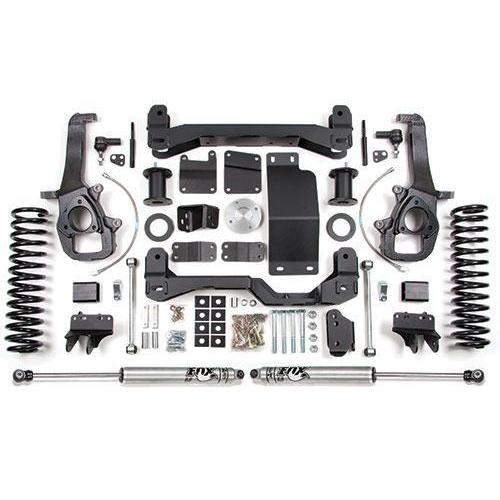

Features
  • 1/4" laser cut high-clearance crossmembers
  • Replacement steering knuckles
  • Differential skid plate
  • Bump Stop drops
  • Anti Sway Bar Links
  • 3 points differential drop system
  • Strut Relocation brackets
  • Front Stainless steel brake lines
  • 3-5" ProRide coil springs
  • NX2 Series Shocks

Tire & Wheel Combinations:

  • 37" x 12.50" w/ 17 x 9 and 4-1/2"
  • 37" x 12.50" w/ 18 or 20 x 9 and 5"
Notes
  • The rack and pinion steering system are extremely sensitive to an out-of-round or out-of-balance tire/wheel combination. The larger the tire and the less the backspacing, the more sensitive the system becomes, causing minor steering wheel shimmy.
  • Not recommended for AWD models.
  • Stock 17" wheels can not be re-installed. Stock 20" can be reinstalled with factory tire.
  • Will not fit adjustable air suspension-equipped models.
  • TRX models will achieve approximately 1" of additional lift. This lift is not recommended for use on the TRX models due to possible CV shaft vibration caused by the additional lift. Instead, consider our 4" lift system for about 5" of lift or replace the TRX struts with standard struts for use with this system.
  • This kit is FMVSS No.126 Compliant.
  • This kit will bolt on Eco-Diesel models but it will require an aftermarket front driveshaft.
