2013-2018 Cummins Towmaster Transmission & Converter Package AISIN AS69RC (1064274SS)

BD Diesel Part Number: 1064274SS

$12,069.95 CAD

Drivetrain

4WD 2WD Right Hand PTO 2WD Left Hand PTO

Notices

This item may have additional freight costs. Learn More

This product will automatically bundle the following item:

Core Charges
After you have made your purchase, please follow the steps listed below to receive your refundable Core charge. This process must be completed within 60 days of receiving your product(s). Failure to send us the core(s) within the 60 day timeframe will result in you only receiving a partial refund amount of the core deposit.

1) On the outside of the ORIGINAL box, please write "Core Return" and your Original Invoice Number/Order Number.

2) Ship your core with tracking to:

Unit 6 - 1060 Stevens Road, West Kelowna BC Canada V1Z1A3

3) Once we receive the Core here at the shop, it will be inspected to ensure that it is rebuildable. After the inspection is passed, your core charge will then be refunded (giving you more money for truck parts!).

Note:

Dirty Diesel Customs does not cover return shipping costs for core items. You are responsible for all shipping expenses associated with returning their core.

If you have purchased a BD Diesel product, please follow their core-return program which can be found here.

If you have purchased a Fleece Performance product that has a core charge, please follow the Fleece Performance Core Return instructions found here.

If you have purchased a Randys Transmission product, we must receive the core no later than 30 Days after the product delivery date.

Failure to follow these steps may result in a delay/denial of your core refund.

Failure to send us the core(s) within the 60-day timeframe will result in you only receiving a partial refund amount of the core deposit.

0-60 Days: Full Deposit if the core passes the inspection.

61-120 Days: 25% of your eligible core refund amount will be deducted.

121-182 Days: 50% of your eligible core refund amount will be deducted.

183+ Days: Your Core Charge is no longer refundable

Let us know if you have any questions or concerns. We can be reached at 778-754-7090 or feel free to email sales@dirtydieselcustoms.com.

Purchase to earn 12069 Dirty Dollars Learn More

Truck Fitment

Description

Note: 2WD models feature a standard Right-Hand-side PTO provision; verify the configuration before ordering.

Stop worrying about your Aisin AS69RC giving up the ghost when the trailer gets heavy. This Towmaster package is the ultimate heavy-duty overhaul for your Ram, utilizing billet internals and increased clutch counts to eliminate factory weak points. It’s engineered to handle modified engine output while keeping your 6.7L Cummins reliable, cool, and ready for the long haul.

Part Number: 1064274SS

Features

Transmission:

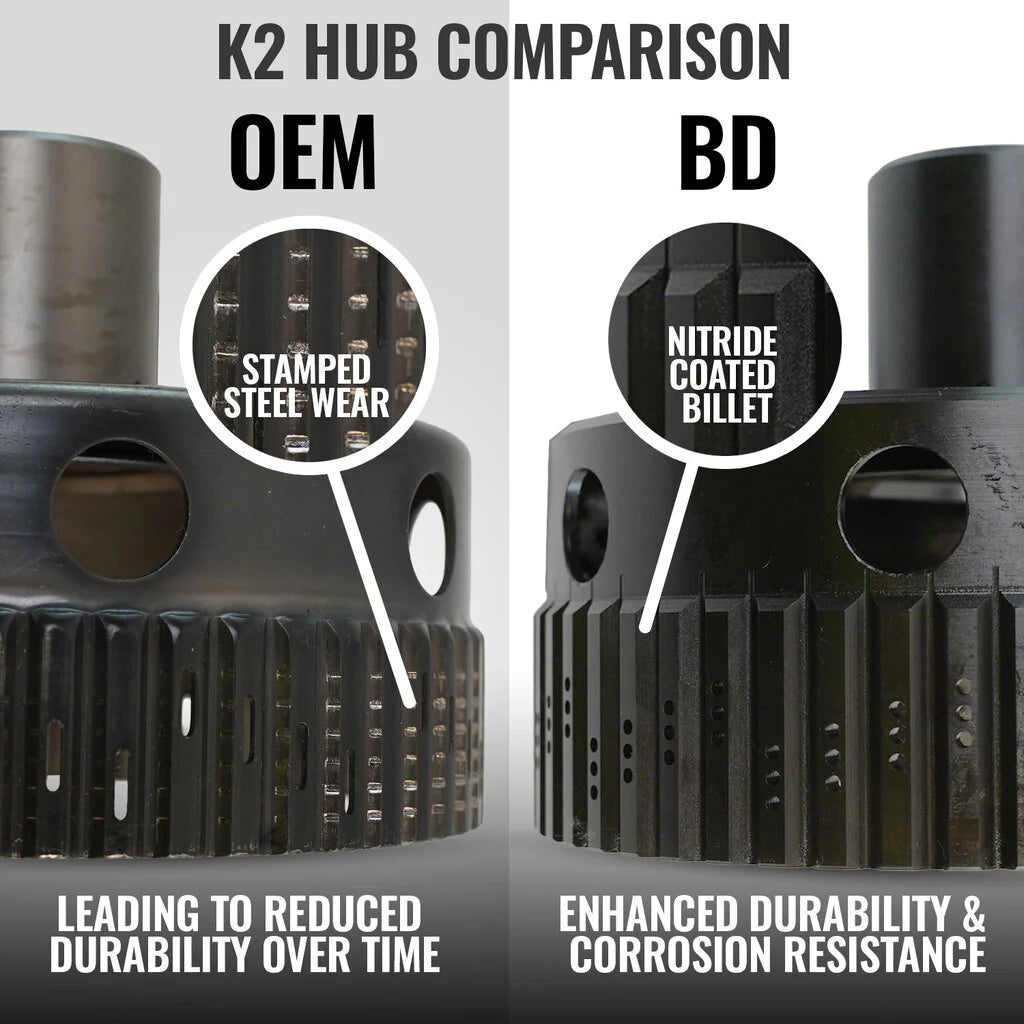

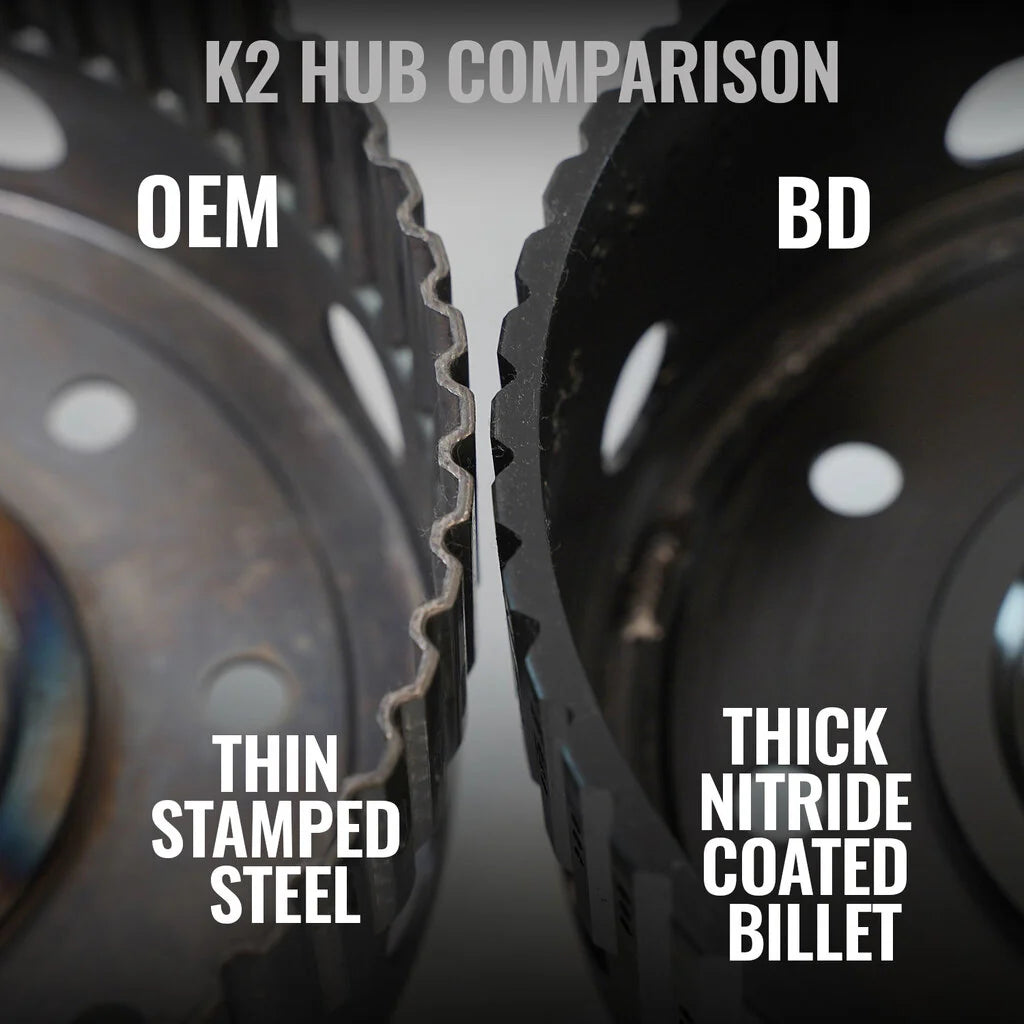

BD Billet nitride-coated K2 hub resolves the notorious clutch tooth wear issue on AS69RC transmissions

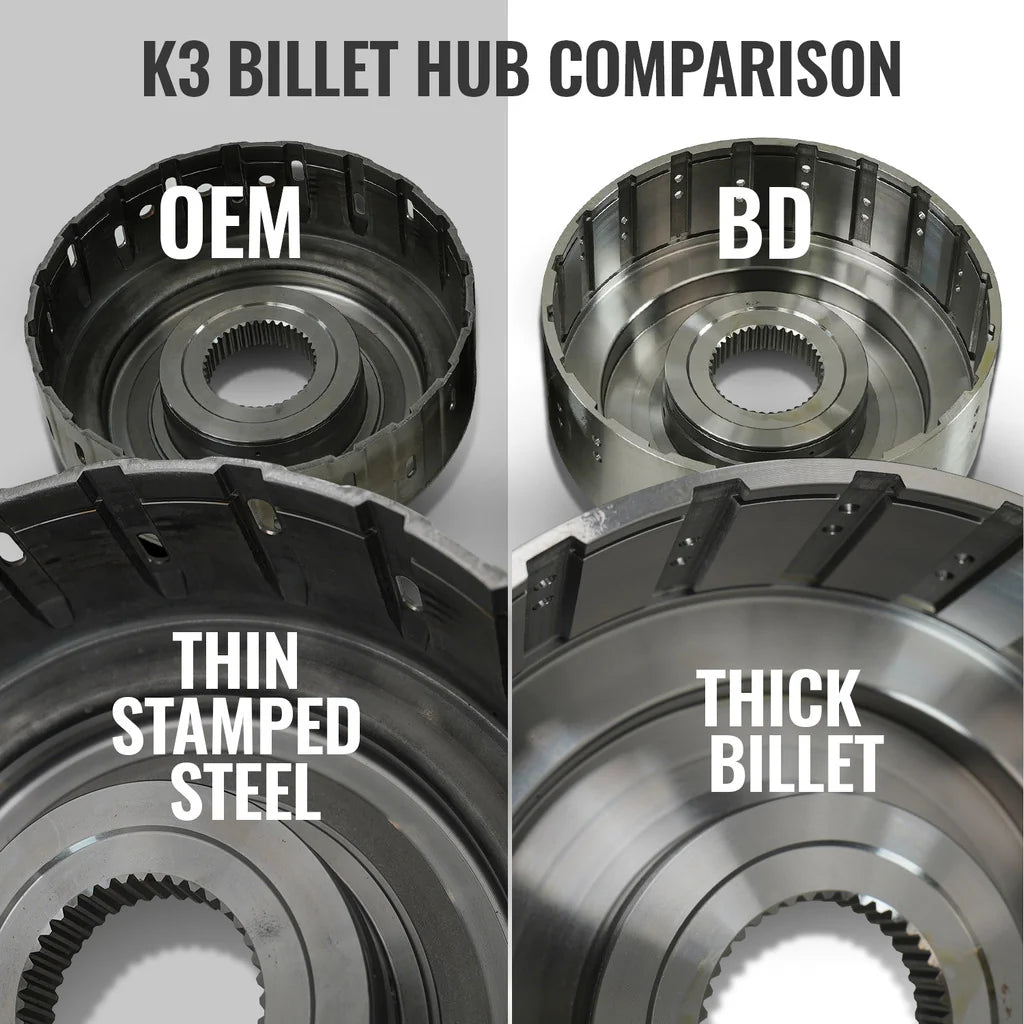

Billet K3 Drum provides increased durability and strength

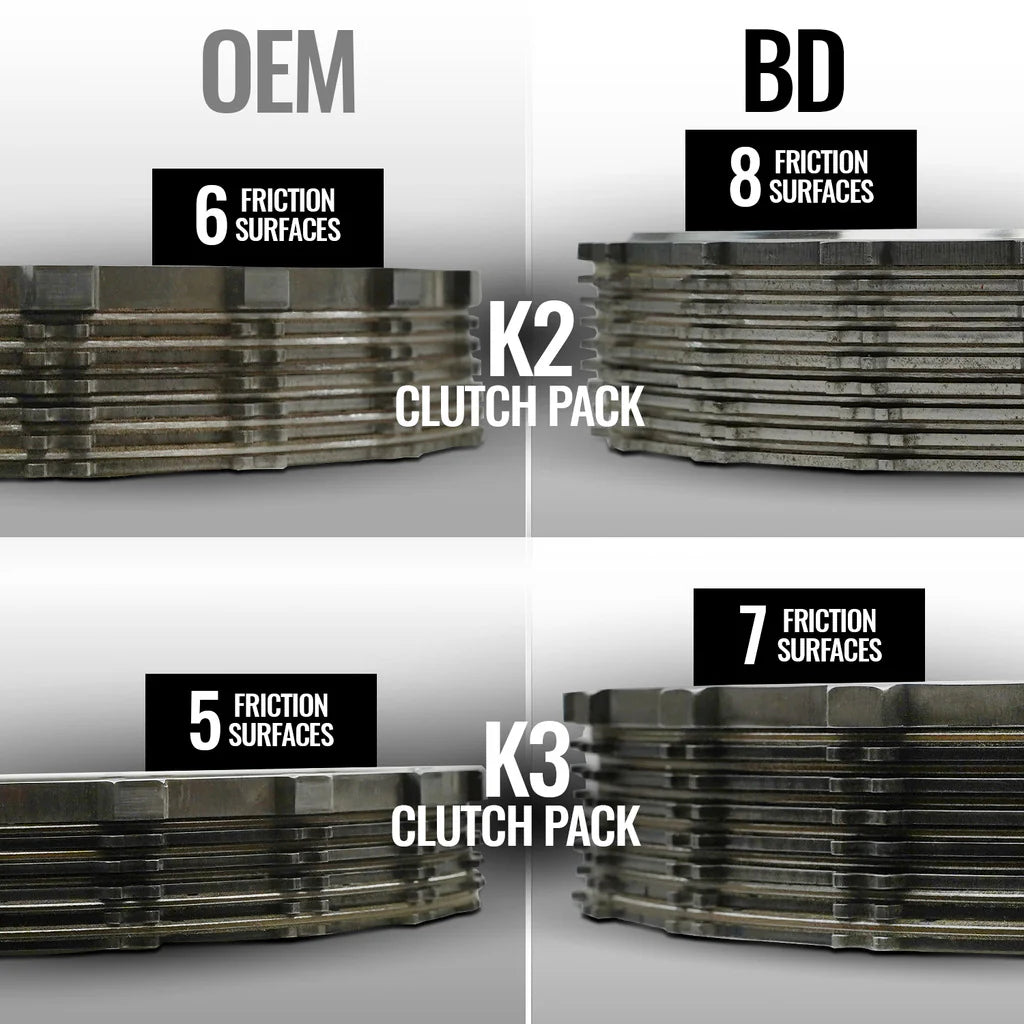

More clutches compared to stock and competitors for increased clutch torque capacity and durability
Clutch Count K1: 7
Clutch Count K2: 8 (33% increase over stock)
Clutch Count K3: 7 (40% increase over stock)
Clutch Count B1: 6 (20% increase over stock)
Clutch Count B2: 8
Increased valve body line pressure for increased clutch holding capacity

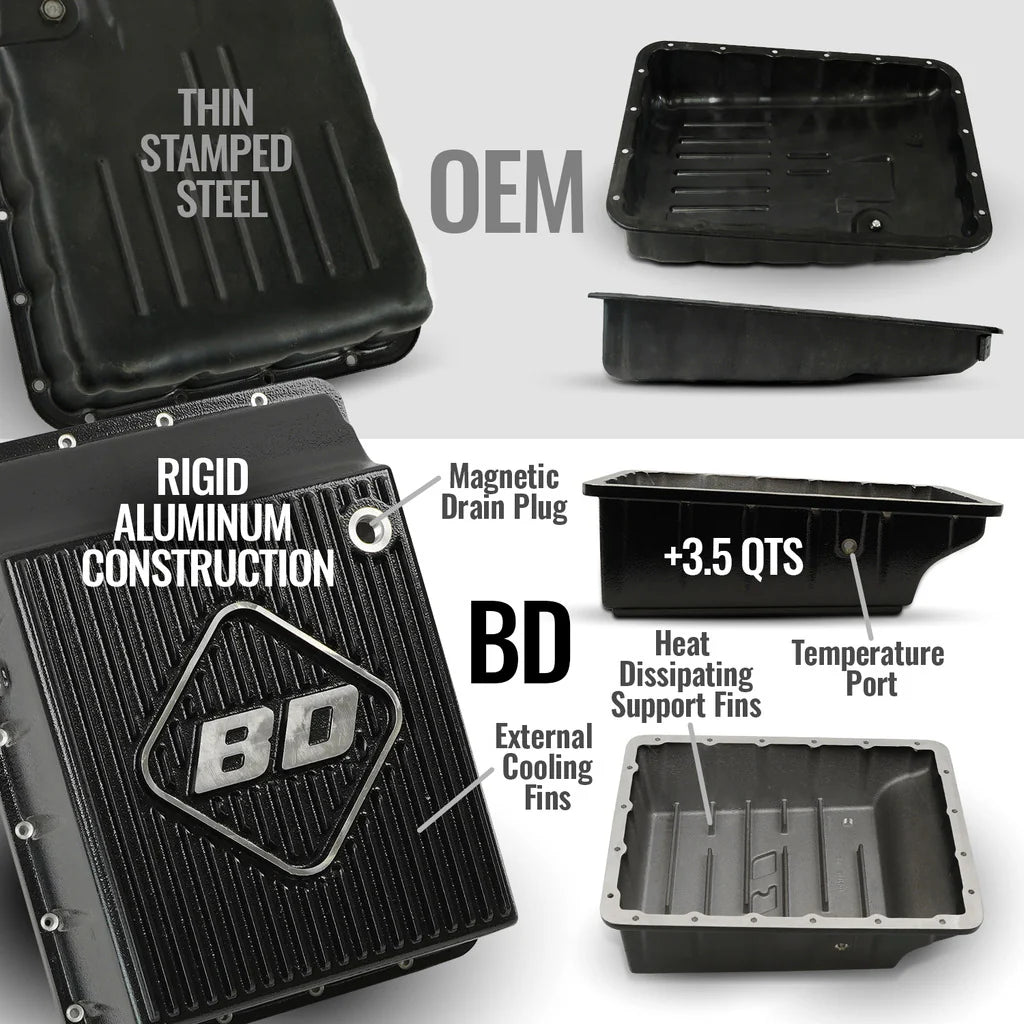

BD deep sump pan increases fluid capacity by 3.5 qts for better fluid life and cooling

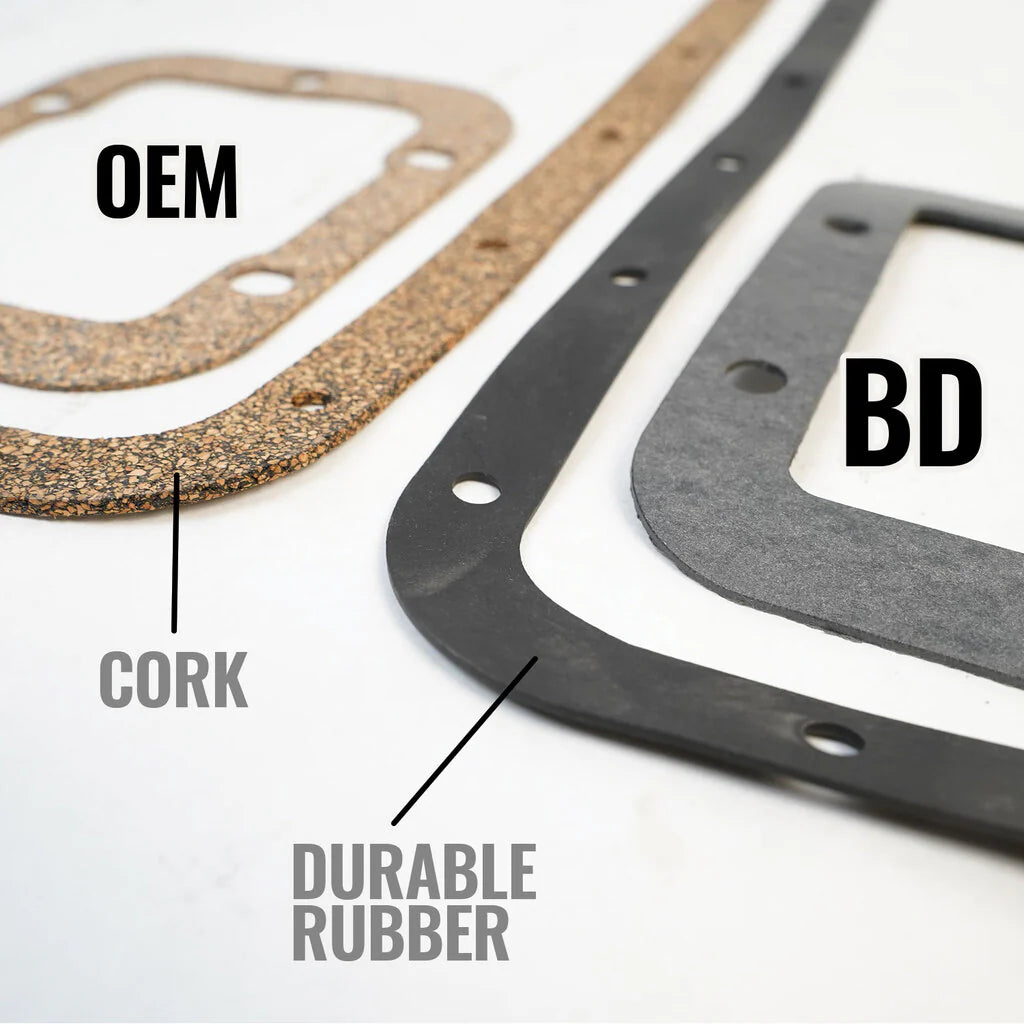

Nitrile pan and PTO gaskets prevent leaks common with OEM cork gaskets

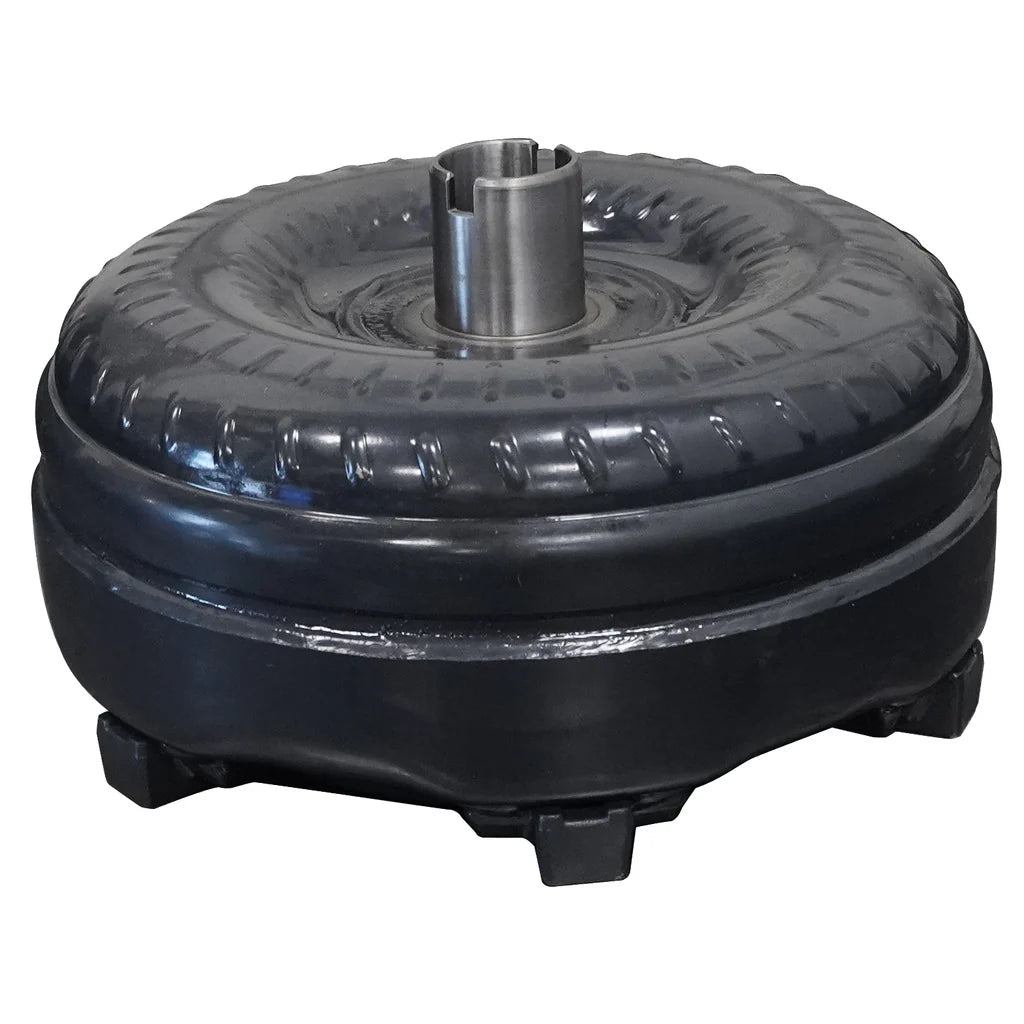

ProForce Converter:

New Clutches for reliable, strong converter clutch apply (3 frictions and 3 steels)
New sprag for reliable stator operation
Cost-effective OEM replacement to accompany a transmission replacement

Includes

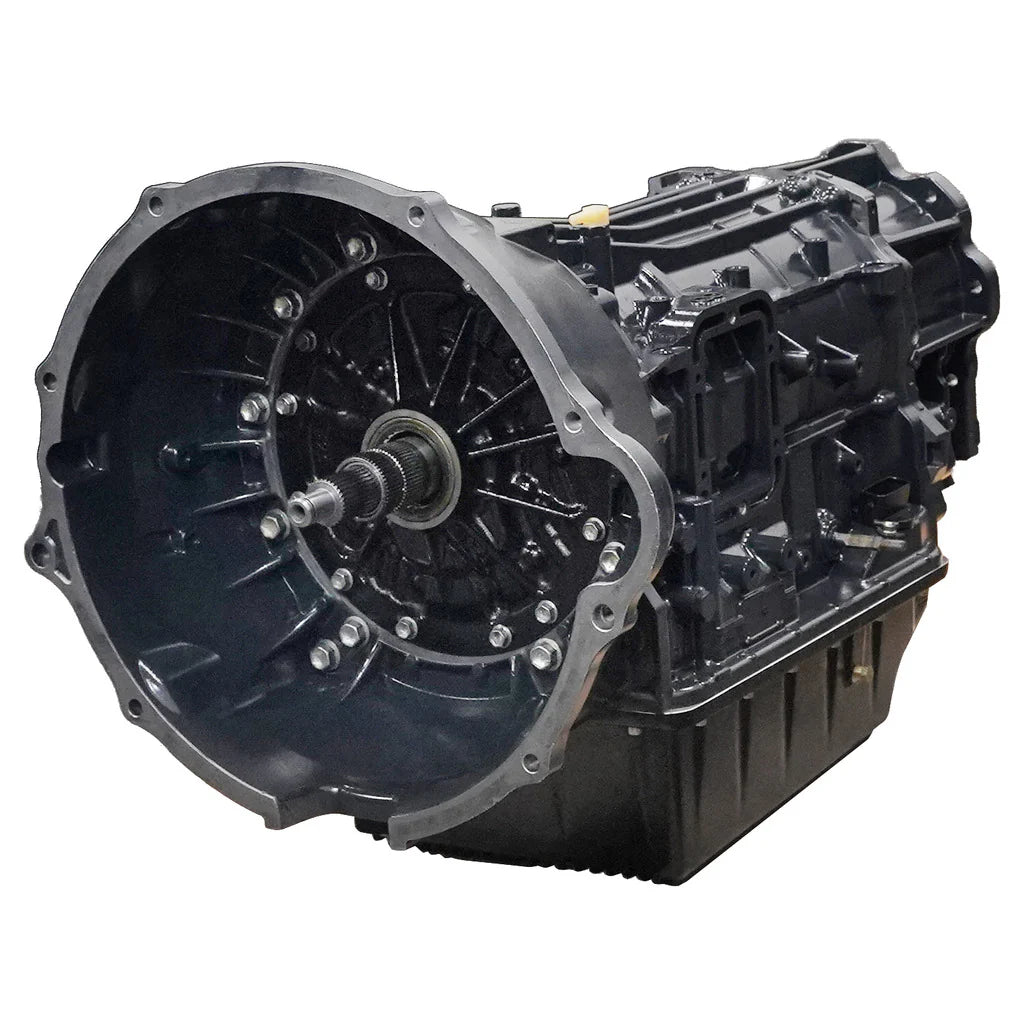

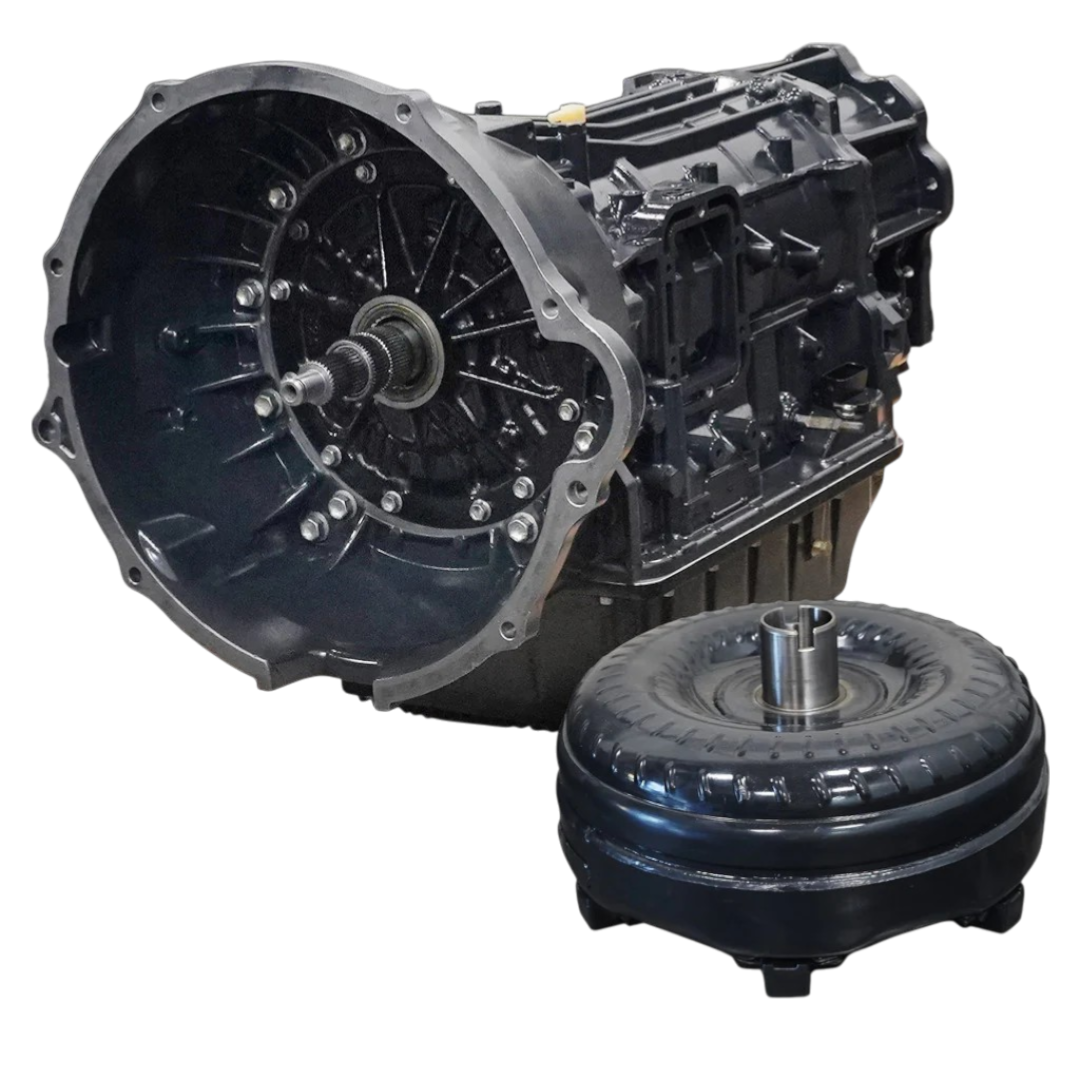

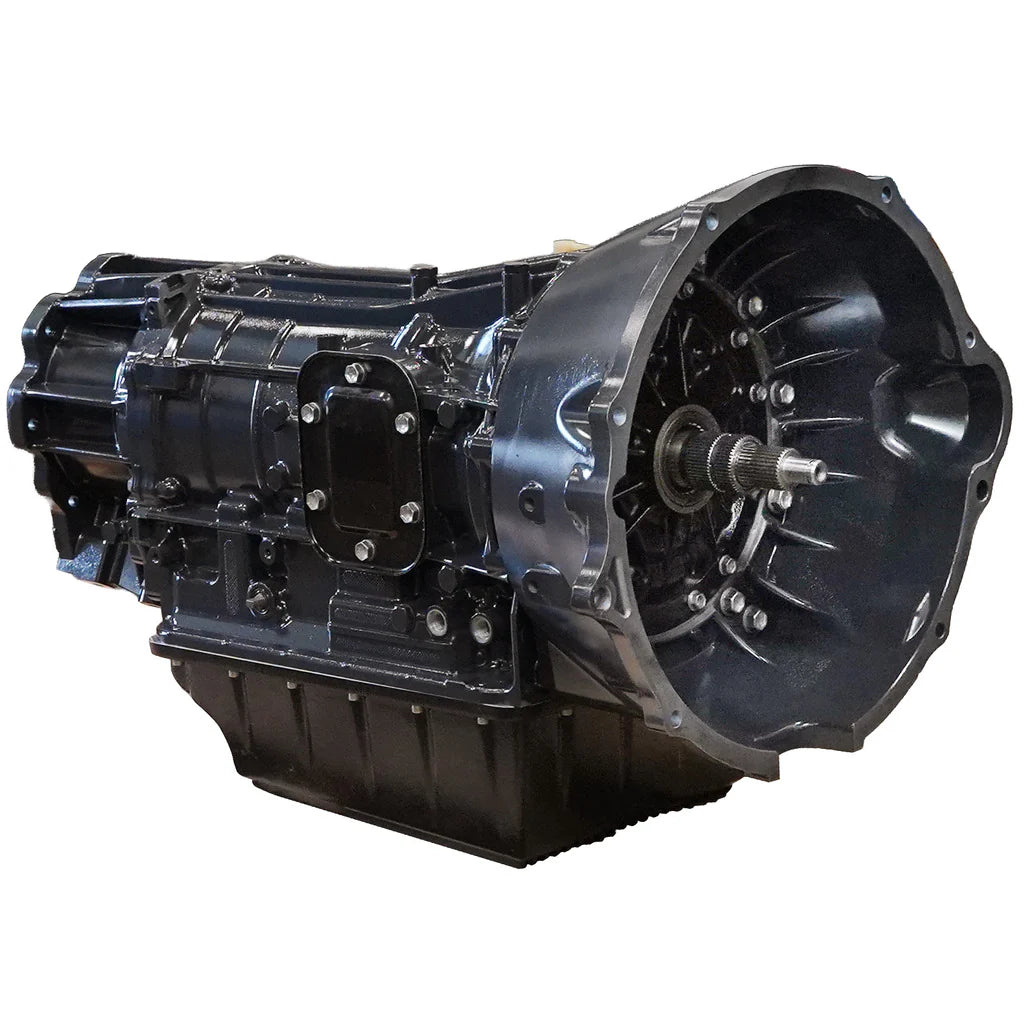

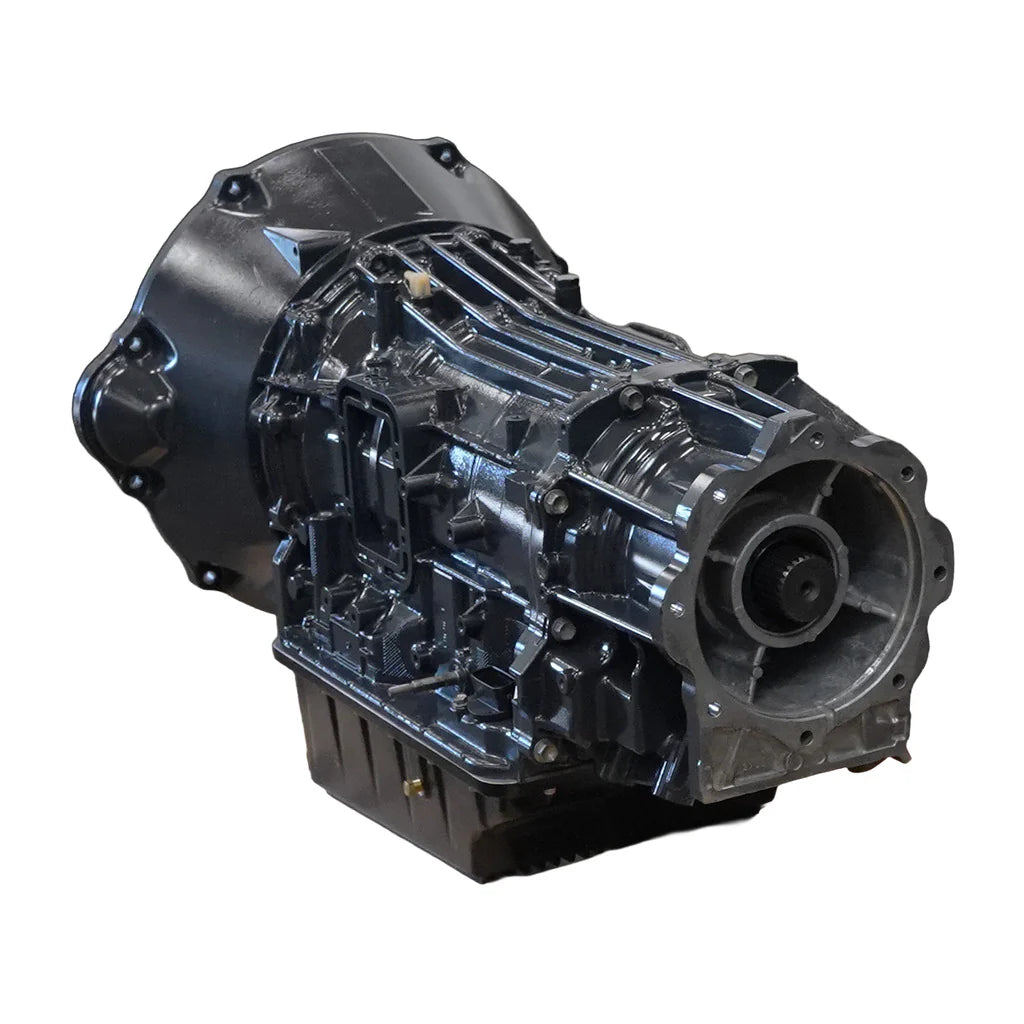

Assembled Towmaster Transmission
ProForce Torque Converter
BD Deep Sump Oil Pan
Nitrile Pan & PTO Gaskets
Hardened Billet K2 Hub
Billet K3 Drum

Notes

2WD models come standard with a PTO provision on the right-hand side of the transmission. Left-hand-sided PTO provision is a special order from the factory. Please confirm which side the PTO provision is on before ordering.
Replaces OEM Part Numbers: (2WD) 68300149AB, R8300149AB, and (4WD) 68300150AB, R8300150AB
8 Hour Install time
Core Acceptance

Installation

Click Here For Instructions

Warranty

Parts

24-Months

Labor

12-Months
