2013-2018 Cummins Rear Long Travel Air Bags w/ 1-2" Lift (CS-DLTB-13-D)

Note: for trucks equipped with a 4" axle tube

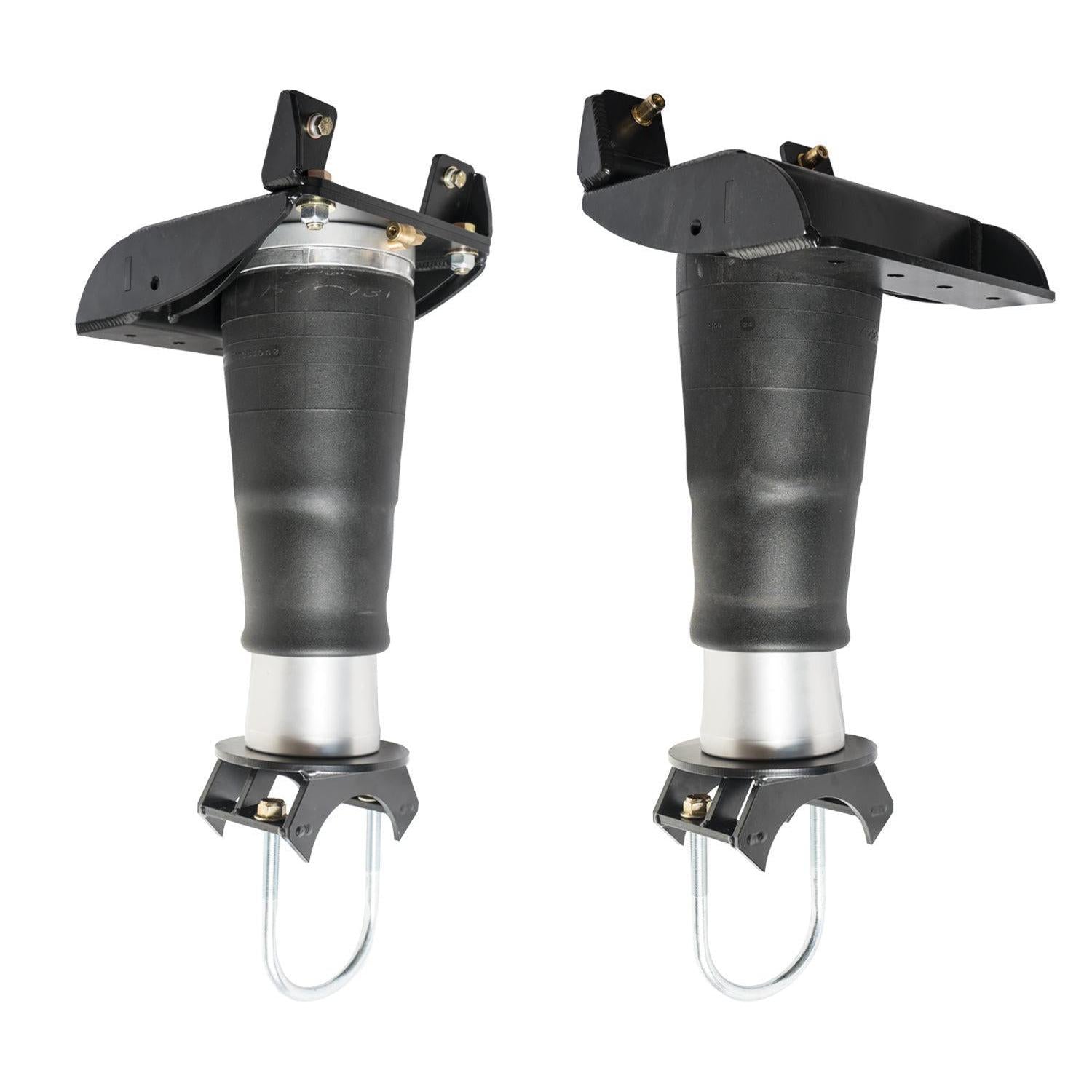

These Long Travel Air Bags are perfect for those who run the progressive leaf springs and want improved ride quality without compromising payload capacity. Featuring a tapered piston and a folding sleeve bag to avoid any interference when deflated. Perfect for those who haul 5th wheels, campers, boats, and so on, these bags have an operating range of 0 to 100 psi (bags are rated to 2,000 lbs./ea. at 100psi).

Part Number: CS-DLTB-13-D

• Supports up to 12" of rear travel
• 2,000lb capacity per bag at max 100psi
• Compatible with 1″-2″ Rear Lift
• Restore Factory Payload to Full Progressive Springs
• Utilizes industry standard 1/4″ airline
• Can be plumbed into existing on-board air systems

• Will ONLY work with rear lifts that level to a 3″ Front lift. Carli recommends 1″-2″ of lift in the rear
• These will NOT work on stock height trucks
• Will work with add-a-packs, but are better suited to the full progressive leaf springs to provide the best unloaded ride and payload capacity.
