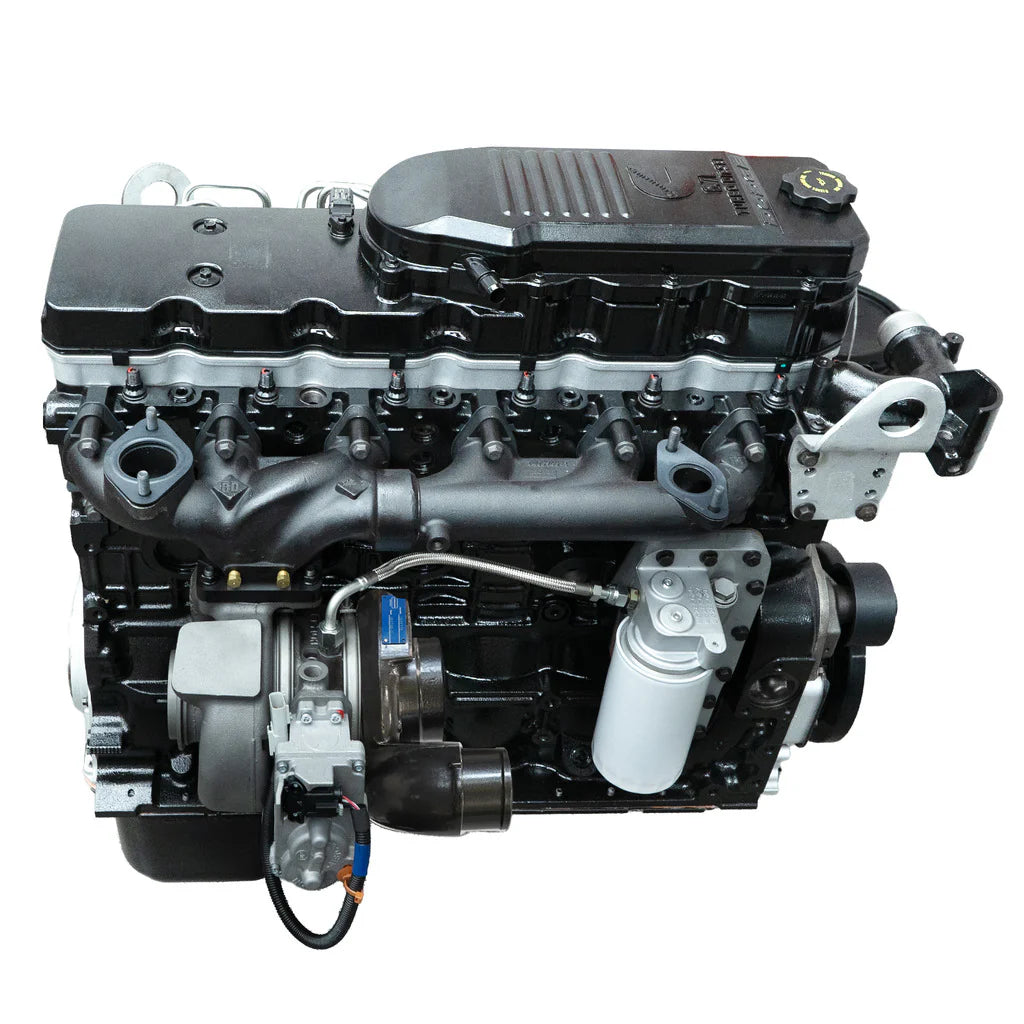

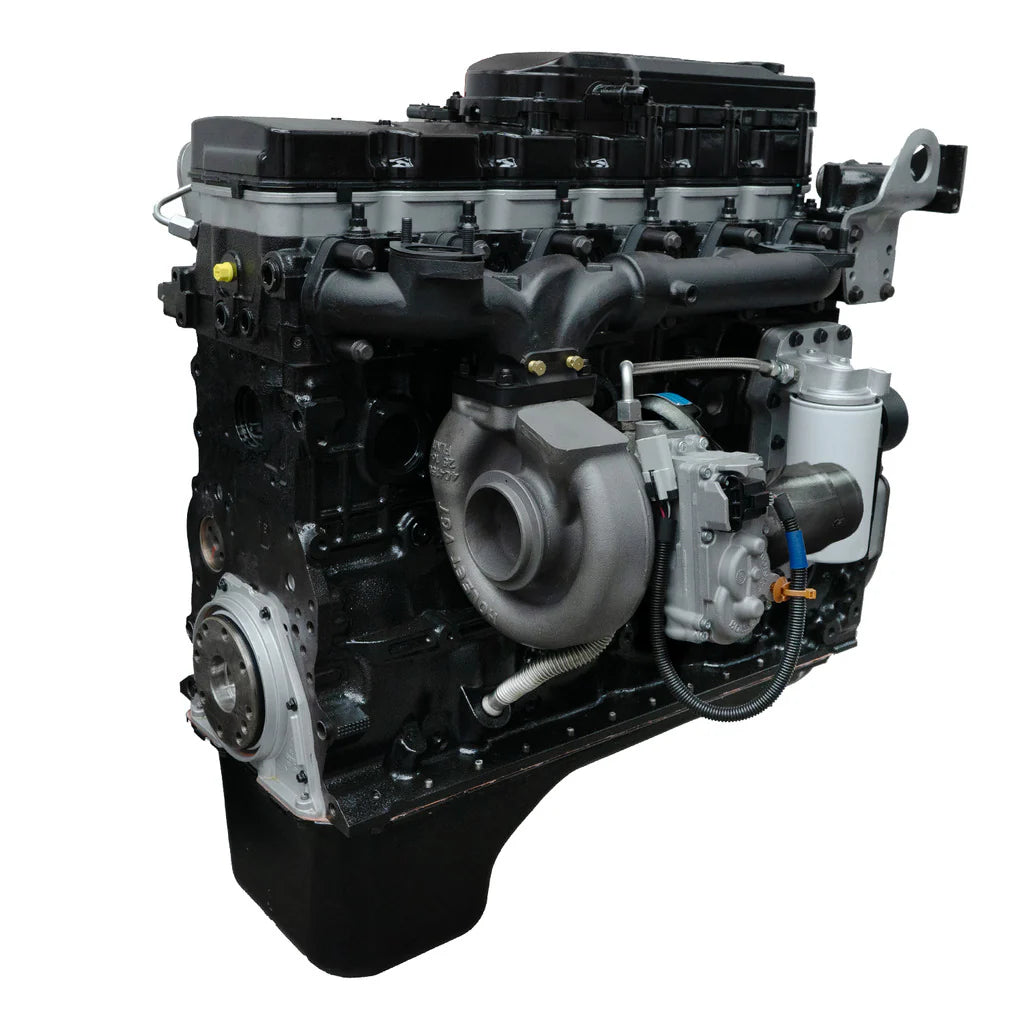

2013-2018 Cummins 6.7L Heavy Hauler Ready Run Engine (DJPLB100098)

Fits

The D&J Heavy Hauler Ready Run is a complete, high-performance replacement engine for 2013-2018 6.7L Cummins-powered Ram trucks. This drop-in solution pairs a blueprinted and balanced D&J Heavy Hauler Long Block rated for up to 700HP with a fully integrated suite of BD Diesel performance components. Featuring a 64.5mm Screamer turbocharger, a high-pressure fuel system with StockPlus Premium injectors, and a 9/16 inch ARP-studded head, this engine is meticulously engineered for extreme towing and reliability without the guesswork of a custom build.

Part Number: DJPLB100098

Long Block

• Comprehensive Inspection: Disassembled, crack-checked, blasted, and cleaned before machining.
• Precision Machining: CNC bored, line bored, surfaced as needed, and torque plate honed to exact specifications.
• Custom ARP Head Studs: 9/16" head studs provide the best head-to-block seal possible. D&J ARP 9/16" Head Studs torqued to 175 ft/lbs.
• High-Performance Cylinder Head: D&J Stage 1 Performance Cylinder Heads are disassembled, crack-checked, fitted with extra-large, heavy-duty seats, machined for thread-in soft plugs, and 5-axis CNC-ported. Each head undergoes a CNC high-performance valve job and is pressure-checked before assembly and painting. Blueprinted and Balanced: All engines are blueprinted, balanced, oil clearance measured, and rings file fit.
• Pre-lubed and Painted: Engines are painted black and shipped pre-lubed with break-in oil and filter included.
• Machined Rocker Box and Pedestals: Ensures a precise fit and optimal performance.
• High Power Rating: Rated for up to 700 hp, suitable for high-demand applications.
• D&J HD 7/16" Pushrods.
• D&J 200 CFM Stage 1 High-Performance Cylinder Head.
• D&J tow performance cast cam.

BD Manifold

• Two-piece high-silicon ductile iron to withstand extreme exhaust gas temperatures.
• Grade 10.9, black oxide-coated bolts, and spacers.
• Pre-drilled for pyrometer probes.
• SEMA Certification No. SC-BDD01-0155

BD Turbocharger

• 64.5mm 7+7 blade billet compressor wheel and 70mm 12 blade turbine wheel.
• The quick-spool turbine wheel has 15% less MOI (moment of inertia), resulting in quicker turbo response.
• Actuator pre-programmed for drop-in functionality.
• Fully remanufactured and VSR high-speed balanced for long-term reliability.
• CARB EO D-553-32

BD High-Pressure Fuel System

• Remanufactured by Bosch-trained technicians for quality assurance.
• Remanufactured CP3 injection pump with new metering unit installed.
• StockPlus Premium injectors (up to 30HP) with new Bosch OE nozzle, solenoid, and control valve (CARB EO D-553-10)
• Fuel injectors and CP3 pumps were tested on a Bosch 815 test bench to ensure correct operation in all conditions.
• Includes BD’s OEM fit fuel lines for easy fitment and installation.
• High-quality gaskets.

ALL ENGINES ALSO INCLUDE THE FOLLOWING COMPONENTS

• Fluidampr harmonic balancer
• Turbo oil feed line and drain tube
• New water pump and thermostat
• New coolant temp sensor
• New Bosch fuel rail, including pressure sensor and relief valve
• New Valve Cover
• New high-pressure fuel lines and injector feed tubes
• New oil pressure switch/sensor
• Dipstick and tube

• Install Time: Approximately 14 Hours 30 Minutes.
• Emissions: Not for sale on licensed California vehicles.
• Certifications: SEMA Certified manifold/injectors and CARB EO D-553-32 for the turbocharger.

Parts

• 24-Months
• 100,000 Miles
• For any warranty claims/issues, please contact D&J Precision Machine. Phone: 740-297-7223
