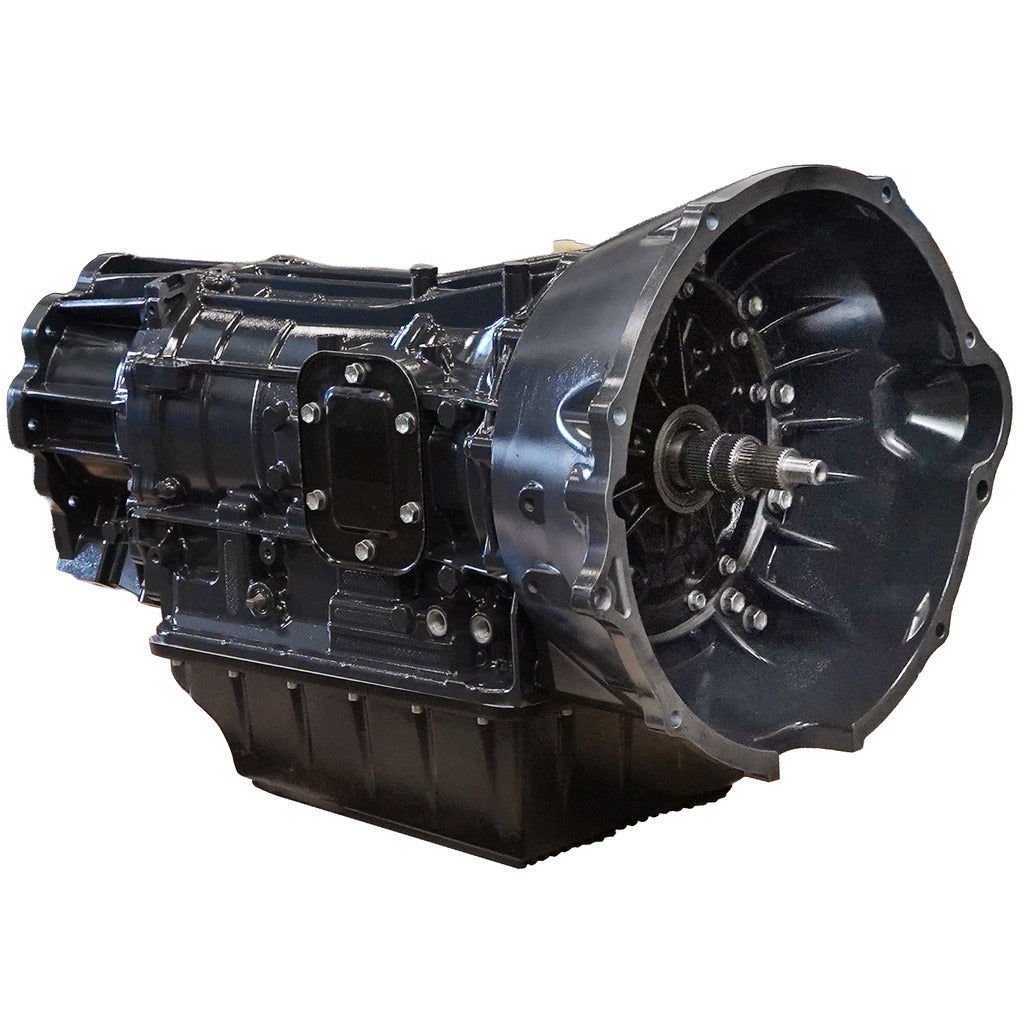

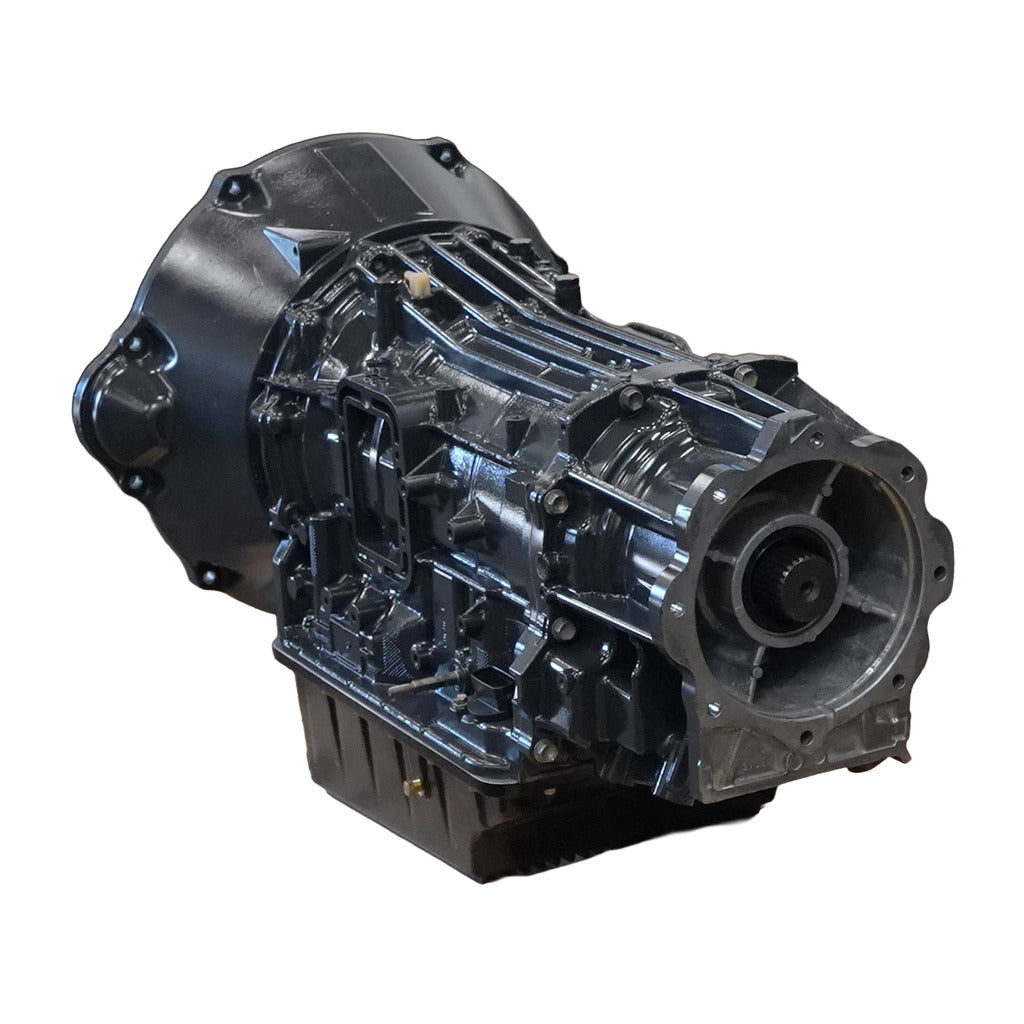

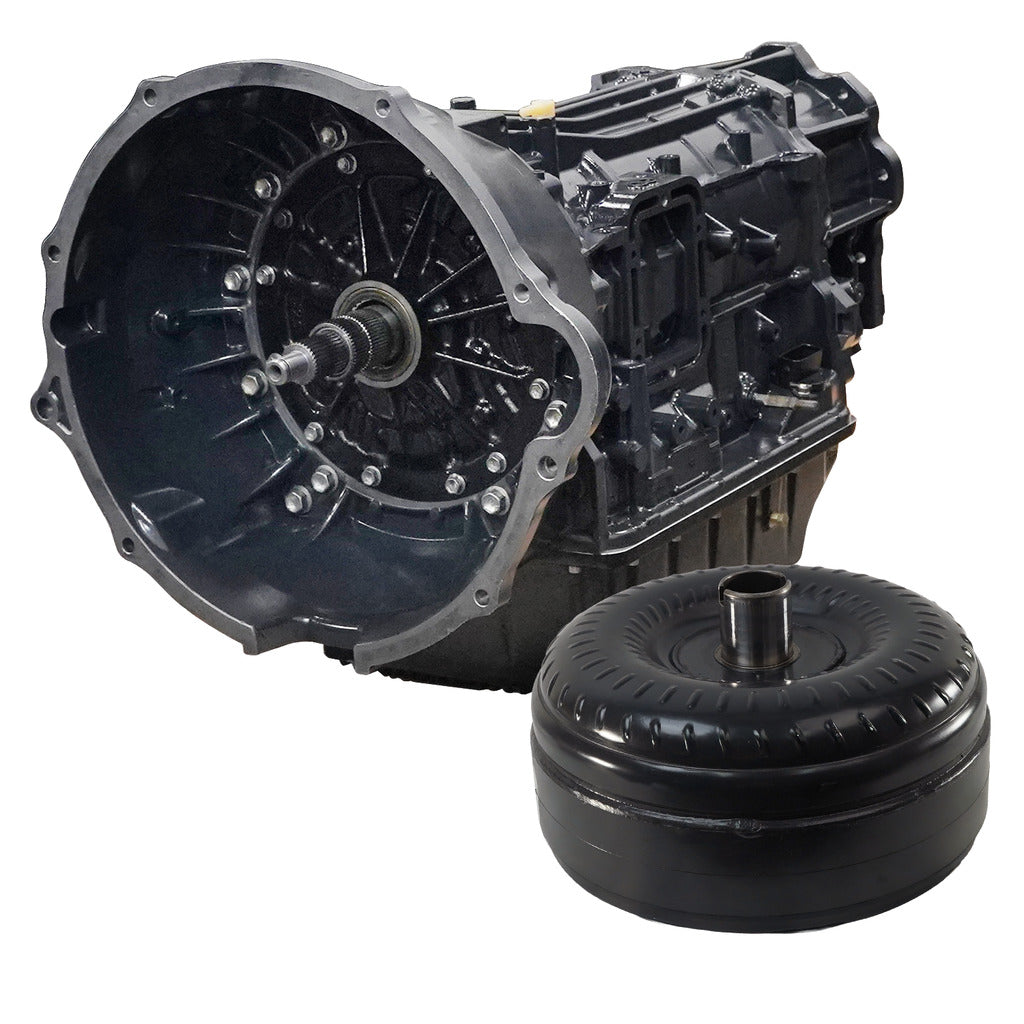

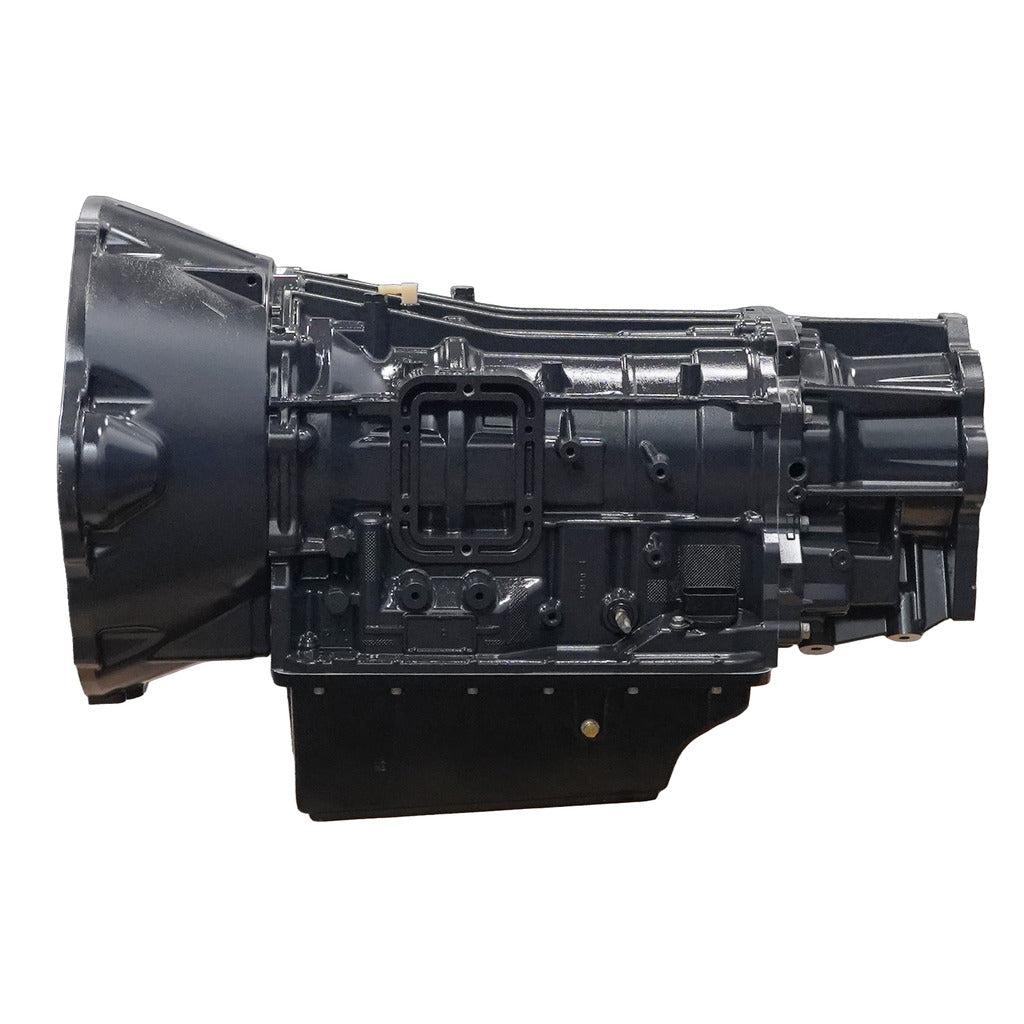

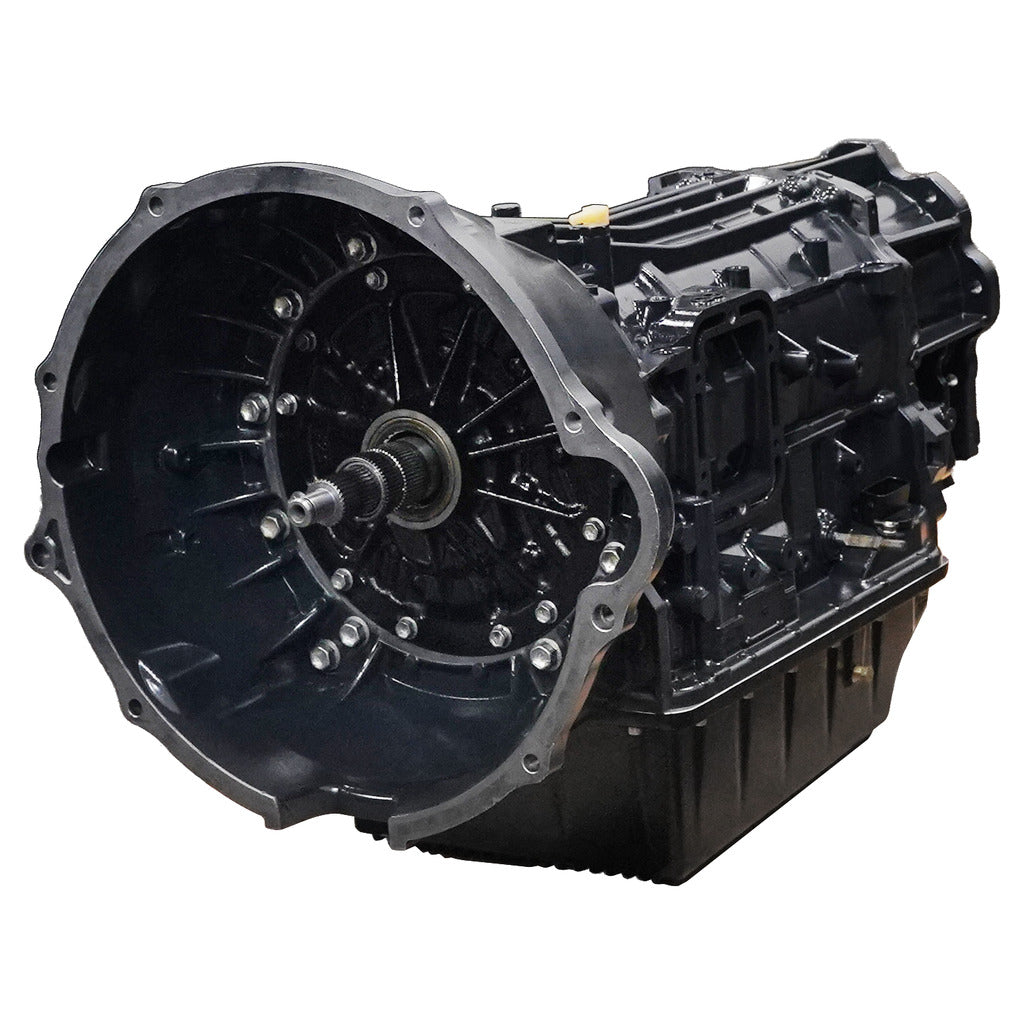

2013-2018 Cummins 2WD LH PTO Torquemaster Transmission Package AISIN AS69RC (1064392SM)
Purchase to earn 13490 Dirty Dollars Learn More
Fitment
Fitment
| Year | Make | Model |
| 2013-2018 | Ram | 3500 / 4500 / 5500 w/ 6.7L Cummins |
Description
Description
The 2013-2018 AS69RC is found in the Ram 3500-5500 with the 6.7L diesel and is the most demanding transmission in BD's Aisin lineup. The Torquemaster package is built for performance applications where increased friction counts in the K2, K3, and B1 clutch packs are required. Custom billet nitride K2 hub and apply piston resist spline wear, while the billet K3 hub and piston deliver durability with 40% more clutches than stock.
Configuration: 2WD Left Hand PTO (special order)
Part Number: 1064392SM
IMPORTANT: This is a special-order configuration for 2WD trucks with a factory left-hand PTO provision. The more common factory configuration is right-hand PTO. If your truck has a right-hand PTO, order the 2WD Right Hand PTO (1064362SM) instead.
Other configurations in this tier:
Features
Features
Transmission:

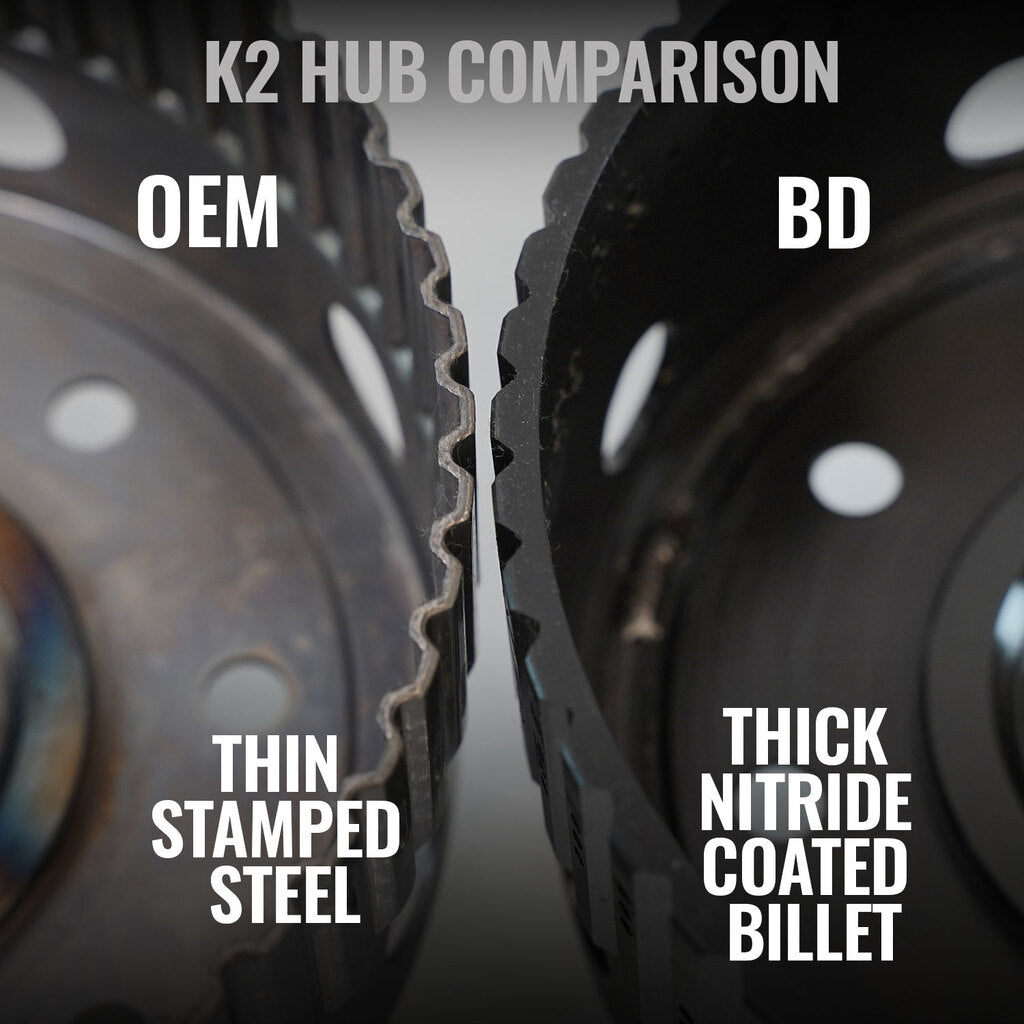

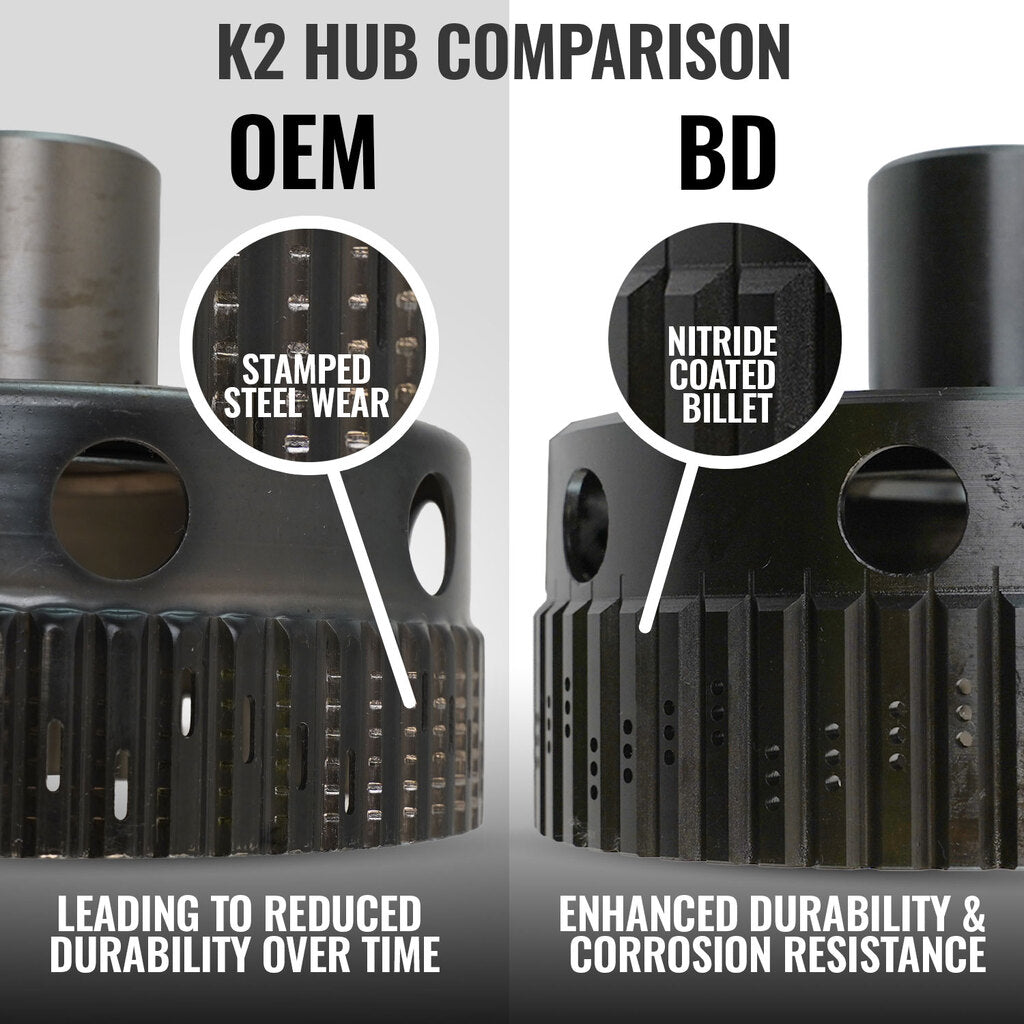

- BD exclusive billet nitride-coated K2 hub resolves the notorious clutch tooth wear issue on AS69RC transmissions

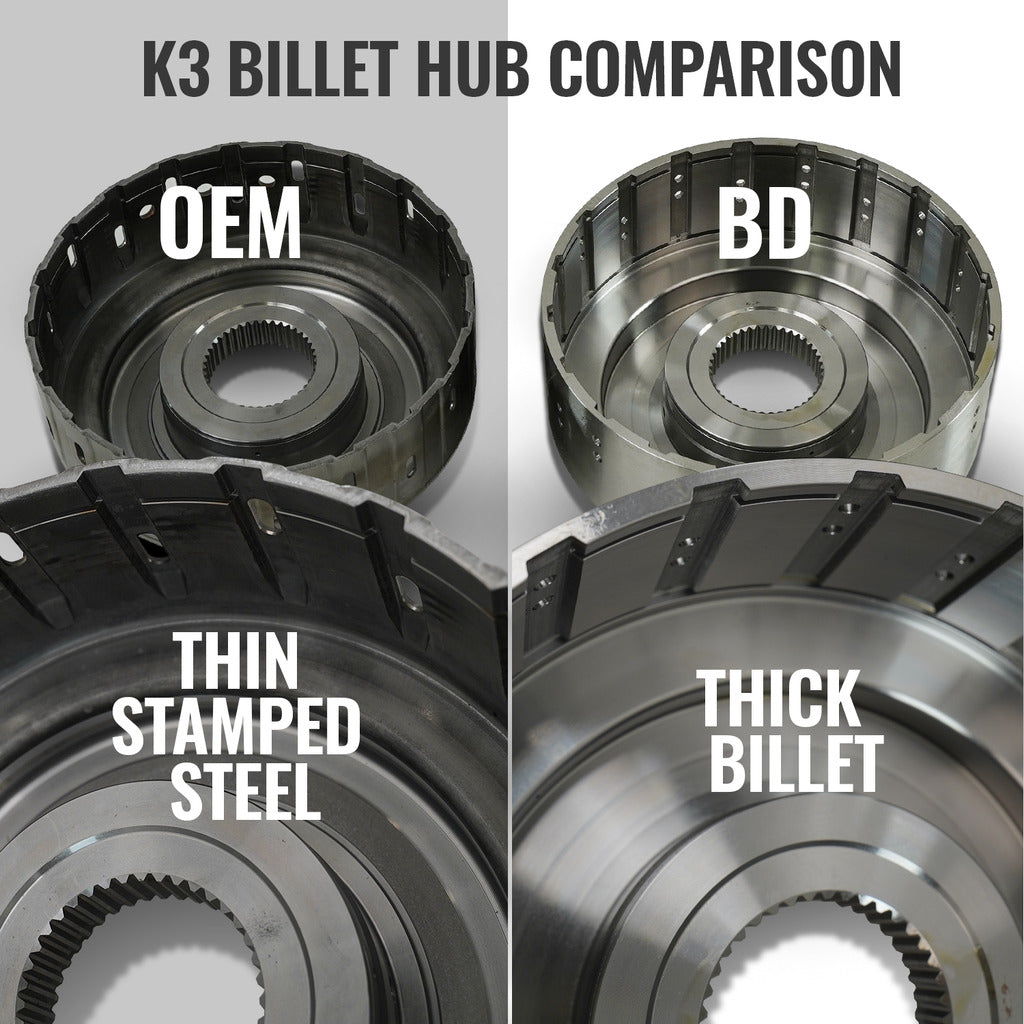

- Billet K3 drum increases clutch capacity, rigidity, and resists ring groove failure

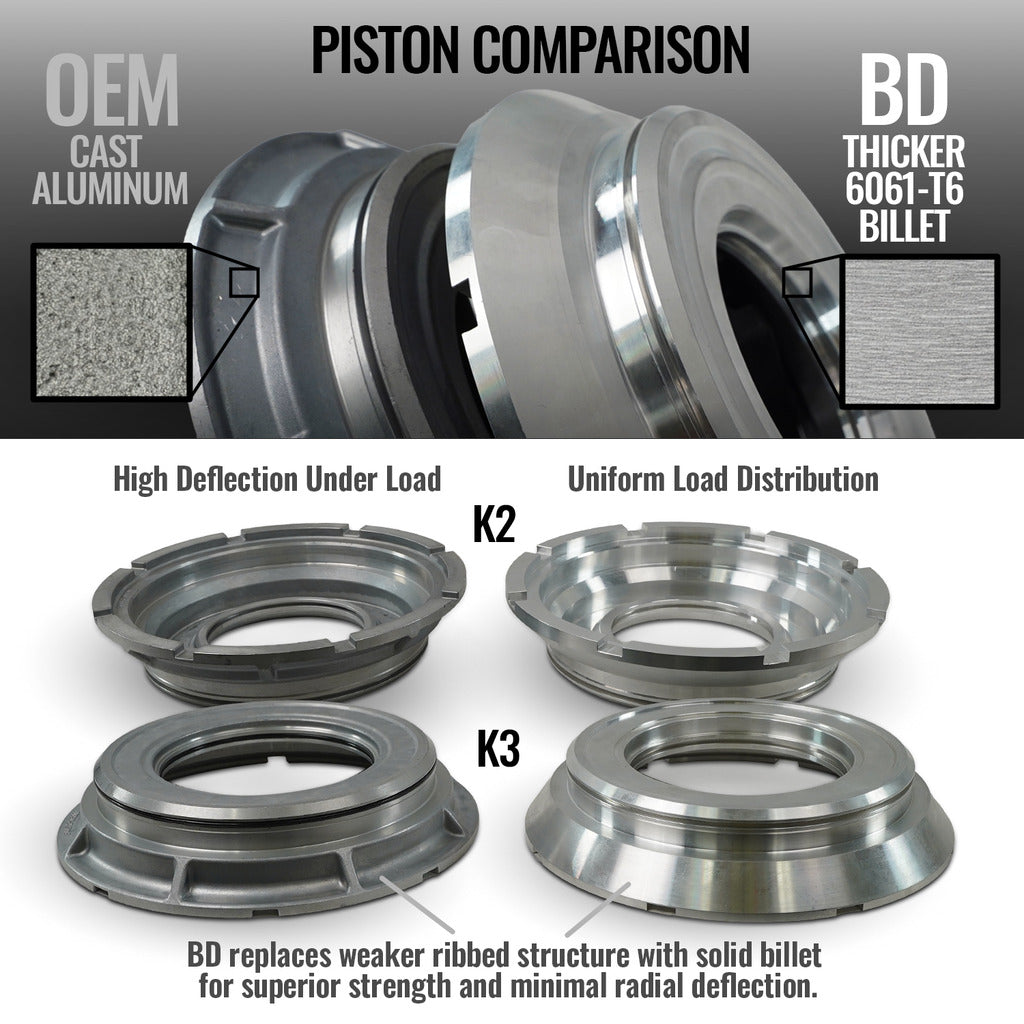

- Billet clutch apply pistons in K2 and K3
- More clutches vs. stock and competitors

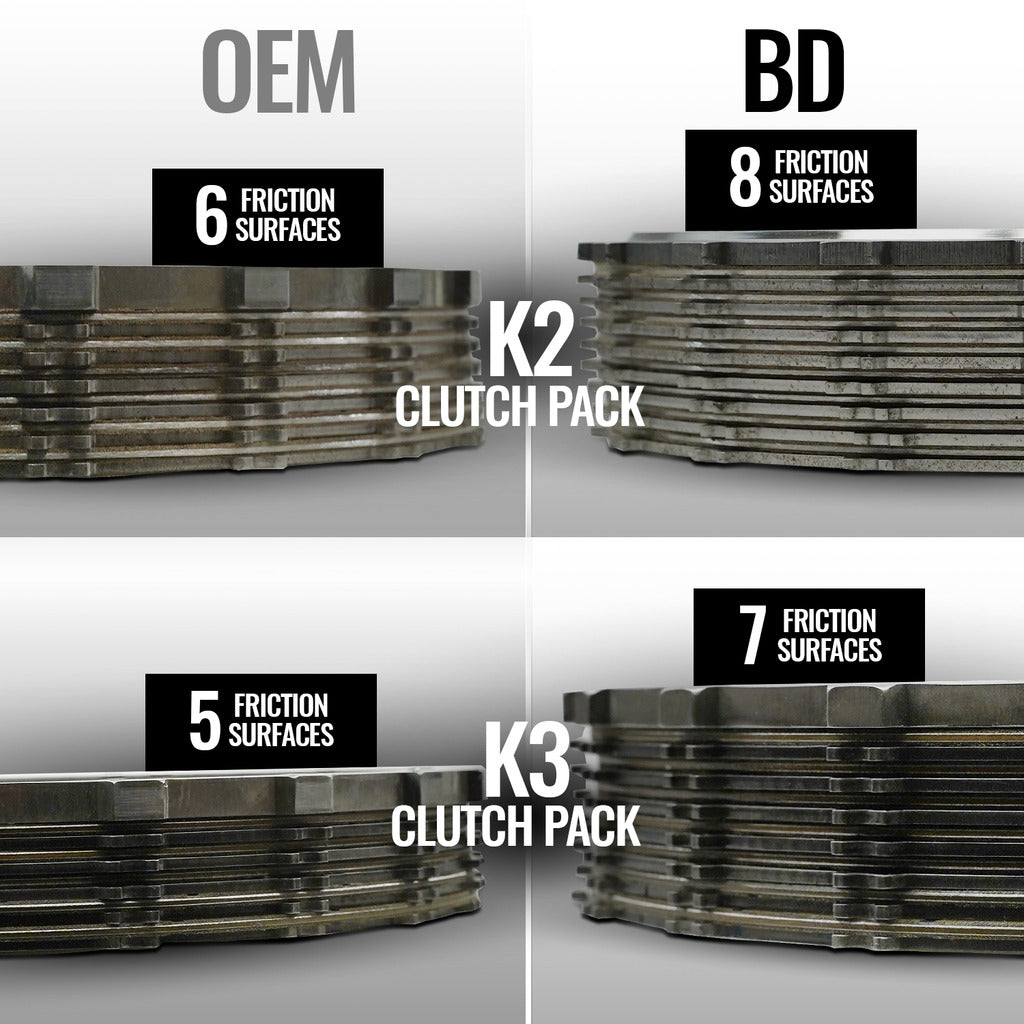

- Clutch Count K1: 7
- Clutch Count K2: 8 (33% increase over stock)
- Clutch Count K3: 7 (40% increase over stock)
- Clutch Count B1: 6 (20% increase over stock)
- Clutch Count B2: 9
- Increased valve body line pressure

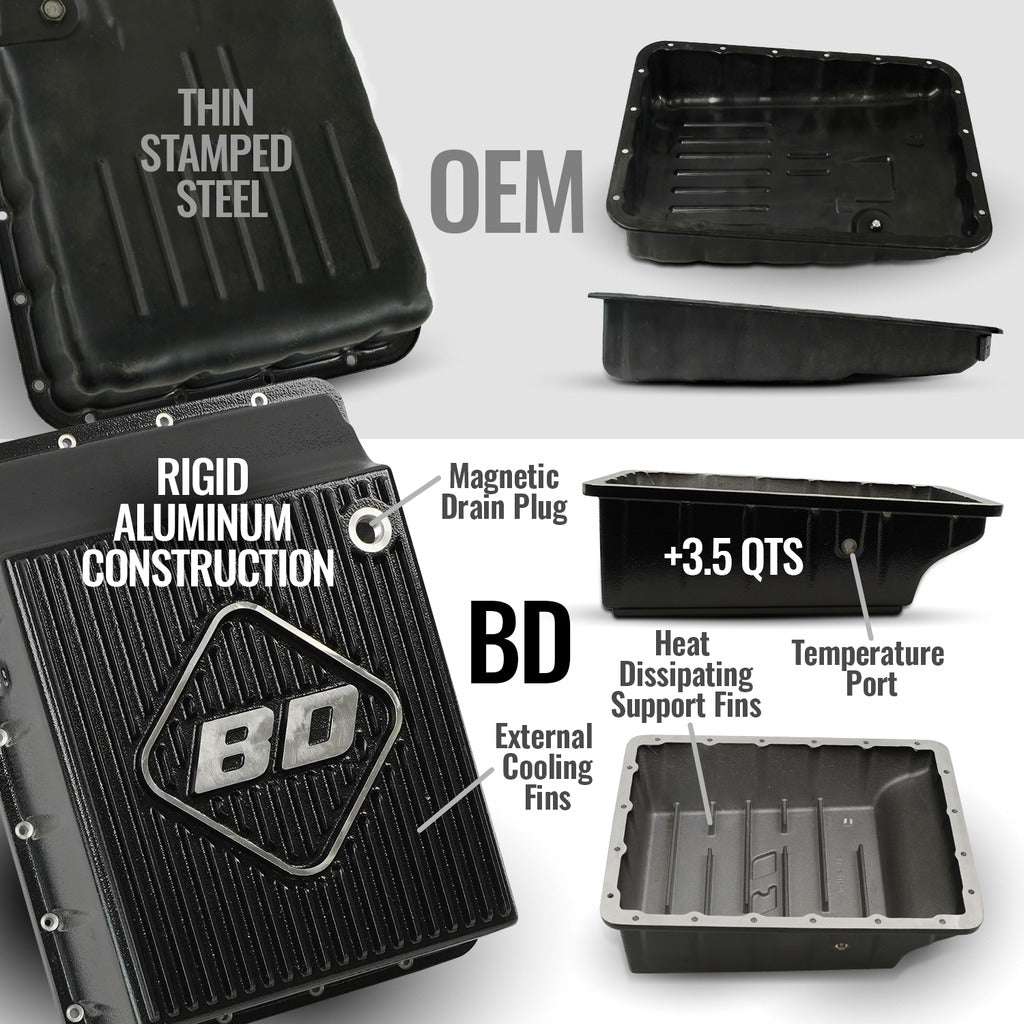

- BD deep sump pan increases fluid capacity by 3.5 qts for better fluid life and cooling

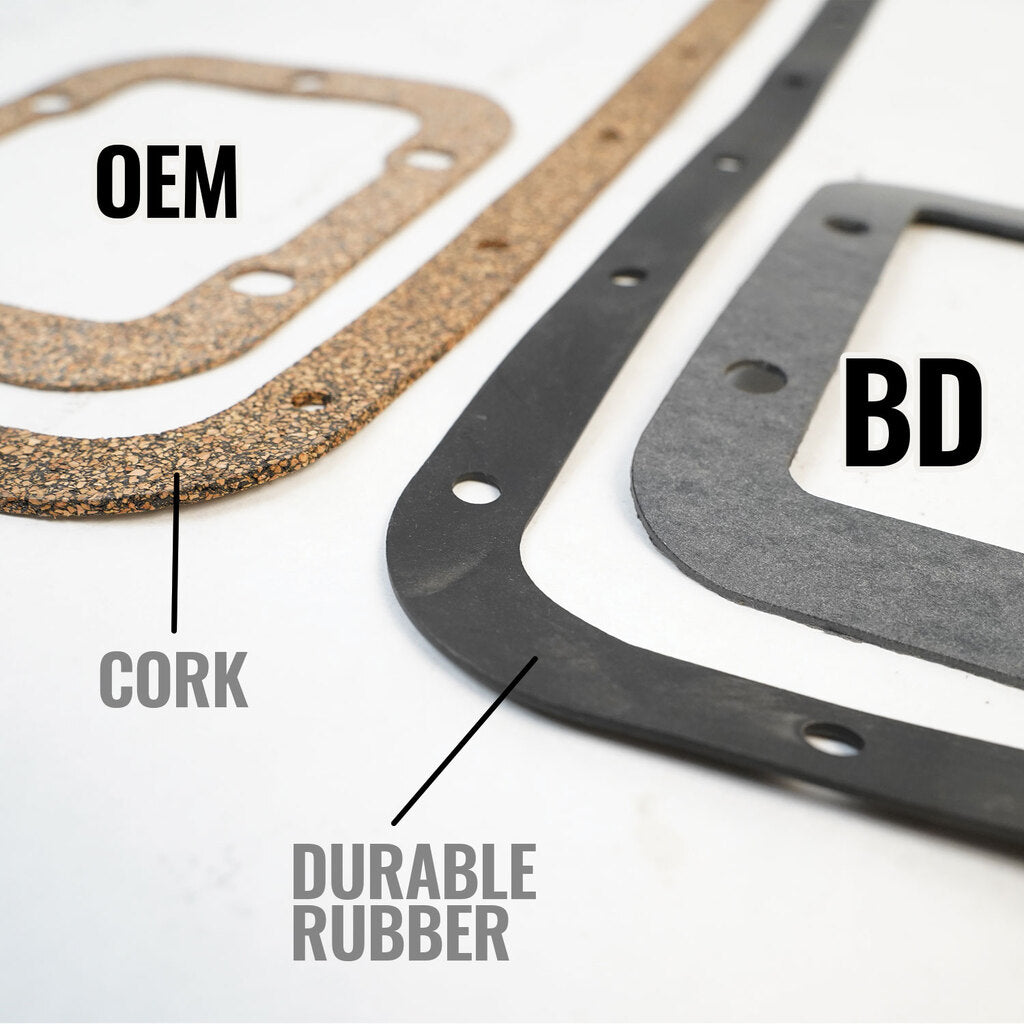

- Nitrile pan and PTO gaskets prevent leaks common with OEM cork gaskets
Specifications
Specifications
- Install Time: 8 Hours
- Warranty: 36 Months Parts / 12 Months Labor
- Core Deposit: $3,500 CAD refundable (returned core required)
Replaces OEM Part Numbers
Replaces OEM Part Numbers
- 2WD: 68300149AB, R8300149AB
Notes
Notes
- Requires return of a rebuildable core ($3,500 CAD core deposit applies). Core must be returned within 30 days.
- Freight charges apply; this item ships LTL.
- Feature details reflect BD's comparable 2019-2024 Torquemaster AS69RC package; please confirm specific 2013-2018 Torquemaster build sheet with BD before purchase.
