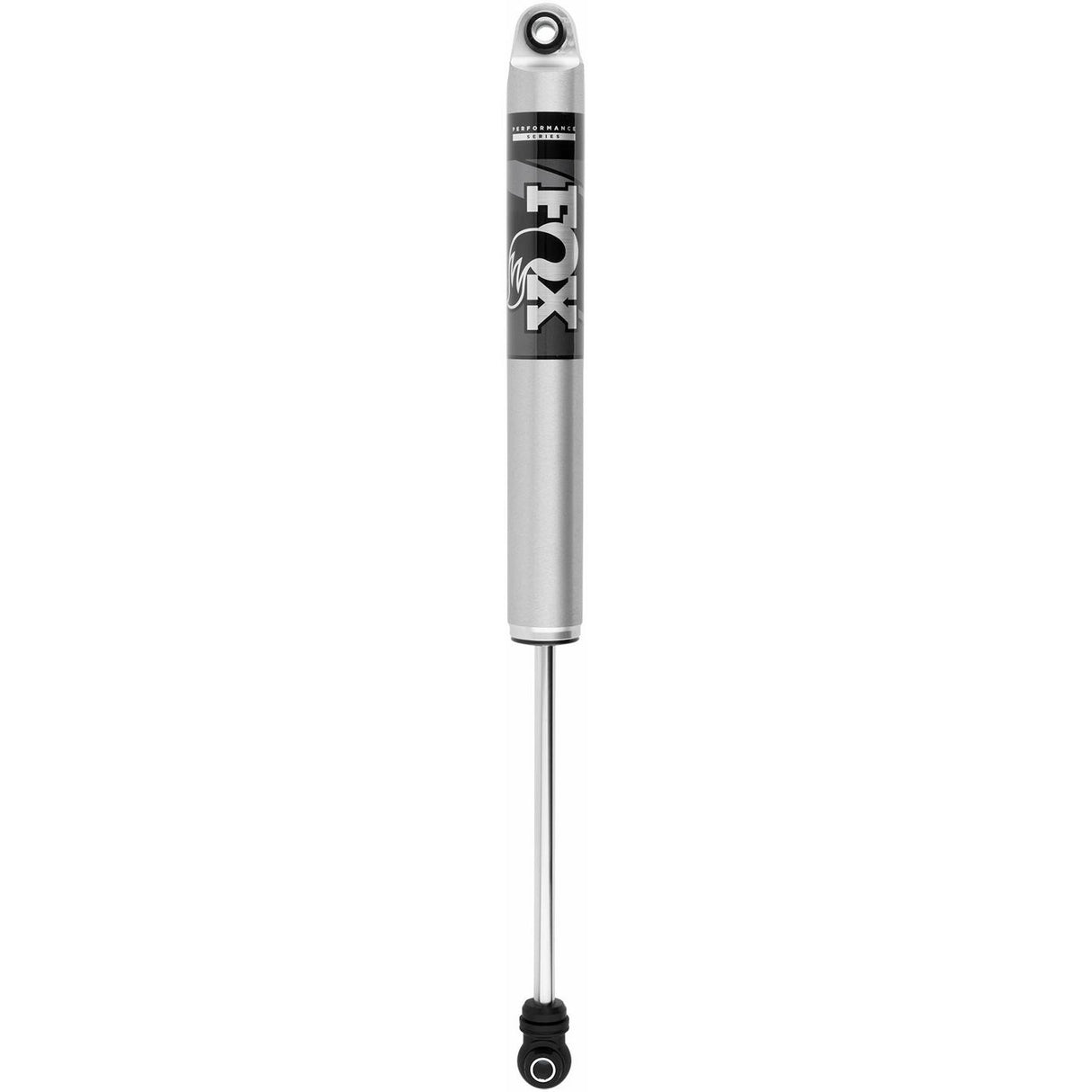

2012-2018 Ranger Rear 0-1.5" Performance Series 2.0 Smooth Body IFP Shock

FOX Part Number: 985-24-069
$321.24 CAD

Purchase to earn 321 Dirty Dollars Learn More

This product ships for free to most Canadian locations! Learn more

Description

Fits

Year Make Model
2012 - 2014 Ford Ranger RWD
2015 - 2017 Ford Ranger RWD/4WD

Note: Fits T6 Hi-Rider Models Only

The aluminum-bodied Performance Series 2.0 smooth body shock delivers FOX's industry-leading and race-dominating performance.

An Internal Floating Piston mono-tube design keeps the shock oil and the high-pressure, nitrogen-charged gas chamber separated. As a result, the Performance Series 2.0 IFP shock maintains peak performance with the help of the factory-tuned precision valving and a race-developed high-flow damping piston. No more rough rides!

Part Number: 985-24-069

Features

  • Body 2.0" Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece Body
  • Rust resistant
  • Body Plating Clear-anodized
  • Components Black-anodized, CNC-machined 6061-T6 billet aluminum
  • Shaft 5/8" hard chrome plated heat-treated alloy steel
  • Piston Race-developed high-flow Piston design
  • Valving Application specific Valving
  • Seals Redundant sealing pack system main seal, wiper seal, scraper seal

Specs

  • Travel: 9.12"
  • Rear Lift Height: 0-1.5"
  • Extended Length: 24.82"
  • Compressed Length: 15.7"
  • Top Mount: EB3
  • Bottom Mount: ES4

Installation

Warranty

Parts Only

  • 1-Year Limited Warranty
  • FOX Factory Inc. products are covered by a 1-Year Limited Warranty against defects in materials and/or workmanship. Any modifications to the product will void the warranty. This Warranty will be extended to the original retail consumer of an OEM Customer's FOX Factory Inc. equipped vehicle and is valid for one year from the original date of purchase from an OEM Customer's authorized dealer. Warranty is limited to the repair or replacement of the FOX Factory Inc. product. FOX Factory Inc. reserves the right to make the final decision with regards to all warranty related issues.
