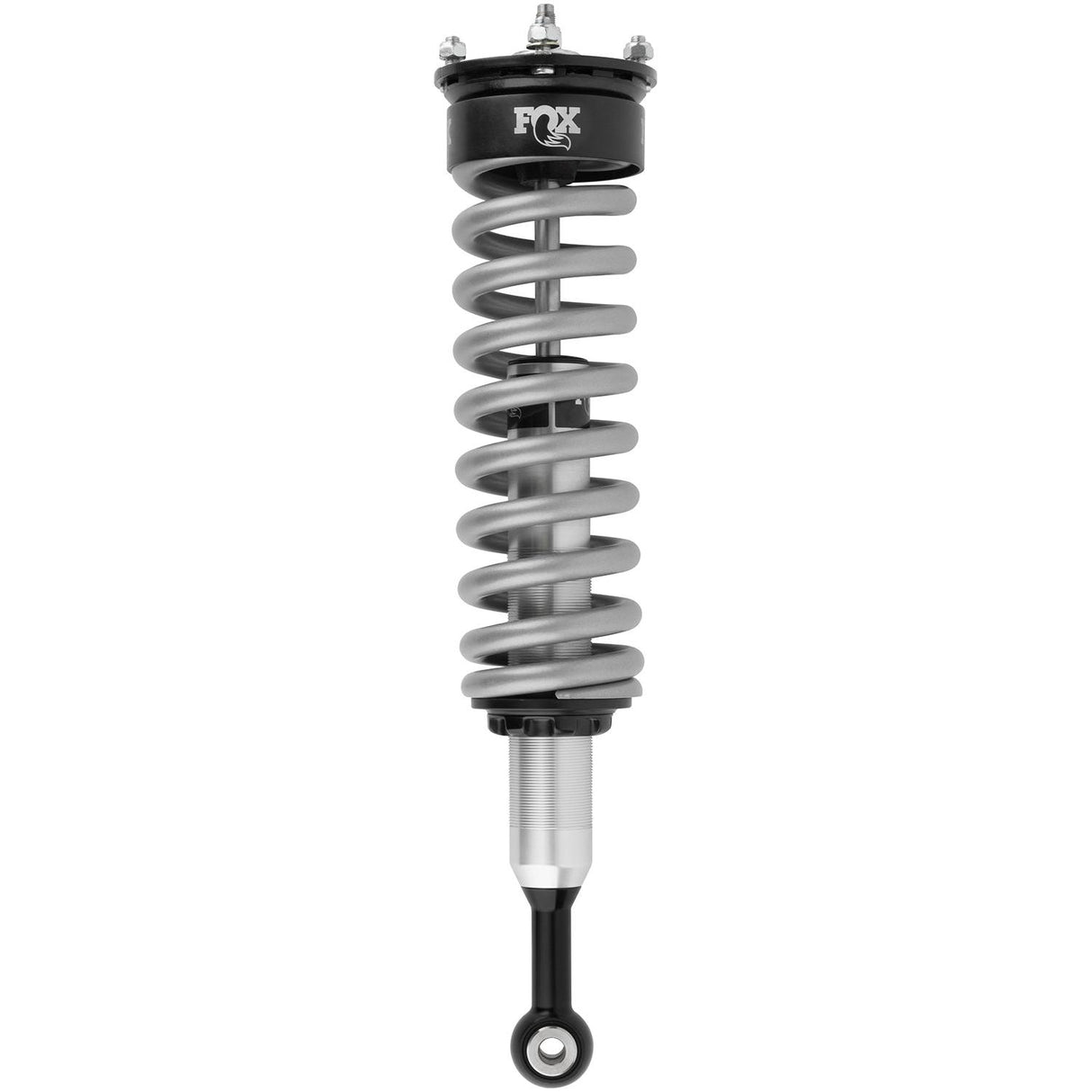

2012-2014 D-Max Front 0-2" Performance Series 2.0 Coilover IFP Shock (985-02-017)

Loaded with features and benefits that set FOX apart from the competition; like precision metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration. Locking spring preload rings that allow easy ride height and preload adjustment retain a top-quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear.

Part Number: 985-02-017

• Performance Tuned For Vehicle Specific Application
• Aluminum Body Dissipates Heat Faster Than Steel
• IFP Separates Oil From High-Pressure Nitrogen Gas

• Body Plating Clear-anodized for a durable finish
• Black-anodized CNC-machined 6061-T6 billet aluminum
• 5/8" hard chrome plated heat-treated alloy steel
• Race-developed high-flow Piston design
• Application specific Valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• Large diameter, heavy-duty spherical

Specs:

• Extended Length: 19.34"
• Compressed Length: 14.2"
• Top Mount: TM
• Bottom Mount: Eyelet

• Travel: 5.14"
• Front Lift Height: 0-2"
