2012-2013 Cummins Performance Long Arm 3" Lift Kit (CS-DPER25-12-D)

Carli Suspension
$12,536.64 CAD
Notices

This item may have additional freight costs. Learn More

Ships from

  • CanadaEst. 14 weeks · Secure yours today
    Special order
  • United States
    Out of stock

Build Your Kit

Looking for unrivaled off-road performance without compromising on-road ride quality? Let us introduce the Carli-Spec Long Arm Lift Kit with Custom Tuned King 2.5 Remote Reservoir Shocks. Loaded with features to maximize capability over any terrain, perfectly balanced, the front and rear bottoms with the same intensity, and the chassis remains controlled and level following the bottoming event, never throwing the vehicle out of control.

Step 1 of 7 · Optional

Torsion Sway Bar

As this is a high-performance, no compromise system, we recommend the Carli Torsion Sway Bar, The factory sway bar with extended links would be severely limiting to the performance of this system boasting 50% more suspension travel than factory.

Step 2 of 7 · Optional

Full Progressive Leaf Springs

Step 3 of 7 · Optional

Leaf spring Shackle

Much of the jarring ride of the leaf-spring rear can be attributed to the factory vulcanized bushings in the leaf spring pack and shackle. The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

Step 4 of 7 · Optional

Long Travel Bags

Step 5 of 7 · Optional

Steering Stabilizer

when adding oversized tires, it's always recommended to upgrade one's stabilizers. We recommend the low-mount for those running 35s and an opposing setup for those with 37s.

Step 6 of 7 · Optional

Front Hydraulic Bump Stops

Step 7 of 7 · Optional

Axle Truss
Your Build
2012-2013 Cummins Performance Long Arm 3" Lift Kit (CS-DPER25-12-D)
$12,536.64

Purchase to earn 12536  Dirty Dollars Learn More

Truck Fitment

Description

Looking for unrivaled off-road performance without compromising on-road ride quality? Let us introduce the Carli-Spec Long Arm Lift Kit with Custom Tuned King 2.5 Remote Reservoir Shocks. Loaded with features to maximize capability over any terrain, perfectly balanced, the front and rear bottoms with the same intensity, and the chassis remains controlled and level following the bottoming event, never throwing the vehicle out of control.

Part Number: CS-DPER25-12-D

Features

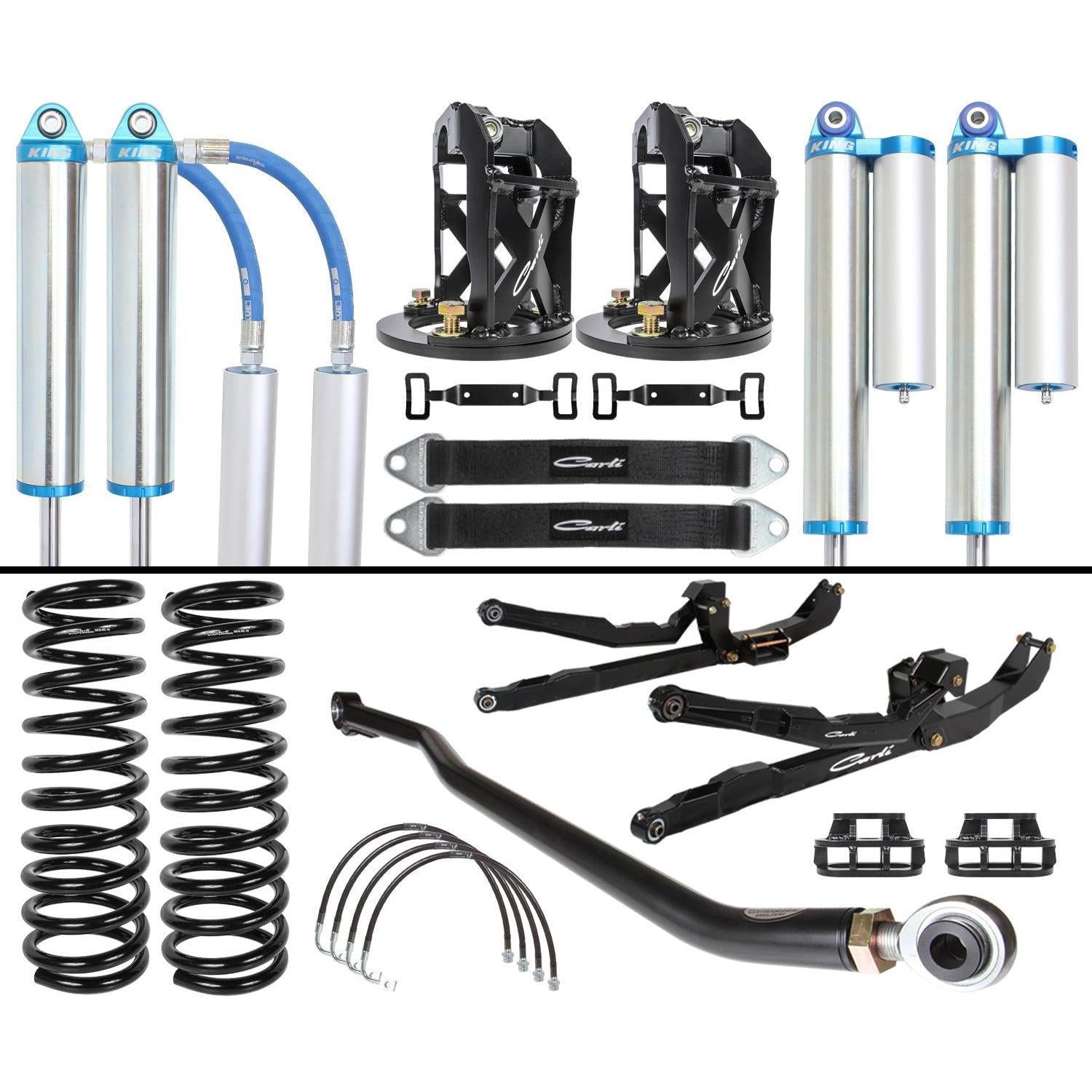

  • Front and rear shock package, long arm system, front bump drops, braided brake lines, multi-rate coil springs, fabricated shock towers, and adjustable track bar.
  • The fabricated long arm system is capable of 14" of travel and is 50% longer than factory control arms
  • Fully serviceable joints, resulting in zero-bind articulation
  • The truck will sit 2.5-3" higher (year/cab configuration dependent), and wheel travel will be increased by a whopping 70%
  • Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance

Notes
  • This System Requires the Torsion Sway Bar and Full Progressive Leaf Springs to properly function.
