2012-2013 Cummins Dominator 6" Lift Kit (CS-DD30-6-12-D)

Fits

Note: Review 'Additional Info' for required and optional components

Looking for unrivaled off-road performance without compromising on-road ride quality? Let us introduce the Carli-Spec Custom Tuned King 3.0 Remote Reservoir Shocks. This big boy lift kit is loaded with features to maximize capability over any terrain, perfectly balanced, the front and rear bottoms with the same intensity, and the chassis remains controlled and level following the bottoming event, never throwing the vehicle out of control.

Part Number: CS-DD30-6-12-D

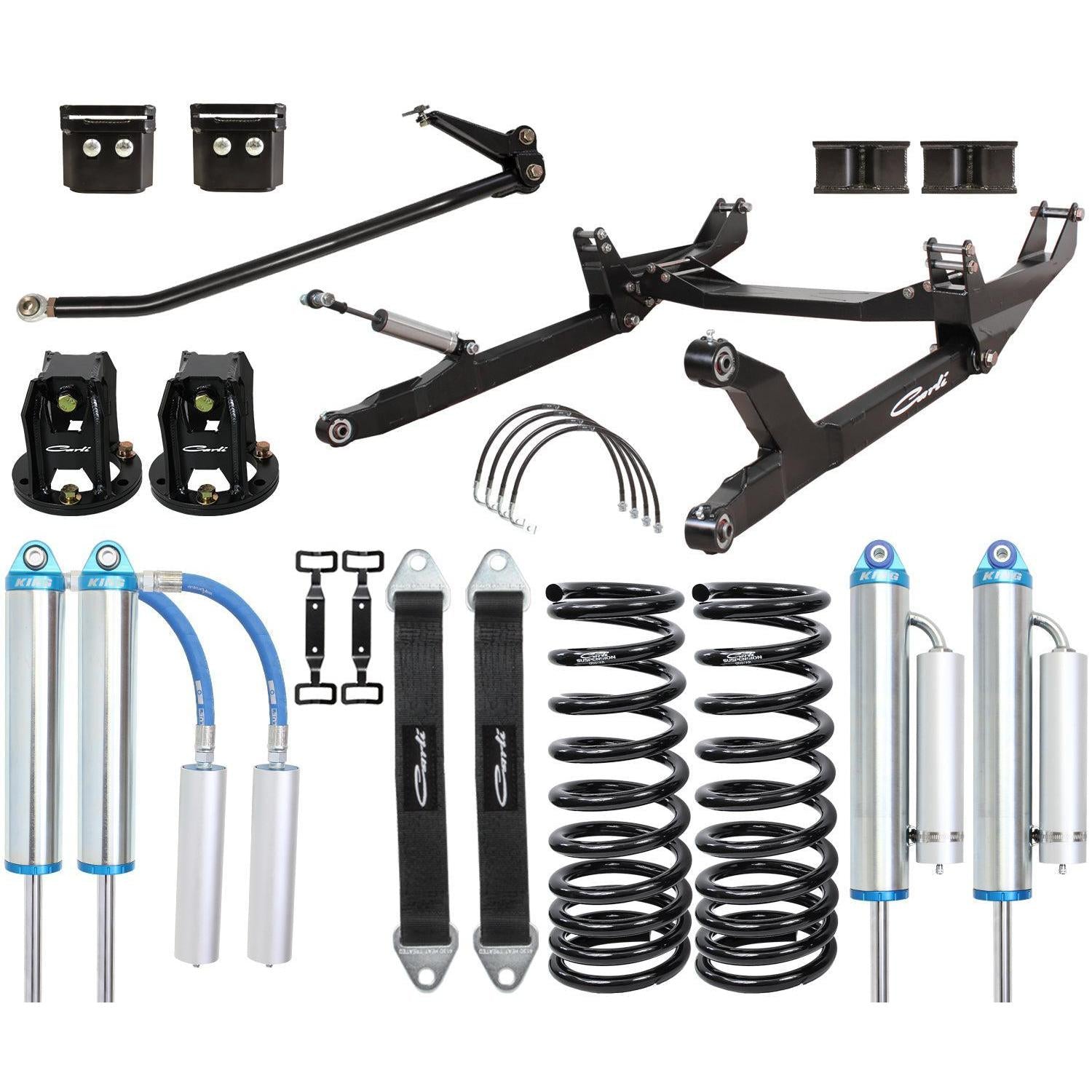

• Carli-tuned King 3.0 shocks paired with a fabricated radius arm system that provides a fantastic on-road ride and superior off-road performance
• Multi-rate front springs, front and rear shock package, fabricated radius arm system, fabricated shock towers, brake lines, adjustable track bar, front and rear bump drops, and track bar drop bracket

• Allows for 12" of front suspension travel and 12.5" rear suspension travel


• Required and Optional Parts to support this system:
  • Sway Bar Options (REQUIRED): 03-12 RAM 2500/3500 4X4 STOCK SWAY BAR DROP BRACKET & EXTENDED 10MM END LINK - 6" LIFT CS-DEL6-10, 03-12 RAM 2500/3500 4X4 STOCK SWAY BAR DROP BRACKET & EXTENDED 12MM END LINK - 6" LIFT CS-DEL6-12, or 03-12 RAM 2500/3500 4X4 TORSION SWAY BAR - 6" LIFT CS-DTSB6-03
  • 2010-12 Rear Leaf Spring (REQUIRED): 10-12 RAM 2500/3500 4X4 DIESEL FULL PROGRESSIVE LEAF SPRING KIT - 4" LIFT CS-DFSP-6-10-D
  • Leaf Spring Shackle: 03-25 RAM 4X4 FABRICATED LEAF SPRING SHACKLE CS-DSHACKLE-0313
  • 2012 Long Travel Airbags: 12-13 RAM 2500/2012 RAM 3500 4X4 DIESEL LONG TRAVEL AIR BAG SYSTEM, 1-2" REAR LIFT CS-DLTB-12-D
  • Airbag Spacer: 03-12 RAM 2500/3500 4X4 LONG TRAVEL AIR BAG SPACER - 6" LIFT CS-AIRBAGSPCR
  • Pitman Arm: 09-12 RAM 2500/3500 4X4 DROP PITMAN ARM - 6" LIFT CS-DPITMAN-09
  • Carrier Bearing Drop: 03-12 RAM 2500/3500 4X4 CARRIER BEARING DROP CS-CARRIERDROP-D
  • Steering Stabilizer: 08.5-12 "T-STYLE" RAM 2500/3500 4X4 LOW MOUNT CS-DLMSS-T, 08.5-12 HIGH MOUNT CS-DHMSS-03-T, or 08.5-12 OPPOSING KIT CS-DSSOSK-T
  • Axle Truss: 03-12 RAM 2500/3500 4X4 FABRICATED AXLE TRUSS CS-AAMTRUSS
  • Rear Shock Mounts: 03-12 RAM 2500/3500 4X4 WELD-IN REAR SHOCK MOUNT, DRIVER CS-DRSMD and PASSENGER CS-DRSMP
  • Hydro-Bump Kit - Front: 03-12 RAM 2500/3500 4X4 HYDRO-PNEUMATIC FRONT BUMP STOPS - 6" LIFT CS-DHYDRO-F-6

• A “Base Kit” SKU must be accompanied by the SKU of a Sway Bar and Leaf Spring option to form a complete system.
• Rear crossmember gusset requires welding
• All Carli 6" systems require the truck's front driveshaft to be extended by 2 inches
