2011+ Powerstroke Delta Series CNC Ported Cylinder Heads (67P-CH-532-2)

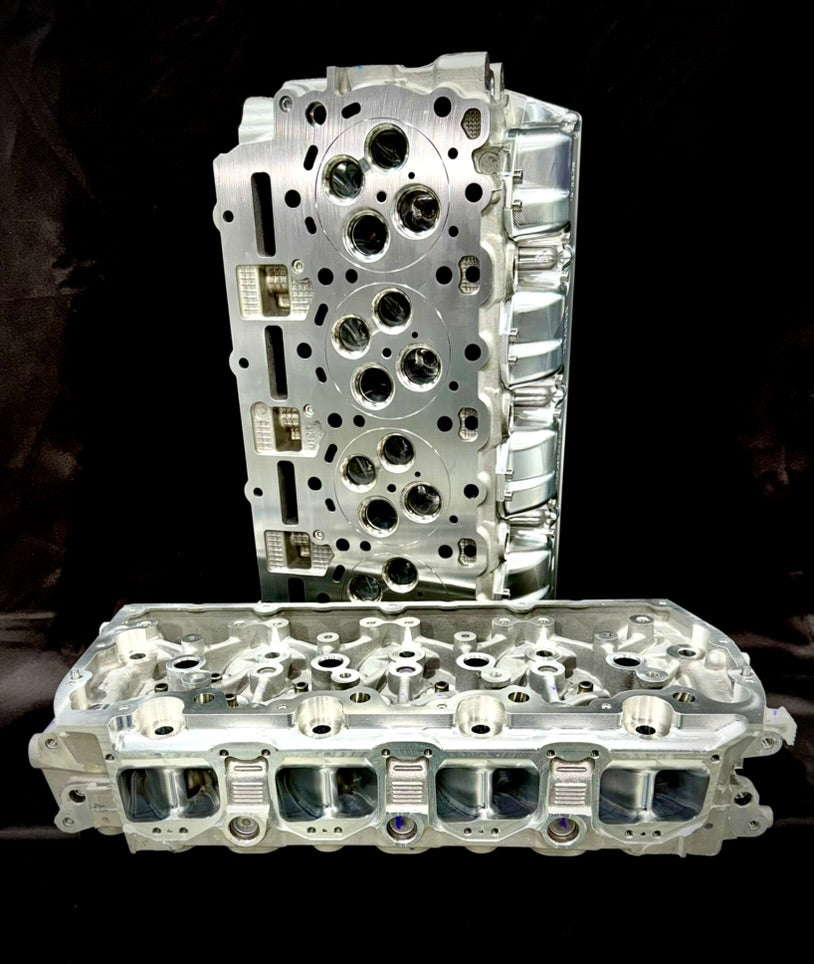

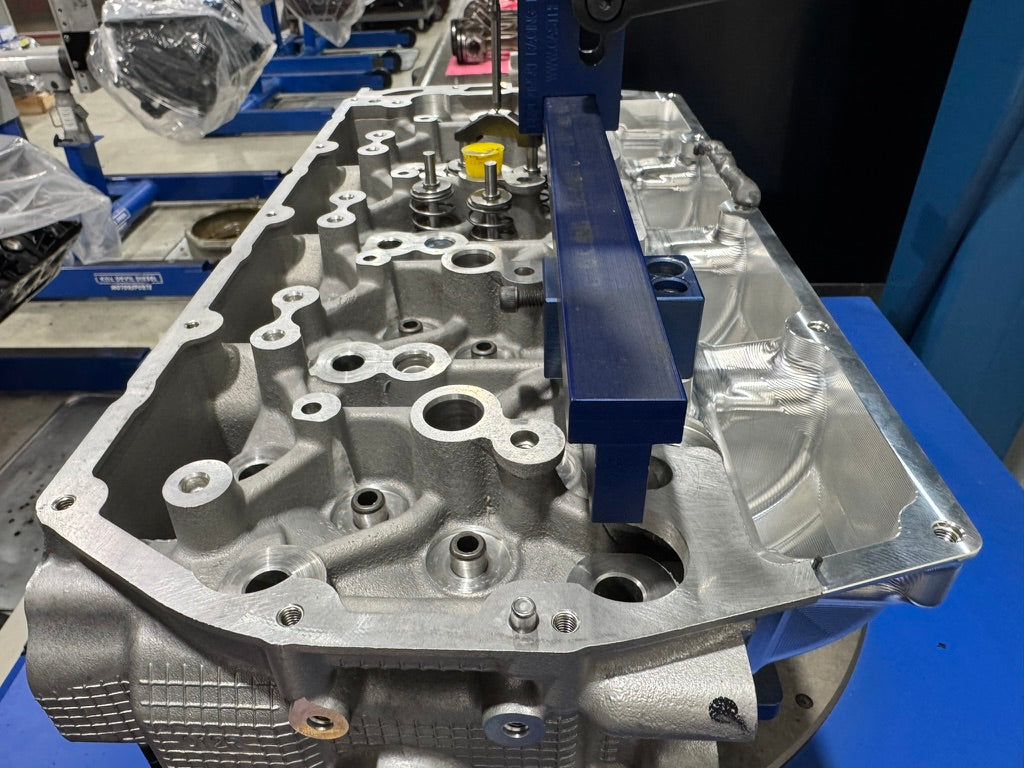

The Kill Devil Diesel Delta Series CNC Ported Cylinder Heads are built to get past the airflow limits of the factory 6.7L Powerstroke head. Every Delta Series head starts as a brand-new OEM Ford casting and is machined in-house with CAD-designed port profiles on 5-axis CNC equipment, so every port flows the same from cylinder to cylinder.

The port shapes were developed in CAD using OEM Ford data, including the complete water jacket geometry, which lets KDD port aggressively while holding safe wall thickness in every critical area. Designs are validated with sonic testing and the water jackets are left completely untouched. KDD also worked with airflow specialist Darrin Morgan on the port work.

Choose the model year split that matches your truck and the porting level that matches your build.

Part Numbers:

67P-CH-532-2: 2011-2019, Level 2
67P-CH-632-2: 2011-2019, Level 3
67P-CH-533-2: 2020+, Level 2
67P-CH-633-2: 2020+, Level 3

• Retains the factory intake plenum
• CNC bowl cleanup and accessible intake port work

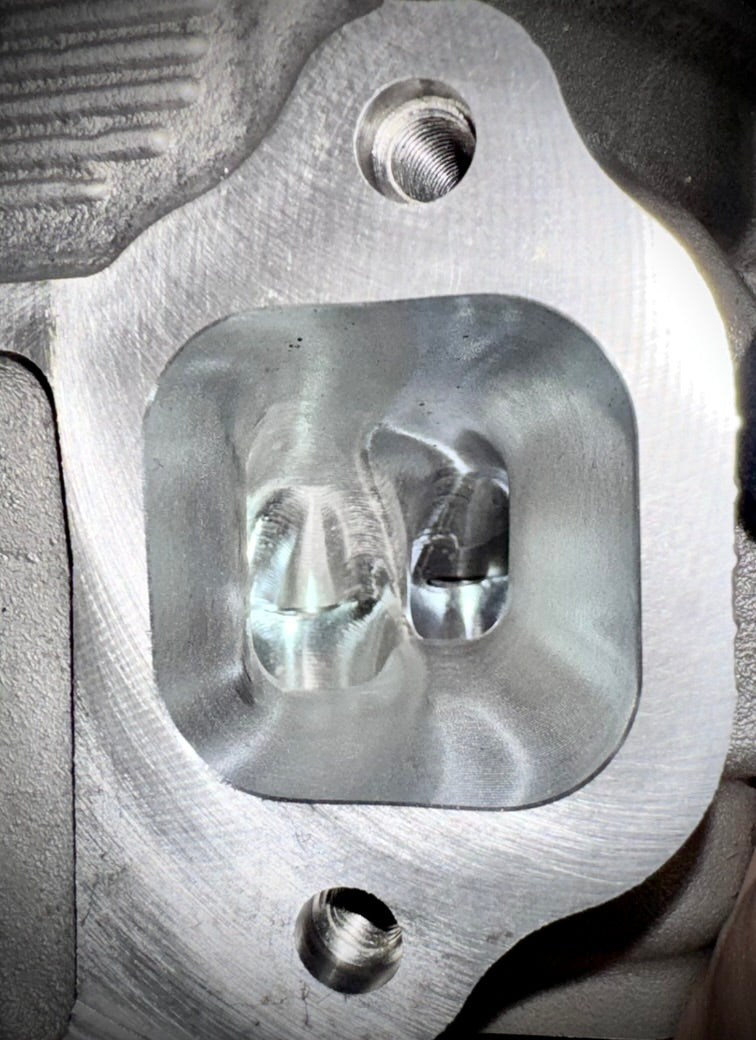

• CNC ported exhaust ports
• Factory valves retained
• Heavy duty performance valve springs
• O-ringed deck surface for better head gasket sealing
• Ideal for VGT turbo upgrades, mild S300 and mild compound setups, and high performance daily drivers

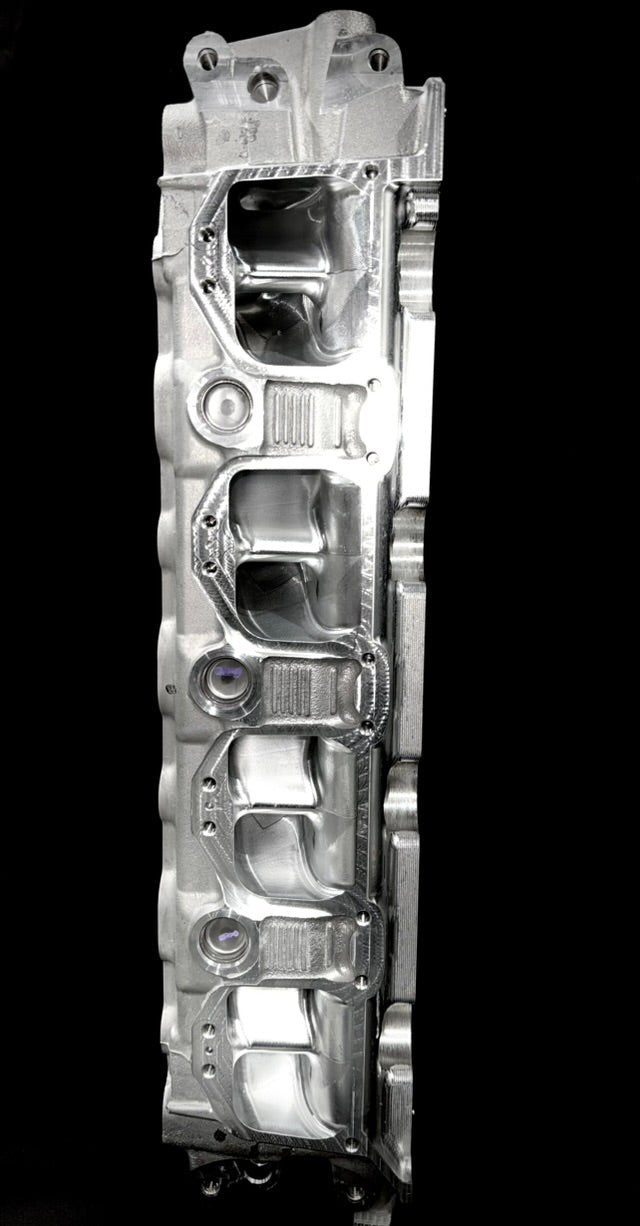

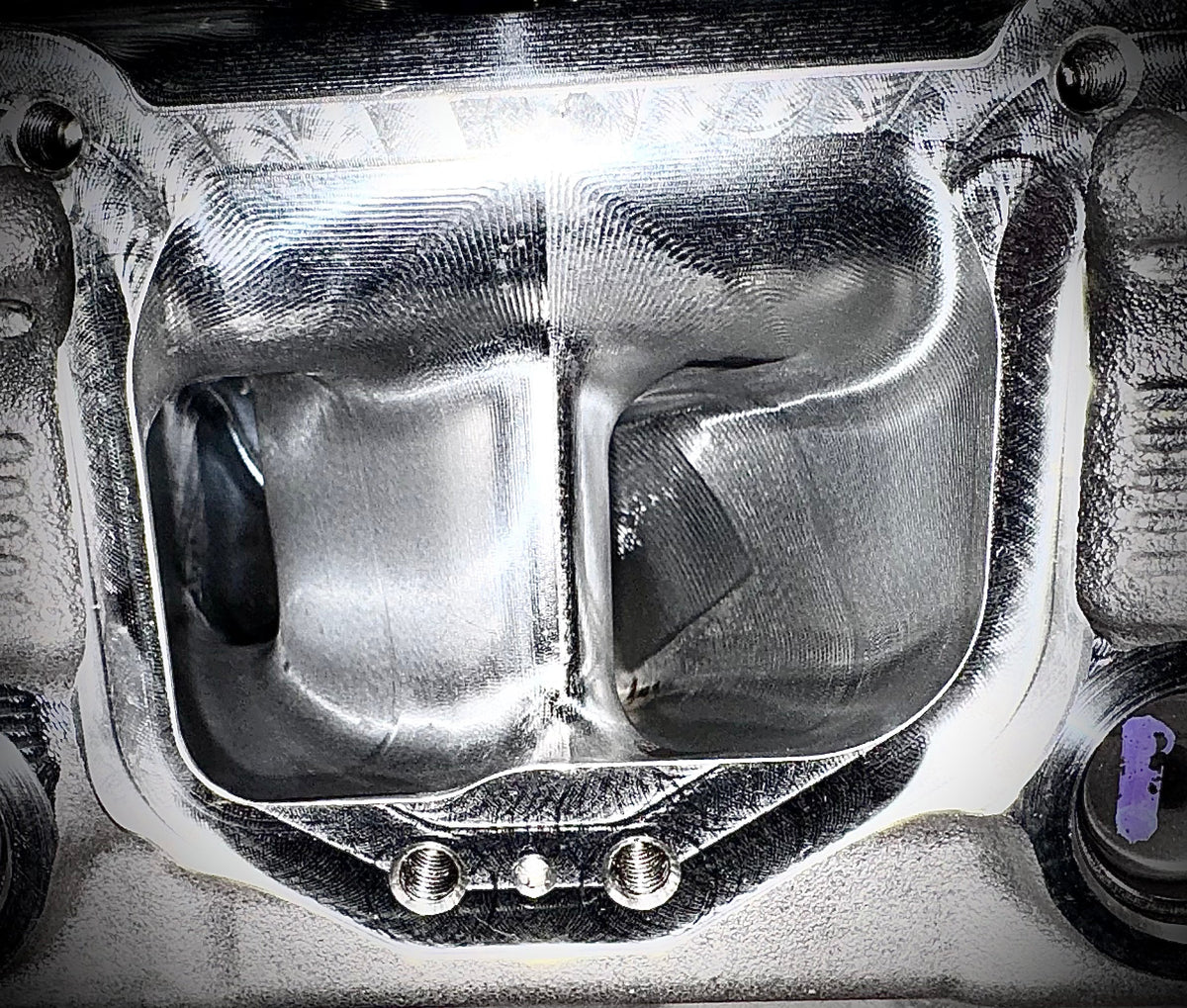

• Factory cast-in intake plenum removed for a complete CNC intake port, including areas the factory plenum blocks
• Fully CNC ported high flow intake and exhaust ports
• Billet aluminum intake plenum included
• Oversized stainless steel nitrided valves
• KDD proprietary valve angles and valve seat profile
• Competition level valve springs
• O-ringed deck surface (fire ring available on request)
• Ideal for large single turbos, compound turbo systems, nitrous, drag racing and sled pulling

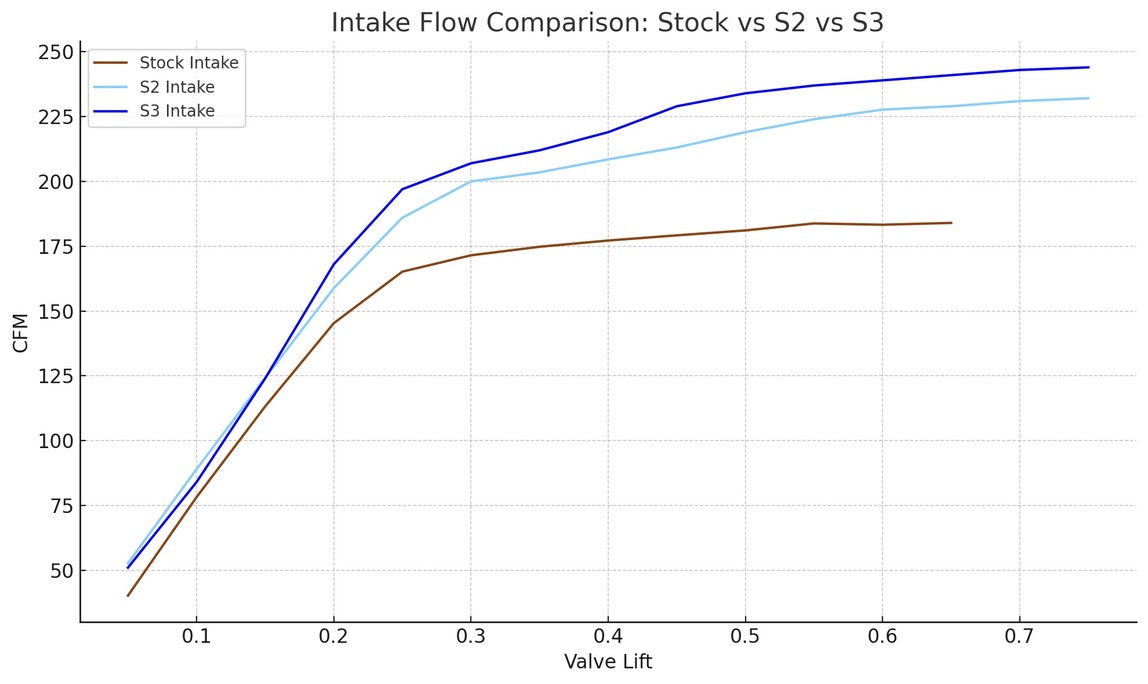

• Intake: approx. 180 CFM stock vs approx. 250 CFM, about a 38% increase, and it keeps flowing past 0.700" valve lift

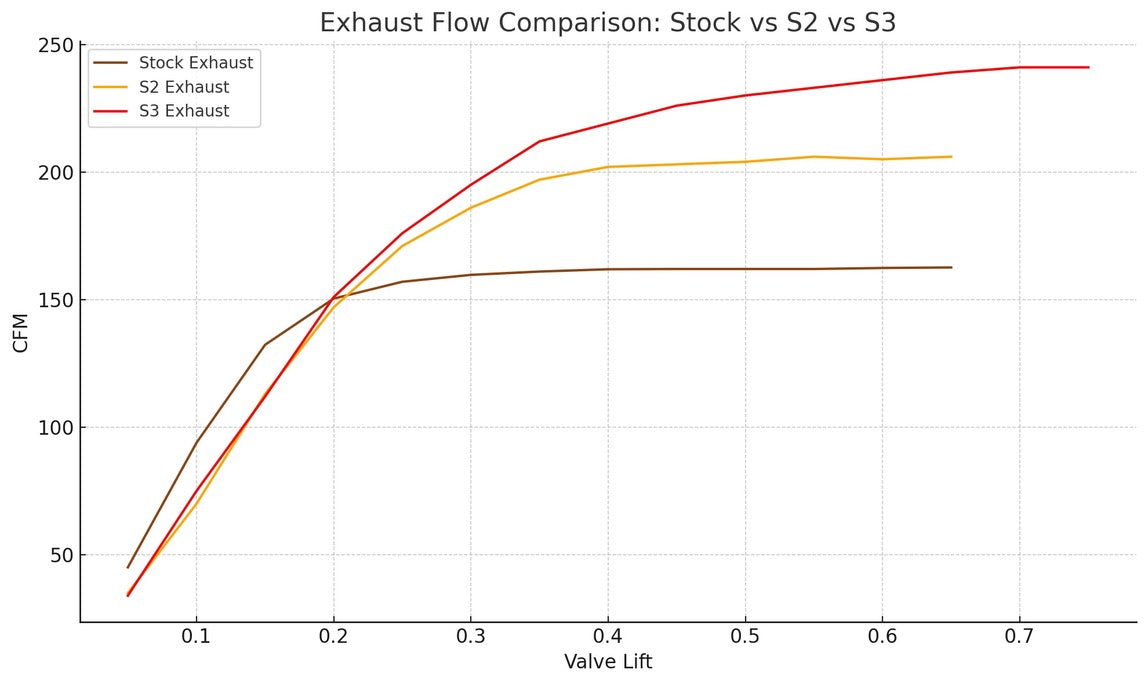

• Exhaust: approx. 160 CFM stock vs approx. 250 CFM, with up to 40% more exhaust port cross-sectional area

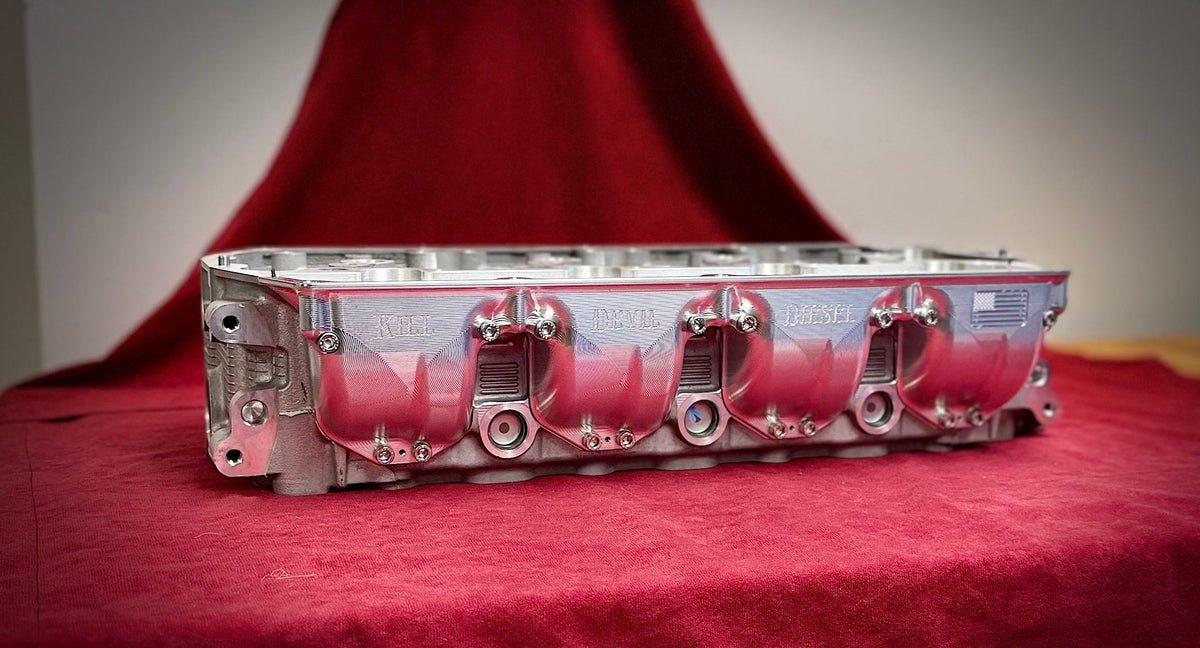

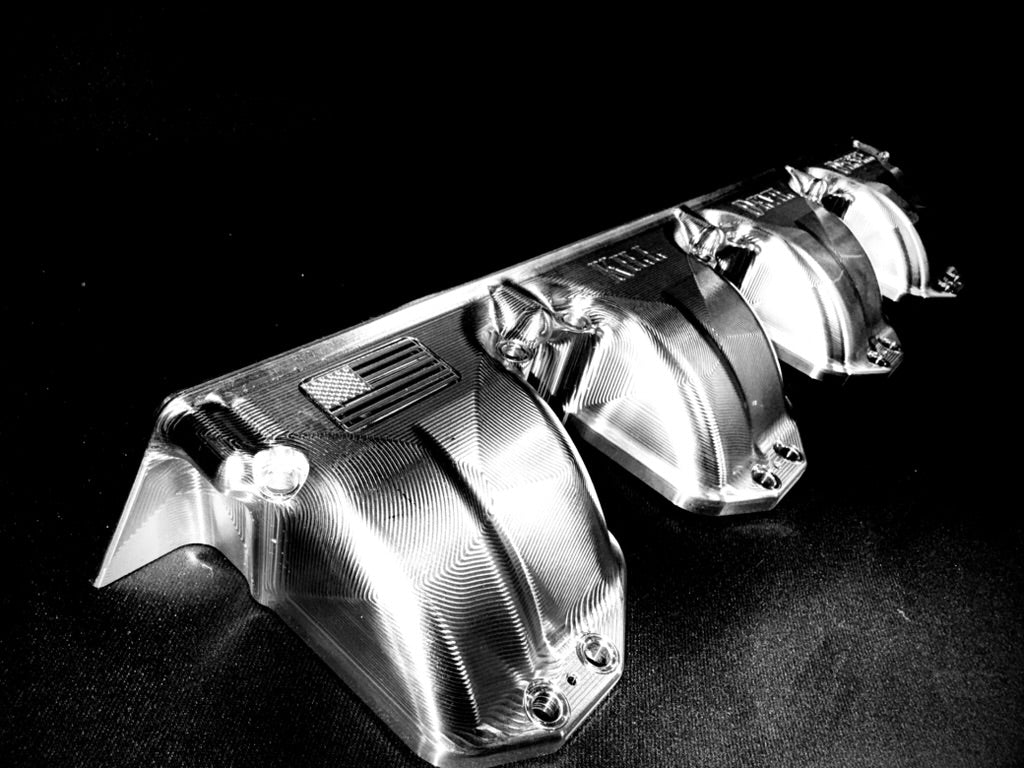

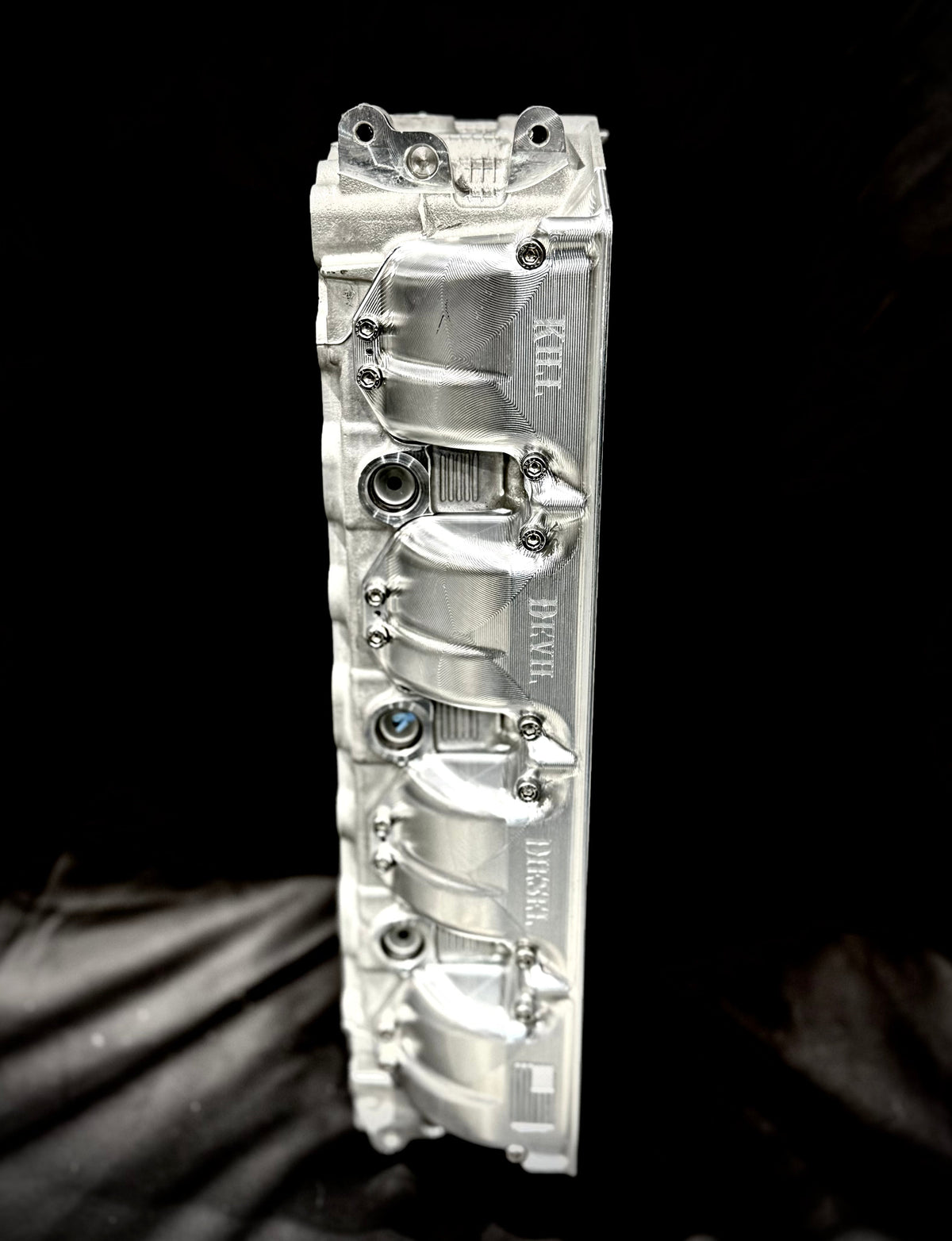

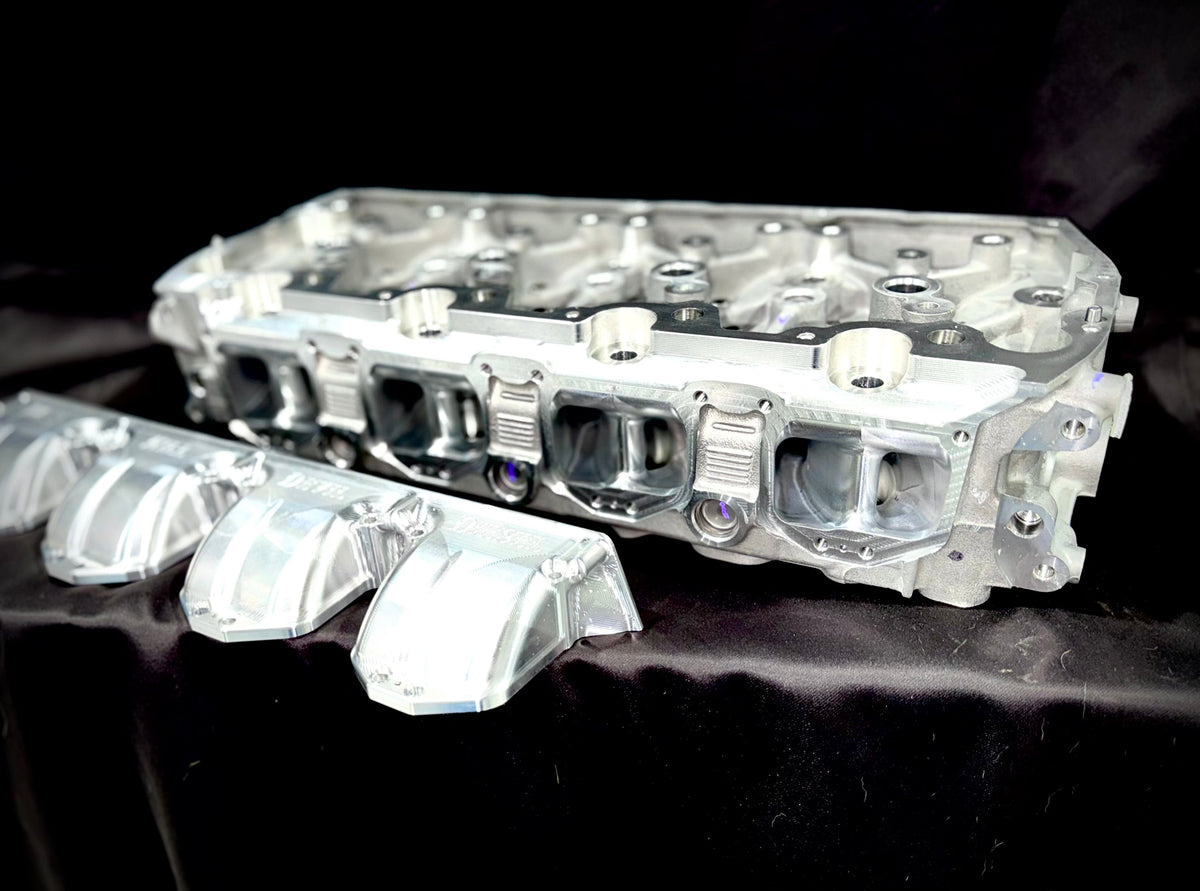

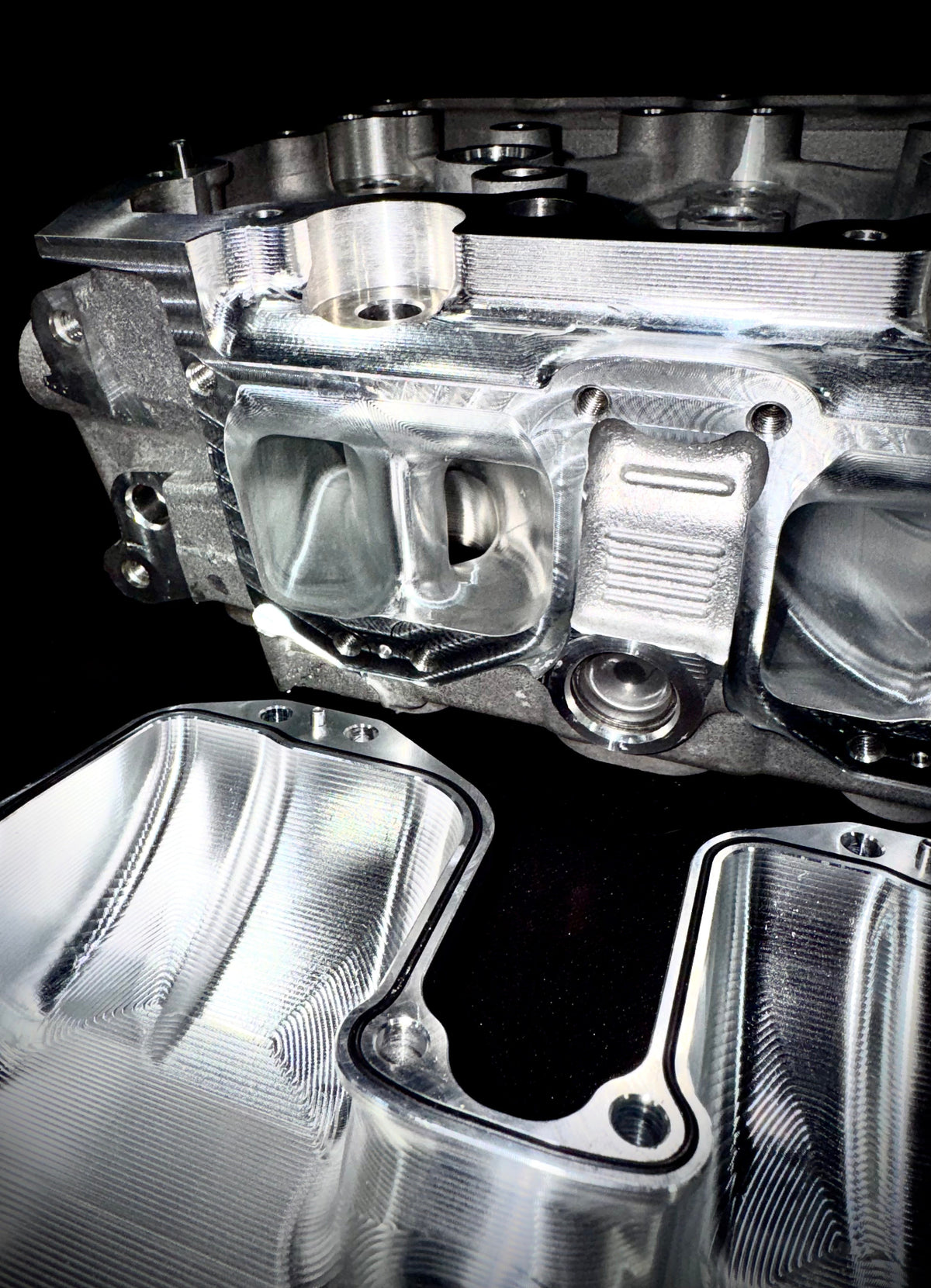

The factory 6.7L intake port has blind areas behind the cast-in plenum that cannot be ported. On Level 3 heads KDD removes that plenum and replaces it with a bolt-on plenum machined from a 20 lb billet aluminum block down to 2 lb.

• Accepts the factory intake manifold
• Accepts the factory valve covers
• Uses factory hardware
• Factory-like installation

• Port matched exhaust manifolds, billet intake manifold flanges, a billet side draft intake manifold and billet valve covers are available from KDD for competition builds. Contact us for pricing.
