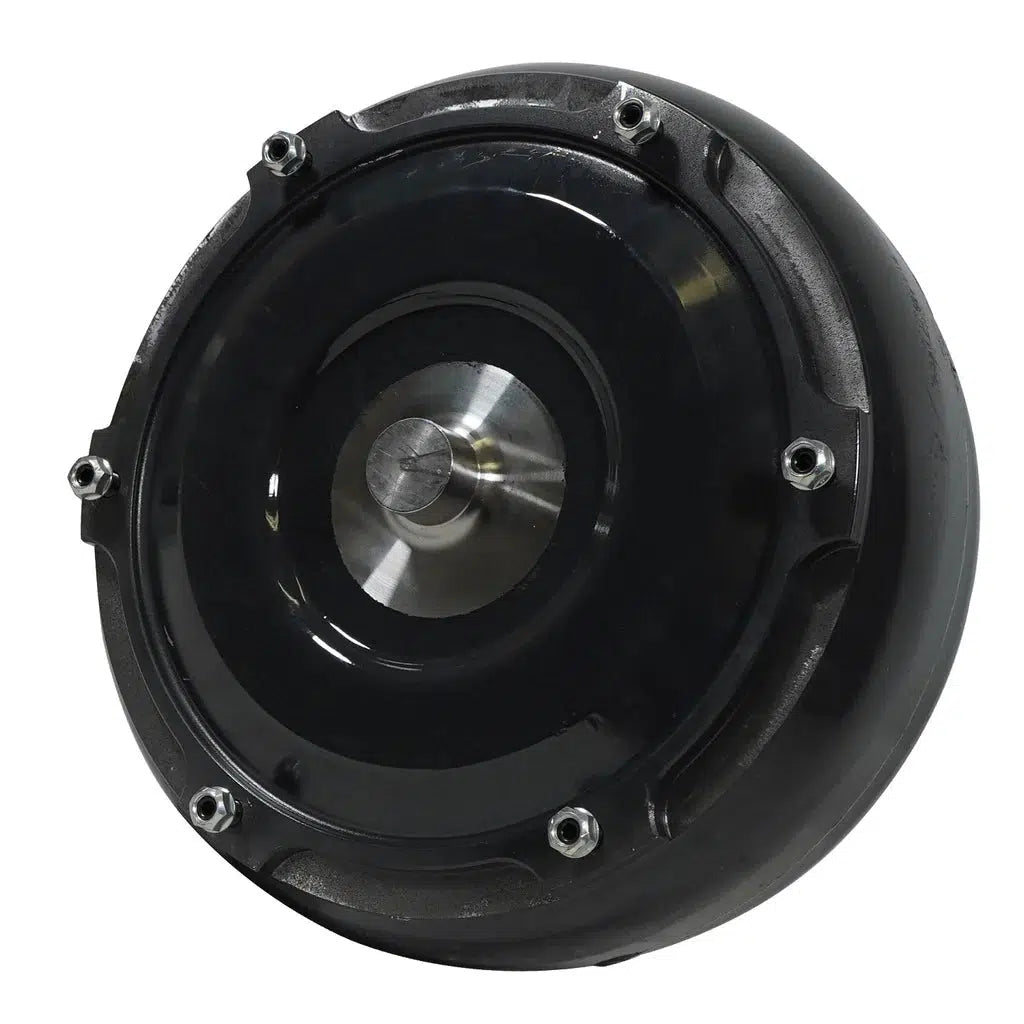

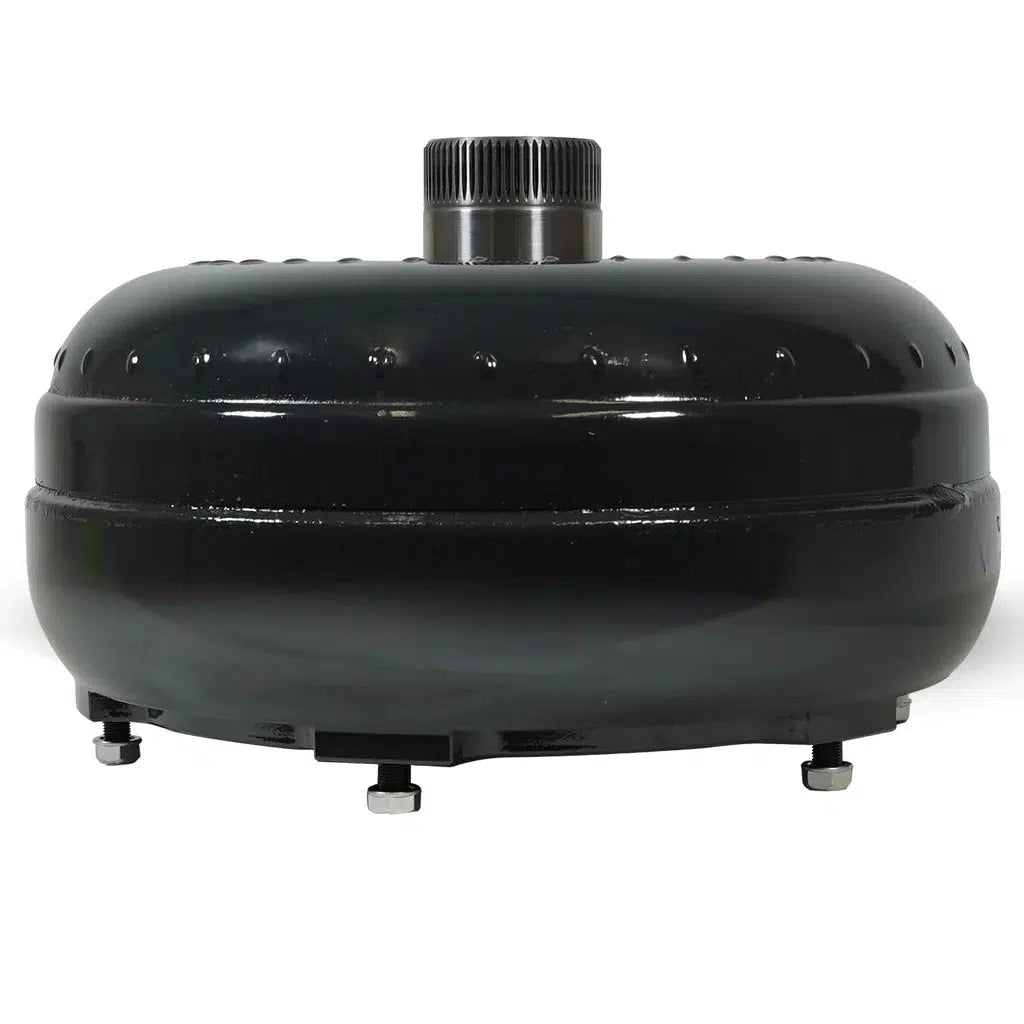

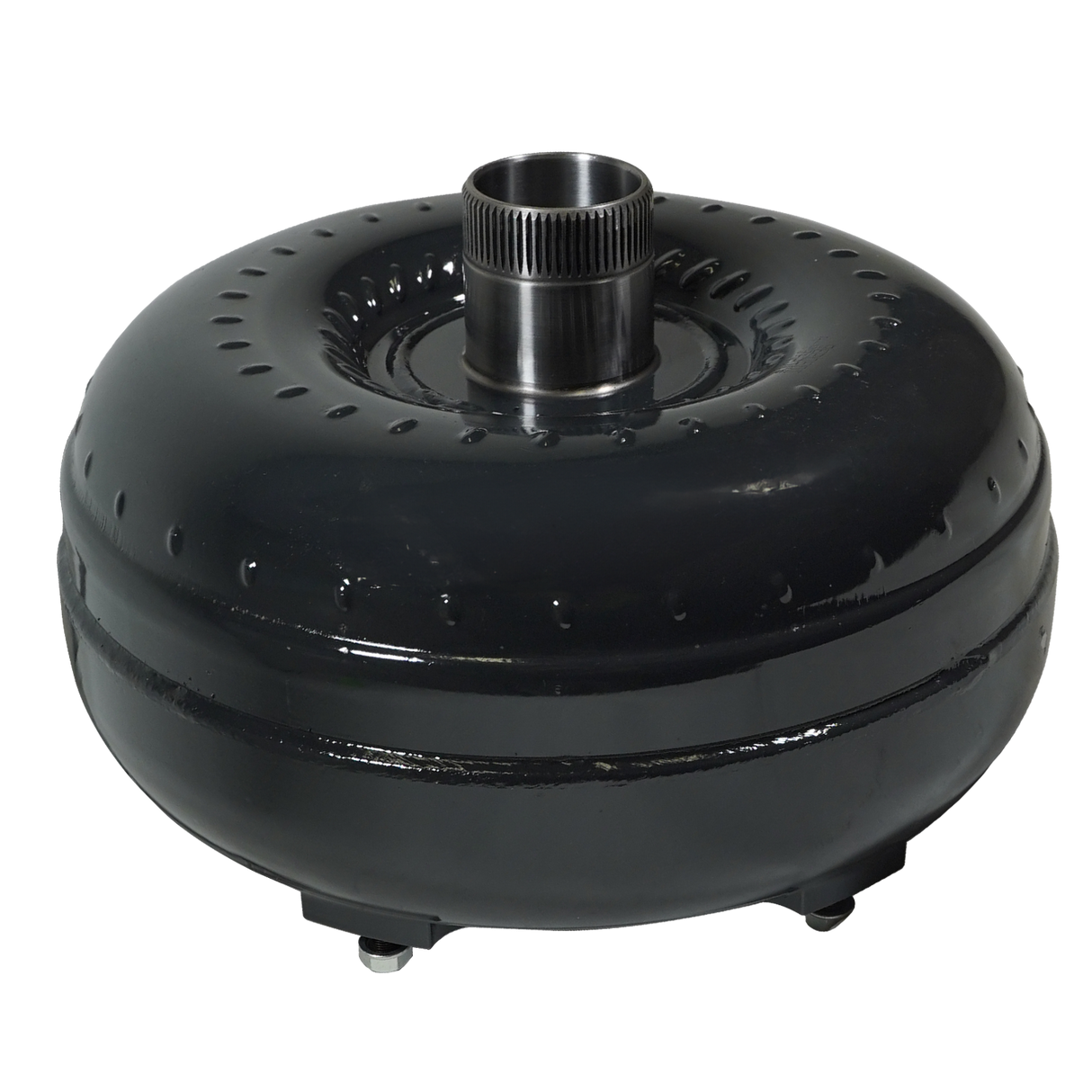

2011-2019 Powerstroke Proforce 4D Torque Converter (1030238)

BD Diesel Part Number: 1030238
$3,117.00 CAD


Total w/ Addons:

Additional Refundable Core Deposit Required of $600.00 CAD.

Notices
This item may have additional freight costs. Learn more

Purchase to earn 3117 Dirty Dollars Learn More

Description

Fits

Year Make Model Engine
2011-2019 Ford  F-250/F-350/F-450/F-550 Superduty 6.7L Powerstroke

This torque converter is equipped with 4 clutch surfaces designed to handle heavy towing loads and is intended for up to 900+ horsepower. CNC machined forged cover is designed to prevent warping and improper balance while facilitating the increased clutch count without sacrificing strength. In addition to a new cover, BD has designed a custom piston, bearing hub, release springs and backing plate to retain the OEM captured clutch design which delivers the same great drivability 6R140 owners are accustomed to.

Part Number: 1030238

Features

  • 23% increased piston area for additional clutch clamping force
  • Billet bearing hub, piston and clutch retainer
  • Captured clutch design with clutch return springs
  • Increased clutch and steel plate count for improved heat dissipation
  • Comes with hardware
  • Factory furnace-brazed pump and turbine fins
  • Four friction surfaces instead of the factory two surfaces
  • Stamp forged 1-piece cover

Installation

  • 7-Hours

Notes

  • Will not fit early 2011 trucks with 8-bolt flex plate – will have to update to 6 bolt flex plate.

Warranty

Parts Only - No race abuse covered

  • 36-Months
