2011-2019 Duramax 6" BDS Lift Kit (BDS196H)-Lift Kit-BDS-Dirty Diesel Customs

2011-2019 Duramax 6" BDS Lift Kit (BDS196H)

BDS

Part Number: BDS196H-1

Mfr Part Number:

Sale price$3,678.61 CAD

(show all inventory)
Available at alternate warehouse - contact for price
This is a special order item, please allow for additional processing time. If you would like an ETA, please reach out prior to placing your order.
Rear Factory Overload Springs:My Truck Does Not Have Rear Factory Overload Springs
Quantity:
This item may have additional freight costs. Learn more
Product images may differ from exact product.
Description

Click here to customize this Kit

Fits

Year Make Model
2011-2019 Chevy / GMC 1 Ton Truck
2011-2019 Chevy / GMC 3/4 Ton Truck

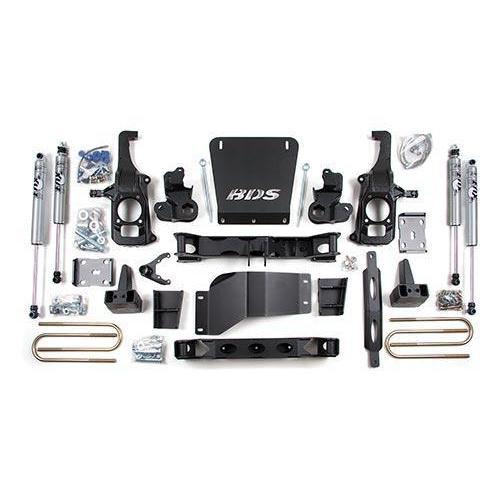

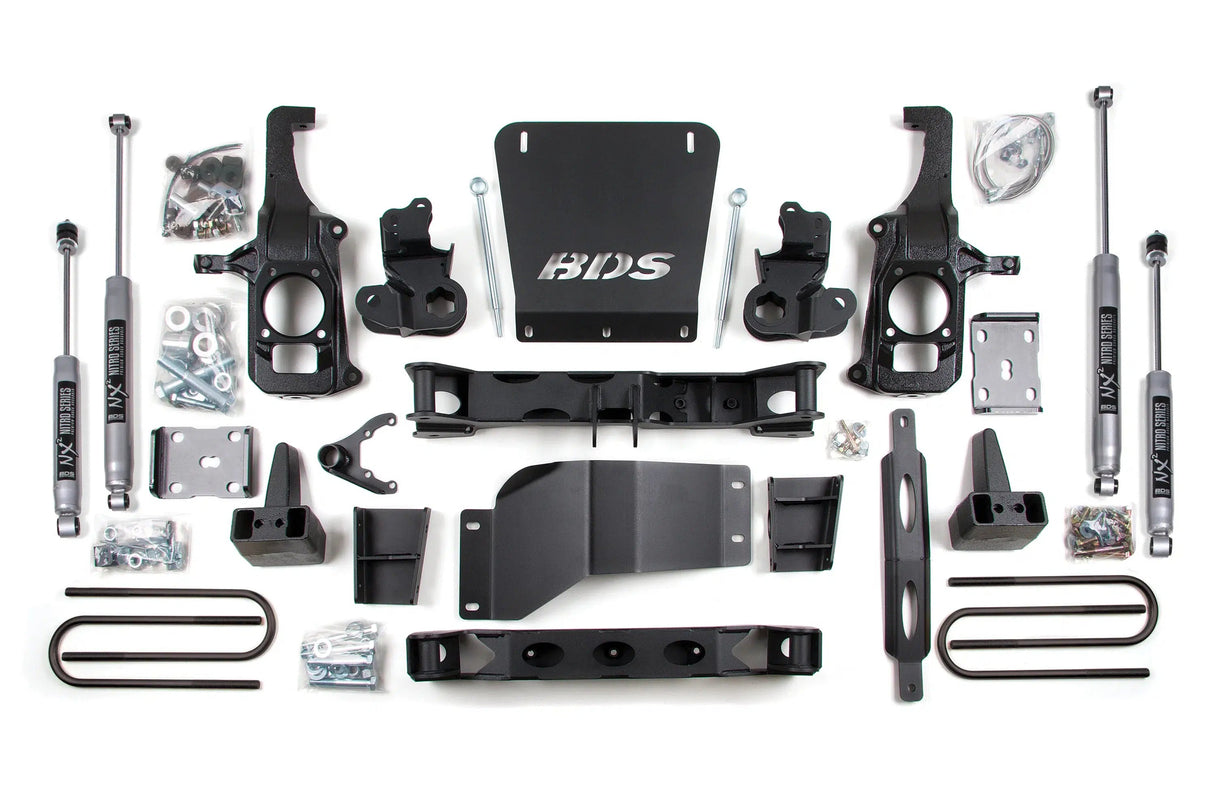

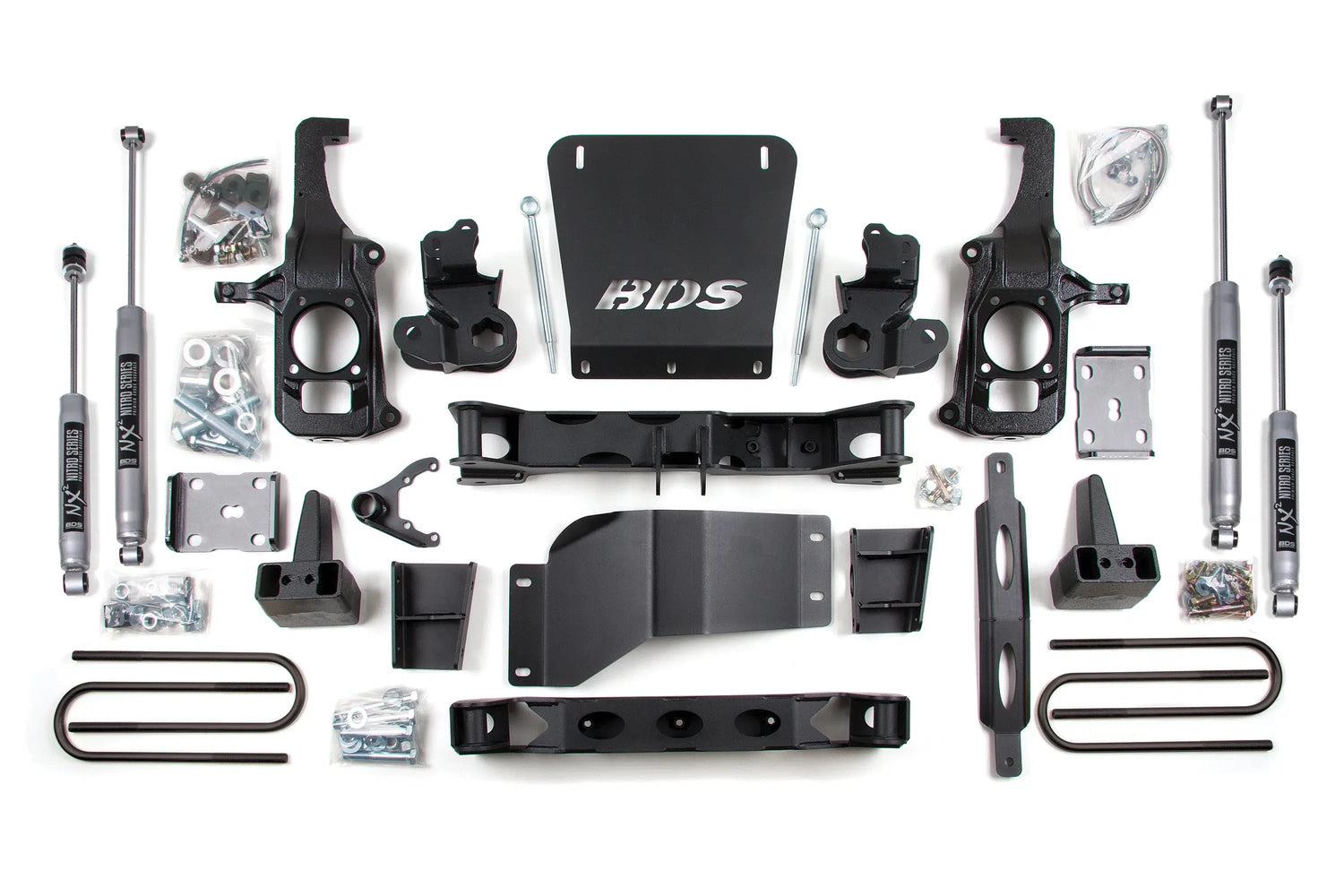

Take your Duramax up a notch with this BDS Suspension 6.5" Lift Kit. This kit utilizes high arched cross members that blend perfectly with the angle of the factory-installed lower control arms for a completely integrated look while lifting your vehicle a full 6.5" dramatically increasing ground clearance at the front cross members and improving operating geometry. A front skid plate and differential skid plate come standard to lock everything together, creating a nearly indestructible subframe for extreme off-road protection.

Part Number: BDS196H

Features
  • 5" Rear block
  • NX2 Series Shocks
  • Torsion Bar
  • 6-1⁄2" High Clearance IFS
  • Front Skid Plate & differential skid plate
  • High arched cross members that blend perfectly with the angle of the factory installed lower control arms
  • Clears 37's
  • Retains OE driving characteristics

Tire & Wheel Combinations:

  • 37" x 12.50" w/ 17 x 8 and 4-1/2" to 4-5/8"
  • 37" x 12.50" w/ 18 x 9 and 4-1/2" to 4-5/8"
  • 37" x 12.50" w/ 20 x 9 and 5" - 6"
Notes
  • Torsion Bar Tool required to load/unload the torsion bars.
  • Will not fit dually's
  • Stock 17" & 18" wheels cannot be reinstalled.
  • Stock 20" wheels cannot be reinstalled on 2015-2019 models
  • Factory dually wheels cannot be reinstalled.
  • Models with two-piece rear driveshaft may require #12161
  • If minor front driveline vibration occurs at highway speeds while in 4wd and the vehicle will be used in this situation on a regular basis, we recommend replacing the front driveshaft with a dual Cardan style driveshaft.
Installation
