2011-2019 Duramax HD Stage 3 FOX 2.5 Performance Leveling System (AXGM11STAGE3FOX2.5)

The Stage 3 FOX 2.5 system pairs Axiom Supply's leveling and geometry correction hardware with a full set of FOX 2.5 Performance Series HTO shocks tuned for leveled GM HD trucks. Forged torsion keys add up to 2" of front ride height, double-shear upper control arms restore proper suspension angles, and the large-bore HTO shocks use position-sensitive rebound control to eliminate harsh top-out on bigger tires. One complete bolt-on package for a 2011-2019 Silverado or Sierra HD.

Part Number: AXGM11STAGE3FOX2.5

• Complete set of four FOX 2.5 Performance Series HTO shocks, front and rear, valved for leveled GM HD trucks
• Hydraulic Top Out technology slows shaft speed near full extension to kill harsh top-out events on leveled trucks with bigger tires
• Large-bore 2.5" shock bodies with increased piston area and fluid capacity resist fade during towing and off-road use
• Monotube Internal Floating Piston design separates oil from nitrogen for consistent damping
• Type II hard-anodized aluminum shock bodies for heat dissipation and corrosion resistance
• Forged torsion leveling keys deliver up to 2" of front ride height adjustment

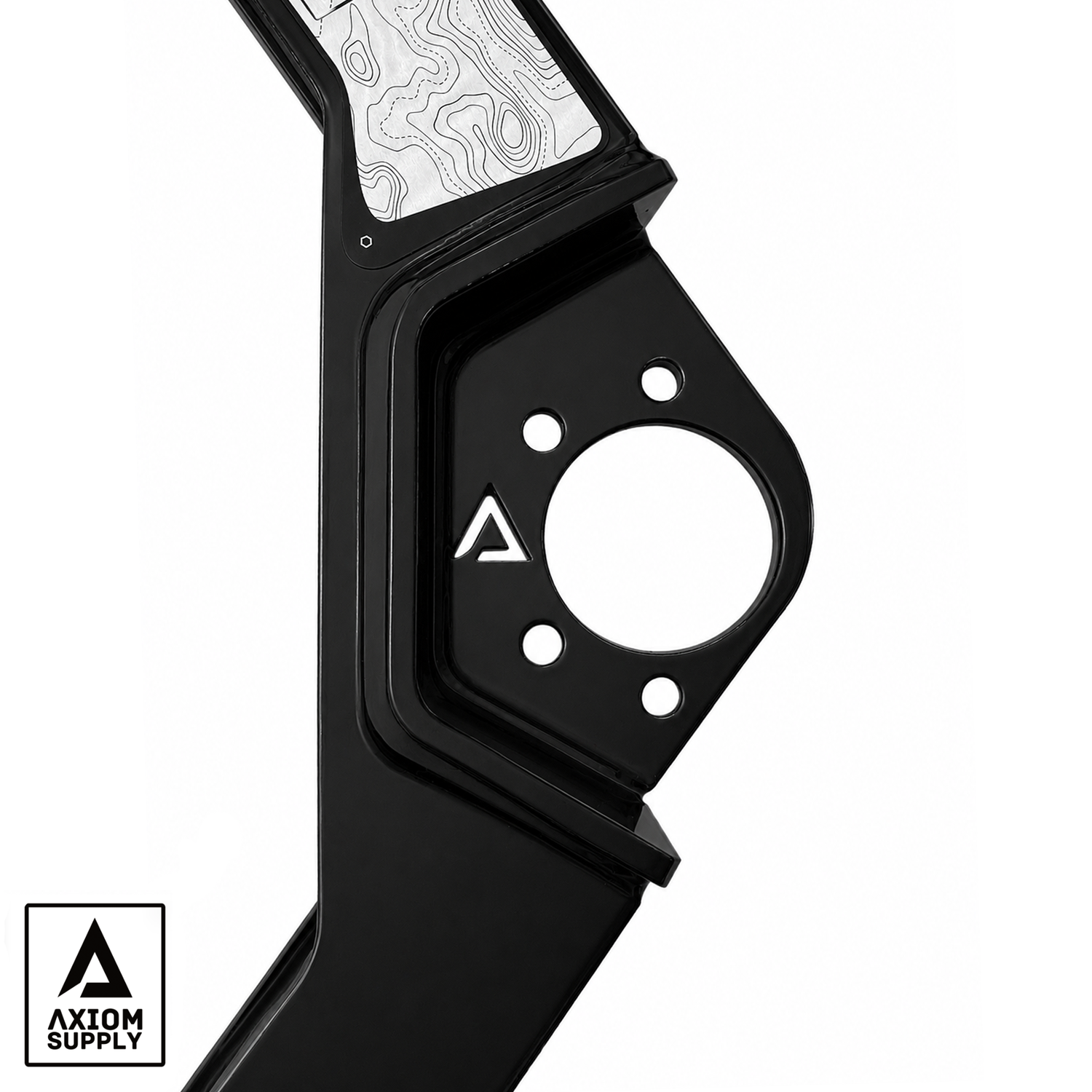

• True double-shear upper control arms with AX6292 Grade 12.9 bolt-on upper ball joints
• Dual-position ball joint mounting for extra alignment flexibility

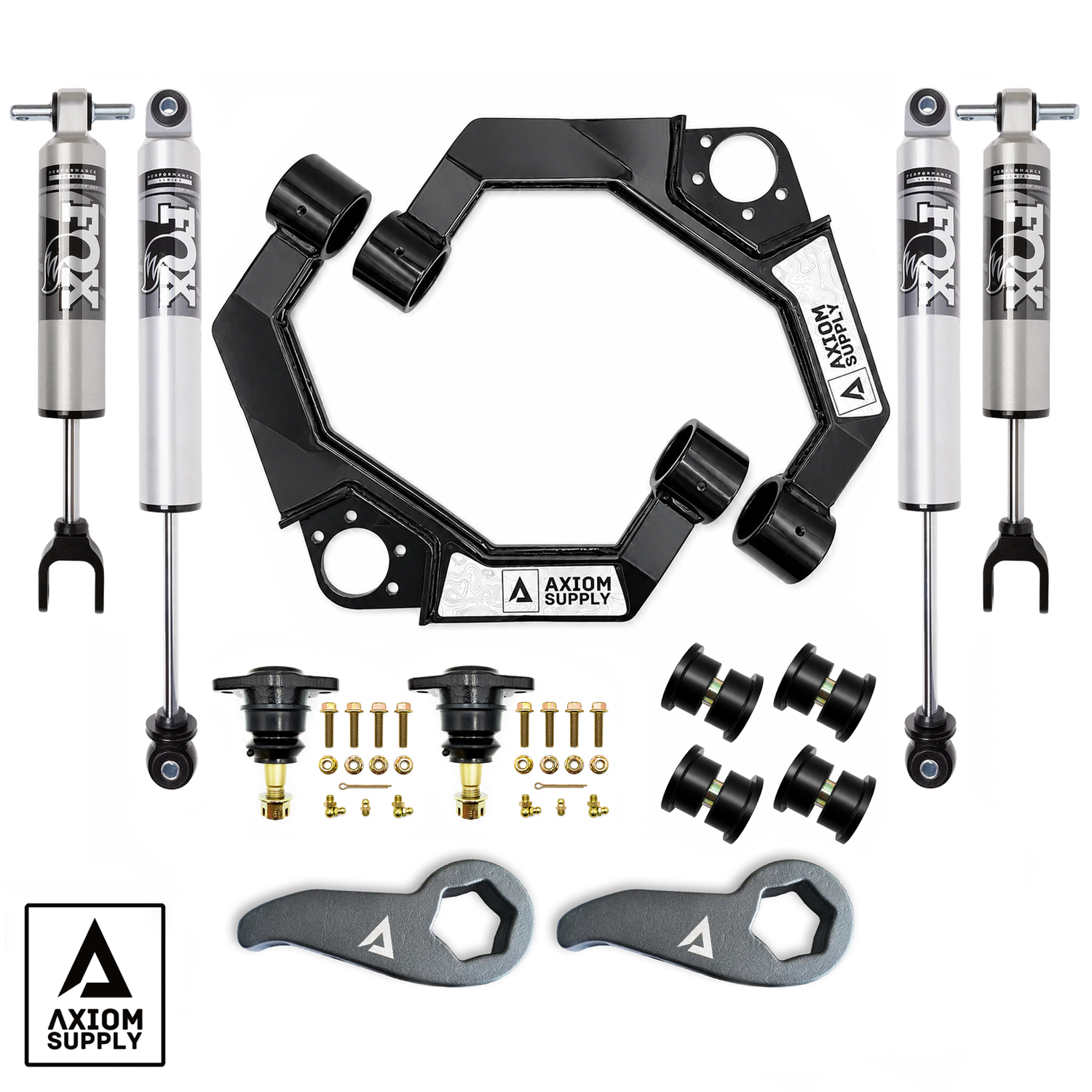

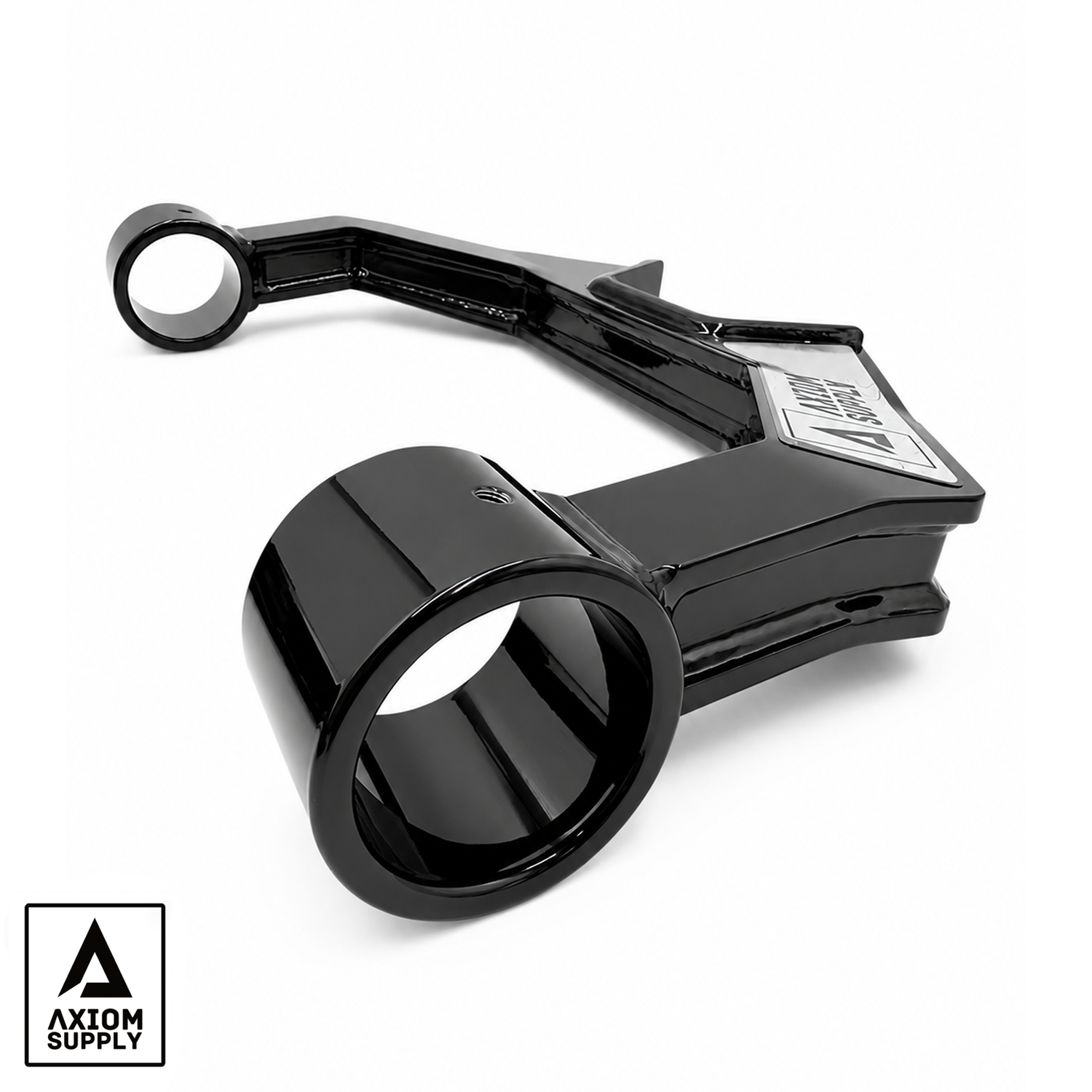

• (2) Axiom Supply Heavy-Duty Upper Control Arms
• (2) Axiom Supply AX6292 Grade 12.9 Bolt-On Upper Ball Joints
• (2) Axiom Supply Forged Torsion Leveling Keys
• (2) FOX 2.5 Performance Series HTO Front Shocks
• (2) FOX 2.5 Performance Series HTO Rear Shocks
• (4) Control Arm Sleeves
• (8) Control Arm Bushings
• (1) Complete Installation Hardware Kit

• Provides up to 2" of front ride height adjustment; works on stock, leveled, and lifted trucks.
• Compatible with most aftermarket suspension systems that use factory-style upper control arm mounting locations.
• Tires wider than 11.50" may contact the control arm with certain factory wheel configurations; additional wheel offset or spacers may be required.
• Apply 3 pumps of grease to each ball joint at install, then service every 5,000 to 7,000 miles. Do not over-grease.
