2011-2019 Duramax 2.0 Performance Series Front Shock 1.5-3.5" Lift (985-24-189)

(3)
FOX Part Number: 985-24-189
$321.24 CAD

*Asterisks indicates a required selection.

Multiple Fitment Acknowledgment *

I have reviewed the fitment table provided in the description and can confirm that my vehicle is compatible with this product.

Purchase to earn 321 Dirty Dollars Learn More

This product ships for free to most Canadian locations! Learn more

Description

Fits

Year Make Model Lift Wheel Position
 2011-2019 Duramax 2500 1.5-3.5" ALL Front
2011-2019 Duramax 3500 1.5-3.5" ALL Front



By utilizing Fox's race-proven damping control, these 2.0 Performance Series Shocks provide a comfortable on-road ride and predictable off-road handling even in the toughest conditions.

The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find their race-proven performance valving technology as well as their Internal Floating Piston (IFP) mono-tube design which separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race-developed high-flow damping piston matched with application-specific valving provides the Performance Series 2.0 IFP shock with a predictable ride quality capable of handling the roughest road conditions.

 Part Number: 985-24-189

Features

Body 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
Body Plating Clear-anodized for a durable finish
Reservoir Internal IFP mono-tube reservoir design
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 5/8" hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Valving Application-specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Oil JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Bushings Quiet nitrile rubber allows for increased suspension articulation
Extended 20.280
Compressed 13.680
Travel 6.600

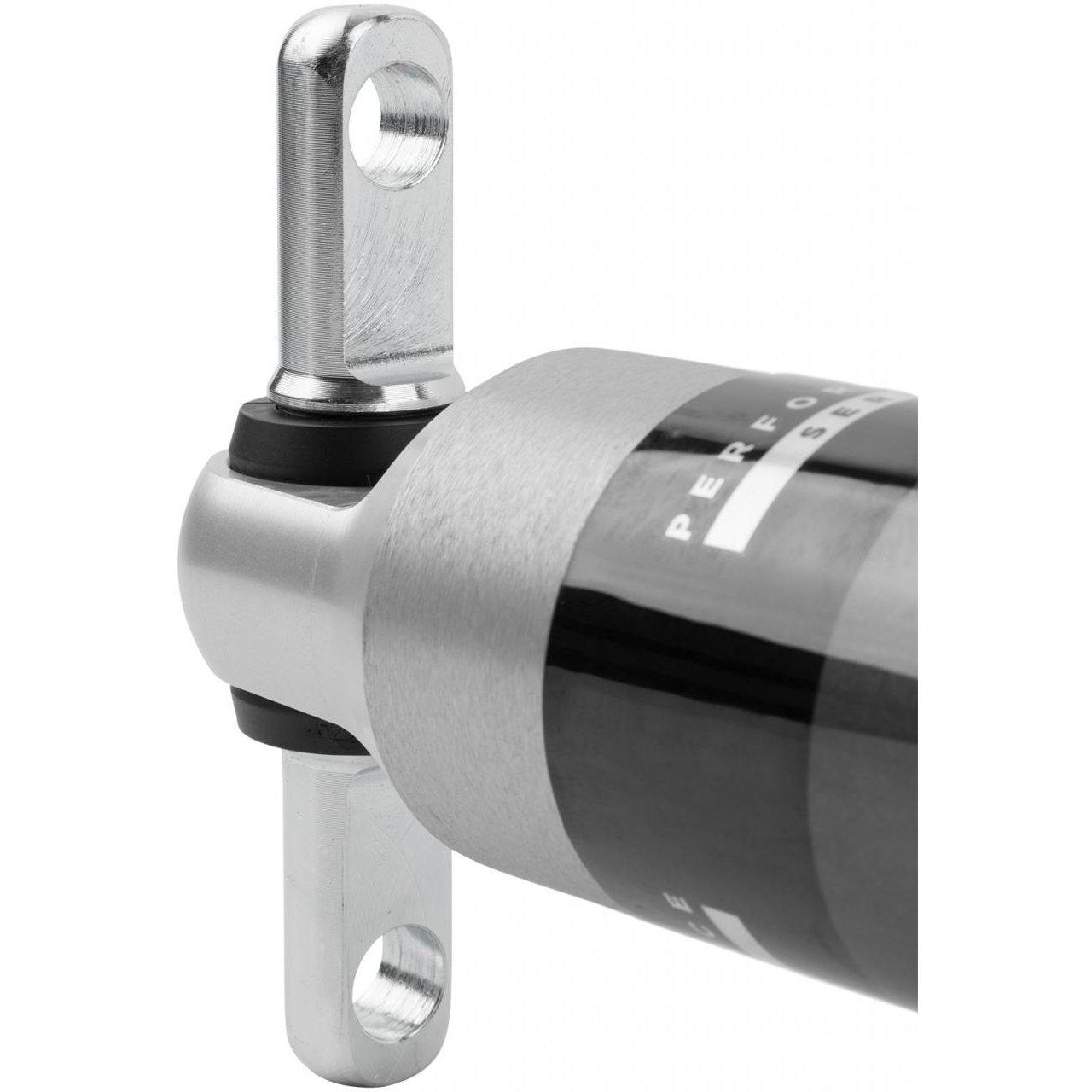

Top Mount Bar Pin

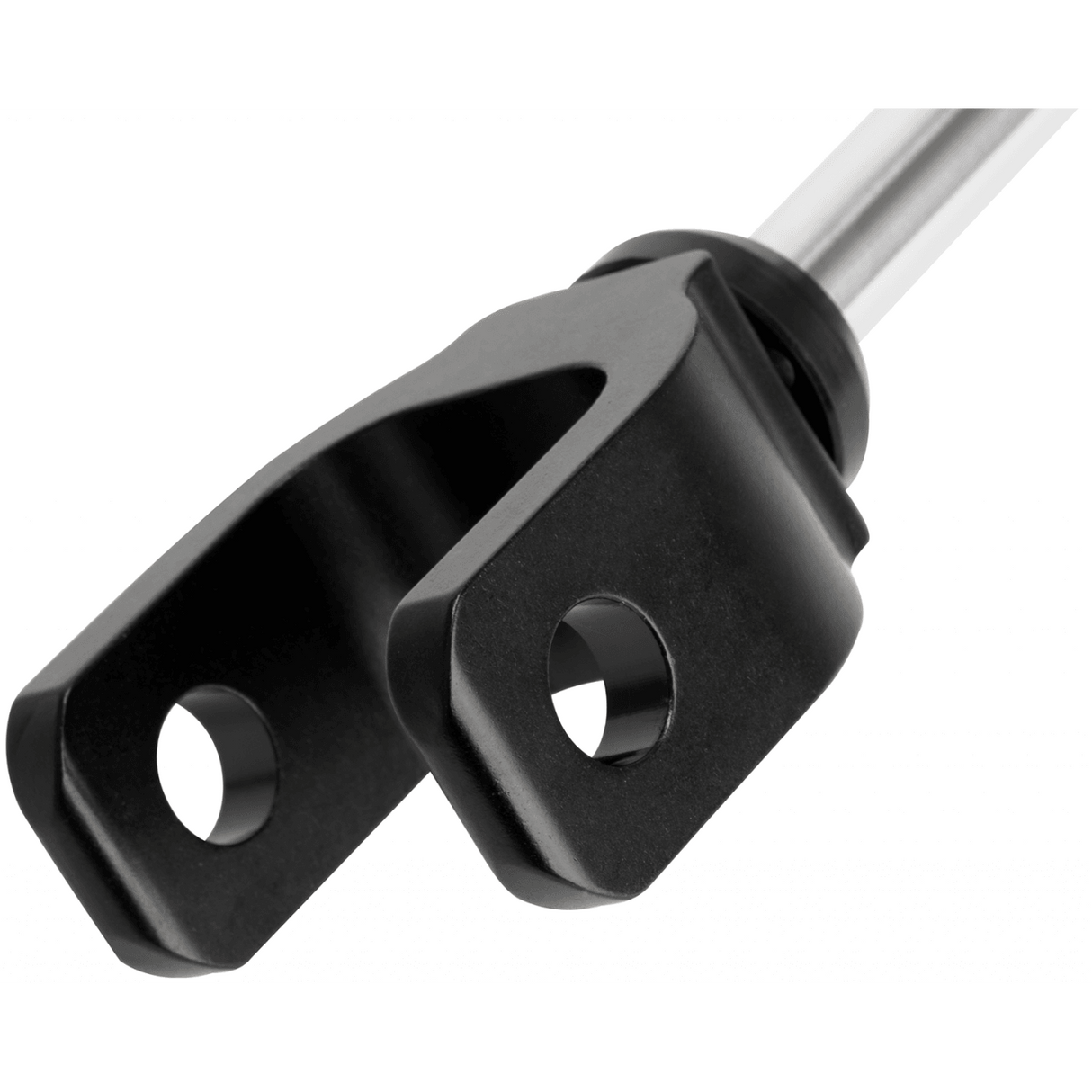

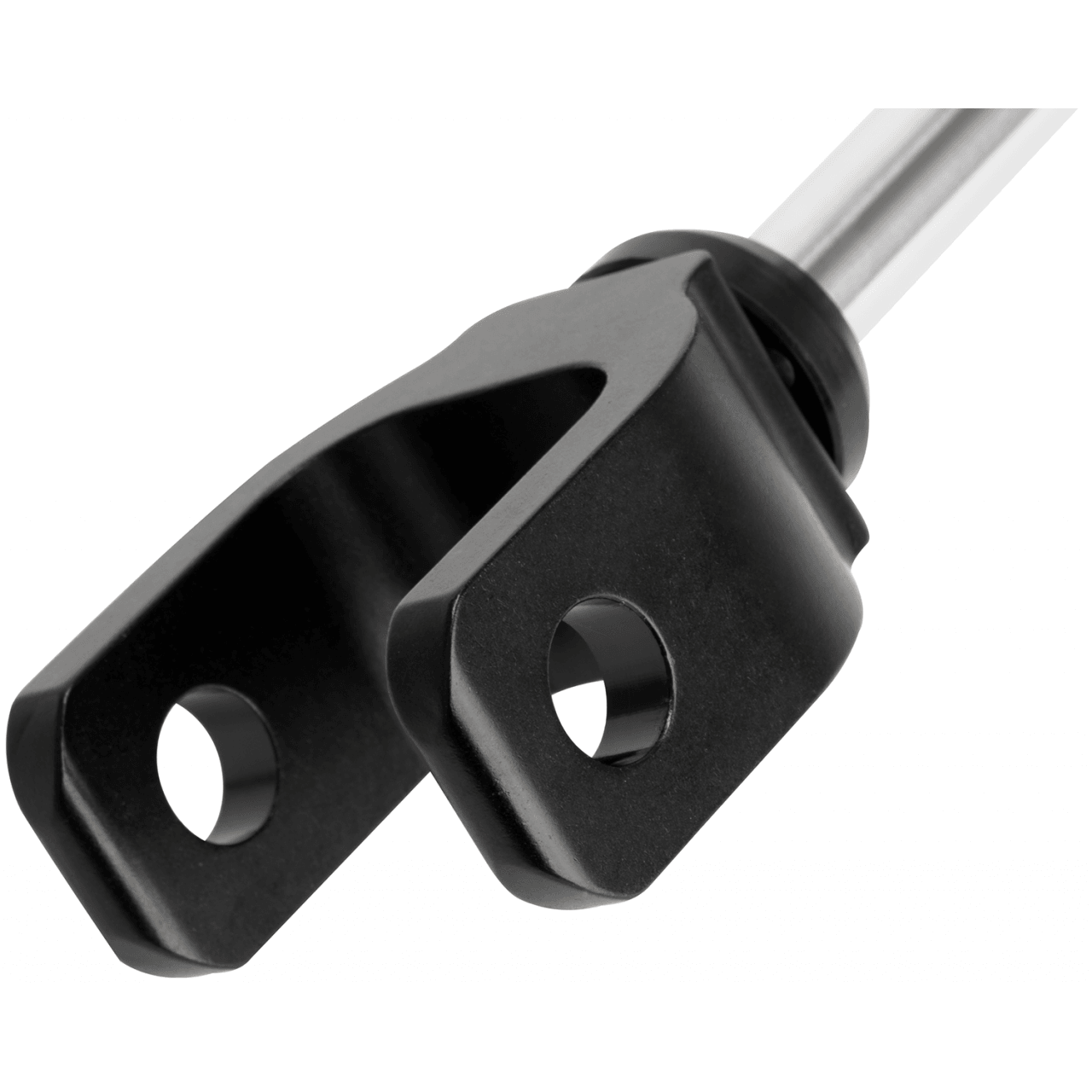

Bottom Mount Clevis
Fitment notes Does not fit magnetic suspension

Notes

  • Does not fit magnetic suspension

Installation
