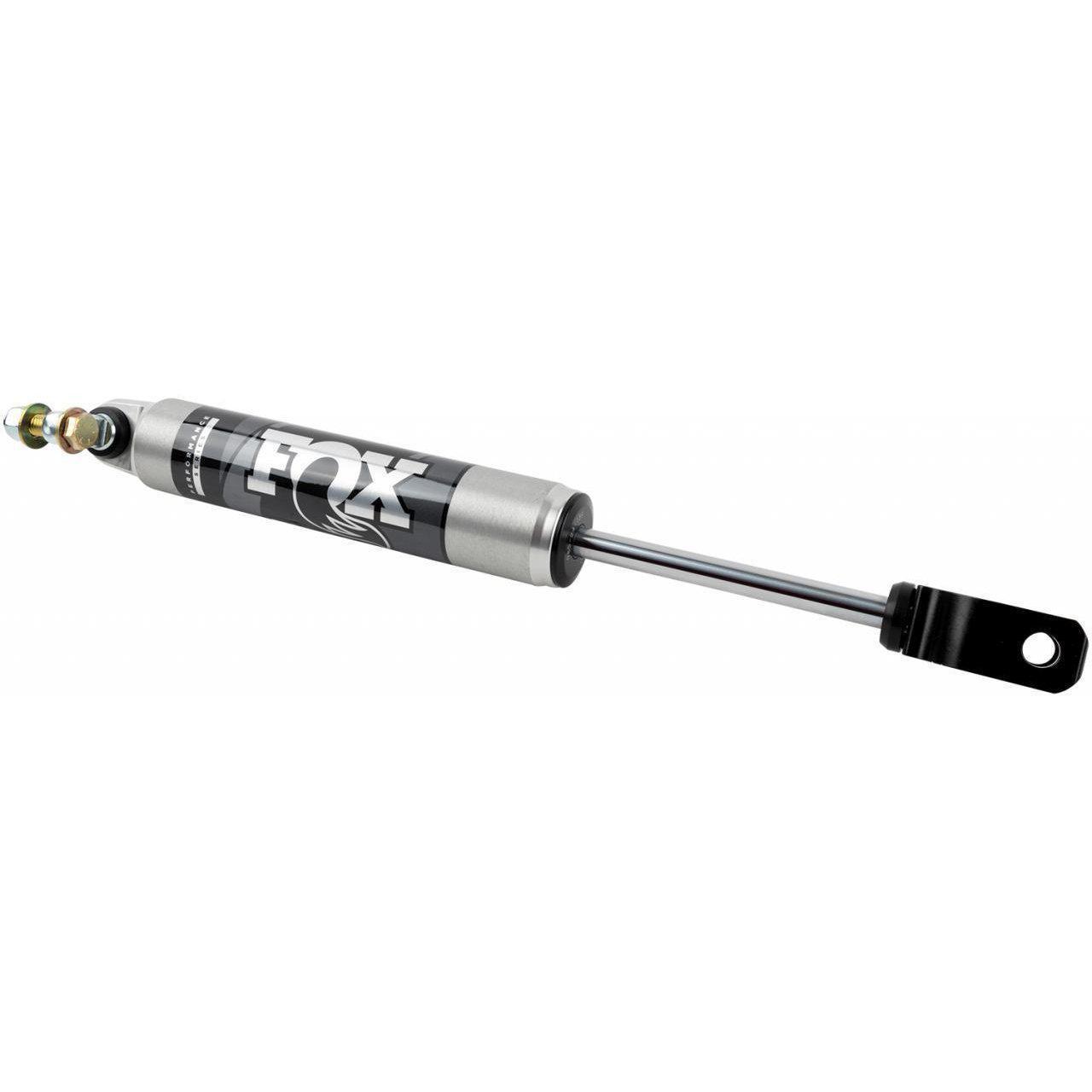

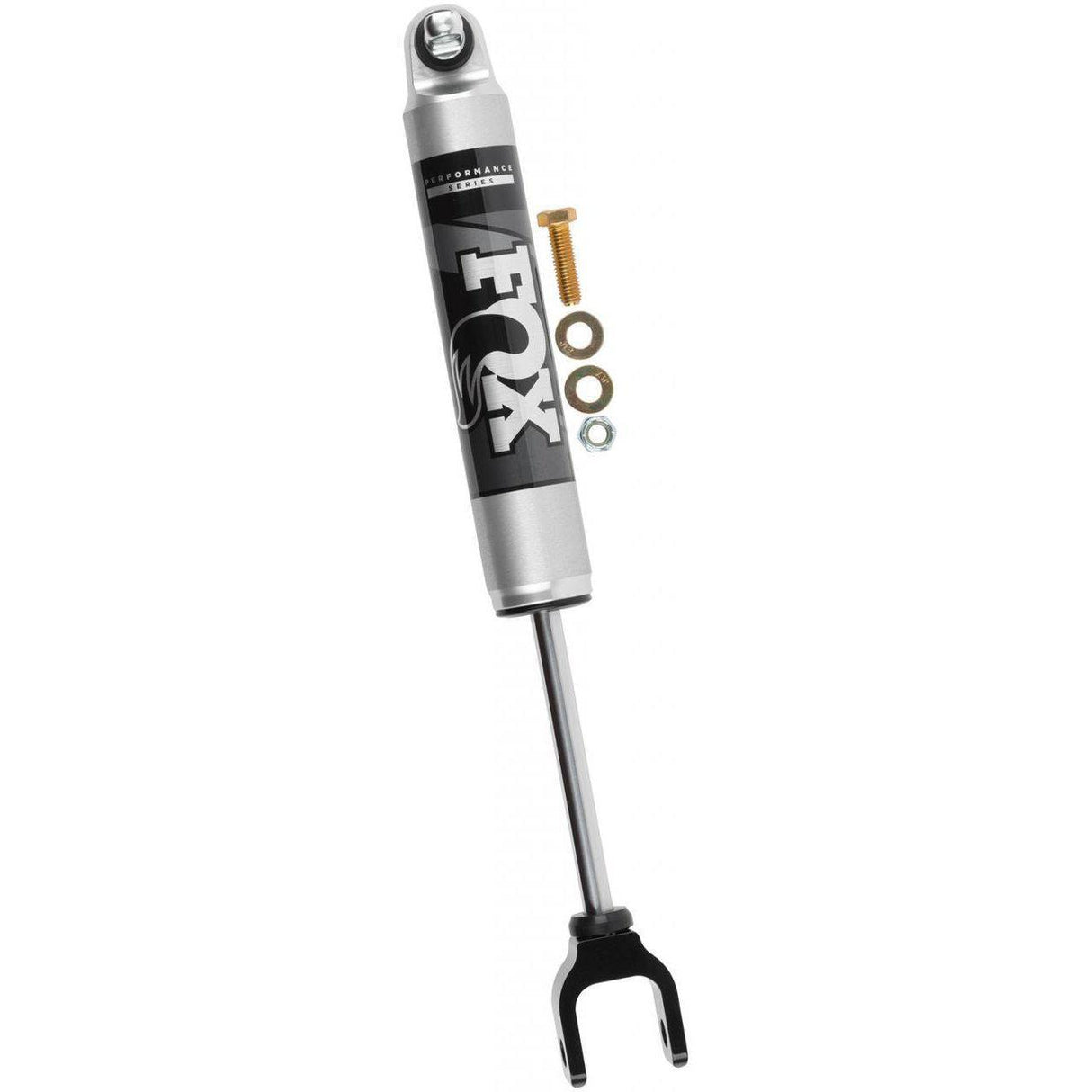

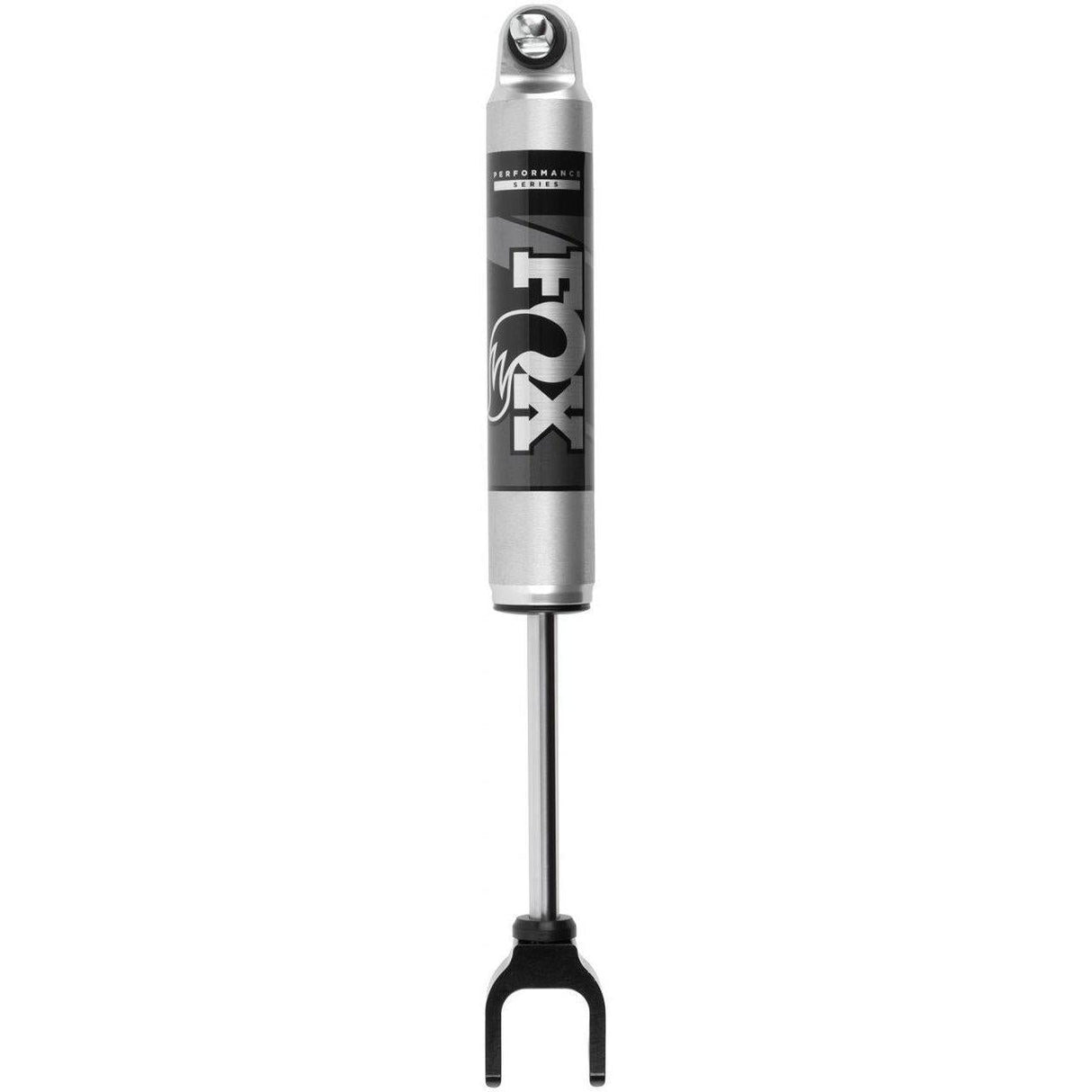

2011-2019 Duramax 2.0 Performance Series Front Shock 1.5-3.5" Lift (985-24-189)
Purchase to earn 321 Dirty Dollars Learn More
Price Match Request
2011-2019 Duramax 2.0 Performance Series Front Shock 1.5-3.5" Lift (985-24-189)
Description
Description
Fits
| Year | Make | Model | Lift | Wheel |
Position |
| 2011-2019 | Duramax | 2500 | 1.5-3.5" | ALL | Front |
| 2011-2019 | Duramax | 3500 | 1.5-3.5" | ALL | Front |
By utilizing Fox's race-proven damping control, these 2.0 Performance Series Shocks provide a comfortable on-road ride and predictable off-road handling even in the toughest conditions.
The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find their race-proven performance valving technology as well as their Internal Floating Piston (IFP) mono-tube design which separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race-developed high-flow damping piston matched with application-specific valving provides the Performance Series 2.0 IFP shock with a predictable ride quality capable of handling the roughest road conditions.
Part Number: 985-24-189
Features
Features
| Body | 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time |
|---|---|
| Body Plating | Clear-anodized for a durable finish |
| Reservoir | Internal IFP mono-tube reservoir design |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft | 5/8" hard chrome plated heat-treated alloy steel |
| Piston | Race-developed high-flow piston design |
| Valving | Application-specific valving to maximize performance |
| Seals | Redundant sealing pack system main seal, wiper seal, scraper seal |
| Oil | JM92 Advanced Suspension Fluid for improved performance at variable temperatures |
| Bushings | Quiet nitrile rubber allows for increased suspension articulation |
| Extended | 20.280 |
| Compressed | 13.680 |
| Travel | 6.600 |

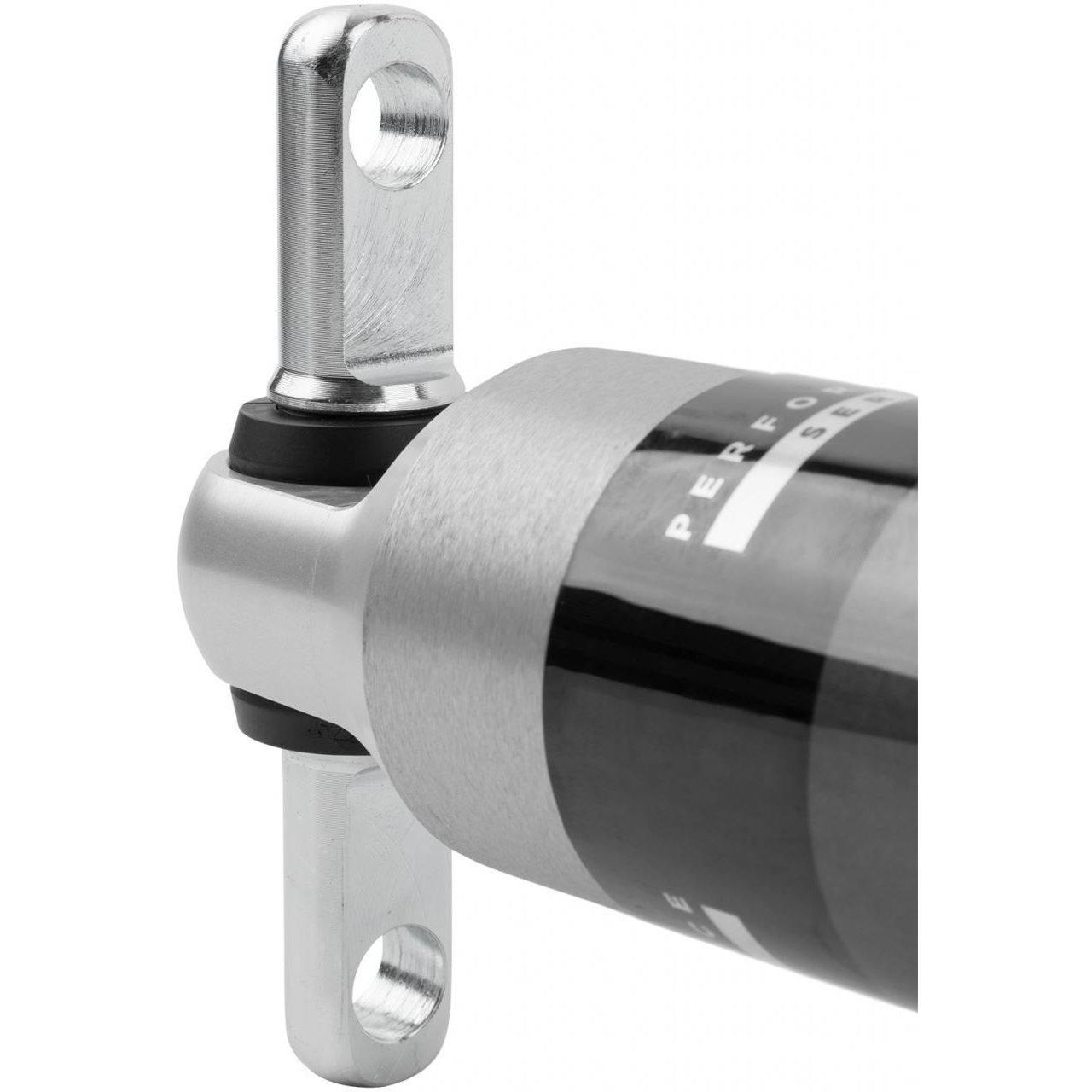

| Top Mount | Bar Pin |

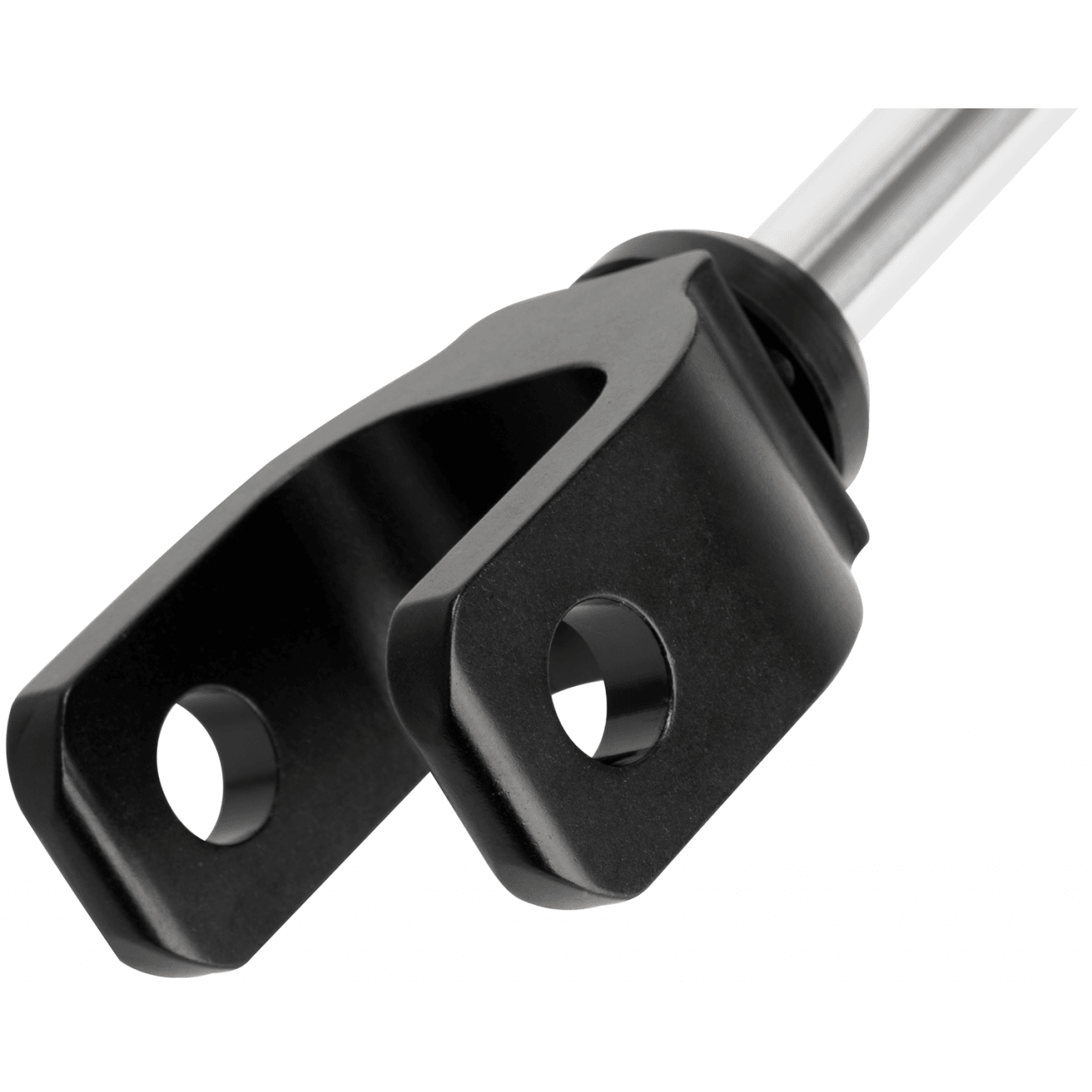

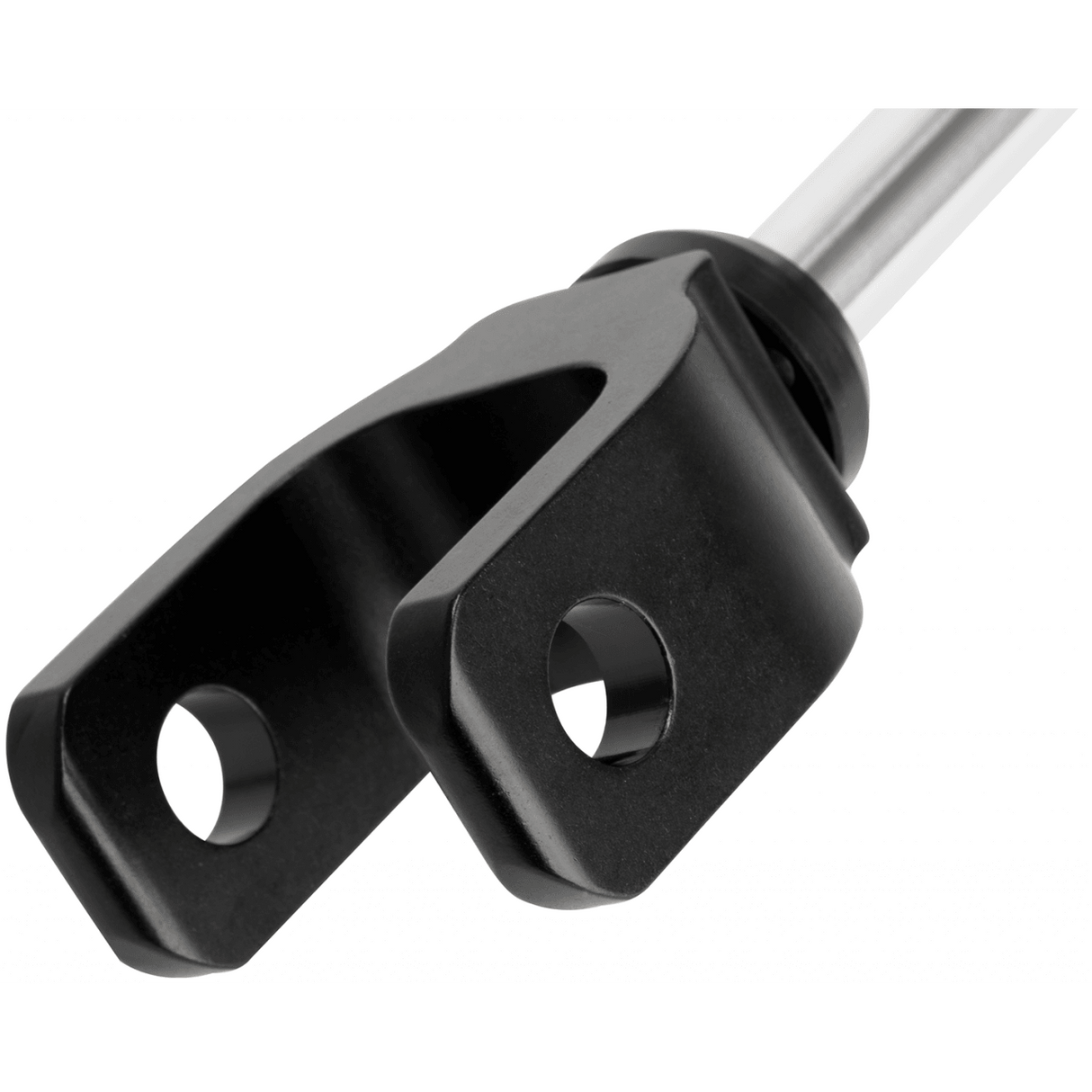

| Bottom Mount | Clevis |
| Fitment notes | Does not fit magnetic suspension |
Notes
Notes
- Does not fit magnetic suspension
Installation
Installation
Questions and Answers
Questions and Answers
Previously asked questions
We've compiled a list of questions and answers below.
Don't see your question? Ask us anything about this product.
Ask a Question-
I have a front leveling kit not sure height and OEM shocks will these fit?
It's best that you measure the current shocks to confirm, but if they're OEM, these shocks are typically the standard upgrade for leveled GM heavy-duty trucks.
-
Do these come as a pair or separate ?
These are sold individually.
