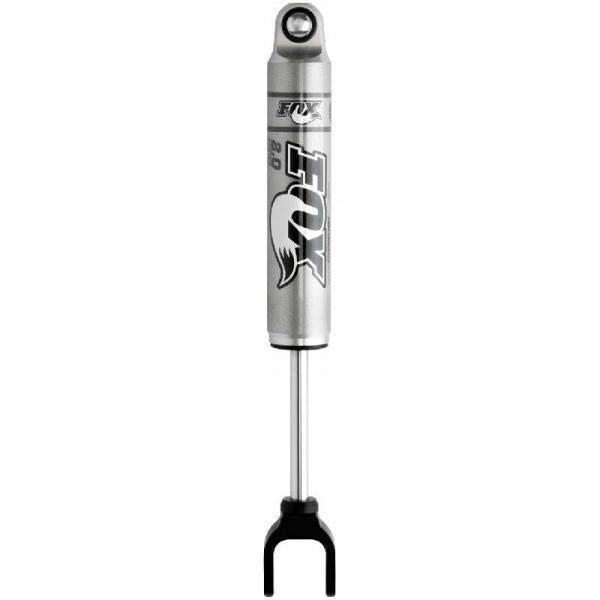

2011-2019 Duramax Front 7-9" Lift 2.0 Performance Series Shock (980-24-967)
Purchase to earn 321 Dirty Dollars Learn More
Couldn't load pickup availability
Description
Description
Fits:
Year | Make | Model | Lift | Wheel | Position |
2011-2019 | Duramax |
2500 | 7-9" | ALL |
Front |
2011-2019 | Duramax |
3500 | 7-9" | ALL | Front |
By utilizing Fox's race-proven damping control, these 2.0 Performance Series Shocks provide a comfortable on-road ride and predictable off-road handling even in the toughest conditions.
The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find their race-proven performance valving technology as well as their Internal Floating Piston (IFP) mono-tube design which separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving.
Part Number: 980-24-967
Features
Features
Body | 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time |
---|---|
Body Plating | Clear-anodized for a durable finish |
Reservoir | Internal IFP mono-tube reservoir design |
Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
Shaft | 5/8" hard chrome plated heat-treated alloy steel |
Piston | Race-developed high-flow piston design |
Valving | Application-specific valving to maximize performance |
Seals | Redundant sealing pack system main seal, wiper seal, scraper seal |
Oil | JM92 Advanced Suspension Fluid for improved performance at variable temperatures |
Bushings | Quiet nitrile rubber allows for increased suspension articulation |
Extended | 25.609 |
Compressed | 16.58 |
Travel | 9.11 |
Top Mount | BP5 |
Bottom Mount | C1 |
Fitment notes | Does not fit magnetic suspension |
