2011-2019 Duramax 6-8" Lift Coilover Conversion Mounting Kit (BDS121653)

Description

Fits

Coilovers arent just to lower your vehicle! If you're serious about performance then BDS offers this conversion kit for your GMC/ Chevrolet. With high-quality parts, this kit will improve handling at high speeds and overall ride quality.

Part Number: BDS121653

Features

• 6-8" Lift

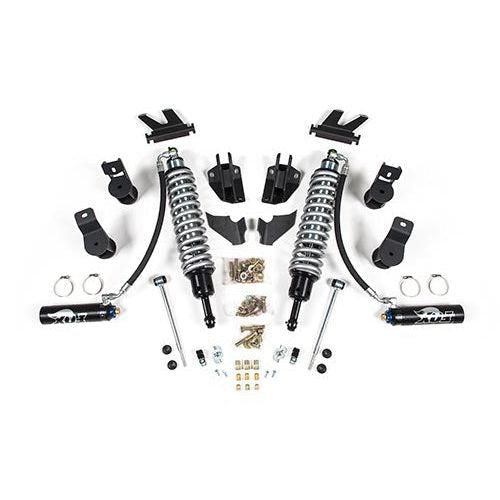

Includes:

• Coilover Conversion Upper Mount - (Driver & Passenger Side)
• Weld-In Support Gusset - (Driver & Passenger Side)
• Coilover Conversion Reservoir Mount - (Driver & Passenger Side)
• Two Sway Bar Links
• Two Wide EB1 Bushings
• Four Sway Bar Link Stem Bushings
• Two Rear Bump Stop Extensions
• Two Front Bump Stop Extensions
• One Bolt Pack - (Mounting Hardware)
• One Bolt Pack - (Sway Bar Links)
• One Bolt Pack - (Bump Stop Hardware)
• ..And More - (See Installation Instructions for full list)

Tire Fitment:

• 6.5” Kit: 37 x 12.50 on 17” x 9” w/ 4-1/2 to 4-5/8” Backspacing
• 37 x 12.50 on 18” x 9” w/ 4-1/2 to 4-5/8” Backspacing
• 37 x 12.50 on 20” x 9” w/ 5 to 5.5” Backspacing
• Larger than 20”, use 20” wheel specs

Notes

• This part requires several other components for installation
• Please Check Contents to make sure you have all the necessary hardware
• Stock 17” and 18” wheels will not fit back on the vehicle once this suspension system is installed. Stock 20” wheels are not recommended
• Some minor triming will be required with certain wheel/tire combination

Installation

• Click Here For Installation Instructions
