2011-2018 Wrangler JK Wheel Bearing Assembly (AX513369)

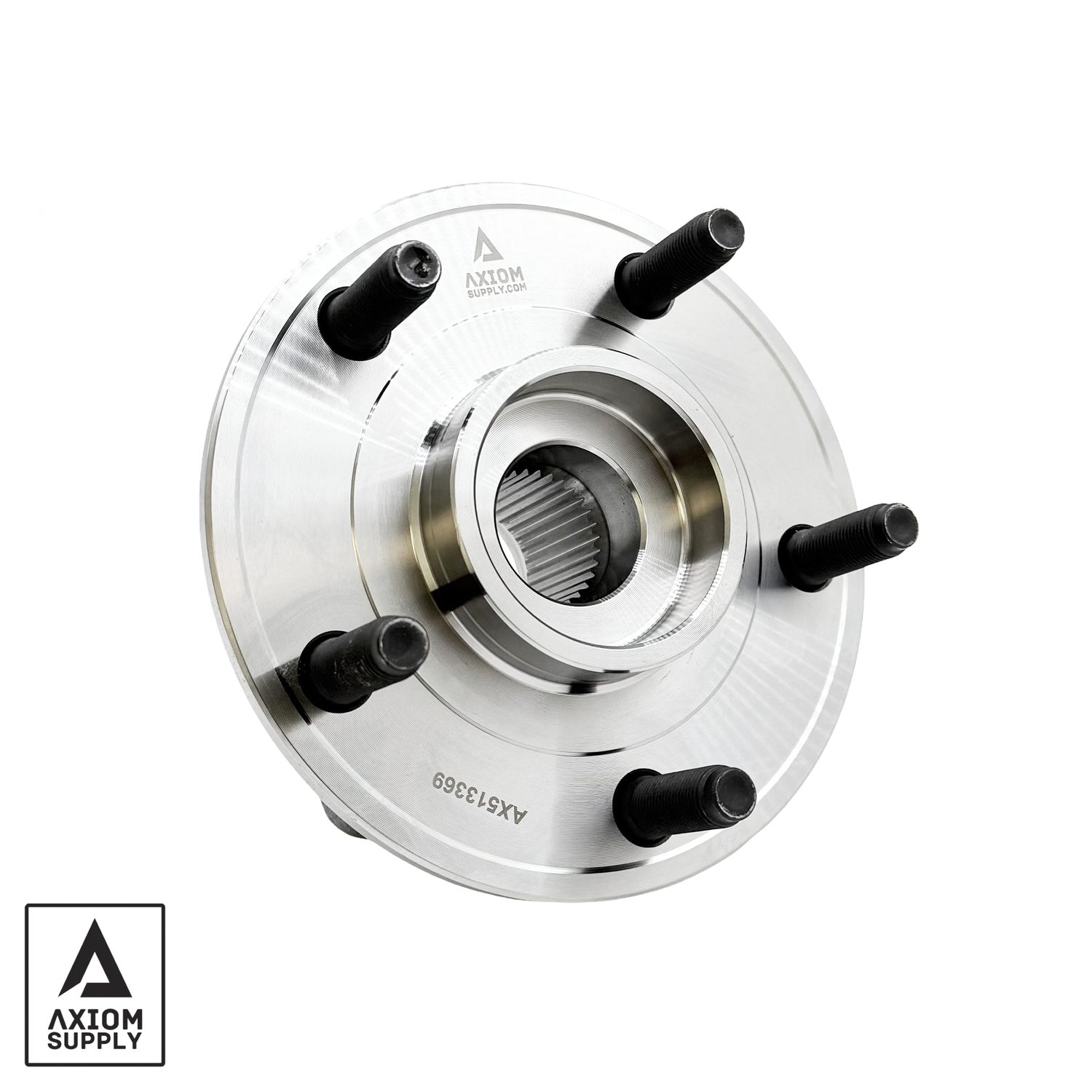

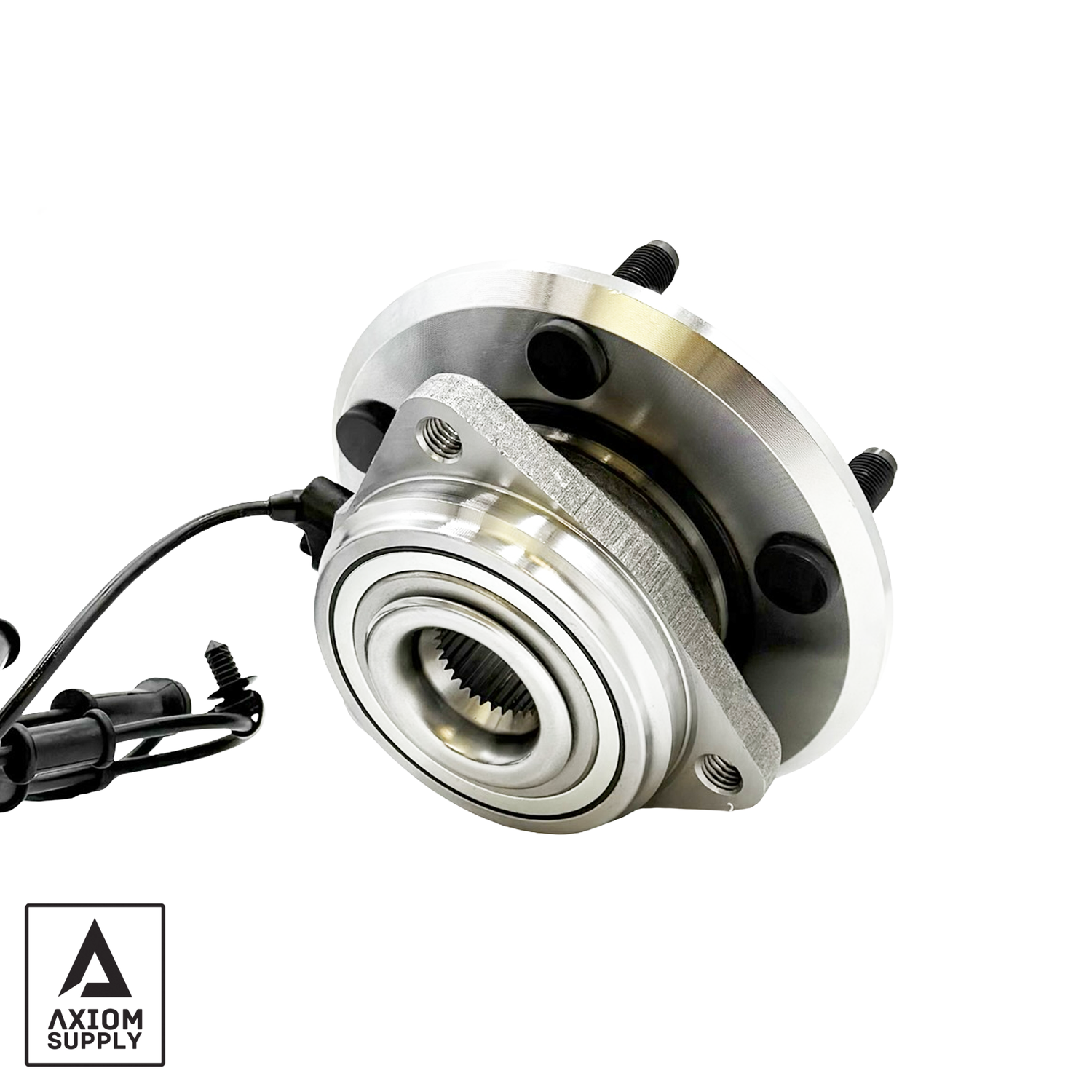

Direct fit front wheel bearing and hub assembly for the 2011-2018 Jeep Wrangler JK with an integrated ABS sensor and 5x5" (5x127) bolt pattern. The proprietary bearing and hub structure reduces hub face deflection under load for tighter steering response and improved braking stability, even with oversized tires or a lifted setup. Comes as a complete bolt-in unit that fits either the left or right spindle, with a typical install time around 2 hours and no modifications required.

Part Number: AX513369

• Precision tapered roller bearings packed with high performance grease for smooth, maintenance free operation
• Grade 8 cold formed, zinc plated wheel studs for high tensile strength and corrosion protection

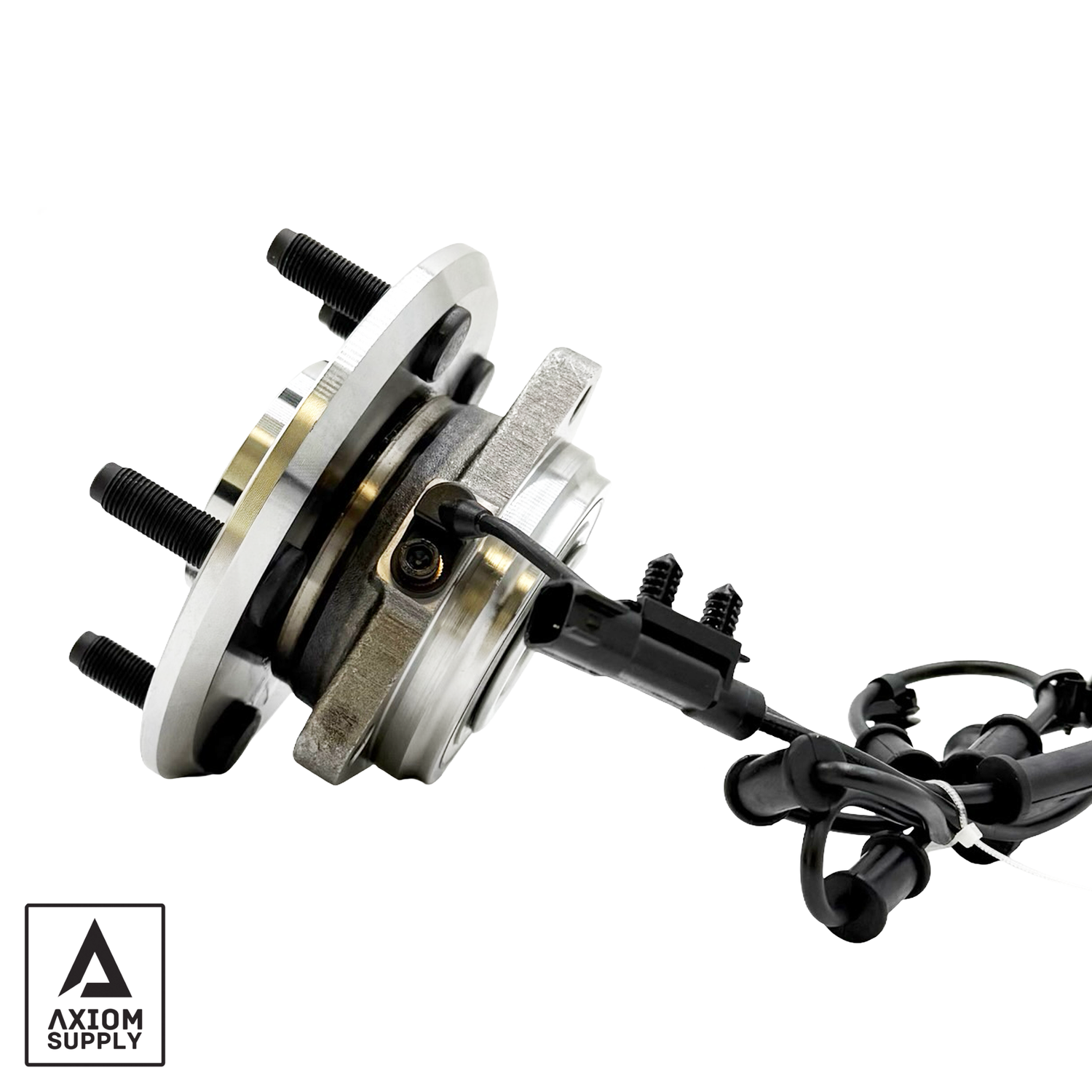

• Durable ABS sensor holds accurate signal transmission through heat, mud, and moisture
• 5x5" (5x127) bolt pattern with 1/2"-20 lug studs
• Fits left or right front position
• Complete bolt-in unit, roughly 2 hour install with no special modifications

• 1 x Wheel Bearing & Hub Assembly with integrated ABS wire

• Axle nut torque: 100 lb-ft
• Spindle bolt torque: 75 lb-ft
• Main caliper bolt torque: 120 lb-ft
• Lug nut torque: 100 lb-ft
