2017-2022 Powerstroke 3.5" SST Lift Kit w/ 2-Piece Driveshaft (69-2736)

Fits

 Note: Dual Rear Springs ONLY

Rather than spend thousands on a full comprehensive lift kit that could potentially cause you duress. Get the ReadyLift 3.5" SST Lift Kit for your Dual Rear Spring Powerstroke! Featuring coil spring spacers, sound isolators, shock extensions, sway bar frame mount spacers, bump stop extensions, carrier bearing spacer, track bar relocation, and radius arm brackets, you've got everything you need to safely lift your truck without any modifications, and no compromises to articulation, geometry, ride quality, or handling!

Part Number: 69-2736

• Allows for the installation of up to 37" tires
• Maintains factory ride and drivability
• Cast-iron OEM-style rear blocks

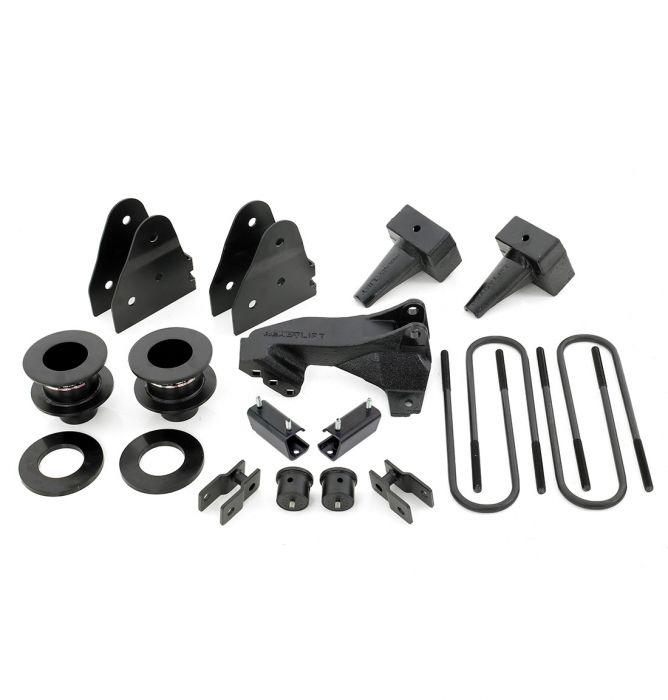

Includes:

• (2) Coil spring spacers with poly sound isolators
• (2) Front shock extensions
• Radius arm drop brackets
• (2) Front sway bar mount spacers
• (1) Front track bar relocation bracket
• (2) OEM-style cast rear lift blocks with longer u-bolts and hardware
• One carrier-bearing drop spacer
• (2) Bump stop extensions
• Extended length front brake line brackets

Tire Fitment:

• Recommended tire size: 37" - 12.5"
• Recommended wheel: 17" and up x 9" wide, +25 offset / 6" backspacing (minor trimming of the front valance may be necessary)

• Note: For use on 2017-2020 Super Duty 4WD with 2-piece driveshaft only
• The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. The use of this type of airbag system will void all block warranties and can cause the failure of the block bump stop tang.
• 2020 MY Super Duty may sit slightly taller in the rear than prior model years due to block height variations from the Ford factory. The additional rake works well visually with the vehicle's body lines.
• Not compatible with TREMOR editions.

• ReadyLIFT Suspension Inc. and/or Dirty Diesel Customs are NOT responsible for any damage or failure resulting from improper installation.
• Click Here to view installation instructions
