2011-2017 Mercedes ML/GL/GLE/E/S 3.0L Diesel FlashZilla Stage 1 Tune File

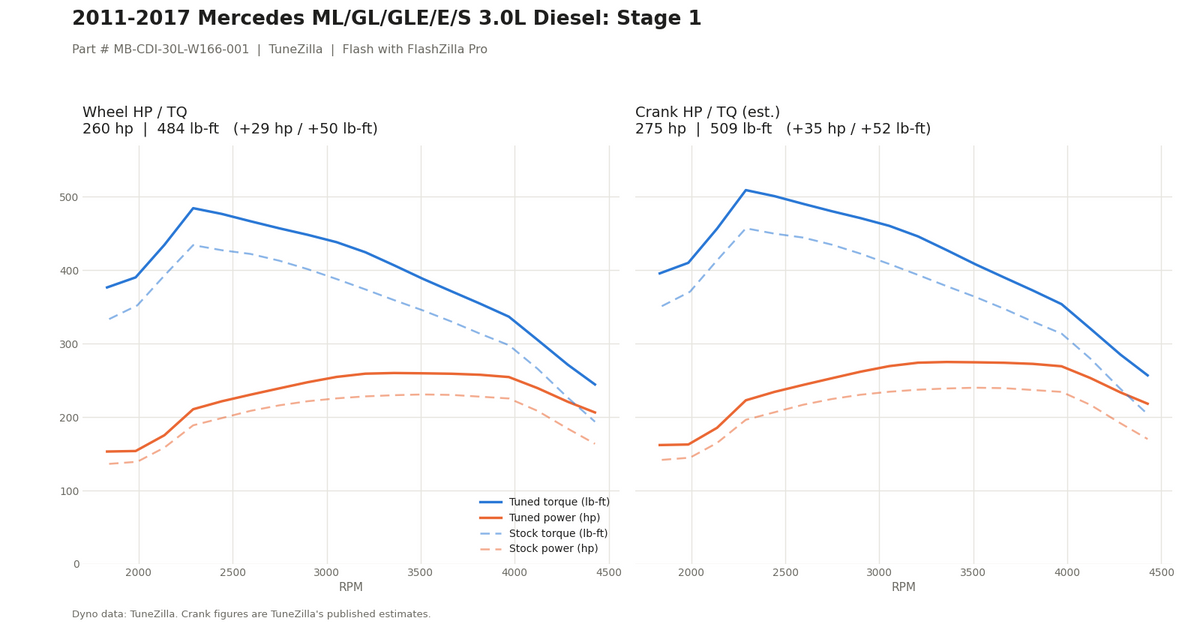

TuneZilla engine (ECU) tuning for the Mercedes ML/GL/GLE/E/S 3.0L CDI BlueTec, flashed at home through the OBD port with the TuneZilla FlashZilla Pro. Pick your power level above. The dyno graph for this power level is in the photo gallery. Add the FlashZilla Pro below if you do not already own one.

Part Number: MB-CDI-30L-W166-001

Emissions-Off: not included with this tune. Add it in the options below.

Stock baseline: 230 hp / 434 lb-ft at the wheel, 240 hp / 457 lb-ft crank (est.)

Crank figures are TuneZilla's published estimates.

• Emissions-Off (DPF, AdBlue, EGR & Swirl Flap) (MERCEDES-CDI-30L-EDC17-MISC-OFF)

Already own a TuneZilla tune and want to add something later? Use the FlashZilla Tune Revision page.

No hardware upgrades are required for the Stage 1 tune. However, tune add-ons to accommodate hardware changes can be purchased. It is important to note that we do not remove factory readiness monitors or force readiness for any factory installed components. If you are installing aftermarket hardware that is for off-road use only, please double check with your state requirements prior to flashing.

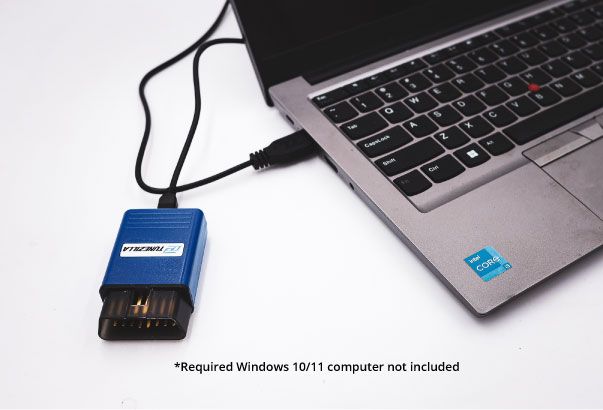

• Flashed at home through the OBD port with the TuneZilla FlashZilla Pro and a Windows 10 or 11 laptop running the TuneZilla Portal App.
• Connect the FlashZilla Pro with a USB-A to USB-C cable. USB-C to USB-C cables are not compatible.
• Your tune is linked to your VIN and syncs to the TuneZilla Portal App, usually right away. Read and save your factory ECU file before flashing.
• Clear all fault codes and warning messages before flashing.
• TuneZilla recommends a battery charger for every flash. Turn the ignition on with the engine off, follow the prompts and do not interrupt the flash.

SCR / AdBlue: clear the SCR countdown before flashing (the message can stay on screen after an emissions-off flash). If you run an aftermarket exhaust, clear all dash errors first. Unplug the SCR controller after flashing but before starting the vehicle (TuneZilla confirmed). It is under the driver's seat on Sprinters and in the trunk under the spare tire on most other models. Emissions-off tunes also require unplugging the EGR, swirl flap motor, DPF temperature and pressure sensors, and NOx sensors, or you may get rough, smoky cold starts.

6429023404 0009040200, 6429026603 0009040200, 6429030906, 6429031820, 6429031920, 6429032320, 6429032404 6429023501, 6429032406, 6429033920, 6429034020, 6429034107, 6429034120, 6429034209, 6429034220, 6429034320, 6429034607, 6429034807, 6429036807, 6429037506 6429021102, 6429037506 6429021102 6429010400, 6429037507 6429020602, 6429037906 6429021102, 6429038602 6429023501, 6429038609, 6429038701 6429023600, 6429038717, 6429038917, 6429039017, 6429039109, 6429039117, P20944P2

Introducing our Stage 1 ECU Tune for Mercedes-Benz OM642 3.0 Bluetec motor, meticulously crafted to elevate the performance of your diesel Mercedes to new heights. Experience a power surge with an increase in power and torque, taking your vehicle to another class of performance. Unleash a new driving experience with improved throttle response, ensuring a dynamic and responsive ride every time you hit the accelerator.

What sets our Stage 1 ECU Tune apart is its versatility. Designed to deliver remarkable performance without the need for additional hardware upgrades, this tune provides a seamless and hassle-free installation process. Keep your factory components in place while relishing the enhanced power and mid-range capabilities that come with our meticulously calibrated tune. Flash your Mercedes in the comfort of your own driveway or garage using our TuneZilla Portal App, and FlashZilla Pro dongle. Download your tune directly to your laptop computer and flash anywhere.

For those seeking a more personalized touch, optional tune features are available to accommodate various hardware changes. Whether you've upgraded your exhaust, or other components, our Stage 1 ECU Tune can be tailored to optimize performance based on your specific modifications. Say goodbye to "no start" conditions and hardware failures with our optional tune add-ons.

Embrace a driving experience like never before, where power, fuel efficiency, and luxury come together seamlessly. Elevate your 3.0L Bluetec CDI motor with confidence, knowing that our Stage 1 ECU Tune is designed to deliver performance without compromise. Upgrade today and redefine the road with a blend of power and precision that's unparalleled.
