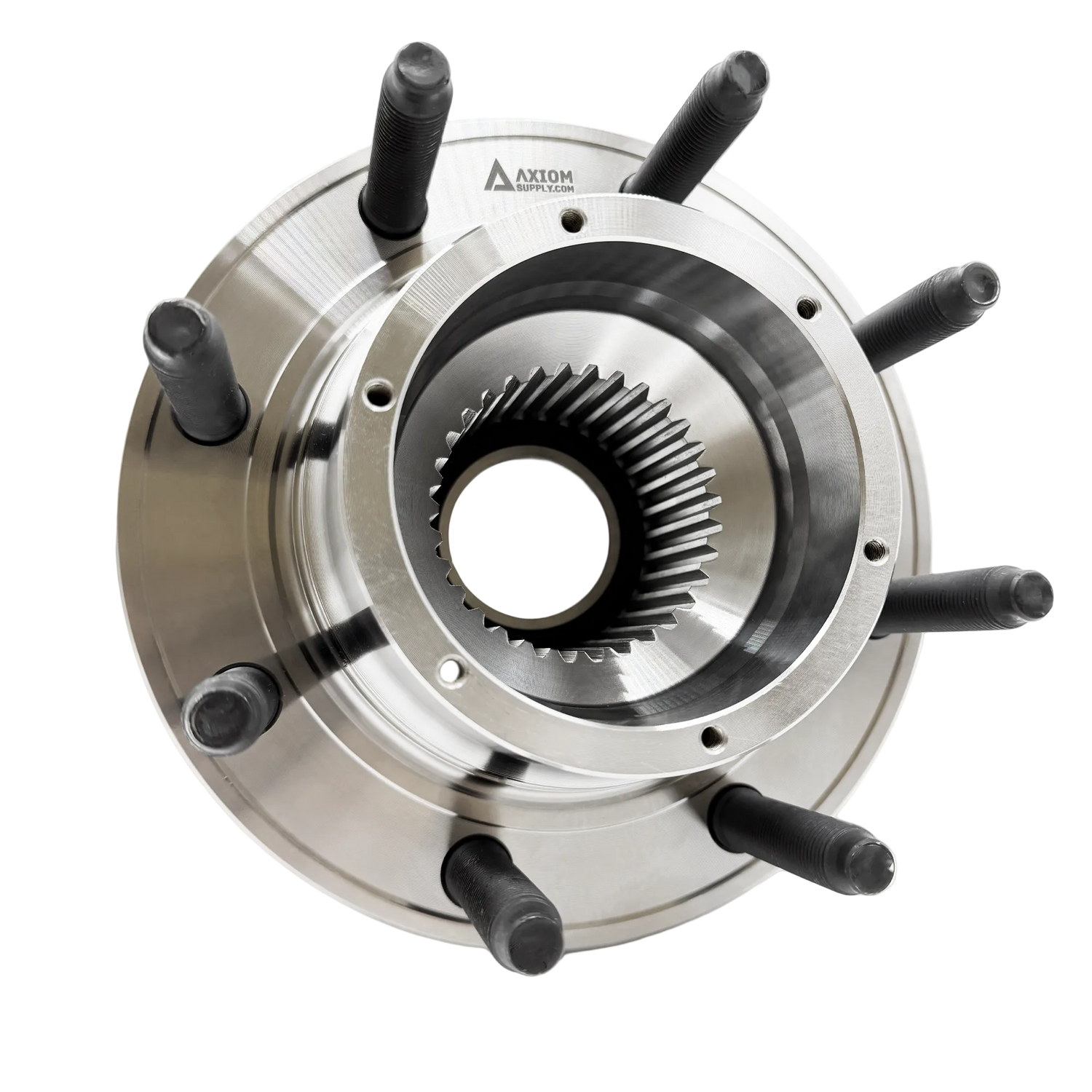

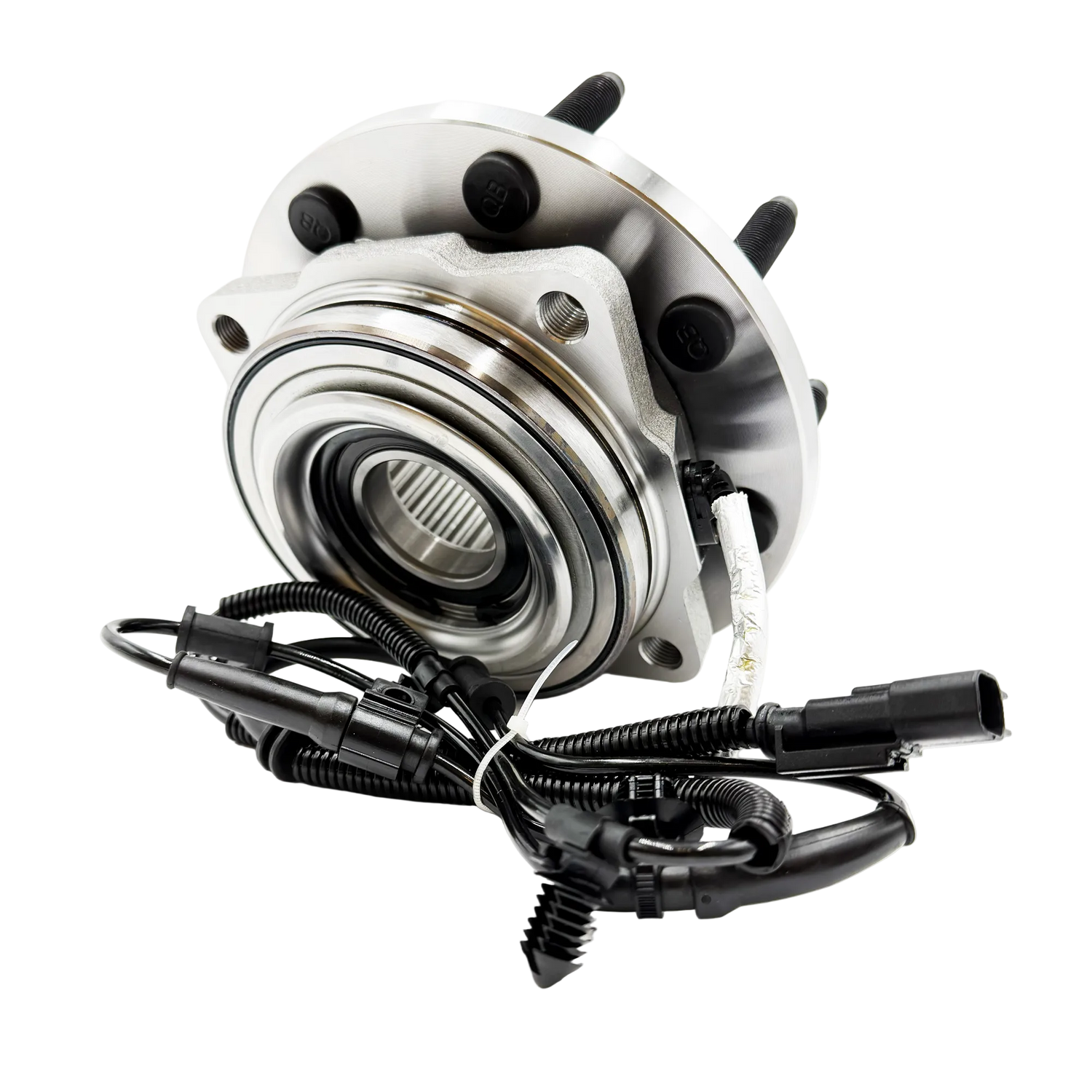

2011-2016 Powerstroke Wheel Bearing Assembly (AX515130)

Note: Fits 4WD Single Rear Wheel (SRW) Models ONLY!

The Axiom Supply Wheel Bearing and Hub Assembly is built for professionals who demand absolute reliability from their heavy-duty trucks. Developed with a proprietary bearing and hub structure, this assembly reduces hub-face deflection under load, delivering tighter steering response and improved braking stability. Whether you are battling the stress of heavy towing, oversized tires, or a lifted suspension setup, Axiom is engineered to stay quiet and controlled under pressure. Axiom units utilize precision tapered roller bearings packed with high-performance grease. Every assembly is outfitted with Grade 10.9 zinc-plated studs and a durable ABS sensor designed to survive heat, mud, and moisture. This is a complete, bolt-in solution for 4WD SRW platforms, arriving with all the hardware needed for a professional installation.

Part Number: AX515130

• Precision tapered roller bearings for smooth, maintenance-free operation
• Proprietary hub design minimizes deflection for better steering and braking
• Premium Grade 10.9 cold-formed, zinc-plated wheel studs
• Durable ABS sensor for reliable signal transmission in harsh conditions
• 8 x M14-1.50 fine thread lug configuration

• Hub Nut Torque: Multi-step sequence required
• Spindle Bolt Torque: 133 lb-ft
• Caliper Bolt Torque: 166 lb-ft

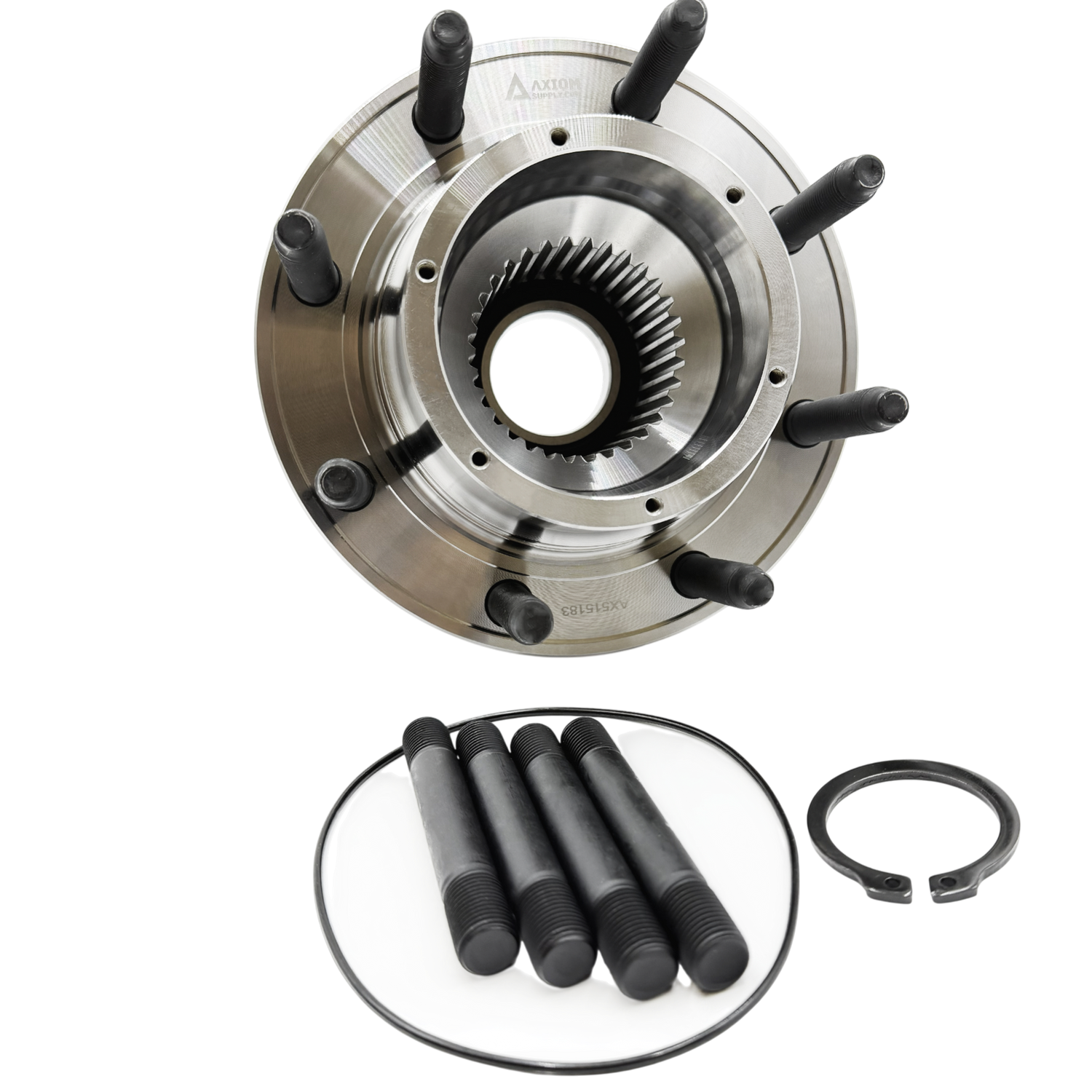

• 1 x Wheel Bearing & Hub Assembly with integrated ABS wire
• 4 x Mounting Bolts
• 1 x O-Ring
• 1 x Retainer Ring

• Fits 4WD models only.
• Fits Single Rear Wheel (SRW) models only; NOT for Dual Rear Wheel (DRW).

• Secure the hub nut by tightening it to 21 ft-lbs (28 Nm) while rotating the wheel clockwise. Then, loosen it by 180 degrees. Next, with the brake disc turning, tighten the nut to 17 ft-lbs (2 Nm).
