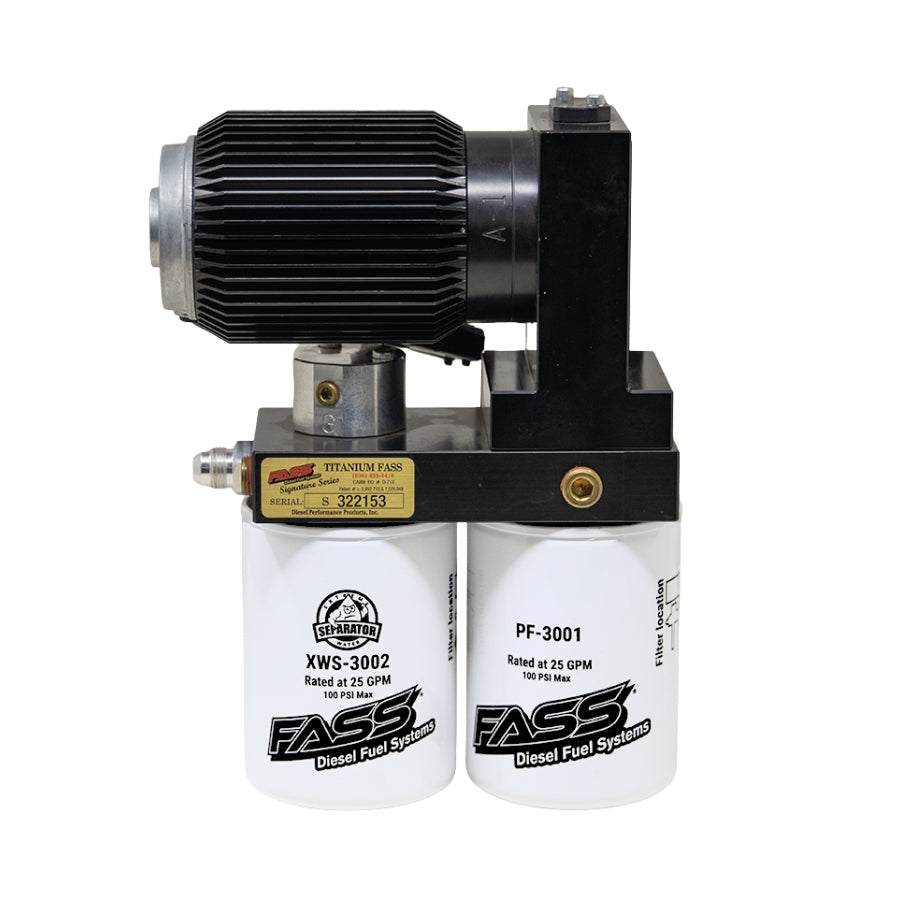

2011-2016 Powerstroke Titanium Signature Series Plus 140GPH Lift Pump (TSPF17180F140G)

Power Rating: Stock-700HP

Flow Rating: 140GPH

Filtration Rating: 2 Micron Absolute

Filter Life Expectancy: 30,000 Miles

Warranty: Limited Lifetime (with registration)

The Titanium Signature Series PLUS is the premier FASS fuel system for pickup applications, built for the 2011-2016 Ford 6.7L Powerstroke. It combines high-flow fuel delivery, advanced filtration, air/vapor separation and upgraded components in one complete system, and supports both stock and modified trucks up to 700HP.

Without proper fuel filtration, diesel injection systems are prone to excessive wear that can cost thousands to repair. The Titanium Signature Series PLUS removes over 99% of free and emulsified water from your fuel, along with air, vapor and debris down to 2 microns absolute, delivering clean, conditioned fuel to your engine at a consistent pressure. FASS rates it to triple the life of your fuel injection components, which matters even more on the CP4-equipped 6.7L Powerstroke.

The PLUS upgrades add an integrated aluminum heat sink that lowers motor operating temperature by 20°F or more, black anodized ORB (O-Ring Boss) fittings at the filter base, 6061 aluminum black anodized AN fittings, and black fuel line for a clean-looking install. The steel bracket design gives superior stability and tucks the pump closer to the frame for better clearance and reduced visibility.

Part Number: TSPF17180F140G

• 140 GPH flow rating, supports stock and modified 6.7L Powerstroke up to 700HP
• 2 micron absolute microglass filtration, captures finer debris than OEM filters
• Removes over 99% of free and emulsified water (3rd party verified)
• Patented FASS air/vapor removal process
• Improves fuel lubricity by at least 10%
• Mass Flow Return (MFR) continuously polishes your fuel
• Integrated heat sink lowers motor temperature by 20°F or more
• Black anodized ORB fittings, 6061 aluminum black anodized AN fittings and black fuel line
• Heavy-duty steel mounting brackets
• Whisper Technology, the quietest motor in the industry
• Performance Radius Cuts (PRC) for smoother internal fuel flow
• ½ inch ports and ½ inch fuel line, with a 5/8 inch Mass Flow Return line
• Fuel pressure preset for your application
• Accessory ports for optional electric fuel heater kits
• Manufactured from 6061-T6 aluminum
• 1,000,000+ mile motor life
• 30,000 mile filter life expectancy
• Improved cold weather starts and operation
• Reduces DPF regens, soot and EGTs
• Smoother, quieter idle
• Limited Lifetime Warranty (with registration)

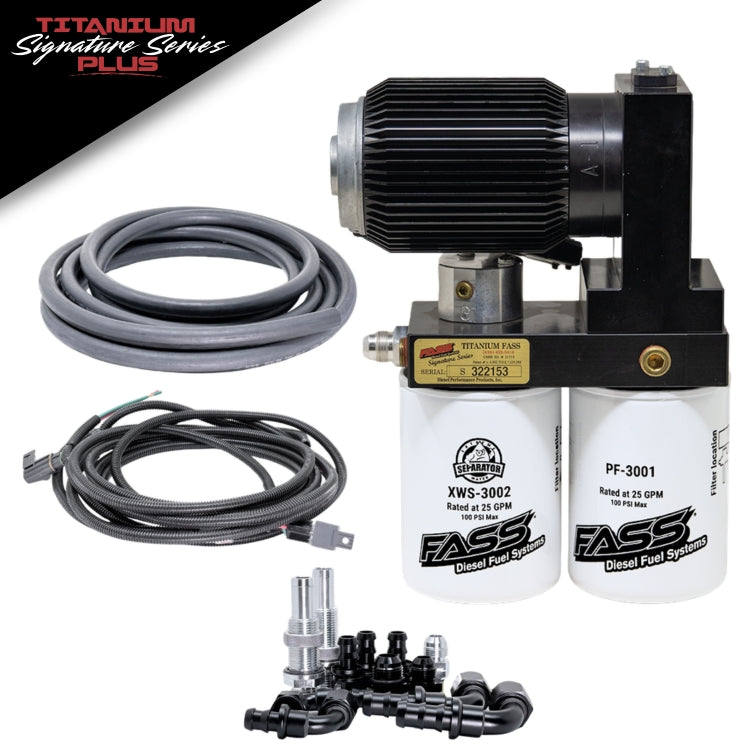

Includes:

• Titanium Signature Series PLUS Fuel System
• Black anodized ORB (O-Ring Boss) fittings
• 6061 aluminum black anodized AN fittings
• Black fuel line

• Click Here

Parts Only

• Limited Lifetime Warranty
• The system must be registered with FASS within 30 days of purchase to activate the warranty.

• This system bypasses the factory lift pump.
• Installation of this kit on a cab and chassis may require modification.

• FASS Whisper Technology (FWT) drastically reduces the sound level of the Signature Series PLUS fuel system to a "whisper" while increasing fuel flow rates. Competing systems reduce noise by reducing flow.
• Performance Radius Cuts (PRC) are an advanced machining technique that creates smooth-flowing cuts within the aluminum housing. This prevents air and vapor from being reintroduced into the fuel and stops eddy currents from forming in the corner of a sharp 90° angle. Lesser competitors commonly use T-bone and square 90° fittings that can limit fuel flow, cause restrictions and reintroduce air into your fuel.
• Mass Flow Return (MFR) keeps positive pressure on the fuel delivered to the engine to prevent cavitation, galling and scoring, then returns the fuel that is not yet needed back to the tank after it has passed through the filters. Your fuel is constantly "polished", so the tank holds clean, conditioned fuel. Paired with an optional FASS fuel heater, MFR helps with extreme cold weather operation.
• Extreme Water Separator acts as a fail-safe in cases of extreme fuel contamination. If it reaches capacity, it acts as a dam and shuts down fuel flow to protect the injection system.
• Steel Bracket Mounts are made from machined steel for superior support and strength. They mount using the truck's factory bed bolt, the bolt that secures the bed to the frame, and tuck the pump closer to the frame for better clearance.
• Aluminum Motor Heat Sink: The black anodized 6061 aluminum heat sink and fittings pull heat away from the motor, lowering its operating temperature by 20°F or more. This reduces thermal stress and further extends the life of the million-mile motor.
