2011-2016 Powerstroke PAP Commuter 2.5" Lift Kit (CS-FLVL-COM-CS-11-PAP)

Carli Suspension
Regular price $3,045.60 CAD

Notices

This item may have additional freight costs. Learn More

Build Your Kit

These shocks have been valved for Progressive Add-a-Packs or those running stock rear springs ONLY

Rear Leaf Spring Options

Required

Torsion Sway Bar

Optional

For everyone that’s not loaded to the GVWR daily, the Carli Torsion Sway Bar provides the final link lightening the last spring on the truck maximizing the ride quality of the Super Duty Platform. Keeping your factory bar limits comfort, removing it completely makes for questionable control when hauling or emergency maneuvering

Leaf Spring Shackle

Optional

The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

Radius Arms

Optional

Icing on the cake, these arms add Additional Tire Clearance, Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Constructions, Serviceable 17-4 Stainless Spherical Bearings and Adjustable Caster Correction up to 3.5° over stock specs to leave Death-Wobble in the rear-view.

Steering Stabilizer - High mount

Optional

Bolt in replacement for the factory stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains.

Low Mount Steering Stabilizer

Optional

Bolt in steering stabilizer which compliments a Carli, or factory, high mount stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers.

Subtotal

Purchase to earn 3045  Dirty Dollars Learn More

Description

Fits

Year Make Model
2011 - 2016 Ford F-250 Super Duty
2011 - 2016 Ford F-350 Super Duty

These shocks have been valved for Progressive Add-a-Packs or those running stock rear springs ONLY

The perfect comprehensive beginner-level suspension setup for your Powerstroke, with front linear-rate coil springs that provide a tighter ride when cornering and react consistently throughout any compression range, making them more responsive and predictable. Paired with Carli's 2.0 6063 Aluminum shocks with 6061 Billet rod ends to further maintain stability, control, and provide superior bottom-out protection. Perfect for the daily driver that's sticking to city streets and highways.

Part Number: CS-FLVL-COM-CS-11-PAP

Features

  • Improved handling and stability with the Carli Commuter Suspension System
  • Carli-Tuned corrosion-resistant 2.0 IFP shocks
  • Valved specifically for use with stock leaf springs or Carli Progressive Add-a-Pack

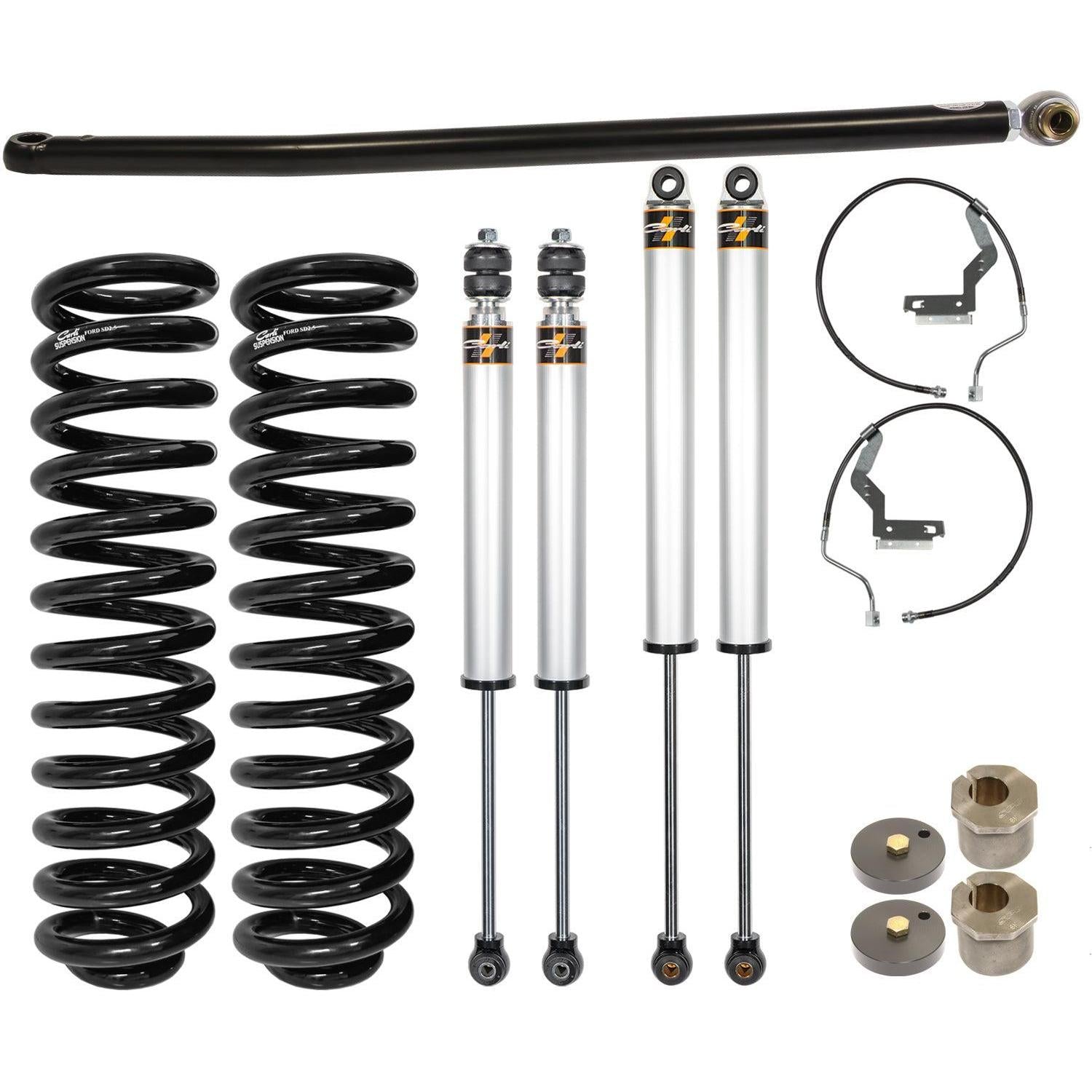

  • Linear rate coil springs, front and rear shock package, brake line kit, bump stop drops, caster correction shims, and adjustable track bar
  • Increases wheel travel to 9" front and 13" rear
  • Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance
