2011-2016 Powerstroke 1-pc DS 2.5"/1-3" SST Lift Kit (69-2511TP)

Fits

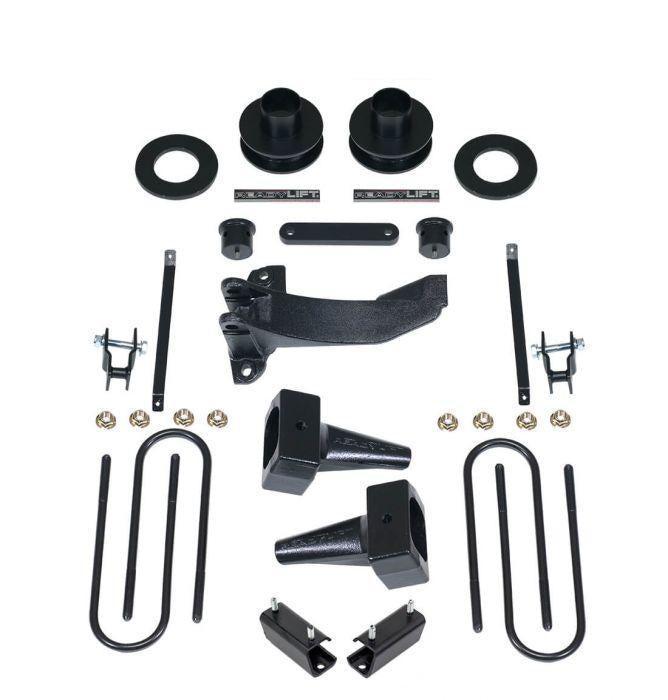

The ReadyLIFT 2011-2016 F250 4WD 2.5"F/1-3"R SST Lift Kit provides the exact amount of front and rear lift required for a slight rake for towing or hauling while allowing for wheel and tire combinations up to 35" and keeping the smooth OEM ride and drivability. This ReadyLIFT SST Lift Kit takes a step further by incorporating a 5.0" OEM-style cast-iron block to provide near factory rake to go with the lifted stance. This kit includes everything found in the F250 Leveling Kit package (2.5" powder-coated steel coil spring spacers, sound isolators, shock extensions, sway bar frame mount spacers, bump stop extensions, carrier bearing spacer, and track bar relocation bracket) while also including ReadyLIFT's popular OEM-style 5.0" Rear Lift Blocks for a great looking - and working - tow/haul package (replaces rear factory block.)

Part Number: 69-2511TP

• Retains OEM ride quality
• 2.5" front lift
• 3.0" rear lift on F-250s
• 1.0" rear lift on F-350s
• Provides a slight rake for towing or hauling
• Allows for the installation of up to 35" tires

Tire Fitment:

• 35" Maximum tire diameter
• 35x12.50 for no rub on a 9" wide wheel with 0 offset
• 18" - 315/70R18
• 20" - 295/65R20 / 325/60R20
• 22" - 35X12.5R22

• For use on trucks with a one-piece driveshaft only. This kit will lift the rear end of F-250's by 3" whereas F-350's gain 1" of lift in the rear.
• The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. The use of this type of airbag system will void all block warranties and can cause the failure of the block bump stop tang.
