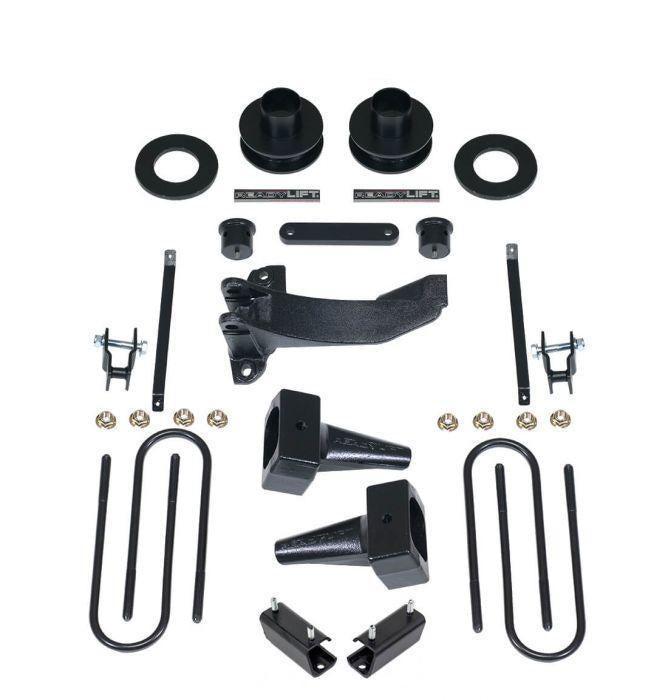

2011-2016 Powerstroke 2.5" SST Lift Kit (69-2524)

Fits

Note: Compatible with 1-piece driveshaft ONLY

ReadyLift has spent copious amounts of time engineering and developing the perfect comprehensive tow package lift kit! What does that mean? This kit is specially designed for your Powerstroke! Ford updated the front suspension with the introduction of the 6.7L platform, meaning that if you want to level your truck, your sway bar frame mounts have to be spaced downward. ReadyLift found this somewhat ridiculous, so they added sway bar mount spacers. Bump stop extensions and track bar relocation brackets keep everything at the correct angle, maintaining proper alignment without added stress on other suspension components.

Part Number: 69-2524

• Retains OEM ride quality
• Coil spring spacers with sound isolators
• OEM-style cast lift blocks
• 2.5" front lift & 2" rear lift
• Extended length front brake line brackets
• Provides a slight rake for towing or hauling
• Allows for the installation of up to 35" tires

Tire Fitment:

• 35" Maximum tire diameter
• 35x12.50 for no rub on a 9" wide wheel with 0 offset
• 18" - 315/70R18
• 20" - 295/65R20 / 325/60R20
• 22" - 35X12.5R22

•  For trucks with a one-piece driveshaft only
• The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. The use of this type of airbag system will void all block warranties and can cause the failure of the block bump stop tang.
