2011-2016 Powerstroke 6" Lift Kit (BDS594H)

Description

Click here to customize this Kit

Fits

Centered around two ProRide Coil Springs. The box kit includes two new radius arm drop brackets to put the stock radius arm back at the factory angle which will maintain your stock driving characteristics.; everything you need to properly lift your Powerstroke.

Part Number: BDS594H

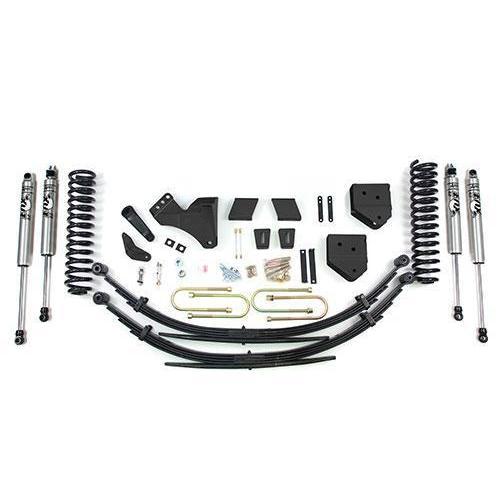

Features

• 6" ProRide Coil Springs
• Radius Arm drop brackets
• Anti-Sway Bar Drop Brackets
• Forged Dropped Pitman Arm
• Track Bar relocation
• Bump Stop Extension
• New Radius Arm Drop Brackets will return the stock radius arm to a factory angle which helps retain stock driving characteristics
• Clear up to 37" tires
• 5" Glide Ride Leaf Springs

Tire & Wheel Combinations:

• 37" x 12.50" w/ 17 x 9 and 4.5"
• 37" x 12.50" w/ 18 x 9 and 4.5"
• 37" x 12.50" w/ 20 x 9 and 4.5"

Notes

• Front exhaust modification may be required to clear the front driveshaft (gas only).
• If equipped with a 2-piece driveshaft, a driveshaft alignment kit may be required.
• Although extremely rare, front driveline vibration may occur.
• If equipped with a rear sway bar, #123009 is required.
• U-bolts will not work on dually. BDS leaf springs are not intended for use beyond the truck's maximum payload capacity. Trucks equipped with overload springs will only have the capacity of a non-overload-equipped truck. If heavy payload use is desired, supplemental rear airbags are recommended.
• Although this is pictured with Fox Shocks, this kit will come equipped with BDS Shocks. If you would like fox shocks, please reach out.

Installation

• Click Here For Installation Instructions
• Difficulty: 3 (where 1 = easiest and 5 = complicated)
