2011-2016 Powerstroke 4" Lift Kit (BDS588H)

Description

Click here to customize this Kit

Fits

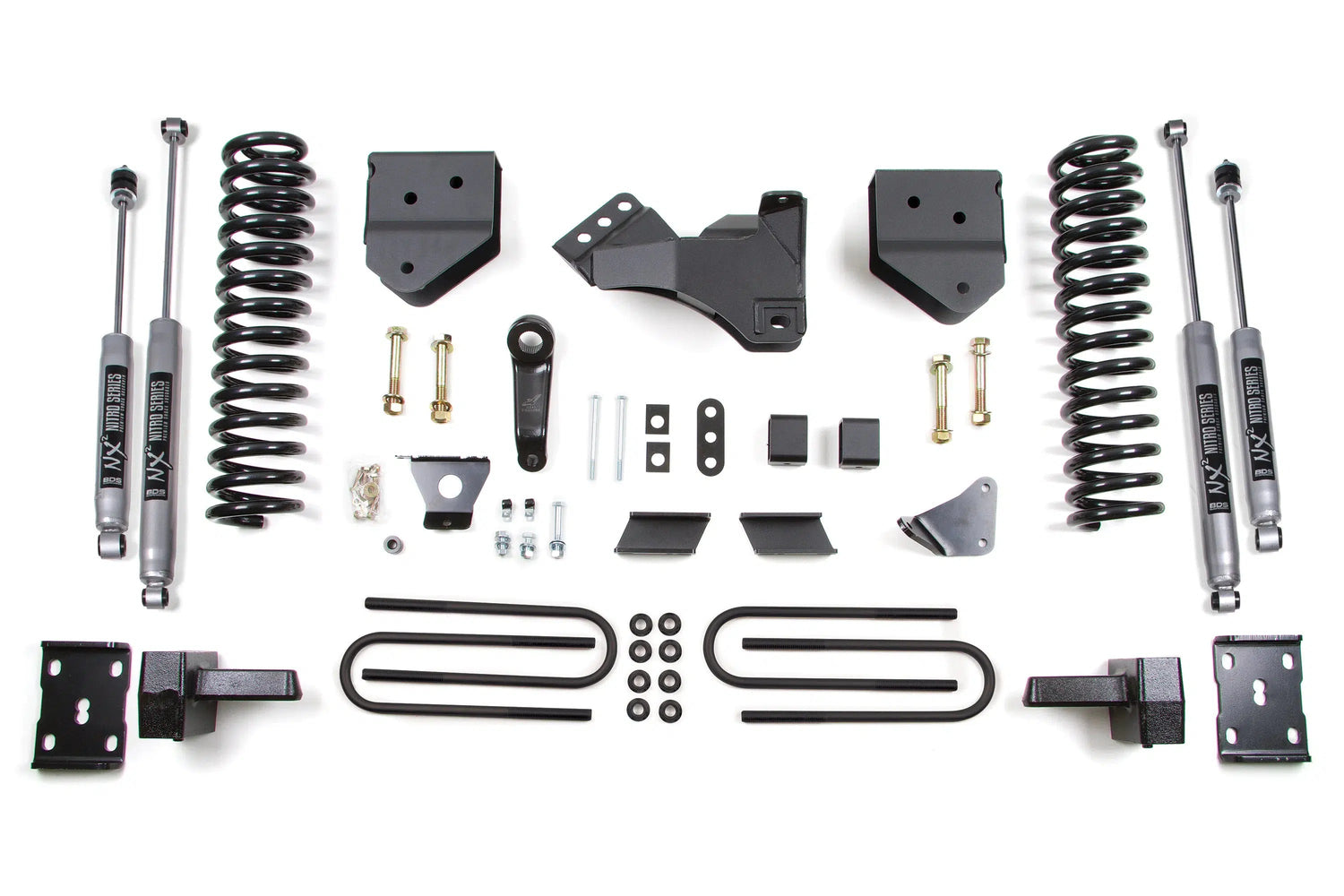

Centered around two ProRide Coil Springs. The box kit includes two new radius arm drop brackets to put the stock radius arm back at the factory angle which will maintain your stock driving characteristics; everything you need to properly lift your Powerstroke.

Part Number: BDS588H

Features

• Clears 35's
• NX2 Series Shocks
• 5" Rear Block Kit
• Two Radius Arm Drop Brackets
• Anti-Sway Bar Drop Brackets
• Forged Drop Pitman Arm
• Track Bar Relocation Brackets
• Bump Stop Extension
• 4" ProRide dual-rate coil springs

Tire & Wheel Combinations:

• 35" x 12.50" w/ 17 x 9 and 4.5"
• 35" x 12.50" w/ 18 x 9 and 4.5"
• 35" x 12.50" w/ 20 x 9 and 4.5"

Notes

• Removal of factory block required. Rear add a leaf is required for models equipped with factory 3-7/8" block for a level to tail high stance. Single add-a-leaf kit # 113218 is recommended for a more level stance - Dual add-a-leaf kit # 113209 is recommended for tail high stance. (Add-a-leafs do not apply to rear leaf spring equipped systems)
• Front exhaust modification may be required to clear the front driveshaft (gas only).
• If equipped with a 2-piece driveshaft, a driveshaft alignment kit may be required.
• Although extremely rare, front and/or rear driveline vibration may occur.
• If equipped with a rear sway bar, #123009 is required.
• U-bolts will not work on dually.

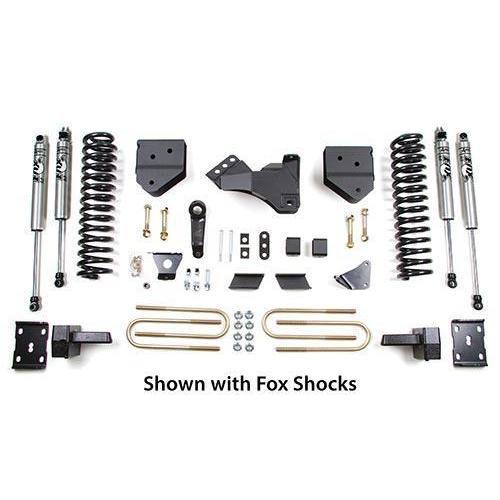

• Although this is pictured with Fox Shocks, this kit will come equipped with BDS Shocks. If you would like fox shocks, please reach out.

Installation

• Click Here For Installation Instructions
• Difficulty: 3 (where 1 = easiest and 5 = complicated)
