2011-2016 F-Series Backcountry 2" Lift Kit (CS-FLVL-BC-CS-11-GAS)

Carli Suspension
$3,873.60 CAD
Notices

This item may have additional freight costs. Learn More

Build Your Kit

The perfect lift kit for those wanting optimal performance on highways and off-road, this Backcountry lift kit includes Carli custom-tuned 2.0 remote reservoir shocks built with 6063 Aluminum, 5/8″ hardened steel chrome plated shaft, and 6061 billet rod ends. Front Linear-Rate Coil Springs are tighter when cornering and react consistently throughout any compression range, making them more responsive and predictable.

Torsion Sway Bar

Optional

For everyone that’s not loaded to the GVWR daily, the Carli Torsion Sway Bar provides the final link lightening the last spring on the truck maximizing the ride quality of the Super Duty Platform. Keeping your factory bar limits comfort, removing it completely makes for questionable control when hauling or emergency maneuvering

Leaf Spring Options

Optional

Leaf Spring Shackle

Optional

The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

Fabricated Radius Arms

Optional

Steering Stabilizer - High mount

Optional

Bolt in replacement for the factory stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains.

Low Mount Steering Stabilizer

Optional

Bolt in steering stabilizer which compliments a Carli, or factory, high mount stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers.

Subtotal

Purchase to earn 3873  Dirty Dollars Learn More

Description

Fits

Year Make Model
2011 - 2016 Ford F-250 Super Duty GAS
2011 - 2016 Ford F-350 Super Duty GAS

Note: NOT compatible with diesel applications

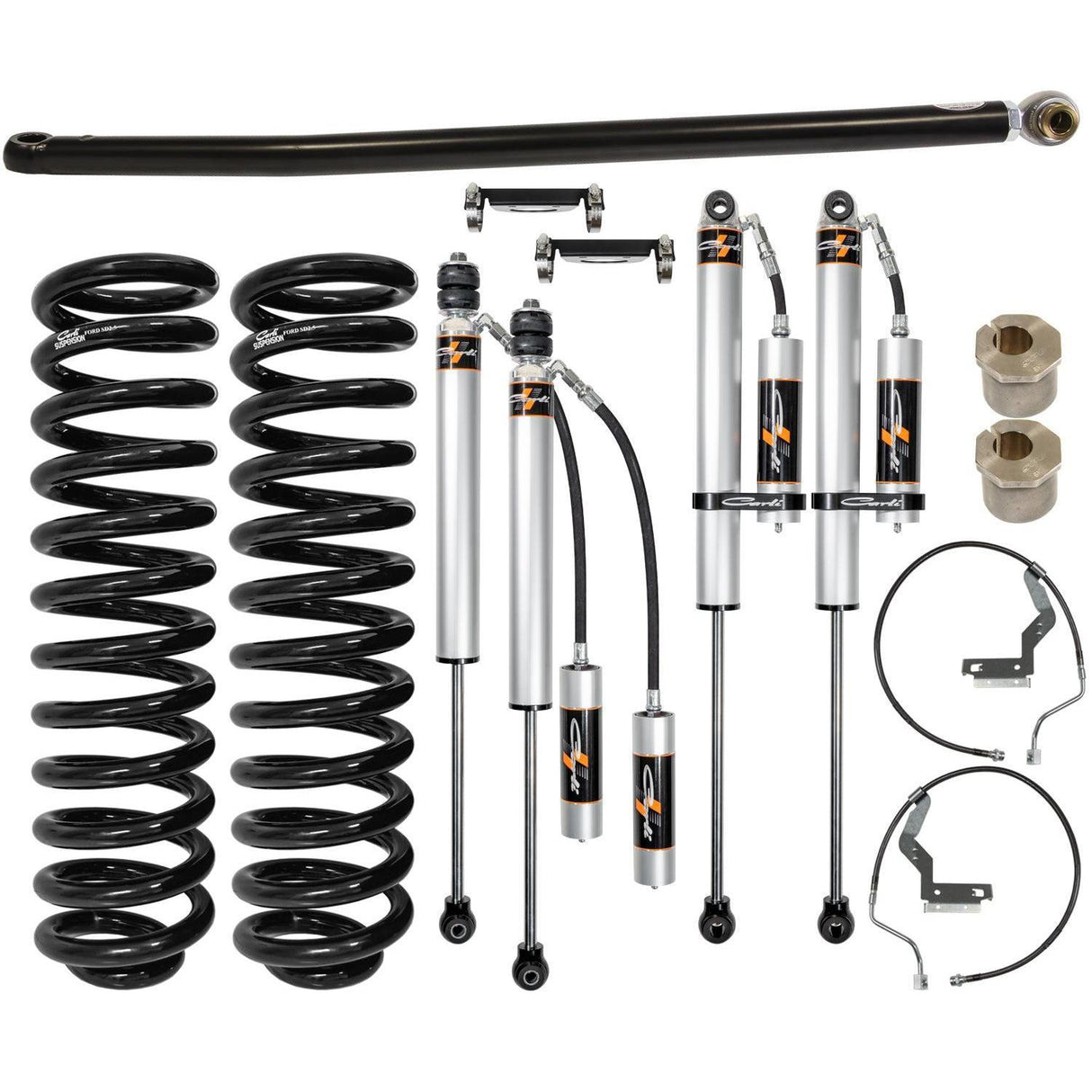

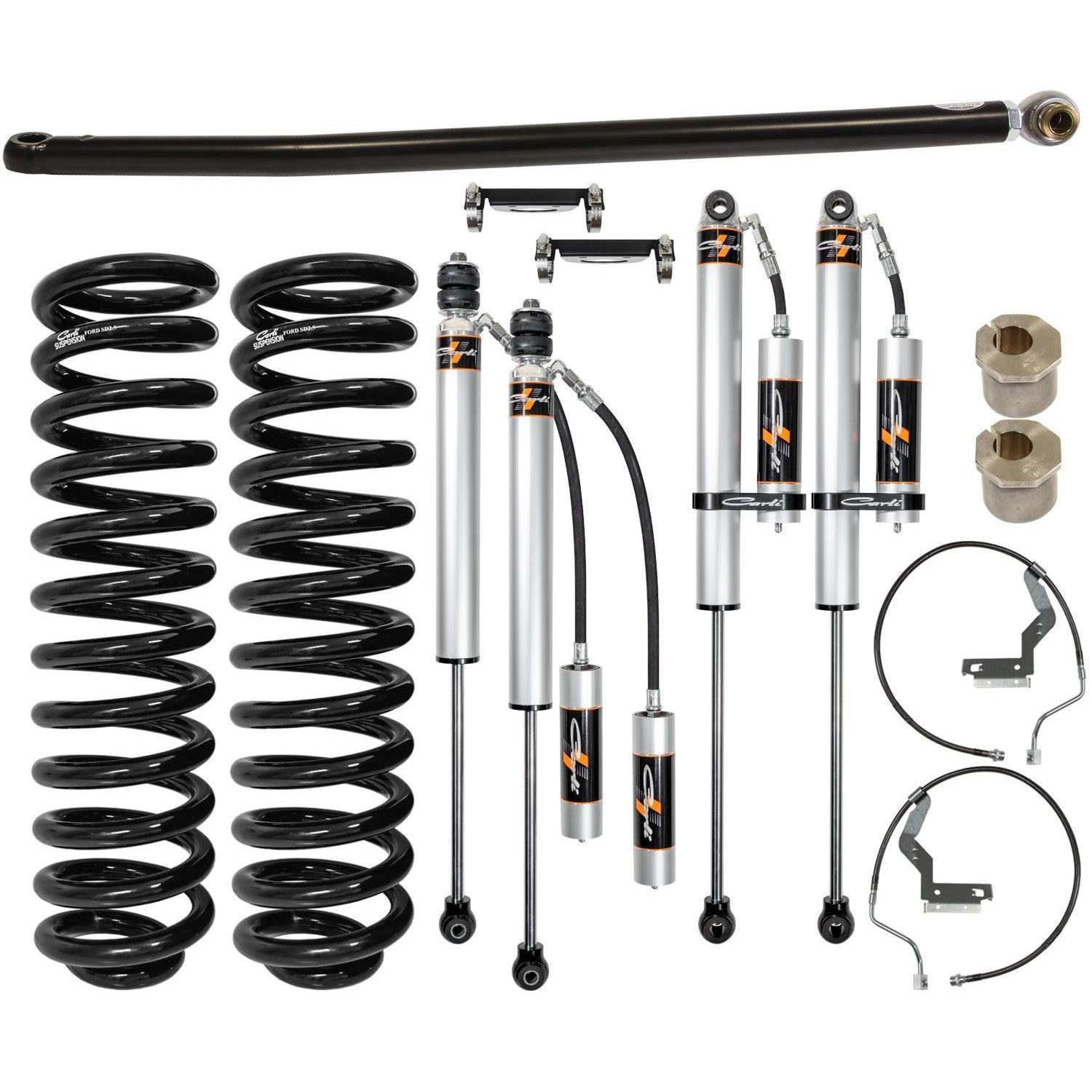

The perfect lift kit for those wanting optimal performance on highways and off-road, this Backcountry lift kit includes Carli custom-tuned 2.0 remote reservoir shocks built with 6063 Aluminum, 5/8″ hardened steel chrome plated shaft, and 6061 billet rod ends. Front Linear-Rate Coil Springs are tighter when cornering and react consistently throughout any compression range, making them more responsive and predictable.

Part Number: CS-FLVL-BC-CS-11-GAS

Features
  • Carli-Tuned remote reservoir 2.0 shocks, which provide a more comfortable on-road feel and better off-road performance
  • Corrosion-resistant aluminum bodies provide a long-lasting finish
  • Linear rate coil springs, front and rear shock package, brake line kit, bump stop drops, caster correction shims, and adjustable track bar
  • Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance
  • Increases wheel travel to 9" front and 13.8" rear

Additional Info
  • Required and Optional Parts to support this system:
    • Sway Bar Options (REQUIRED): CS-FTSB-45-11 or CS-FSBD-11
    • Radius Arms: CS-FARA-45-05
    • Leaf Spring Options (REQUIRED): CS-FFSP-11 or CS-FPAP-11
    • Leaf Spring Shackle: CS-FSHACKLE-11
    • Long Travel Bags: CS-FLTB-08
    • Steering Stabilizer - High mount: CS-FHMSS-08
    • Steering Stabilizer - Low mount: CS-FLMSS-05
    • Carrier Bearing Drop: CS-CARRIERDROP-F
