2011-2016 Duramax Race Long Block (PDM-LMLRLB)

Industrial Injection
Regular price $38,970.65 CAD

Notices

This item may have additional freight costs. Learn More

This product will automatically bundle the following item:

Purchase to earn 38970  Dirty Dollars Learn More

Description

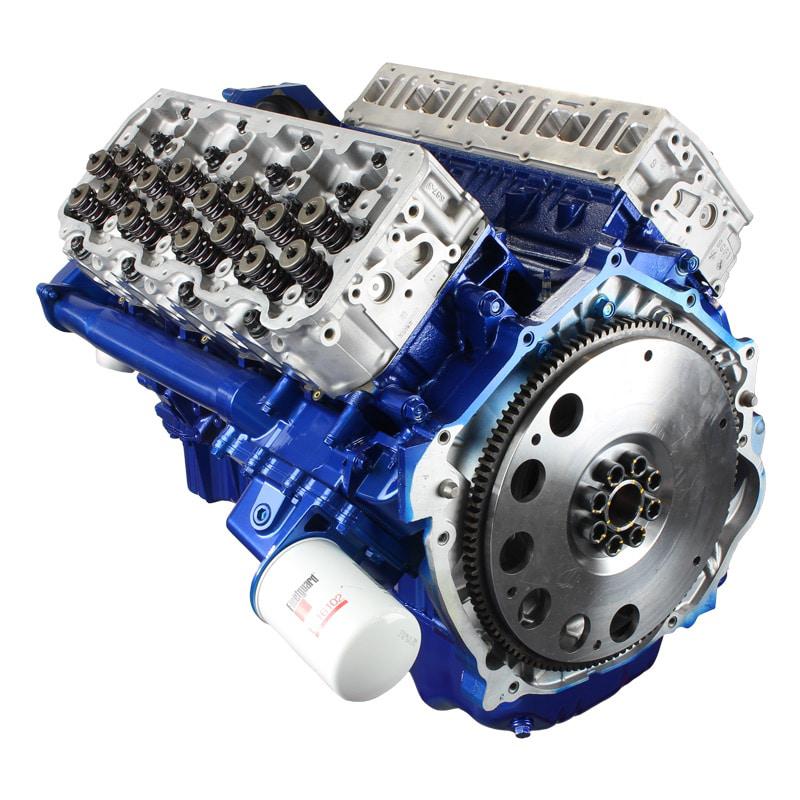

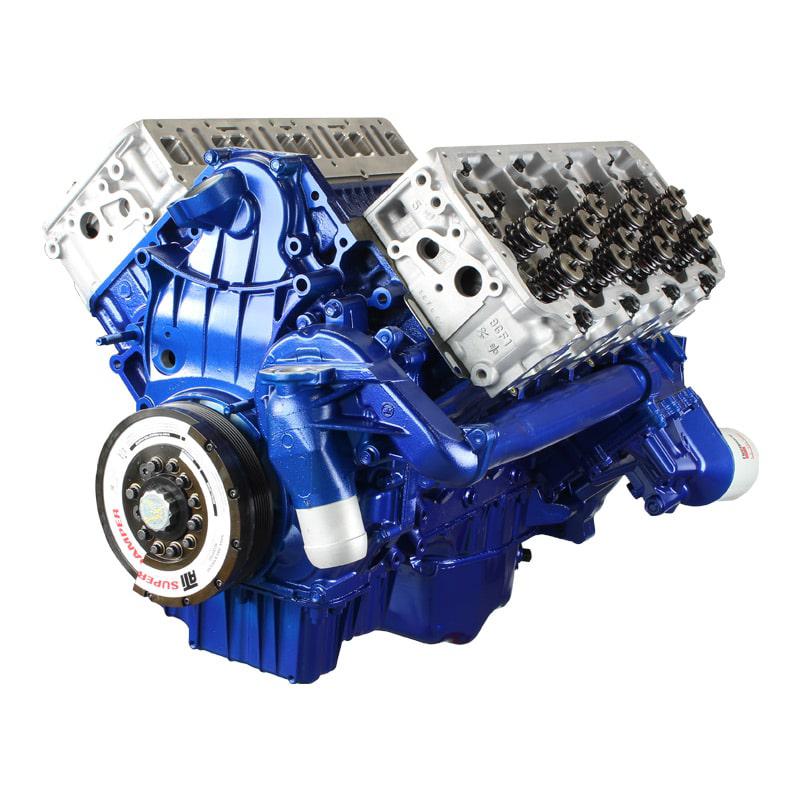

The PDM-LMLRLB is Industrial Injection's Race long block for the 2011-2016 6.6L Duramax LML — built for competition-level performance. The short block runs a 14mm Gorilla Girdle with ARP main studs, Carrillo billet connecting rods, a keyed performance billet alternate-firing camshaft, ATI Super Damper, and a Suncoast billet flexplate. Topped with 5-axis CNC race-ported, hand-blended heads on ARP 625 head studs.

Part Number: PDM-LMLRLB

Features

  • Balanced and blueprinted rotating assembly
  • Sim-tested short block
  • Coated and chamfered de-lipped pistons
  • Balanced and keyed stock Duramax crank
  • 14mm Gorilla Girdle with ARP main studs
  • Carrillo billet connecting rods
  • Keyed performance billet alternate-firing camshaft
  • ATI Super Damper
  • Suncoast billet flexplate
  • New oil pump, water pump, and oil cooler
  • New oil pickup tube, stock oil pan
  • Billet crankshaft available
  • Reconditioned, milled and surfaced heads
  • 5-axis CNC race-ported, hand-blended
  • High-strength heat-treated iron-based valve guides, diamond honed
  • Premium nickel-based non-magnetic valve seat inserts
  • New unshrouded valves with multi-angle valve job
  • Duramax OEM head gaskets
  • ARP 625 head studs
  • 130lb performance valve springs

Notes

  • Does not include valve covers, rocker assembly, pushrods, or assembly gaskets.
  • Does not include any fuel or turbo components — this is a crate long block.
  • Must be run on Joe Gibbs Break-In Oil (not included) for the initial break-in.
  • Core deposit applies — return your old core to recover the deposit.
