2011-2016 Duramax Auxiliary Heated Fuel Filter Kit (FPE-DMAX-HFFBA-1116)

This auxiliary fuel filter kit for your Duramax replaces the OEM fuel filter housing with a new base, integral high-flow fuel heater, Water-In-Fuel (WIF) sensor, and Donaldson spin-on canister style filter.

Part Number: FPE-DMAX-HFFBA-1116

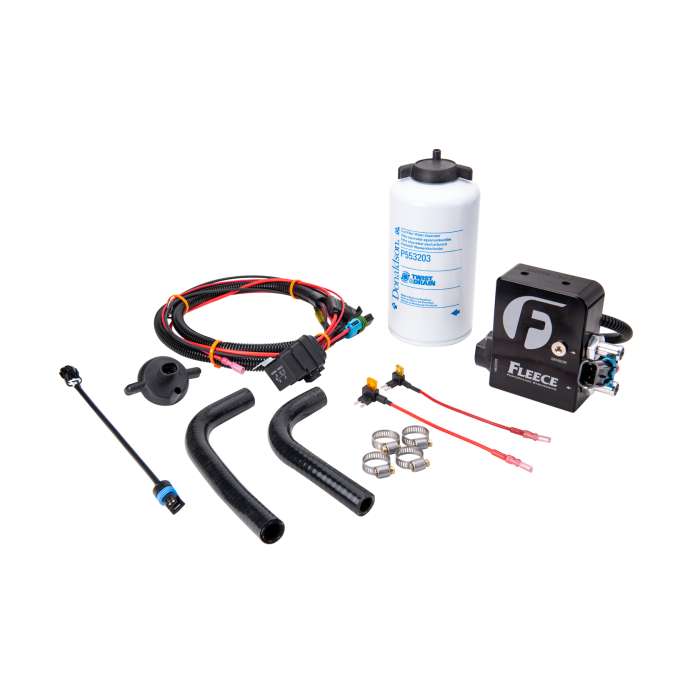

• Fuel filter base with integral fuel heater and fittings
• Donaldson 3 micron fuel filter and water separator
• Pre-formed hose and hose clamps
• Wiring harness and fuse taps
• Water-In-Fuel (WIF) sensor and adaptation harness
• Temperature switching points: ON: 28.4F +/-5.4F,  OFF: 48.2F +/- 5.4F
• At typical fuel flow rates a temperature increase of between 4-8F will occur across the heating element
• Eliminates fuel gelling caused by OEM unit having no heater

• For 2011-2016 6.6L Duramax only
• This filter base eliminates the factory fuel primer bulb and is intended ONLY for use with a positive pressure lift pump such as our PowerFlo lift pump or alternative frame-mounted pump.
