2010-2018 Mercedes Sprinter 3.0L FlashZilla Stage 1 Tune File

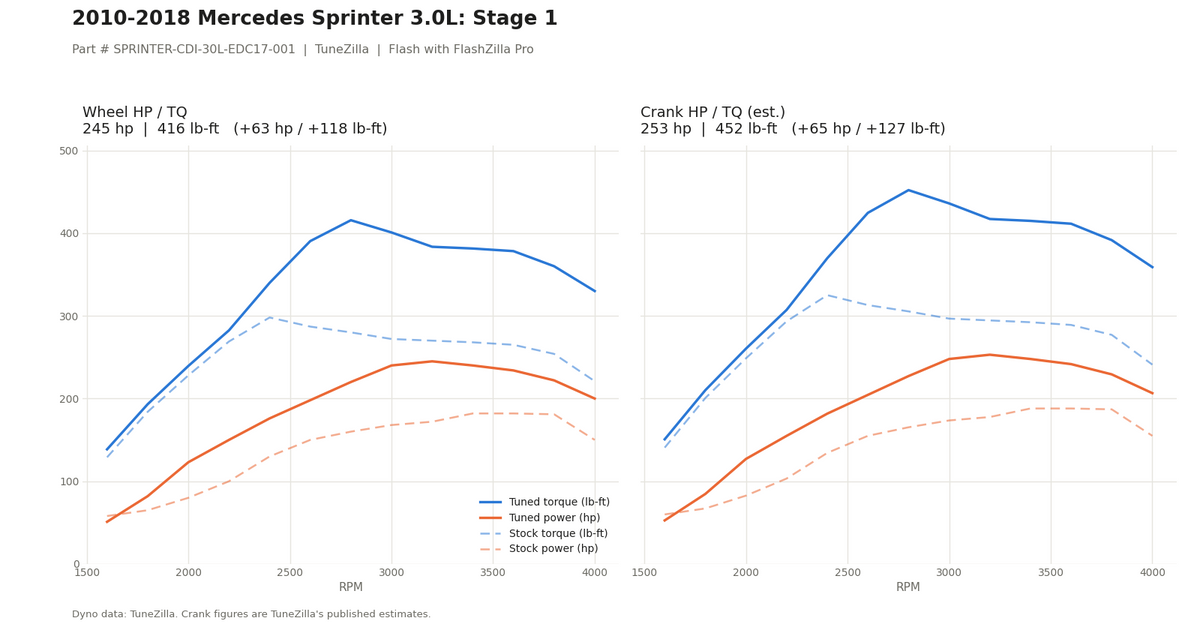

TuneZilla engine (ECU) tuning for the Mercedes Sprinter 3.0L CDI BlueTec, flashed at home through the OBD port with the TuneZilla FlashZilla Pro. Pick Stock Emissions-Off or Stage 1 above. Dyno graphs for each power level are in the photo gallery. Add the FlashZilla Pro below if you do not already own one.

Part Number: SPRINTER-CDI-30L-EDC17-001

Emissions-Off: not included with this tune. Add it in the options below.

Stock baseline: 182 hp / 298 lb-ft at the wheel, 188 hp / 325 lb-ft crank (est.)

Crank figures are TuneZilla's estimates derived from measured wheel figures.

• Dynamic EGR (DYN-EGR-EDC17CP10-MB)
• Dynamic EGR (DYN-EGR-EDC17CP46-MB)
• Emissions-Off (DPF, AdBlue, EGR & Swirl Flap) (MERCEDES-CDI-30L-EDC17-MISC-OFF)
• Speed Limiter Removal (SPRINTER-CDI-EDC17-SLR)

Already own a TuneZilla tune and want to add something later? Use the FlashZilla Tune Revision page.

No hardware upgrades are required for the Stage 1 tune. However, tune add-ons to accommodate hardware changes can be purchased.

Please note that we do not remove factory readiness monitors or force readiness for any factory-installed components. If you are installing aftermarket hardware that is for off-road use only, please double-check with your state requirements prior to flashing.

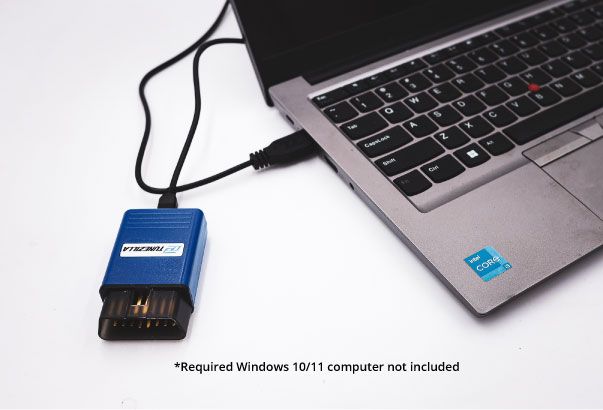

• Flashed at home through the OBD port with the TuneZilla FlashZilla Pro and a Windows 10 or 11 laptop running the TuneZilla Portal App.
• Connect the FlashZilla Pro with a USB-A to USB-C cable. USB-C to USB-C cables are not compatible.
• Your tune is linked to your VIN and syncs to the TuneZilla Portal App, usually right away. Read and save your factory ECU file before flashing.
• Clear all fault codes and warning messages before flashing.
• TuneZilla recommends a battery charger for every flash. Turn the ignition on with the engine off, follow the prompts and do not interrupt the flash.

SCR / AdBlue: clear the SCR countdown before flashing (the message can stay on screen after an emissions-off flash). If you run an aftermarket exhaust, clear all dash errors first. Unplug the SCR controller after flashing but before starting the vehicle (TuneZilla confirmed). It is under the driver's seat on Sprinters and in the trunk under the spare tire on most other models. Emissions-off tunes also require unplugging the EGR, swirl flap motor, DPF temperature and pressure sensors, and NOx sensors, or you may get rough, smoky cold starts.

, 0074473740 6429027800, 1037525436, 1037543325, 1037551976, 1037551980, 6429030601 6429029000, 6429030911, 6429031008, 6429031011, 6429031108, 6429031807, 6429031913, 6429032013, 6429034204 6429027601, 6429034717, 6429034817, 6429034917, 6429035020, 6429035120, 6429036117, 6429036217, 6429037106, 6429037206, 6429038407, 6429038507, 6429038817, 6429039006 6429021202, 6429039610, 6429039710, 6429039803 6429023601, 6519024201 6519040401, 6519029601 6519040401, 68306456AI

Introducing our Stage 1 ECU Tune for Mercedes-Benz 3.0L Bluetec motor, meticulously crafted to elevate the performance of your diesel Mercedes to new heights. Experience a power surge with a power increase in horsepower and torque, taking your vehicle to another class of performance. Unleash a new driving experience with improved throttle response, ensuring a dynamic and responsive ride every time you hit the accelerator.

What sets our Stage 1 ECU Tune apart is its versatility. Designed to deliver remarkable performance without the need for additional hardware upgrades, this tune provides a seamless and hassle-free installation process. Keep your factory components in place while relishing the enhanced power and mid-range capabilities that come with our meticulously calibrated tune.

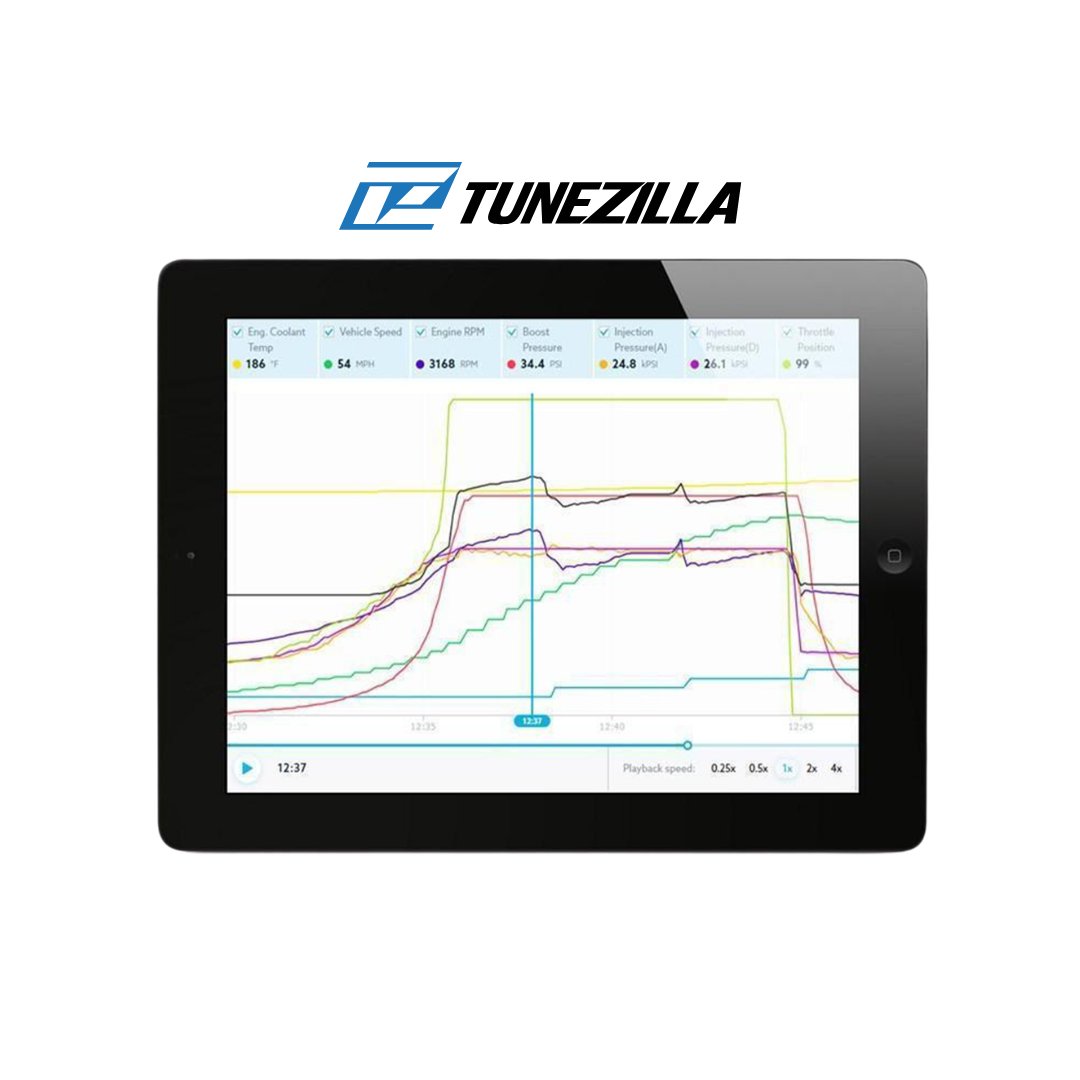

Flash your Mercedes in the comfort of your own driveway or garage using our TuneZilla Portal App, and FlashZilla Pro dongle. Download your tune directly to your laptop computer and flash anywhere.

For those seeking a more personalized touch, optional tune features are available to accommodate various hardware changes. Whether you've upgraded your exhaust, or other components, our Stage 1 ECU Tune can be tailored to optimize performance based on your specific modifications. Say goodbye to "no start" conditions and hardware failures with our optional tune add-ons.

Embrace a driving experience like never before, where power, fuel efficiency, and luxury come together seamlessly. Elevate your 3.0L Bluetec CDI motor with confidence, knowing that our Stage 1 ECU Tune is designed to deliver performance without compromise. Upgrade today and redefine the road with a blend of power and precision that's unparalleled.
