2010-2012 Cummins Transmission Cooler (MMTC-RAM-10)

Fits

Keep transmission temps in check on your 2010-2012 6.7L Cummins whether you are towing heavy, working the truck hard, or running it as a daily. This Mishimoto direct-fit cooler uses a tube and fin core to balance flow with even fluid distribution, giving you more surface area and far better cooling efficiency than the factory unit. It is a bolt-in upgrade that helps protect your 68RFE or AS68RC transmission from heat related wear.

Part Number: MMTC-RAM-10

• 60% increase in core volume vs OEM
• 86% increase in external fin area vs OEM

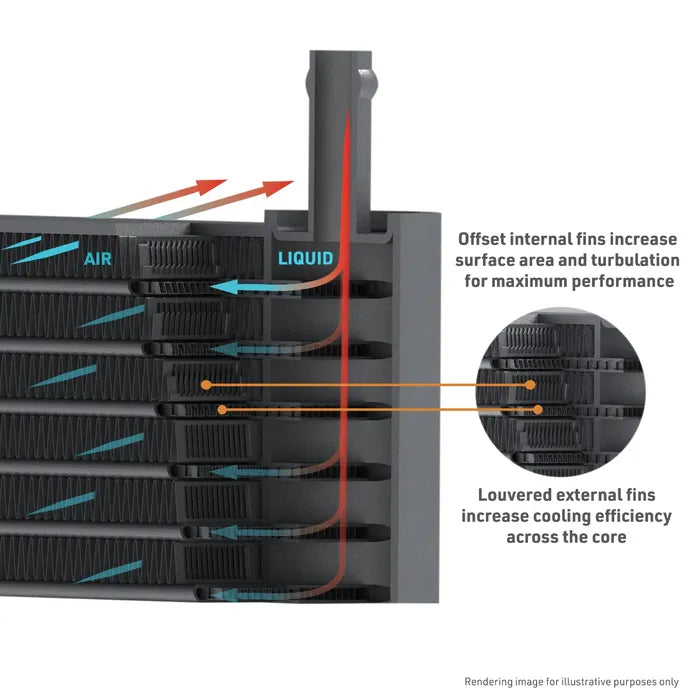

• Tube and fin core for balanced flow and even cooling
• Direct fit, bolt-on installation

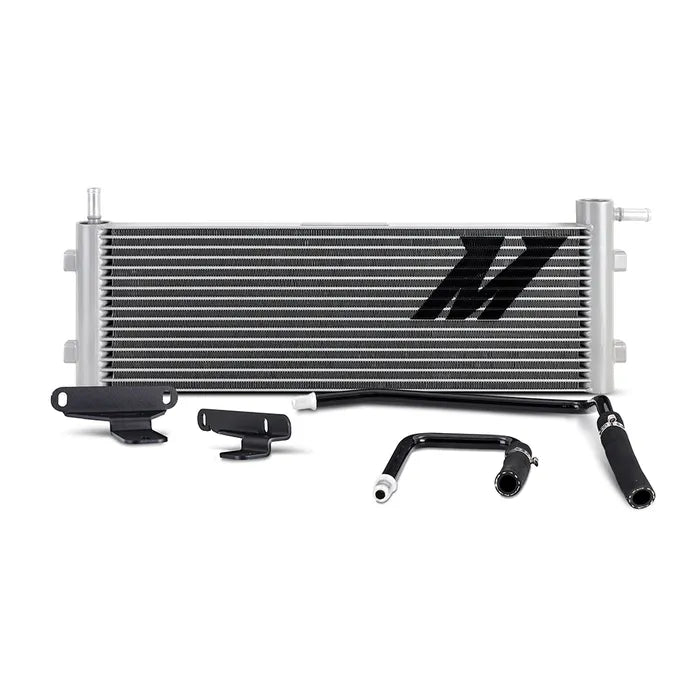

• Includes mounting bracket and hardware
• Optional bypass line kit available
• Backed by Mishimoto Lifetime Warranty

• Core Construction Tube and Fin
• Rows 15
• Core Length (IN) 19.29
• Core Height (IN) 6.18
• Core Thickness (IN) 1.26
• Overall Length (IN) 22.48
• Overall Height (IN) 7.87
• Overall Width (IN) 1.54
• Fluid Capacity (QTS) 0.7
• Inlet/Outlet 1/2 inch
