2010-2011 Cummins Pintop 6" Lift Kit (CS-DPT25-6-10-D)

Fits

One of the best off-road suspension systems Carli offers, this massive Pintop 6" leveling kit provides you with an all-around terrific ride over any terrain. No compromises were made with the development of this kit. Featuring Carli-specific, blueprinted, King 2.5” shocks that provide 55% more piston surface area and are the pinnacle of performance and capability. These pintop 2.5 remote reservoir shocks provide more fluid volume and piston movement, which results in improved heat dissipation, consistent damping, and a smoother, more comfortable ride. Fully rebuildable, serviceable, and tuneable for whatever your preference is.

Part Number: CS-DPT25-6-10-D

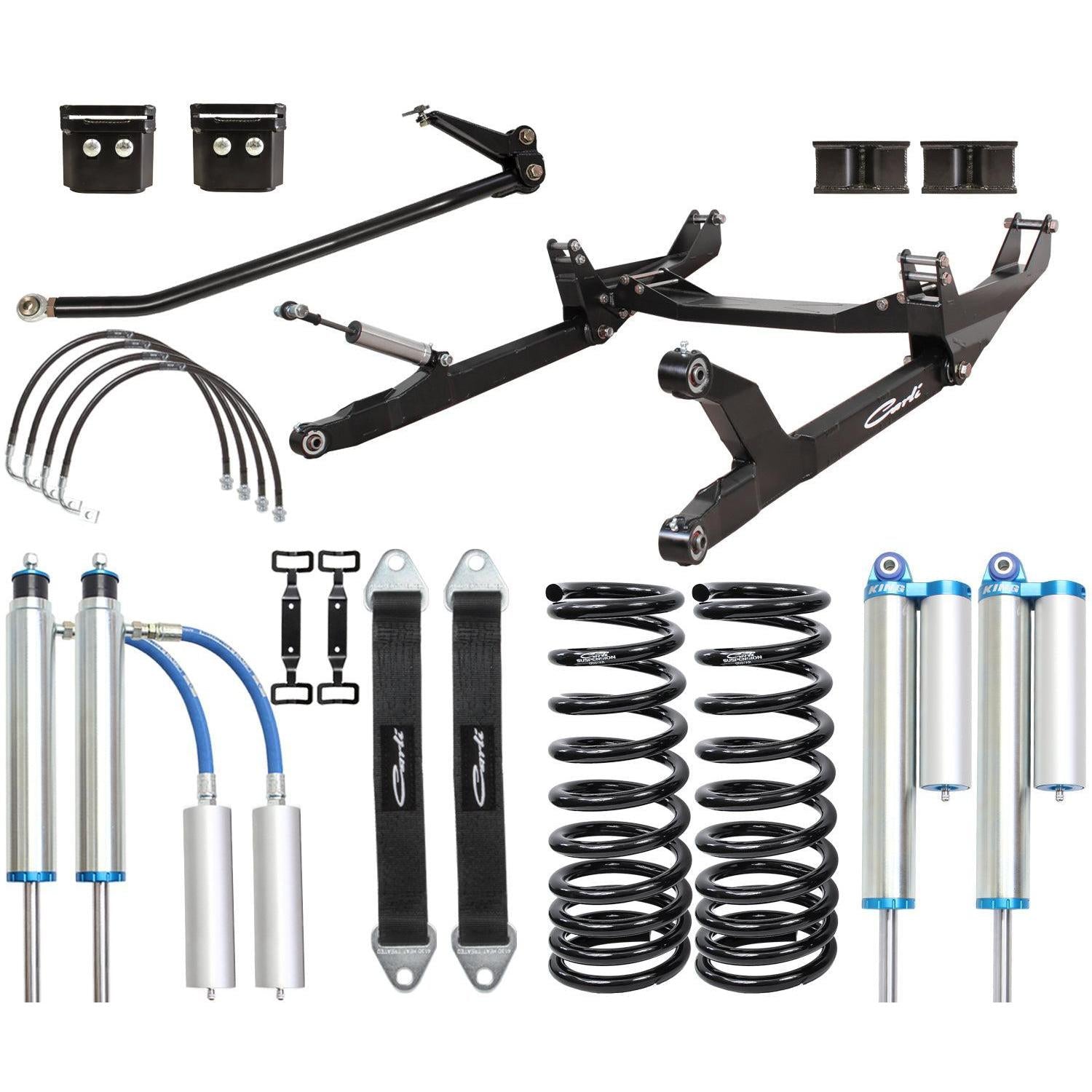

• Multi-rate front springs, front and rear shock package, fabricated radius arm system, fabricated shock towers, brake lines, adjustable track bar, front and rear bump drops, and track bar drop bracket
• Allows for 12" of front suspension travel and 13" rear
• Allows for the fitment of 37" tiresFully rebuildable, serviceable, and tuneable for whatever your preference is
• 55% more piston surface area for more fluid volume and piston movement, which results in improved heat dissipation and consistent damping

• A “Base Kit” SKU must be accompanied by the SKU of a Sway Bar and Leaf Spring option to form a complete system.
