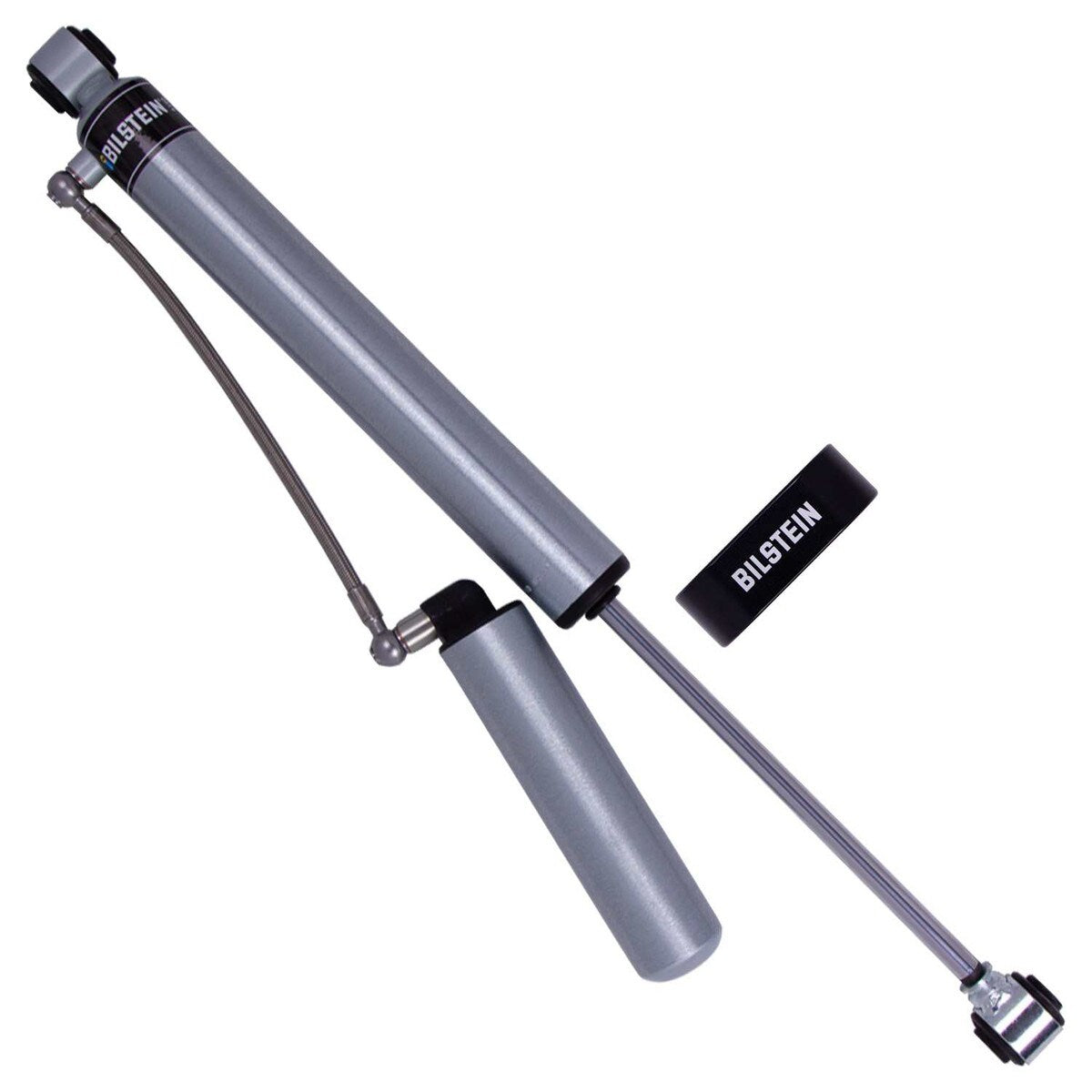

2009-2024 Ram 1500 4WD B8 5160 Series Suspension Shock Absorber 1-2.5" Lift Rear (25-325089)

Bilstein B8 5160 remote reservoir shocks fit lifted RAM 1500 trucks from 2009 to 2024. They offer better cooling and wheel travel than standard shocks for improved performance. The monotube design ensures consistent, fade-free operation, while velocity-sensitive digressive valve settings are tuned for each specific application. A 360° swivel banjo hose fitting enables a compact, clean install. These shocks enhance durability for tough off-road conditions.

Part Number:  25-325089

• Sold Individually
• Remote reservoir design for better cooling and wheel travel
• Monotube construction for consistent, fade-free performance
• Velocity-sensitive digressive valves tuned for each application
• 360° swivel banjo hose fitting for compact, clean installation
• Built for durability in tough off-road conditions

• 1-2.5"  Lift Rear

Adjustable Damping: Non-Adjustable

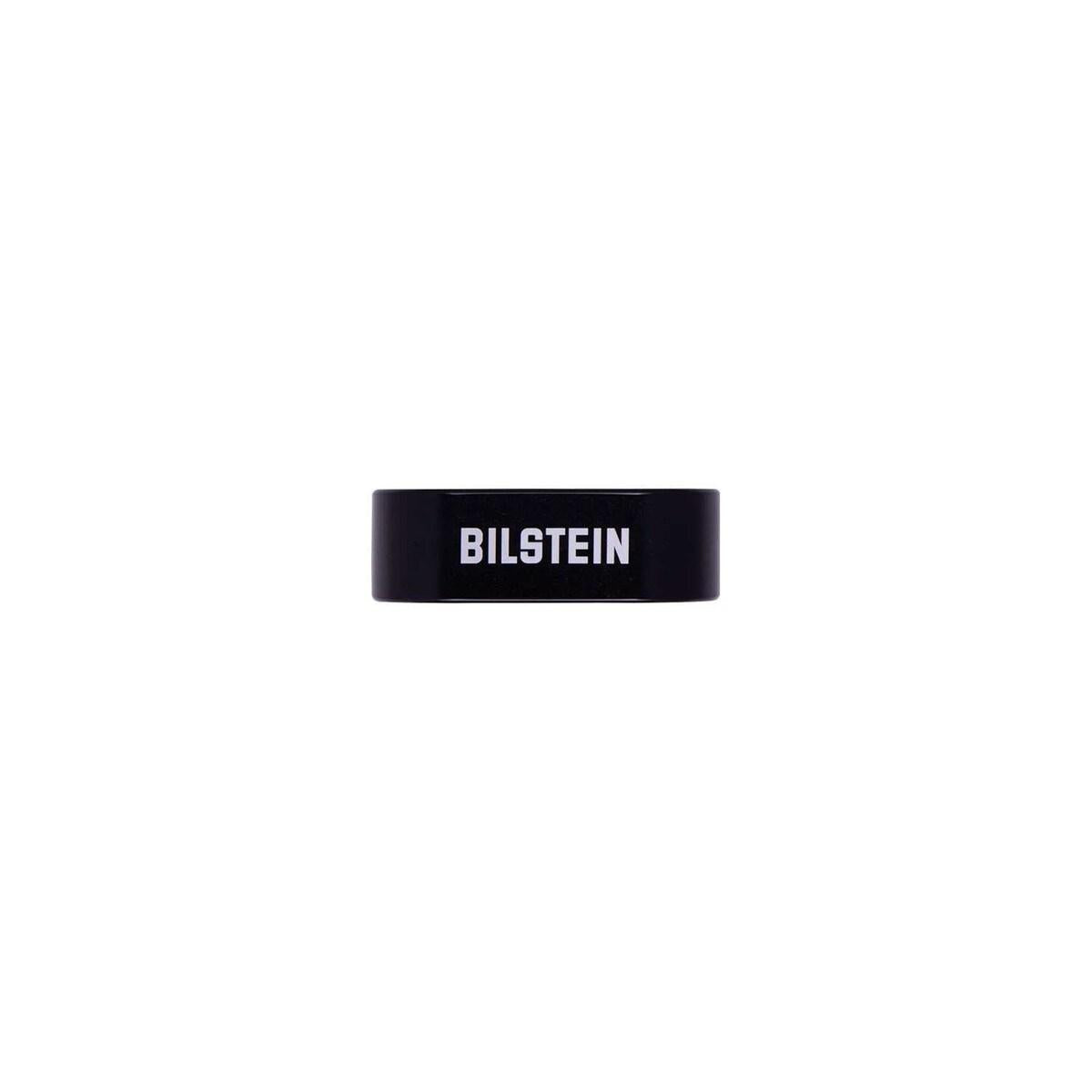

Billet Reservoir Clamp Included: Yes
Body Design: Smooth Body (Non-Coilover)
Body Diameter (ID): 46mm
Boot Included: No
Collapsed Length (IN): 16.72
Collapsed Length (MM): 424.8
Extended Length (IN): 27.52
Extended Length (MM): 699.0
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye 14.1mm
PartType: Shocks / Struts
Reservoir: Yes
Segment: Light Truck
Series: B8 5160
Spring Max Travel (IN): 10.80
Spring Seat Included: No
Title: Bilstein Shock Absorbers
Upper Mount Type: Eye 14.1mm

• Limited 2-Year Warranty
