2009-2017 Ford 6R80 HD Deep Cast Transmission Pan ( 328051100)

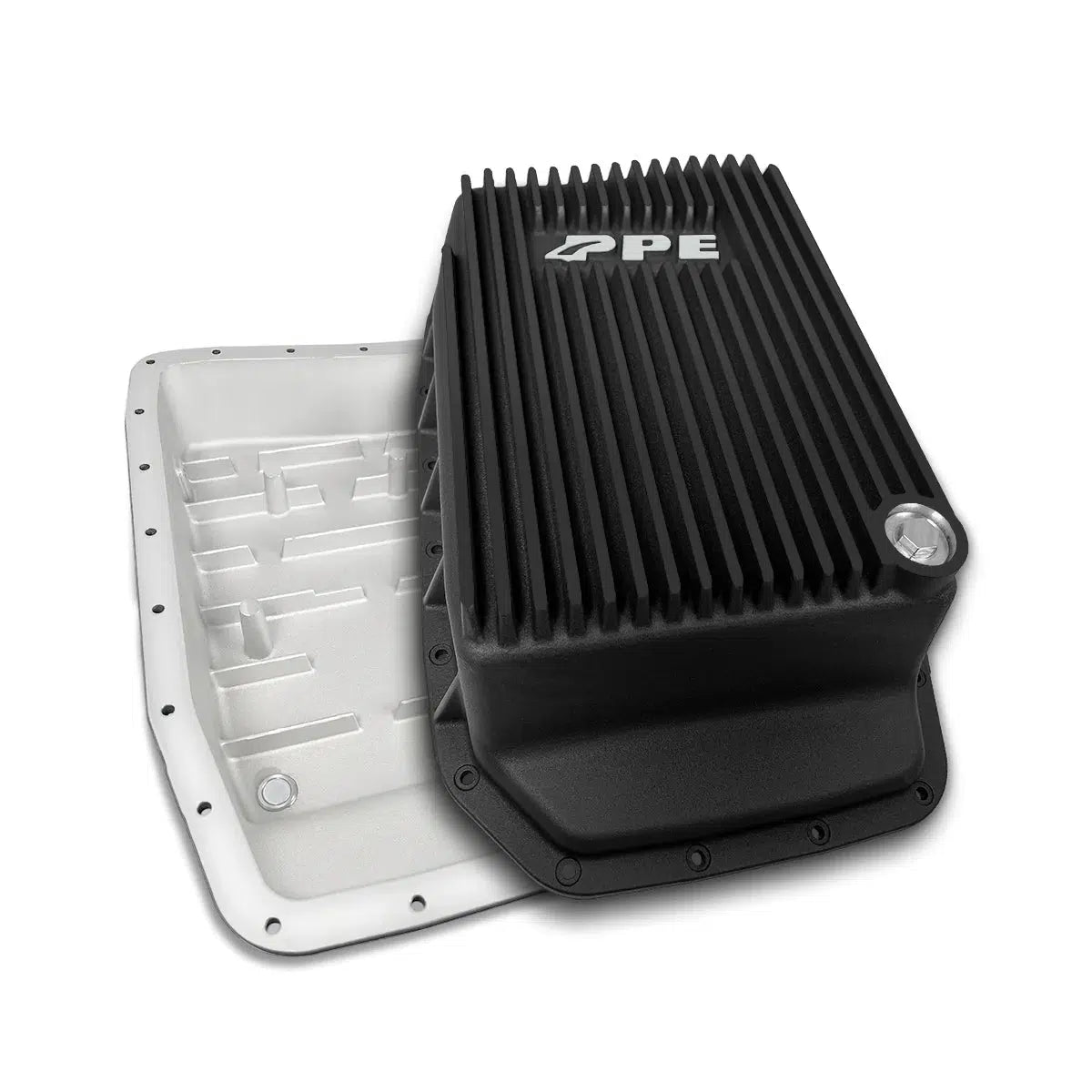

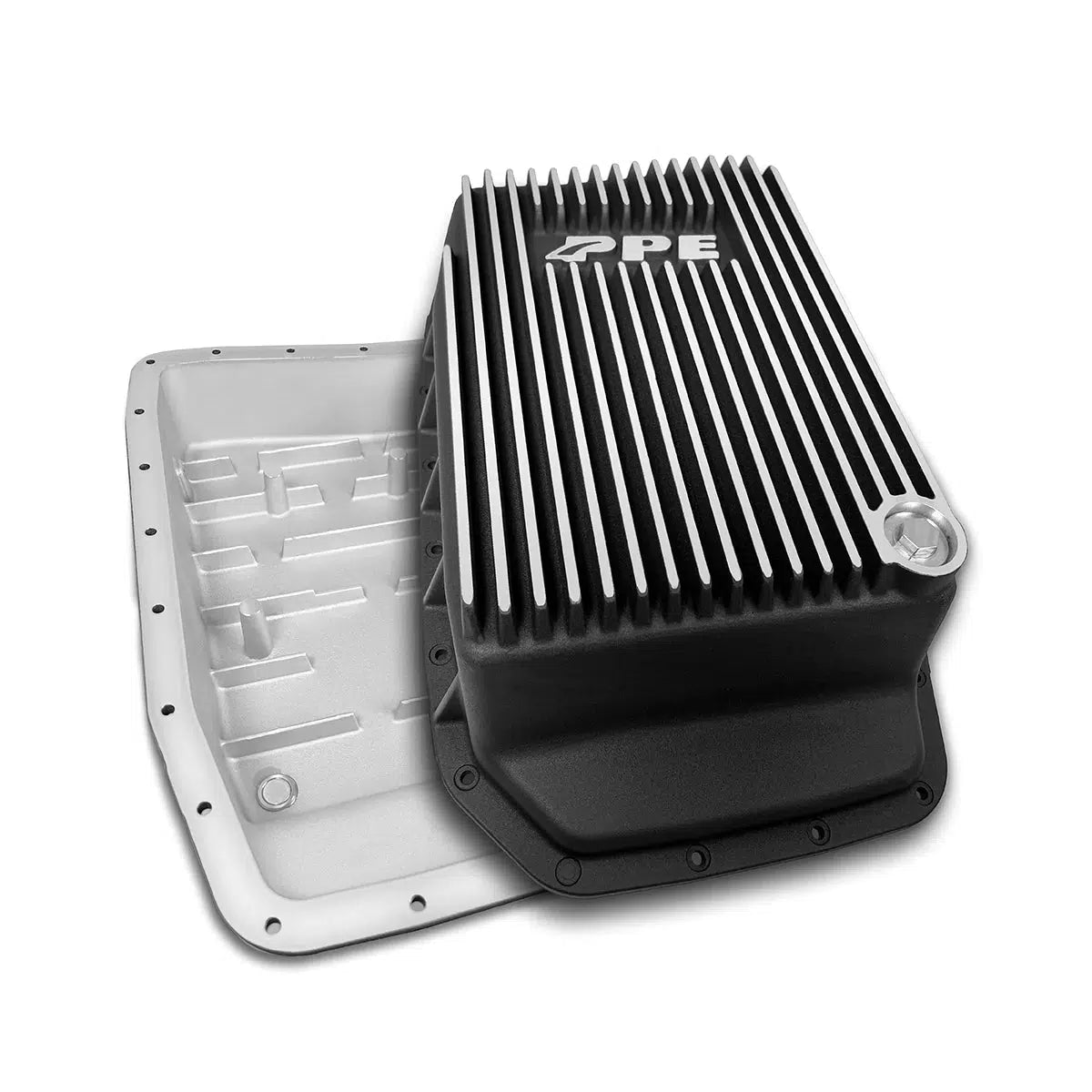

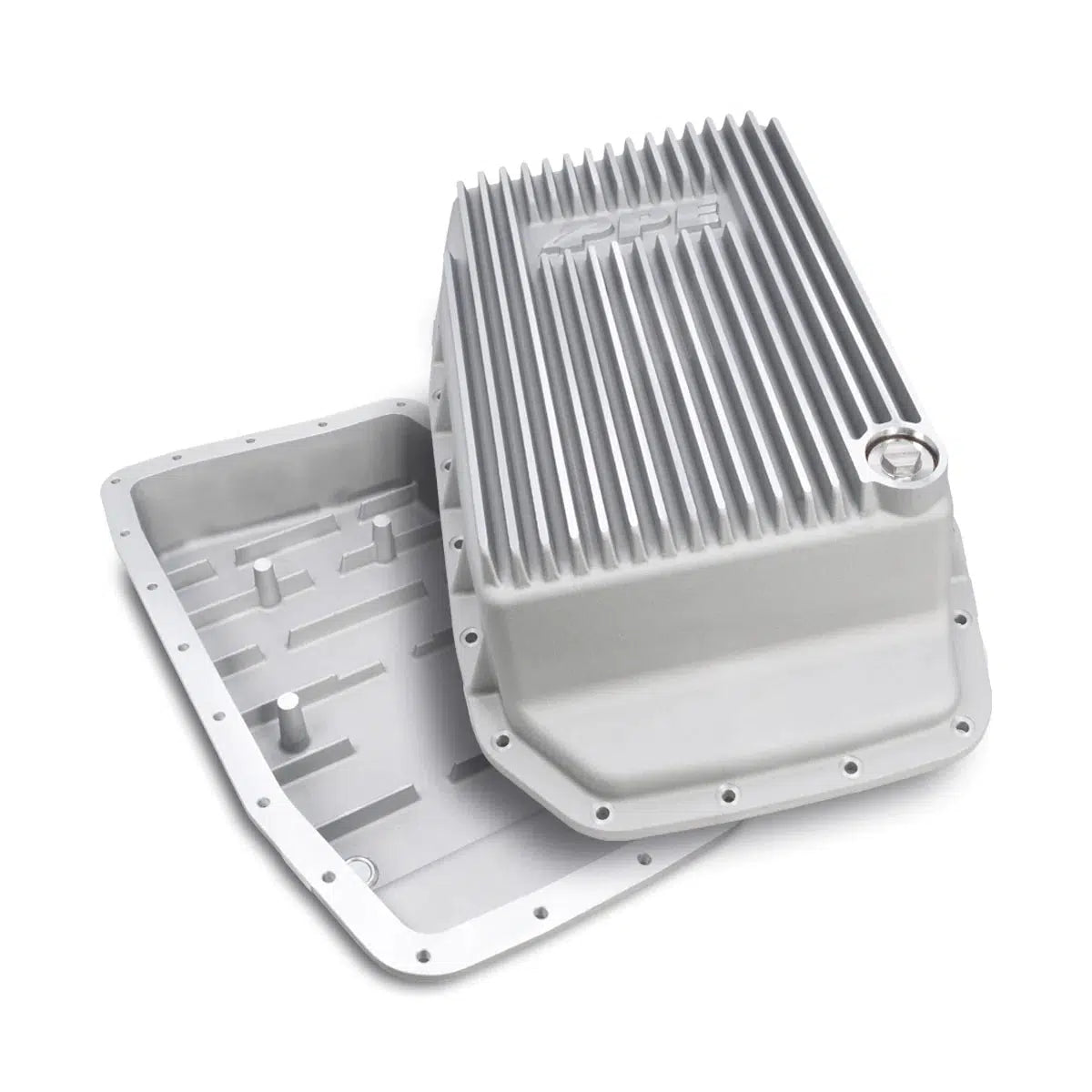

Holding an extra 4.25 quarts of fluid, is cast from high-quality A356.0-T6 aluminum alloy for strength and optimum heat dissipation, & a flat bottom design for complete fluid drain; this deep transmission pan features cast external fins & internal baffles that increase surface area while reducing fluid temp. While the gussets provide strength and support; for an overall robust transmission pan.

Part Number: 328051100

• Deep design increases fluid capacity by 4.25 quarts
• .75" external fins improve heat dissipation, lower transmission fluid temperature, and increase strength

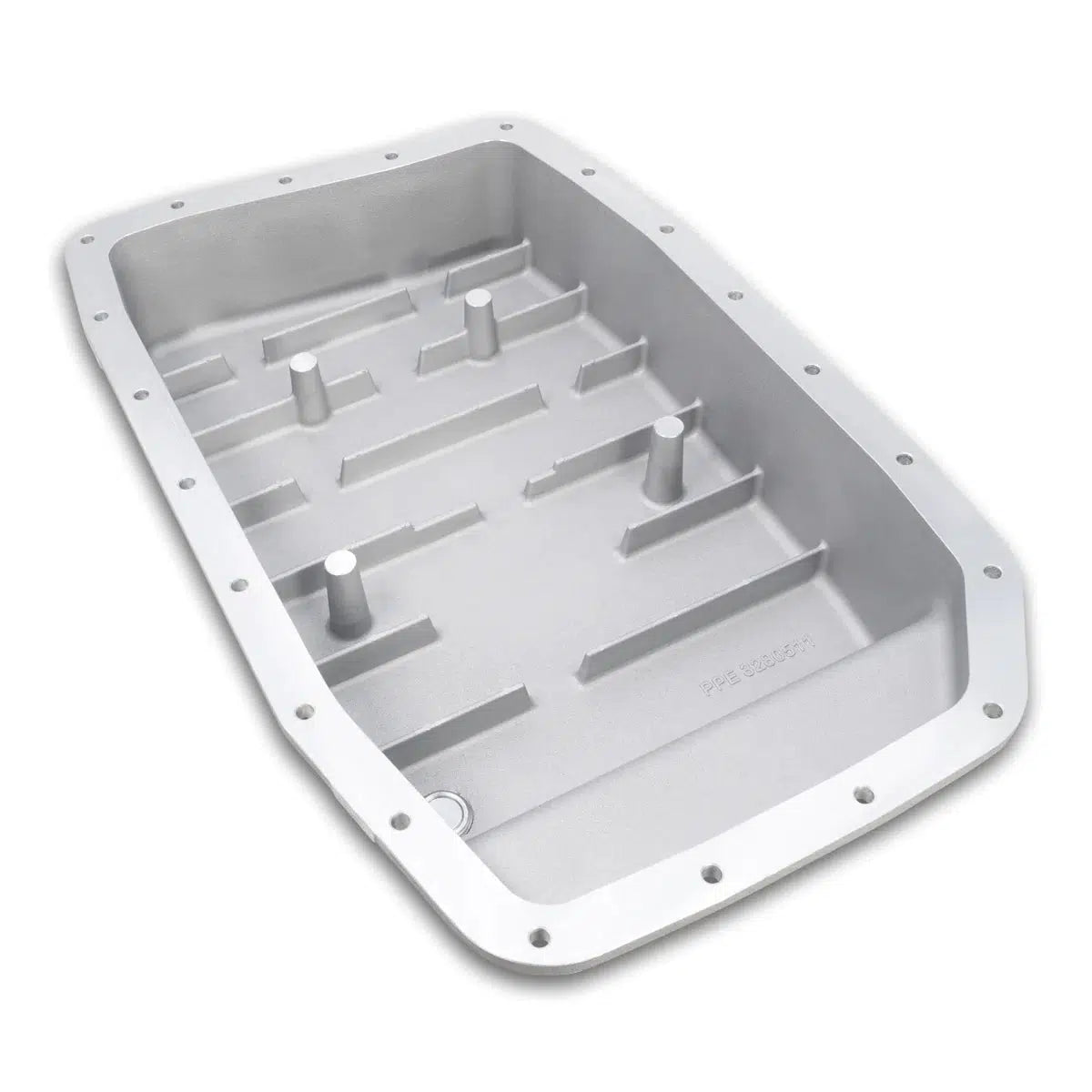

• .75’’ internal baffles increase heat dissipation and reduce fluid sloshing
• Internal posts support trans filter at stock location
• One-inch Neodymium magnet equipped with 304 stainless steel drain plug with Viton O-ring
• 1/8" NPT port for optional fluid temperature monitoring sensor
• Compatible with OEM gasket and filter

Don't see your question? Ask us anything about this product.

• ?

  Will there be any clearance issues for a 2016 2.7 ecoboost? They have the same transmission as the 3.5 ecoboost 6R80 is it only the 5.0 that has clearance issues?

  • No clearance issues: The PPE Deep Cast Transmission Pan will fit your 2016 2.7L EcoBoost without interference.

  • Exhaust routing: The 5.0L V8 is the only model with clearance issues because its Y-pipe runs directly under the pan.

  • Full compatibility: Because the 2.7L and 3.5L EcoBoost exhaust pipes are routed differently, the deeper profile clears the undercarriage perfectly on your 6R80 transmission.

• ?

  Will this fit a 2017 f 150 with a 5.0 V8 and 6r80 transmission?

  Unfortunately the PPE 328051100 will likely not fit your specific truck. While that pan is designed for the 6R80 transmission, there is a known clearance issue specifically with the 2015–2017 F-150 with the 5.0L engine.<!---->

• ?

  Will this oil pan fit a 2011 ford expedition with the 6R80 transmission

  Yes.
