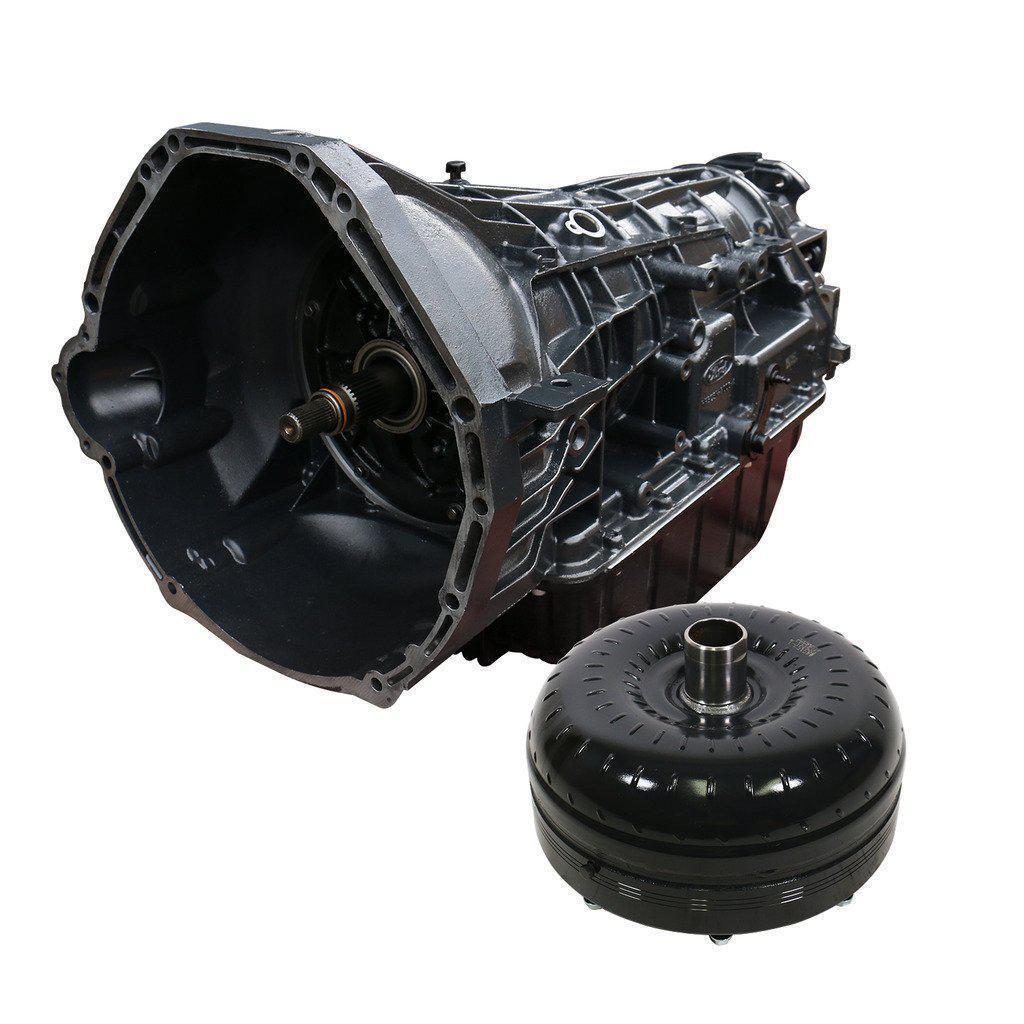

2008-2010 Powerstroke TowMaster 5R110 Transmission & Converter Package (4WD) (1064494SM)

BD Diesel Part Number: 1064494SM
$7,667.00 CAD

Additional Refundable Core Deposit Required of $2,500.00 CAD.

Purchase to earn 7667 Dirty Dollars Learn More

Description

Fits

 Year Make Model Engine
2008-2010
Ford
F-250/F-350 Superduty 4WD 6.4L Powerstroke & 5R110W Trans

Whether it be crossing the finish line at the track or at the end of a long haul towing journey, the BD Diesel 1064494SM Transmission and Torque Converter Package will get you to your final destination. Each and every transmission and torque converter package has been dyno tested together to achieve ultimate performance and reliability. All transmissions from BD also include their very own Heavy-Duty Transmission pan which adds extra fluid capacity, helping to keep your transmission temperature run cooler.

Part Number: 1064494SM

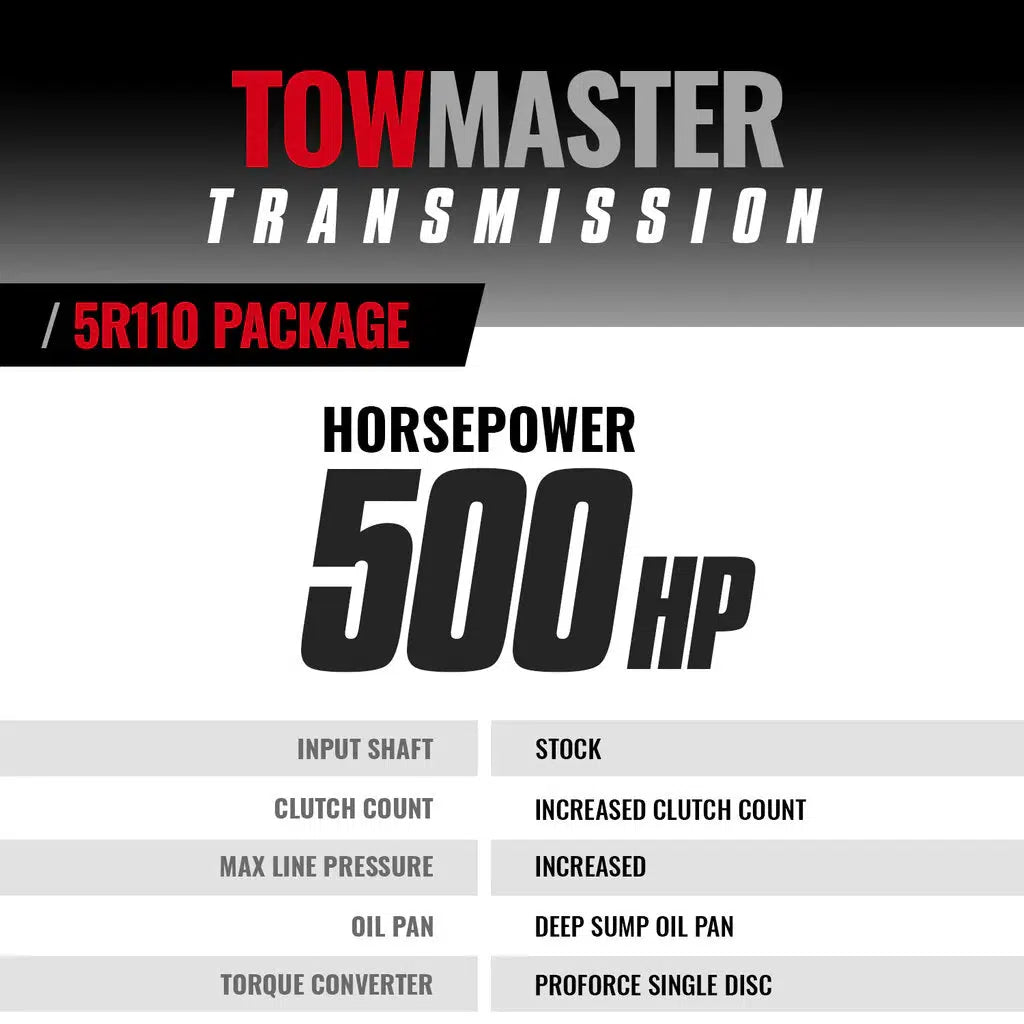

Features

Transmission:

  • Increase the durability of your drivetrain
  • BD aluminum HD deep-pan increases oil capacity by 6qt
  • Upgraded sump filter
  • Replace plastic pressure plugs in the valve body with aluminum
  • Heavy-duty snap ring and blow-off valve to prevent runaway pressure damaging case
  • Reworked front pump
  • Clutch Count: COAST CLUTCH 3
  • Clutch Count: FORWARD 4
  • Clutch Count: LOW REVERSE 6
  • Clutch Count: INTERMEDIATE 5 (67% increase over OEM)
  • Clutch Count: DIRECT 6 (20% increase over OEM)
  • Clutch Count: OVERDRIVE 5 (67% increase over OEM)
  • Each transmission is dyno-tested

Torque Converter:

  • Enhanced Stall - Street/Towing applications
  • Modified stator enhances torque multiplying effect
  • Lower rpm response than the stock converter
  • Three high-performance clutch surfaces
  • More efficient operation
  • Less heat and better fuel economy
  • Stamp-forged steel front cover
  • Furnace-brazed pump/turbine fins
  • Improvements made to increase cooling and lubrication of the clutch plates
  • High Yield Strength forged machined piston
  • HD Damper assembly absorbs close to twice the stock capacity shock load

Installation

Warranty

Parts Only - No Race abuse is covered.

  • 36 Months
  • 150,000 Miles
