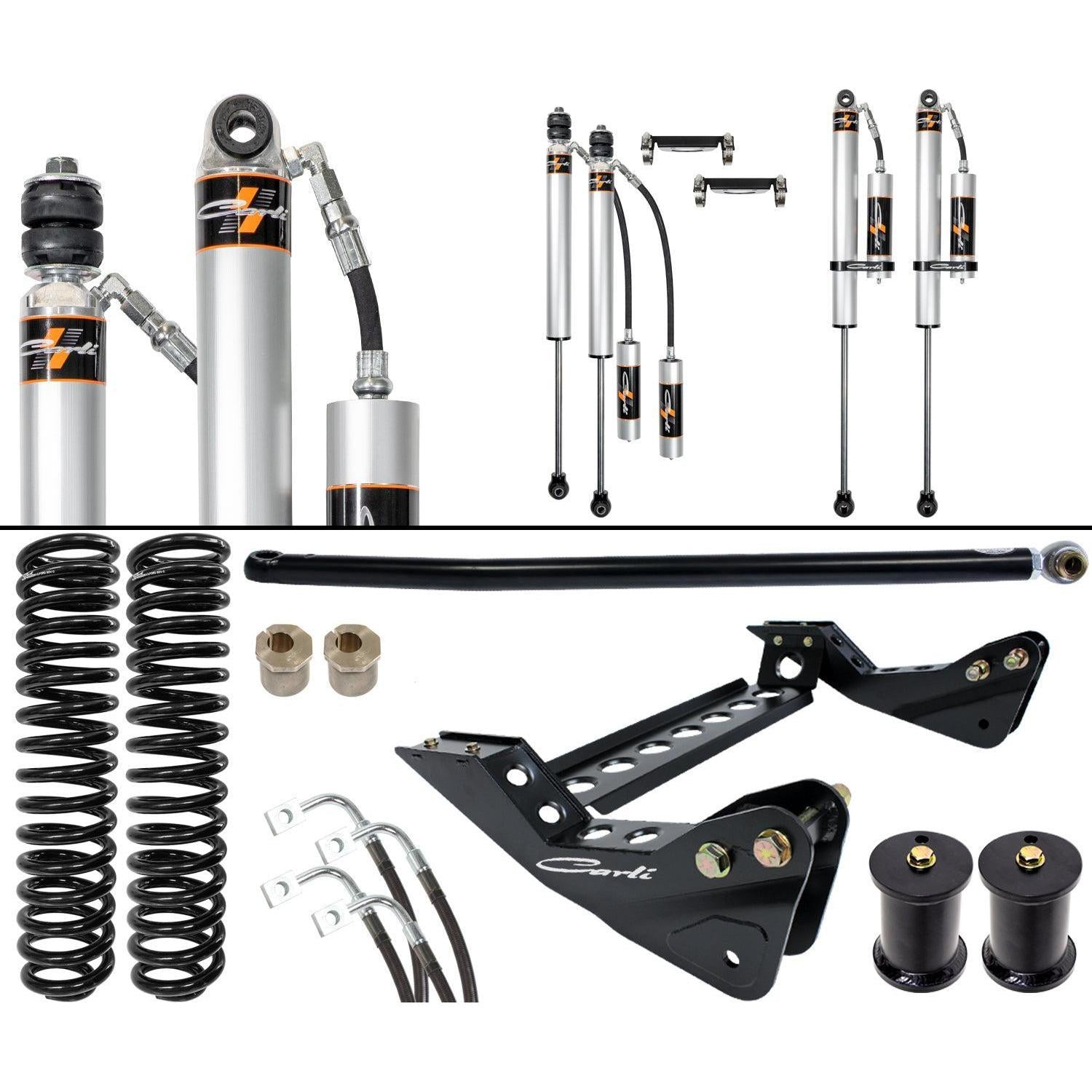

2008-2010 Powerstroke Backcountry 4.5” Lift Kit (CS-F45-BC-CS-08)

Carli Suspension
$5,025.60 CAD
Notices

This item may have additional freight costs. Learn More

Build Your Kit

The perfect comprehensive suspension setup for your Powerstroke, with front progressive-rate coil springs that provide the perfect blend of comfort and control, similar to Multi-rate coil springs, they stay soft for a smooth ride, but stiffen up as more pressure is applied, ideal if you tow or haul frequently. Paired with Carli's 2.0 remote reservoir shocks to further maintain stability, control, and provide superior bottom-out protection.

Sway Bar End Links

Required

Rear Leaf Spring Options

Required

Leaf Spring Shackle

Optional

The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

Carrier Bearing Drop

Optional

Long Travel Bags

Optional

Steering Stabilizer - High mount

Optional

Bolt in replacement for the factory stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains.

Low Mount Steering Stabilizer

Optional

Bolt in steering stabilizer which compliments a Carli, or factory, high mount stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers.

Fabricated Radius Arms

Optional

Subtotal

Purchase to earn 5025  Dirty Dollars Learn More

Description

Fits

Year Make Model
2008 - 2010 Ford F-250 Super Duty
2008 - 2010 Ford F-350 Super Duty

The perfect comprehensive suspension setup for your Powerstroke, with front progressive-rate coil springs that provide the perfect blend of comfort and control, similar to Multi-rate coil springs, they stay soft for a smooth ride, but stiffen up as more pressure is applied, ideal if you tow or haul frequently. Paired with Carli's 2.0 remote reservoir shocks to further maintain stability, control, and provide superior bottom-out protection.

Part Number: CS-F45-BC-CS-08

Features
  • Carli-Tuned remote reservoir 2.0 shocks, which provide a more comfortable on-road feel and better off-road performance
  • Corrosion-resistant aluminum bodies provide a long-lasting finish
  • Front and rear shock package, brake line kit, radius arm drop brackets, bump stop drops, caster correction shims, and adjustable track bar
  • Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance
  • Increases wheel travel to 11.3" front and 13.8" rear
  • 4.5" of front lift and 0-3.5" in the rear

Notes
  • A “Base Kit” SKU must be accompanied by the SKU of a Sway Bar and Leaf Spring option to form a complete system.
