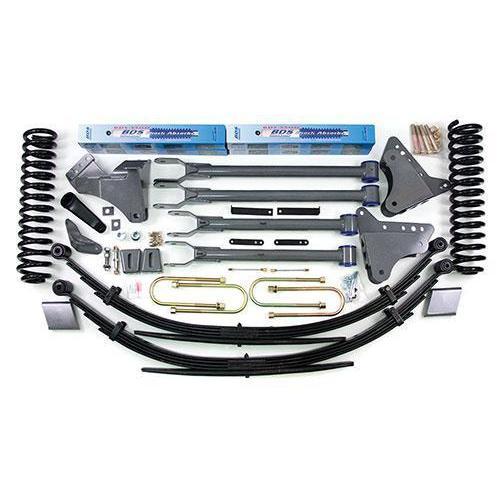

2008-2010 Powerstroke 6" 4 Link Lift Kit (BDS560H)

BDS

Part Number: BDS560H

Mfr Part Number:

Sale price$3,693.10 CAD

(show all inventory)
Available at alternate warehouse - contact for price
This is a special order item, please allow for additional processing time. If you would like an ETA, please reach out prior to placing your order.
Quantity:
This item may have additional freight costs. Learn more
Product images may differ from exact product.
Description

Click here to customize this Kit

Fits

Year Make Model Type
2008-2010 Ford F250/F350 Super Duty 4WD



Your 6.4 is a Powerhouse that can eat up miles like no other! Match the power of the beast under the hood by lifting your truck with a 4-Link conversion 6" lift kit. Designed to make sure you don't lose any control while you increase the stance, this also will reduce caster change through wheel travel maintaining controllability on & off-road.

Part Number: BDS560H

Features
  • 6" ProRide Coil Springs
  • Steering Stabilizer
  • Anti-Sway Bar Drop Brackets
  • Forged Drop Pitman Arm
  • Track Bar Relocation Bracket
  • NX2 Series Shocks
  • 5" Rear Block Kit
  • Clears 37's
  • OE Driveability

Tire & Wheel Combinations:

  • 37" x 13.50" w/ 17 x 9 and 4.5"
  • 37" x 13.50" w/ 18 x 9 and 4.5"
  • 37" x 13.50" w/ 20 x 9 and 4.5"
Notes
  • Removal of the factory block is required.
  • Installation of the rear block kit will result in a "pre-runner" look with the rear of the vehicle 2" lower than the front. To get a level stance you must upgrade to the rear leaf spring option.
  • These trucks were manufactured with and without top-mounted overload springs on the rear leaf springs. A top-mounted overload is an extra leaf separate from the pack that is set above the main leaf. You will need to identify which you have before ordering.
  • If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the options section.
  • Although extremely rare, front driveline vibration may occur.
  • Front exhaust modification may be required to clear the front driveshaft on gas models.
  • U-bolts will not fit dually models.
  • Dropped pitman arm will not fit 10 lug wide track F350 models.
Installation
