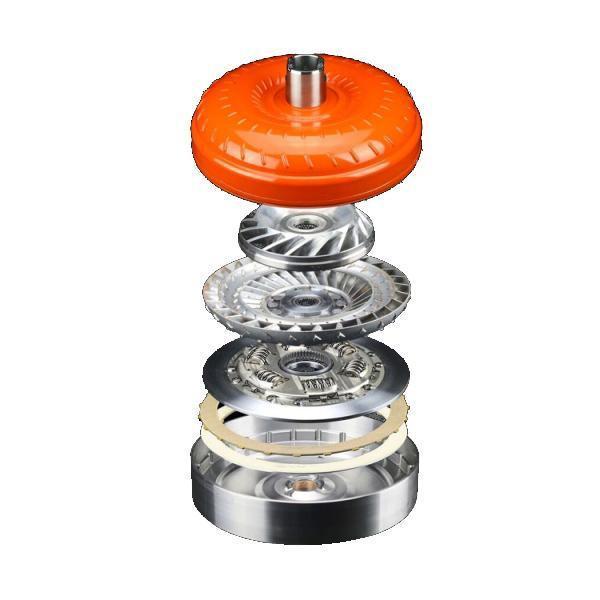

2007.5-2018 Cummins Triple Disc Torque Converter (68RFE-46-3D)

Suncoast Diesel Part Number: 68RFE-46-3D
$2,721.79 CAD


Total w/ Addons:

Additional Refundable Core Deposit Required of $445.00 CAD.

Notices
This item may have additional freight costs. Learn more

Purchase to earn 2721 Dirty Dollars Learn More

Description

Fits

 Year Make Engine
2007.5-2018 Dodge Ram
6.7L Cummins 68RFE


This triple disc torque converter for the 2007-Current 68RFE equipped 6.7L Cummins is manufactured and assembled at SunCoast. Boasting more than 3.4x the lockup clutch surface apply area over stock (8.7" vs. 29.7") and distributing the load over three separate surface apply areas, SunCoast's triple disc converters are sure to put all of the power to the ground. Starting with a solid chunk of steel, the cover is machined to exact specifications. Utilizing SunCoast's exclusive trapezoidal teeth design, the lockup portion of the converter is seamlessly integrated into the cover, eliminating a weak point and common source of chatter.

An upgraded billet lockup apply piston is able to transfer a much higher pressure to the lockup clutch without sacrificing durability. Instead of the factory-style plastic stator cap/thrust spacer, SunCoast utilizes a metal Torrington roller style bearing, which is better suited to take the heat, as well as wear and tear. The turbine assembly is TIG reinforced and heat-treated. This exponentially increases its lifespan under harsh conditions. Stall on this model is approximately 2000 RPM, and much more efficient at energy transfer than the factory offering.

Part Number: 68RFE-46-3D

Features

  • 1900-2000RPM Stall
  • Forged billet steel covers
  • Billet aluminum stators
  • Pressure tested welds
  • Spun balanced on Stewart Warner pro-bal
  • Furnace brazed & tig welded
  • Signature trapezoid clutch teeth (no Round tabs)
  • 3 year warranty
