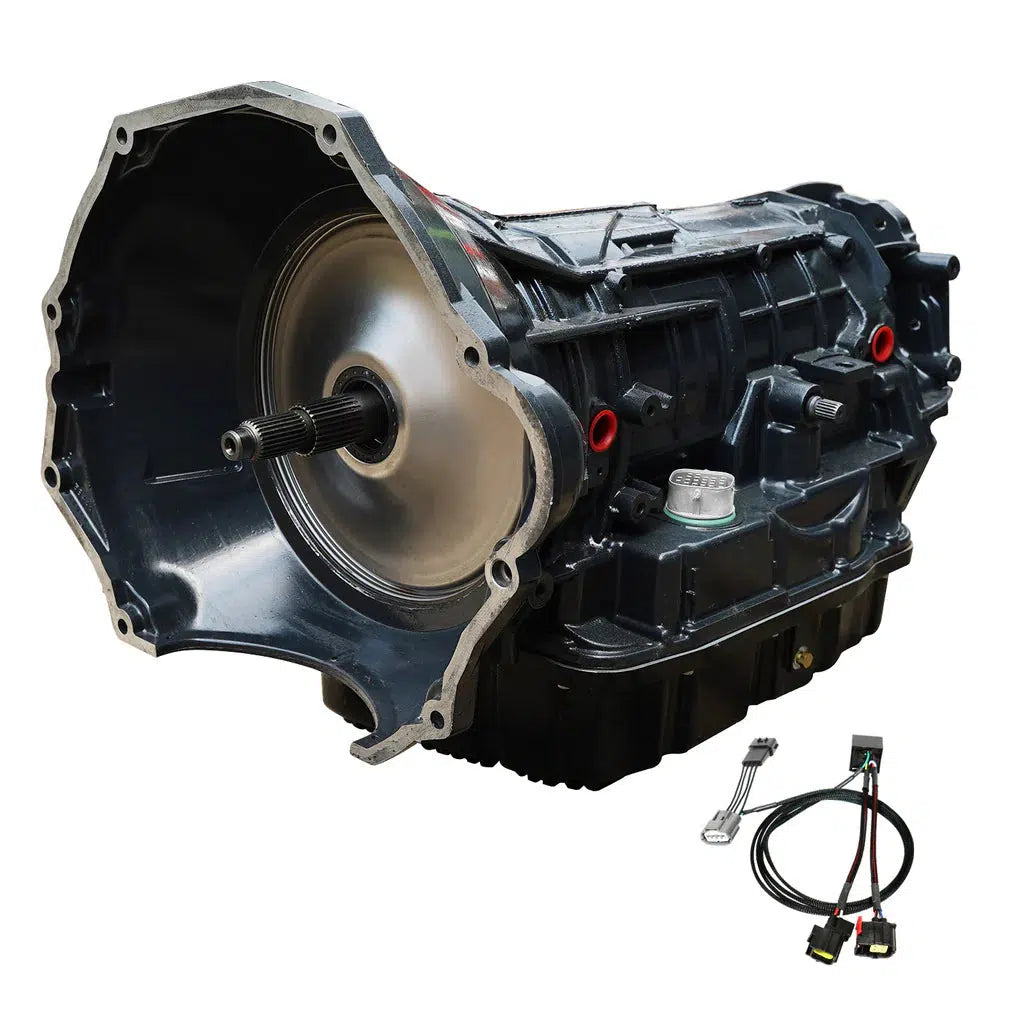

2007.5-2018 Cummins Towmaster 68RFE Transmission (2WD) (1064262)

BD Diesel Part Number: 1064262
$8,066.00 CAD

Additional Refundable Core Deposit Required of $2,500.00 CAD.

Purchase to earn 8066 Dirty Dollars Learn More

Description

Fits

 Year Make Model Engine
2007.5-2018 Dodge Ram
2500/3500 2WD 6.7L Cummins & 68RFE

When you purchase a BD transmission and torque converter package, you're snagging a perfectly paired duo that has been put to the test on the dyno for maximum performance and reliability. Each BD transmission also includes BD's own heavy-duty pan for added fluid space. Whether you're towing, hitting the streets, or dominating the track, when it comes to a reliable transmission that can handle your diesel's force and strength, BD is the obvious go-to choice.

Part Number: 1064262

Features

  • Hard anodized valve body and new solenoid pack installed in every unit
  • Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
  • Heavy duty cam & roller design low reverse one way clutch
  • New 4C billet spring retainer
  • Steel girdle added to 2C piston to allow for more clutches and broader apply area
  • BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
  • Over Drive clutches 33% increase & 2C clutches 33% increase

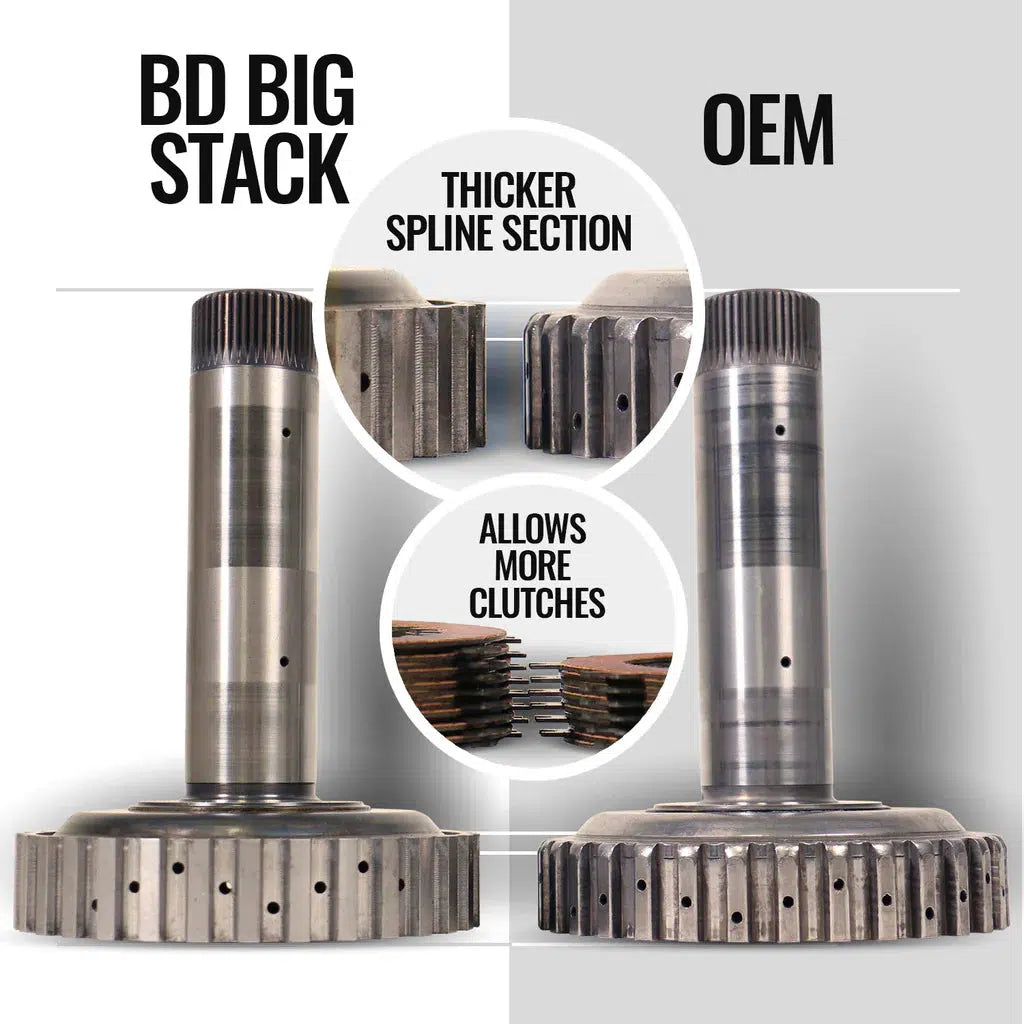

  • Custom Big Stack overdrive shaft
  • BD reinforced accumulator plate
  • TCC limit valve machined and sleeved to address high wear area with in pump
  • BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
  • BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required

Installation

Warranty

Parts Only - No Race abuse is covered.

  • 36-Months
  • 150,000 Miles
  • BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty
  • Warranty Form
